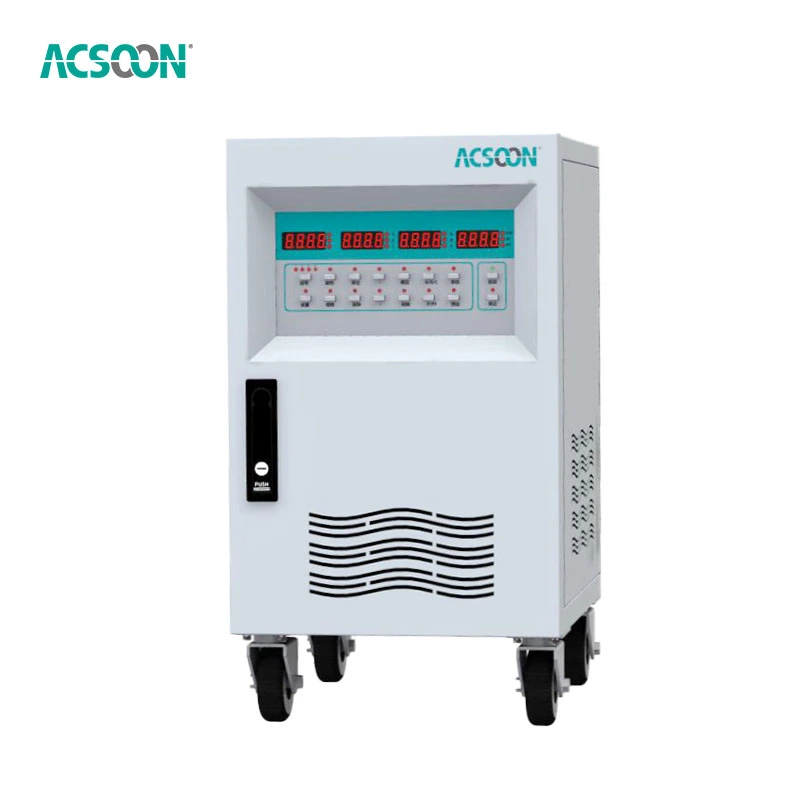

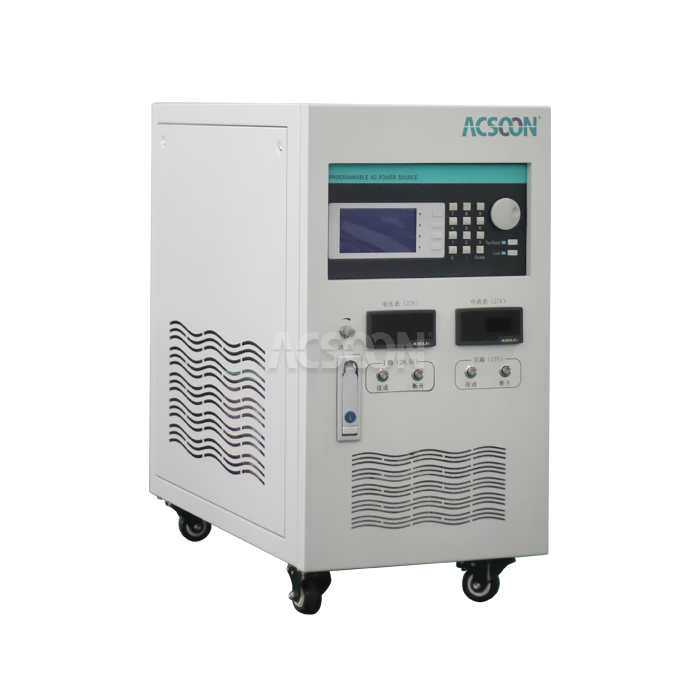

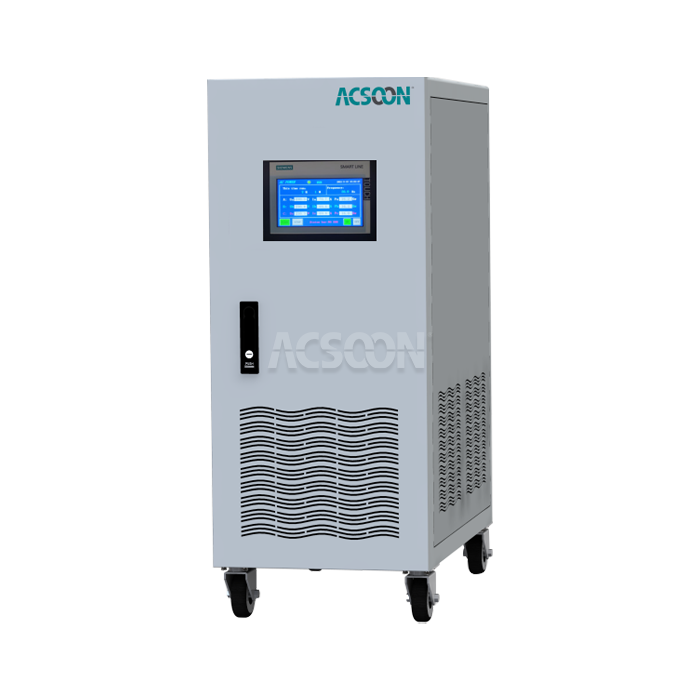

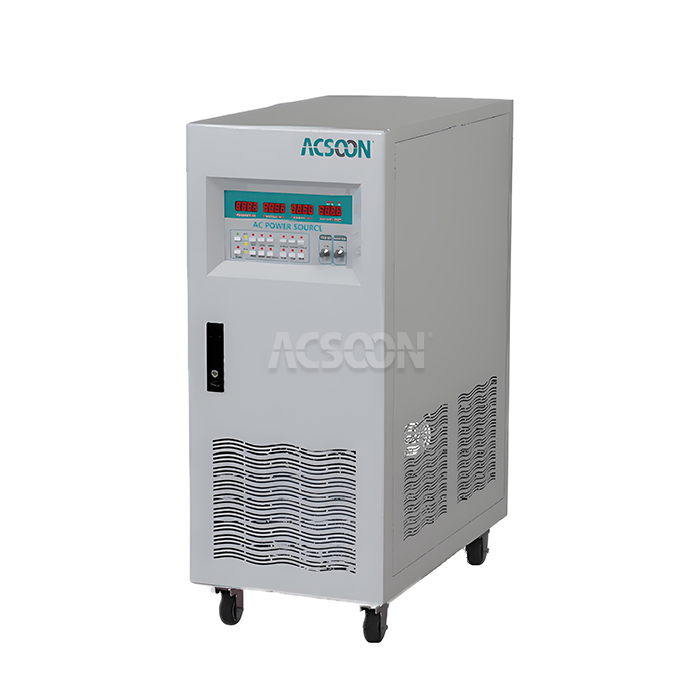

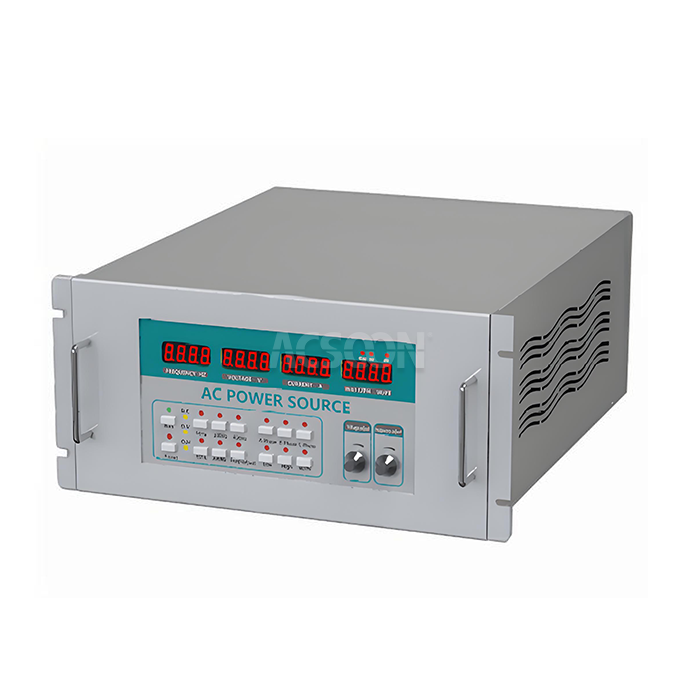

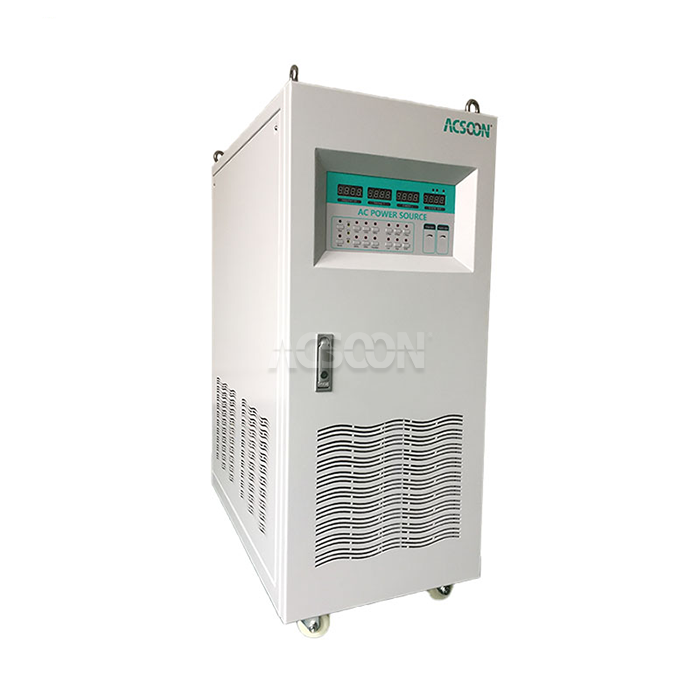

115V 400 Hz frequency convertor
2.Input Power: 208V/400V/480V, three-phase, 50Hz/60Hz
3.Output Specification: 115V/200V 400Hz, three-phase four-wire
4.Frequency Stability: ±0.01% with crystal-controlled precision
5.Voltage Regulation: ±1% under varying load conditions
6.Key Applications: Aircraft ground power, avionics testing, aerospace equipment
7.Key Applications: International equipment operation, manufacturing, testing facilities
8.Brand: ACSOON (support OEM)
9.Cooling System: Intelligent temperature-controlled forced air cooling.
- Product Description
XI'AN JERRYSTAR INSTRUMENT CO., LTD presents the specialized 115V 400 Hz Frequency Convertor, engineered for aviation and aerospace applications requiring precise 400Hz power. Our 115V 400 Hz Frequency Convertor delivers stable and clean 400Hz power that meets stringent aviation standards, ensuring reliable operation of aircraft systems and avionics equipment.
Technical Specification
| PARAMETER | SPECIFICATION |
|---|---|
| INPUT | |
| Voltage | 208V/400V/480V ±15% |
| Frequency | 50Hz/60Hz ±5% |
| Phase | Three-phase + Neutral |
| OUTPUT | |
| Voltage | 115V/200V ±1% |
| Frequency | 400Hz ±0.01% |
| Waveform | Pure Sine Wave THD<2% |
| PERFORMANCE | |
| Efficiency | ≥92% at full load |
| Response Time | <15ms for load changes |
| Load Regulation | ±1% (0-100% load) |
| PROTECTION | |
| Input | Over voltage, under voltage, phase loss |
| Output | Overload, short circuit, over temperature |
| ENVIRONMENTAL | |
| Operating Temperature | -20°C to 50°C |
| Cooling | Intelligent forced air cooling |
| Protection Grade | IP21 (IP54 optional) |
115V 400 Hz frequency convertor Main Features
- Isolated output transformer,suitable for any unbalance loads, each single phase can be used independently
- EMC compatible
- Compatible with both 50Hz and 60Hz power supply network
- Low harmonic distortion
- Pure sine wave,sinusoidal output
- Completely protection and alarm for over voltage, over current and overheating, etc
- Display real-time data: voltage,current,frequency, power / power factor
Why Choose ACSOON 115V 400 Hz Frequency Convertor?
ACSOON 115V 400 Hz Frequency Convertor offers exceptional advantages for aviation power applications:
Aviation Standard Compliance: Meets MIL-STD-704F aircraft power quality requirements
Precise Frequency Control: Crystal-controlled accuracy with ±0.01% stability
Pure Sine Wave Output: Clean power with THD<2% for sensitive avionics
Robust Construction: Industrial-grade components for reliable operation
Advanced Monitoring: Comprehensive digital display and remote control capability
Application Areas
Our 115V 400 Hz Frequency Convertor serves critical functions in aviation and related industries:
Aircraft Ground Power: Power supply during aircraft maintenance and testing
Avionics Testing: Development and testing of aircraft electronic systems
Aerospace Manufacturing: Production testing of aircraft components
Military Applications: Ground power for military aircraft operations
Research Laboratories: Aerospace research and development facilities
Maintenance Facilities: Aircraft system verification and maintenance procedures
Our Services
Quality Control
Each 115V 400 Hz Frequency Convertor undergoes rigorous aviation-grade testing:
Frequency accuracy and stability validation
Load performance testing with aviation-grade equipment
Environmental testing for operational temperature range
Safety certification to international aviation standards
Final calibration with precision measurement instruments
R&D Results
Our technical innovations in 115V 400 Hz Frequency Convertor technology include:
Enhanced frequency stability through advanced control algorithms
Improved power conversion efficiency
Smart thermal management for continuous operation
Reduced electromagnetic interference
Modular design for easy maintenance and service
Packaging and Transportation
We ensure secure delivery of every 115V 400 Hz Frequency Convertor:
Aviation-grade packaging with adequate protection
Custom packaging solutions for international shipping
Comprehensive documentation including calibration certificates
Global logistics support with professional handling
After-Sales Service
We provide dedicated support for all 115V 400 Hz Frequency Convertor installations:
Technical assistance for aviation applications
Calibration services to maintain precision performance
Remote troubleshooting and diagnostic support
Operator training for optimal system utilization
Rapid response for critical technical requirements
Qualification Certification
FAQ |
|---|
| Q1: Why is 400Hz power used in aircraft applications? |
| A: 400Hz allows for smaller and lighter electrical components in aircraft systems, which is critical for weight savings and efficiency in aviation applications. |
| Q2: What aircraft types are compatible with your 115V 400 Hz Frequency Convertor? |
| A: Our systems are compatible with most commercial and military aircraft requiring 115V/200V 400Hz ground power. |
| Q3: Can your convertor operate from different input power sources? |
| A: Yes, our systems support various input voltages from 208V to 480V, three-phase, 50Hz/60Hz. |
| Q4: What protection features are included in your 115V 400 Hz Frequency Convertor? |
| A: Standard protections include over voltage, over current, short circuit, overload, and thermal protection with comprehensive alarm systems. |
| Q5: What is the typical delivery time for the 115V 400 Hz Frequency Convertor? |
| A: Standard units are typically available within 3-4 weeks, with expedited options available for urgent aviation requirements. |
