3 Phase Frequency Inverter

1.Power Range: 0.75KW to 630KW, multiple power ratings
2.Input Voltage: 380V/400V/415V/480V, 3-phase, 50Hz/60Hz
3.Output Frequency: 0-400Hz adjustable, precise digital control
4.Output Voltage: 0-480V AC, 3-phase variable output
5.Control Method: Space Vector PWM (SVPWM) technology
6.Efficiency Rating: ≥97.5% with advanced IGBT modules
7.Key Applications: Motor speed control, industrial automation, pump systems
8.Brand: ACSOON (support OEM)
9.Protection Class: IP20 standard, optional IP54 available.

Send Inquiry Download

Product Description

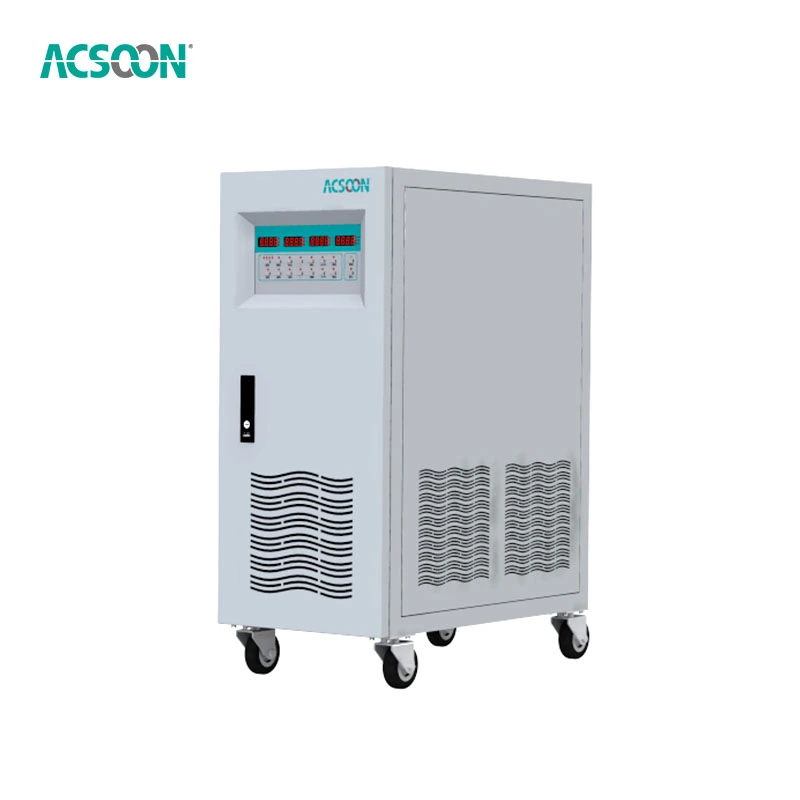

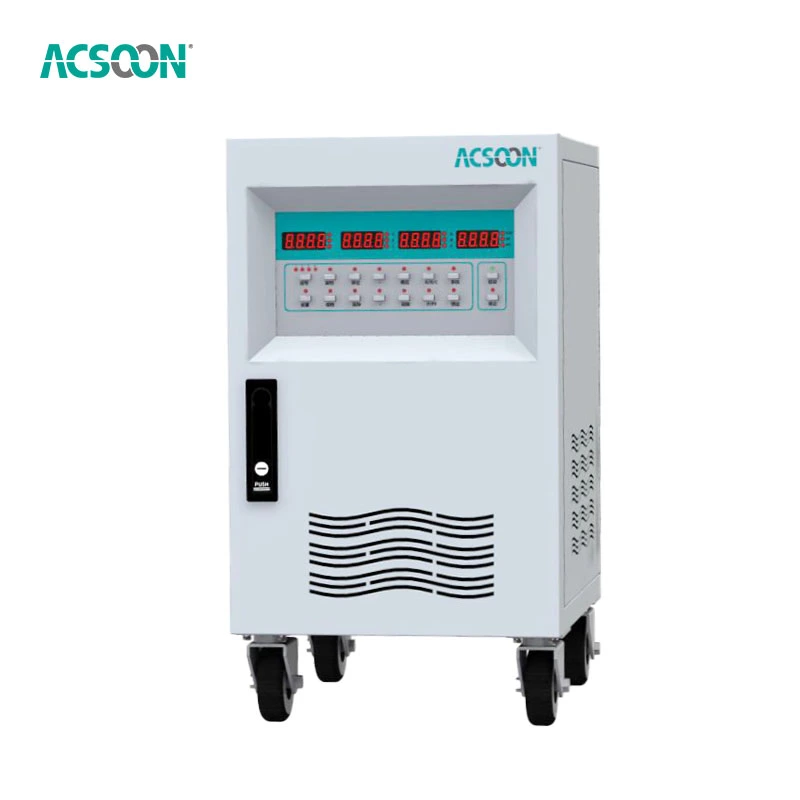

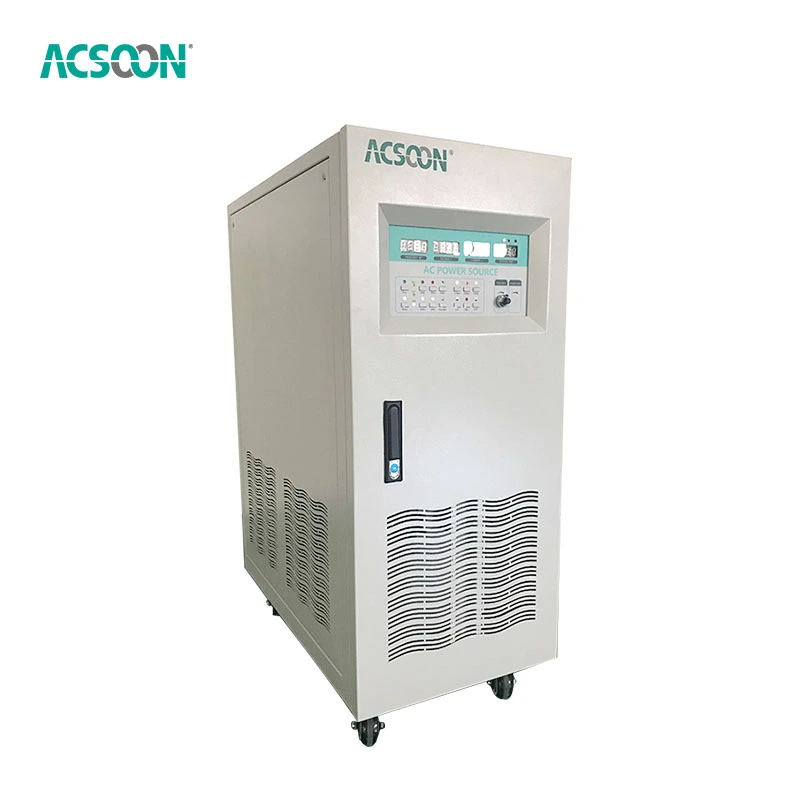

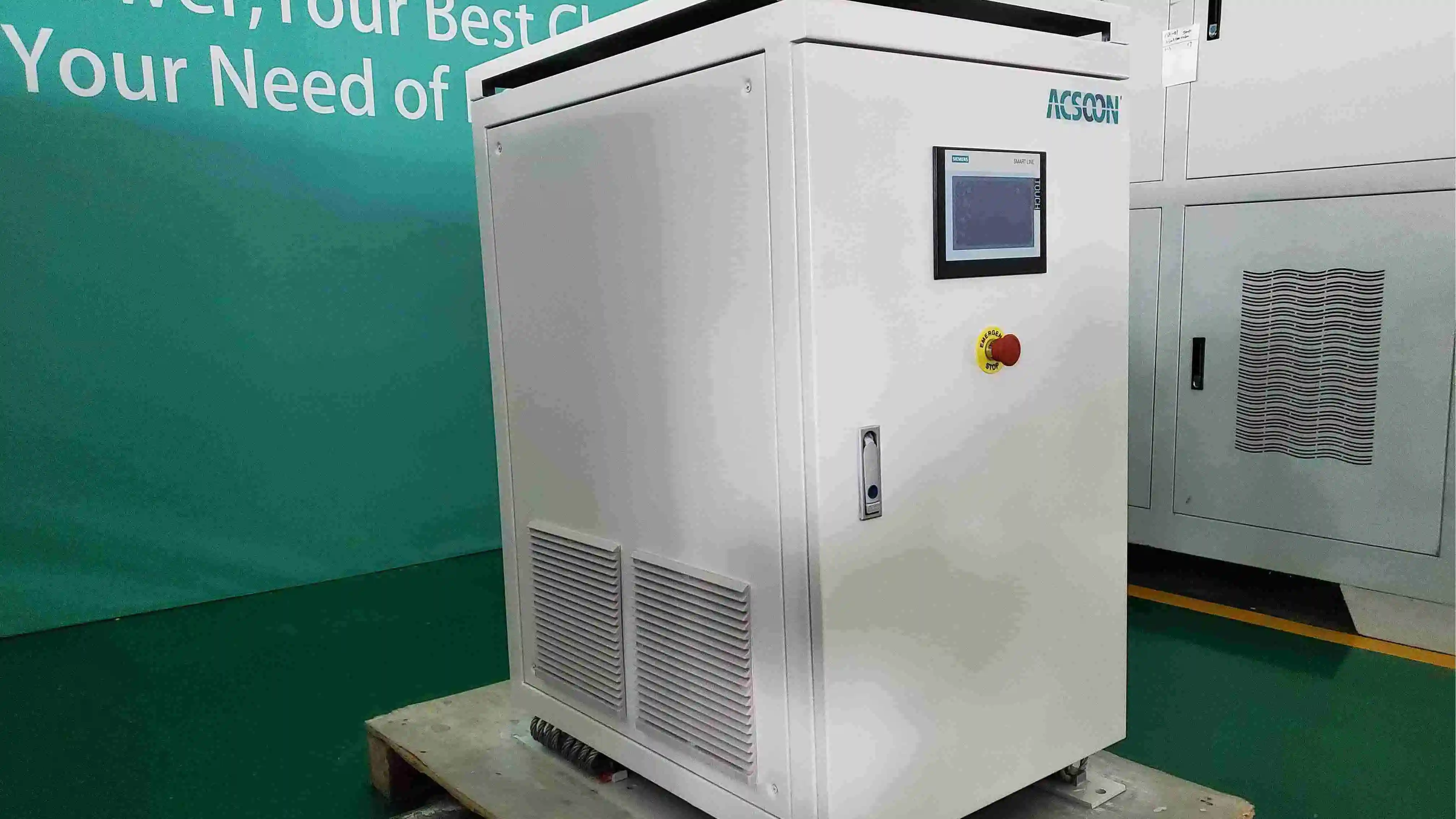

3 Phase Frequency Inverter | Variable Frequency Drive System

XI'AN JERRYSTAR INSTRUMENT CO., LTD introduces the advanced 3 Phase Frequency Inverter, designed for precise motor speed control and energy optimization in industrial applications. Our 3 Phase Frequency Inverter provides reliable variable frequency operation with exceptional control accuracy and robust performance for various three-phase motor applications.

Technical Specifications

Feature	Specification
Capacity (Single Phase Output)	1kVA - 200kVA
Capacity (Three Phase Output)	1kVA - 2000kVA
Input Voltage (Single Phase)	110-230VAC ±20%
Input Voltage (Three Phase)	200-440VAC ±20%
Input Frequency	50/60HZ or 40-70HZ
Output Voltage (Single Phase)	0-300Vac
Output Voltage (Three Phase)	0-520Vac
Output Frequency	50/60/100/200/400HZ or 40-800HZ adjustable
Frequency Regulation	≤0.1%
Voltage Regulation	±1%
Output VTHD	<3% @ Linear load
Response Time	≤2ms
Power Factor	≥0.8 (Standard), ≥0.9 (12 Pulse Optional)
Overall Efficiency	≥85%
Overload Capacity	125% for 60s, 150% for 30s
Working Temperature	-10°C to 50°C
Altitude	<1800m

3 Phase Frequency Inverter Main Features

Isolated output transformer,suitable for any unbalance loads, each single phase can be used independently
EMC compatible
Compatible with both 50Hz and 60Hz power supply network
Low harmonic distortion
Pure sine wave,sinusoidal output
Completely protection and alarm for over voltage, over current and overheating, etc
Display real-time data: voltage,current,frequency, power / power factor

Why Choose ACSOON 3 Phase Frequency Inverter?

ACSOON 3 Phase Frequency Inverter offers superior features for industrial motor control:

Precise Speed Control: Accurate frequency regulation for optimal motor performance
Energy Saving: Significant power savings through optimized motor operation
Multiple Control Modes: V/F control, sensorless vector control, and closed-loop vector control
Robust Design: Industrial-grade construction for harsh environments
Smart Protection: Comprehensive motor and system protection features

Application Areas

Our 3 Phase Frequency Inverter serves multiple industrial sectors:

Industrial Motors: Speed control for pumps, fans, and compressors
Manufacturing Lines: Conveyor systems and production machinery
HVAC Systems: Building automation and climate control
Water Treatment: Pump control and flow regulation
Material Handling: Crane and hoist control systems
Processing Industries: Mixer and extruder speed control

Our Services

Quality Control

Each 3 Phase Frequency Inverter undergoes stringent quality assurance:

Component-level testing and validation
Full-load performance testing with motor loads
Environmental testing for industrial conditions
EMC compliance testing and certification
Final calibration and functional verification

R&D Results

Our technical innovations in 3 Phase Frequency Inverter technology include:

Advanced cooling technology for improved thermal performance
Enhanced control algorithms for better dynamic response
Reduced harmonic distortion with optimized PWM patterns
Smart energy optimization algorithms
Modular design for easy maintenance and upgrades

Packaging and Transportation

We ensure secure delivery of every 3 Phase Frequency Inverter:

Industrial-grade packaging with shock protection
Custom packaging for different power ratings
Complete documentation including programming manuals
Global logistics support with professional handling

After-Sales Service

We provide comprehensive support for all 3 Phase Frequency Inverter installations:

Technical support for application programming
On-site commissioning and parameter optimization
Preventive maintenance and performance monitoring
Software updates and firmware upgrades
Operator training and technical documentation

Qualification Certification

FAQ
Q1: What types of motors are compatible with your 3 Phase Frequency Inverter?
A: Our inverter is compatible with standard three-phase asynchronous motors and permanent magnet synchronous motors.
Q2: Can your 3 Phase Frequency Inverter operate multiple motors simultaneously?
A: Yes, it can control multiple motors in parallel, with appropriate parameter settings and protection coordination.
Q3: What communication interfaces are available?
A: Standard interfaces include RS485, with optional Profibus, DeviceNet, and Ethernet interfaces available.
Q4: How does your 3 Phase Frequency Inverter help save energy?
A: Through optimized motor speed control and automatic energy-saving algorithms, it reduces energy consumption by matching motor speed to actual load requirements.
Q5: What is the installation requirement for your 3 Phase Frequency Inverter?
A: Installation requires adequate clearance for ventilation, proper grounding, and compliance with local electrical regulations for variable speed drives.
