48V 3 Phase Inverter

1.Power Range: 5KVA to 300KVA scalable capacity
2.Input Voltage: 48VDC to 600VDC battery systems
3.Output Configuration: 380V/400V/415V three-phase AC
4.Output Frequency: 50Hz/60Hz selectable, ±0.1% accuracy
5.Waveform Type: Pure sine wave, THD <3%
6.Efficiency Rating: ≥94% at full load
7.Key Applications: Industrial backup power, motor drives, equipment testing
8.Brand: ACSOON (support OEM)
9.Cooling System: Smart fan control with temperature monitoring.

Send Inquiry Download

Product Description

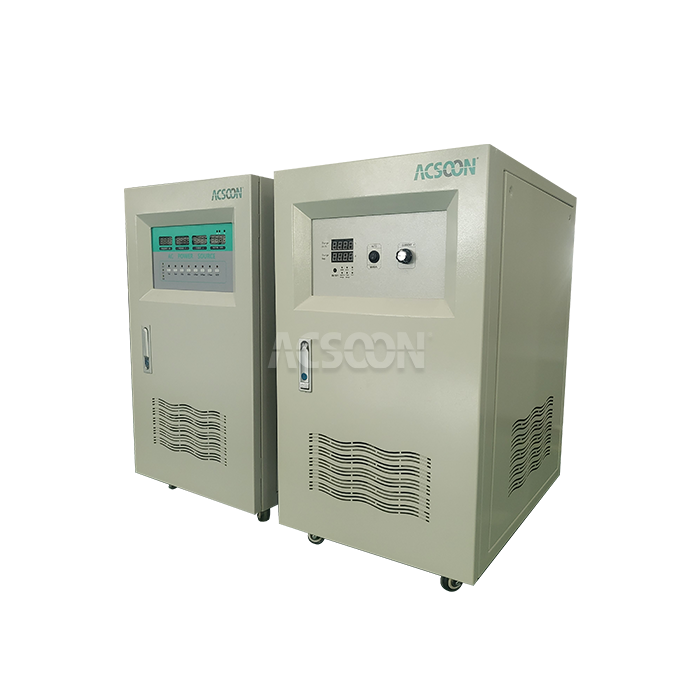

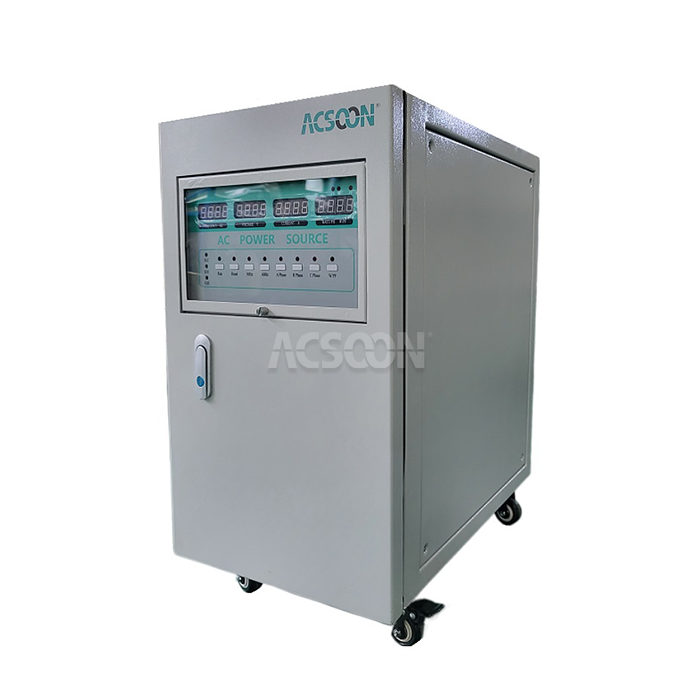

48V 3 Phase Inverter | Industrial Three Phase Power Conversion System

XI'AN JERRYSTAR INSTRUMENT CO., LTD introduces the advanced 48V 3 Phase Inverter, designed to convert DC power to stable three-phase AC power for industrial applications. Our 48V 3 Phase Inverter delivers reliable performance with pure sine wave output, making it ideal for industrial equipment, motor drives, and critical power backup systems requiring three-phase power supply.

Technical Specification

PARAMETER	SPECIFICATION
INPUT
DC Voltage Range	48-600VDC
DC Voltage Tolerance	±15%
OUTPUT
AC Voltage	380V/400V/415V ±1%
Frequency	50Hz/60Hz ±0.1%
Waveform	Pure Sine Wave THD<3%
Power Factor	0.8 lagging to 0.8 leading
PERFORMANCE
Efficiency	≥94% at full load
Overload Capacity	125% for 60 minutes, 150% for 1 second
Response Time	<10ms for voltage changes
PROTECTION
DC Input	Reverse polarity, over voltage, under voltage
AC Output	Overload, short circuit, over temperature
ENVIRONMENTAL
Operating Temperature	-10°C to 45°C
Cooling	Smart forced air cooling
Protection Grade	IP21 (IP54 optional)
Noise Level	<65dB at 1 meter

48V 3 Phase Inverter Main Features

Isolated output transformer, suitable for any unbalance loads.Every single phase can be used independently
EMC compatible lower noise
Galvanically isolated, low harmonic distortion
Pure sine wave,sinusoidal output
Frequency and voltage adjustable
Display real-time data: voltage,current,frequency, power / power factor

Why Choose ACSOON 48V 3 Phase Inverter?

ACSOON 48V 3 Phase Inverter provides superior advantages for industrial power conversion:

High Efficiency Operation: Advanced IGBT technology ensures minimal power loss

Pure Sine Wave Output: Clean power compatible with sensitive industrial equipment

Wide Input Range: Compatible with various DC battery systems from 48V to 600V

Robust Protection: Comprehensive DC and AC side protection systems

Smart Control: Digital monitoring and remote communication capabilities

Application Areas

Our 48V 3 Phase Inverter serves multiple industrial sectors:

Industrial Backup Power: Three-phase UPS systems for manufacturing facilities

Motor Drives: Variable speed motor control applications

Renewable Energy Systems: Industrial-scale energy storage systems

Telecommunications: Base station backup power systems

Marine Applications: Shipboard equipment power supply

Remote Sites: Off-grid industrial operations

Our Services

Quality Control

Each 48V 3 Phase Inverter undergoes comprehensive testing:

Component-level testing and validation

Full-load performance testing with motor loads

Thermal management validation

Safety certification to international standards

Final calibration and performance verification

R&D Results

Our technical innovations in 48V 3 Phase Inverter technology include:

Advanced maximum power point tracking algorithms

Enhanced thermal management for high-temperature environments

Smart battery management and charging control

Reduced electromagnetic interference

Modular design for easy maintenance

Packaging and Transportation

We ensure secure delivery of every 48V 3 Phase Inverter:

Industrial-grade packaging with adequate protection

Custom packaging for different power ratings

Complete documentation including installation manuals

Global logistics support with tracking services

After-Sales Service

We provide comprehensive support for all 48V 3 Phase Inverter installations:

Technical assistance for system integration

Installation guidance and commissioning support

Maintenance services and performance optimization

Remote troubleshooting capabilities

Operator training programs

Qualification Certification

FAQ
Q1: What types of batteries are compatible with your 48V 3 Phase Inverter?
A: Our inverters are compatible with lead-acid, lithium-ion, and other battery types from 48V to 600V DC systems.
Q2: Can your 48V 3 Phase Inverter handle motor starting currents?
A: Yes, our inverters are designed with high surge capacity to handle motor starting currents and inductive loads.
Q3: What communication interfaces are available?
A: Standard interfaces include RS485/Modbus, with optional Ethernet and CAN bus interfaces.
Q4: How does your 48V 3 Phase Inverter ensure stable output voltage?
A: Advanced feedback control systems and high-speed DSP processors maintain stable output under varying load conditions.
Q5: What is the typical installation requirement?
A: Installation requires proper ventilation, adequate cable sizing, correct battery configuration, and compliance with local electrical codes.

Contact Us

For three phase inverter solutions or technical specifications: acpower@acsoonpower.com , or submit your requirements using the form at the bottom of our website.
