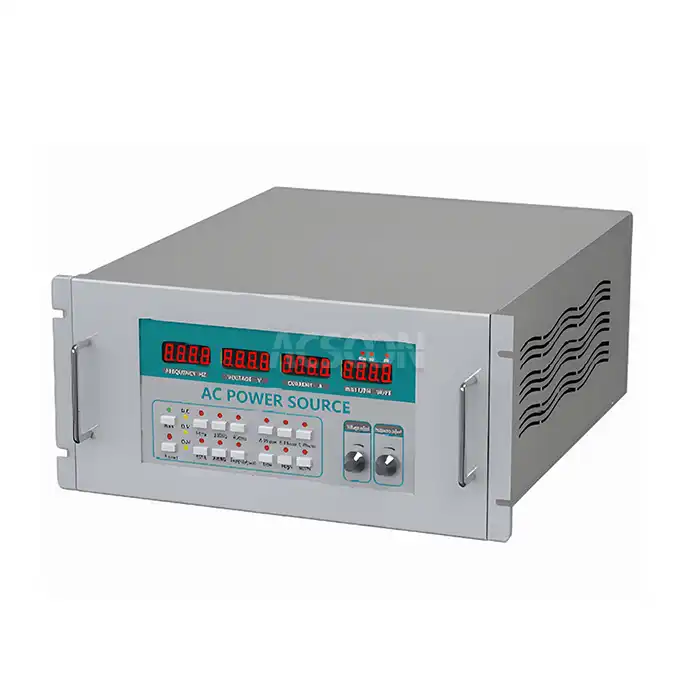

AC Power Unit for Renewable Energy Testing

1.Power Range: 15kVA to 250kVA (Three Phase, Scalable)
2.Technology: High-Precision IGBT-based AC Source with Bidirectional Capability
3.Input: 3-Phase, 400V/480V, 50/60Hz Grid or Generator Supply
4.Output: Programmable AC Voltage & Frequency, Pure Sine Wave, Grid Emulation & Absorption
5.Applications: Solar Inverter Testing, Wind Turbine Converter Validation, Microgrid Simulation, EV Charger Testing
6.Core Features: Four-Quadrant Operation (Source & Sink), High Dynamic Response, Compliance Testing Modes
7.Brand: ACSOON (Custom Test Profiles & Software Integration).

Send Inquiry Download

Product Description

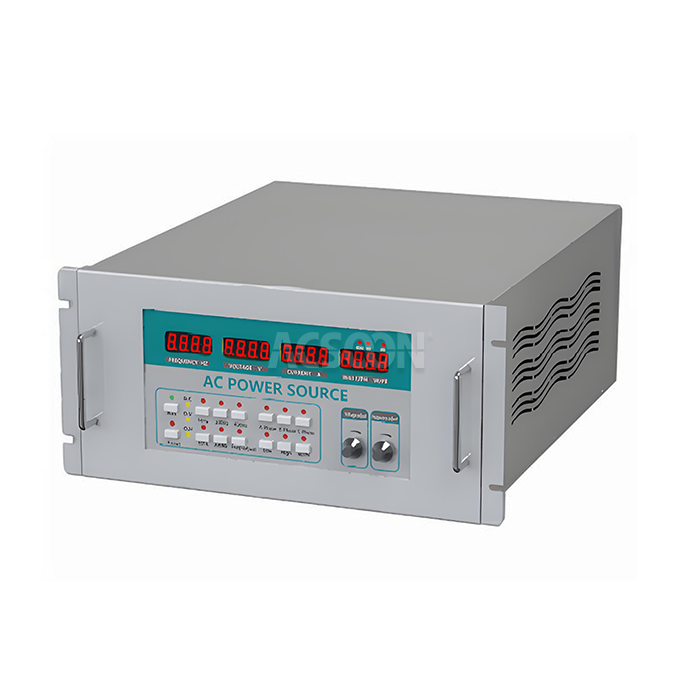

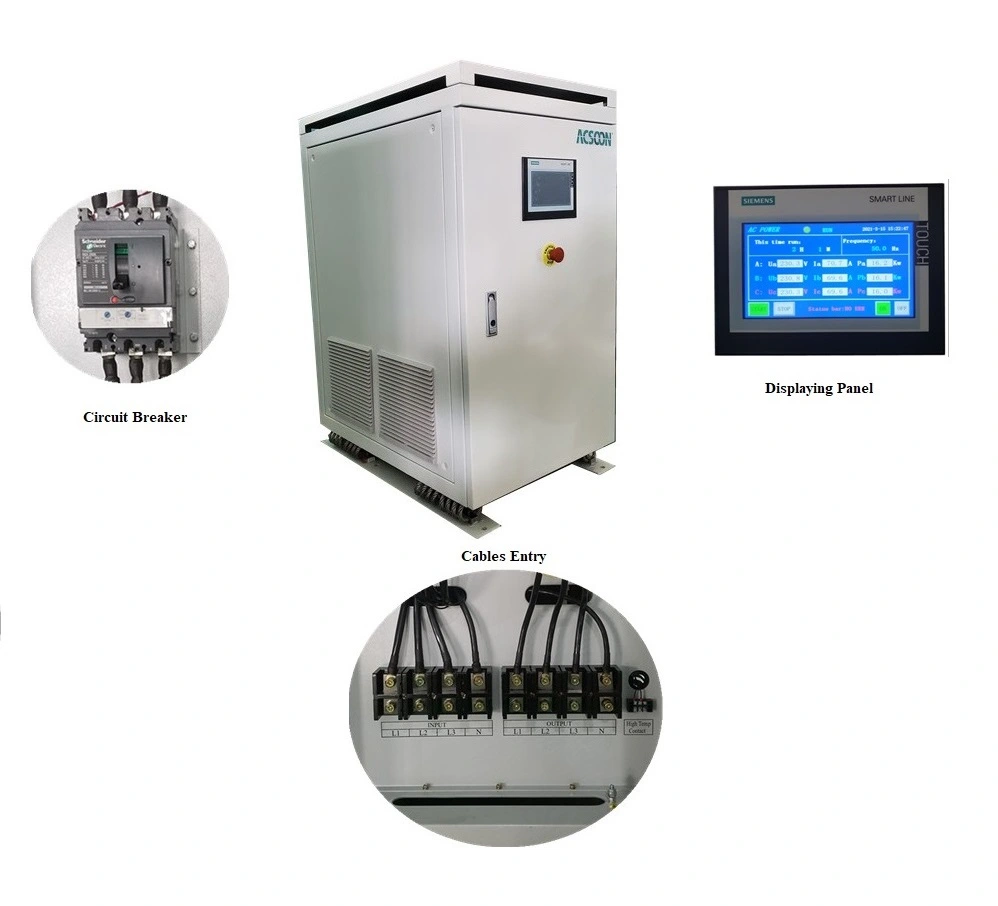

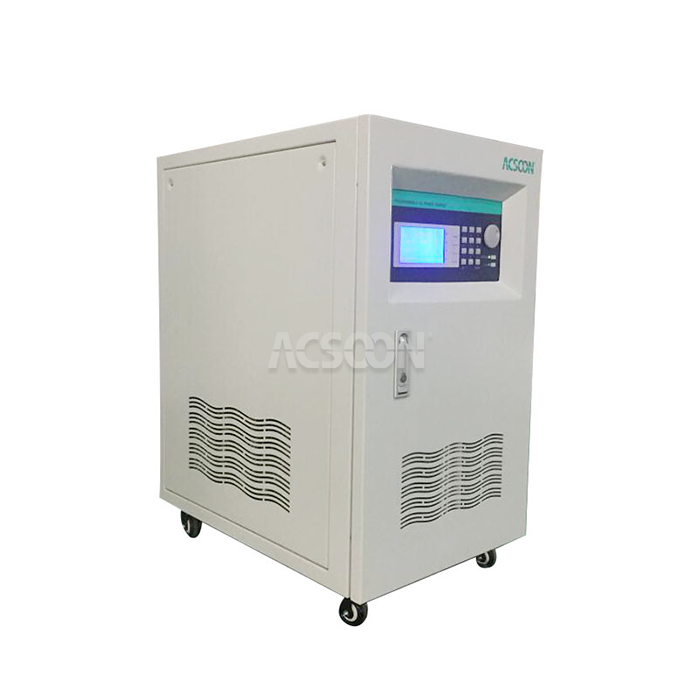

AC Power Unit for Renewable Energy Testing | Grid Simulator & Emulator

XI'AN JERRYSTAR INSTRUMENT CO., LTD introduces the advanced AC Power Unit for Renewable Energy Testing, a critical tool for the development and certification of next-generation energy systems. This versatile unit functions as both a precise grid simulator and a programmable electronic load, enabling comprehensive testing of inverters, converters, and chargers under a vast array of normal and abnormal grid conditions defined by international standards.

Datasheet

Parameter	Specification
Model Series	ACSOON ACF60W/ACF400M Series
Operation Mode	Four-Quadrant (Bi-directional) AC Source
Input	3-Phase 400V/480V, 50/60Hz
Output	Voltage: 0-520V L-L (Programmable) Frequency: DC, 16Hz - 500Hz+ Power: 15, 30, 60, 90, 120, 180, 250 kVA THD: <3% (Typical)
Dynamic Response	<5ms for 90% step load change
Compliance Modes	Pre-programmed profiles for key international grid standards
Communication	RS232/RS485

AC Power Unit for Renewable Energy Testing Main Features

Four-Quadrant Operation: Provides and absorbs real (kW) and reactive (kVAR) power, enabling full inverter characterization.
Wide Programmable Range: Adjustable voltage (0-520V L-L), frequency (DC, 16-500Hz+), and ability to generate harmonics, sags, swells, and flicker.
High-Fidelity Waveform Generation: Ultra-low distortion sine wave output and the ability to synthesize highly distorted grid waveforms for immunity testing.

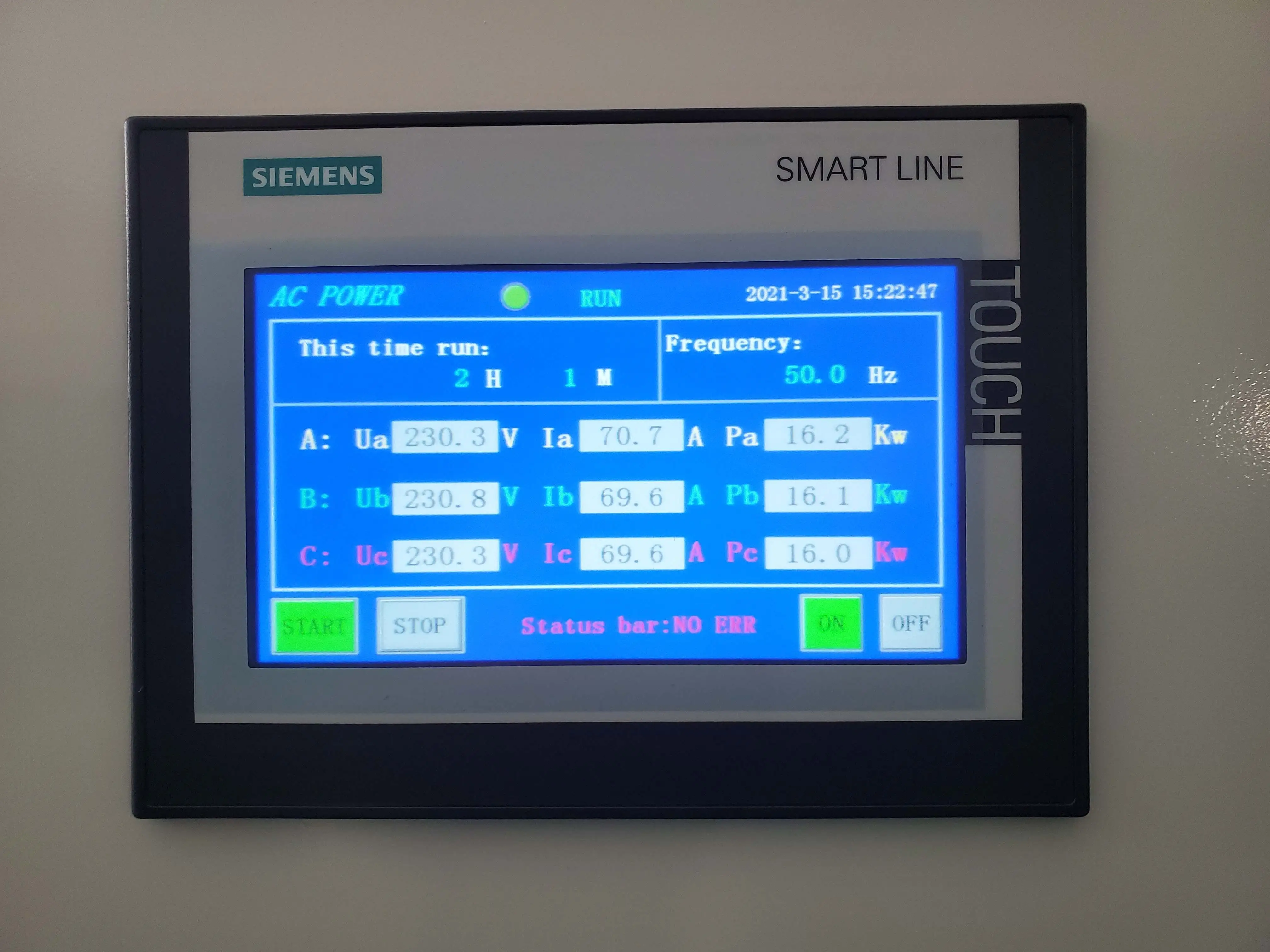

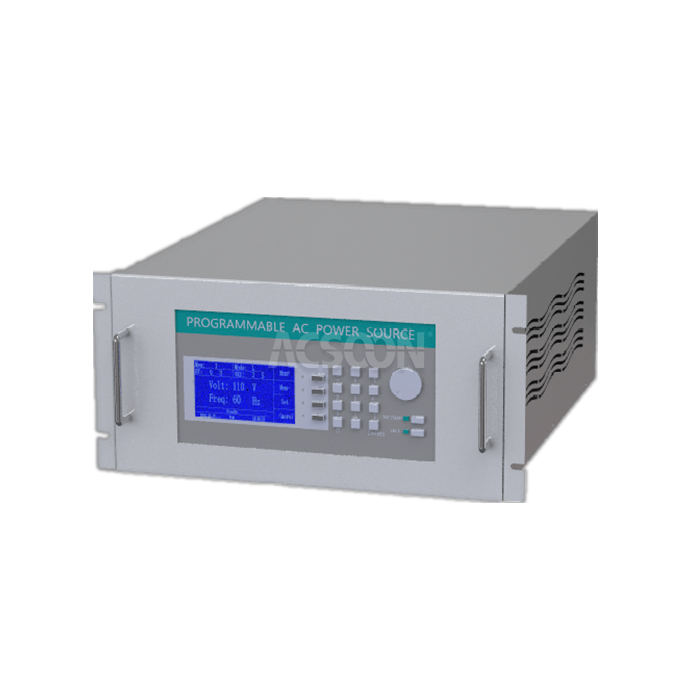

Advanced Digital Control & Analysis: Integrated touchscreen HMI, extensive data logging, and standard communication interfaces (RS232/RS485) for automated test systems.

Why Choose ACSOON AC Power Unit for Renewable Energy Testing?

True Grid Emulation & Absorption: Acts as both a perfect grid (source) and a dynamic load (sink) to test inverter efficiency, response, and anti-islanding protection.
Standards-Compliant Testing: Built-in profiles and programmability facilitate testing to UL 1741, IEEE 1547, VDE-AR-N 4105, and other global grid codes.
High Power & Precision: Delivers high kVA output with exceptional voltage and frequency accuracy, ensuring reliable and repeatable test results for MW-scale projects.
Future-Proof Scalability: Modular design and parallel capability allow system power to be easily expanded as testing requirements grow.

AC Power Unit for Renewable Energy Testing Application Areas

Solar Photovoltaic (PV) Inverter Testing: Validating performance, MPPT efficiency, and grid-compliance of string and central inverters.
Wind Power Converter Testing: Simulating variable generator output and testing low-voltage ride-through (LVRT) capabilities.
Battery Energy Storage Systems (BESS): Testing bi-directional inverters for charge/discharge cycles and grid support functions.
Electric Vehicle Supply Equipment (EVSE): Testing AC chargers and onboard chargers (OBCs) against various grid voltage and frequency scenarios.

Our Services

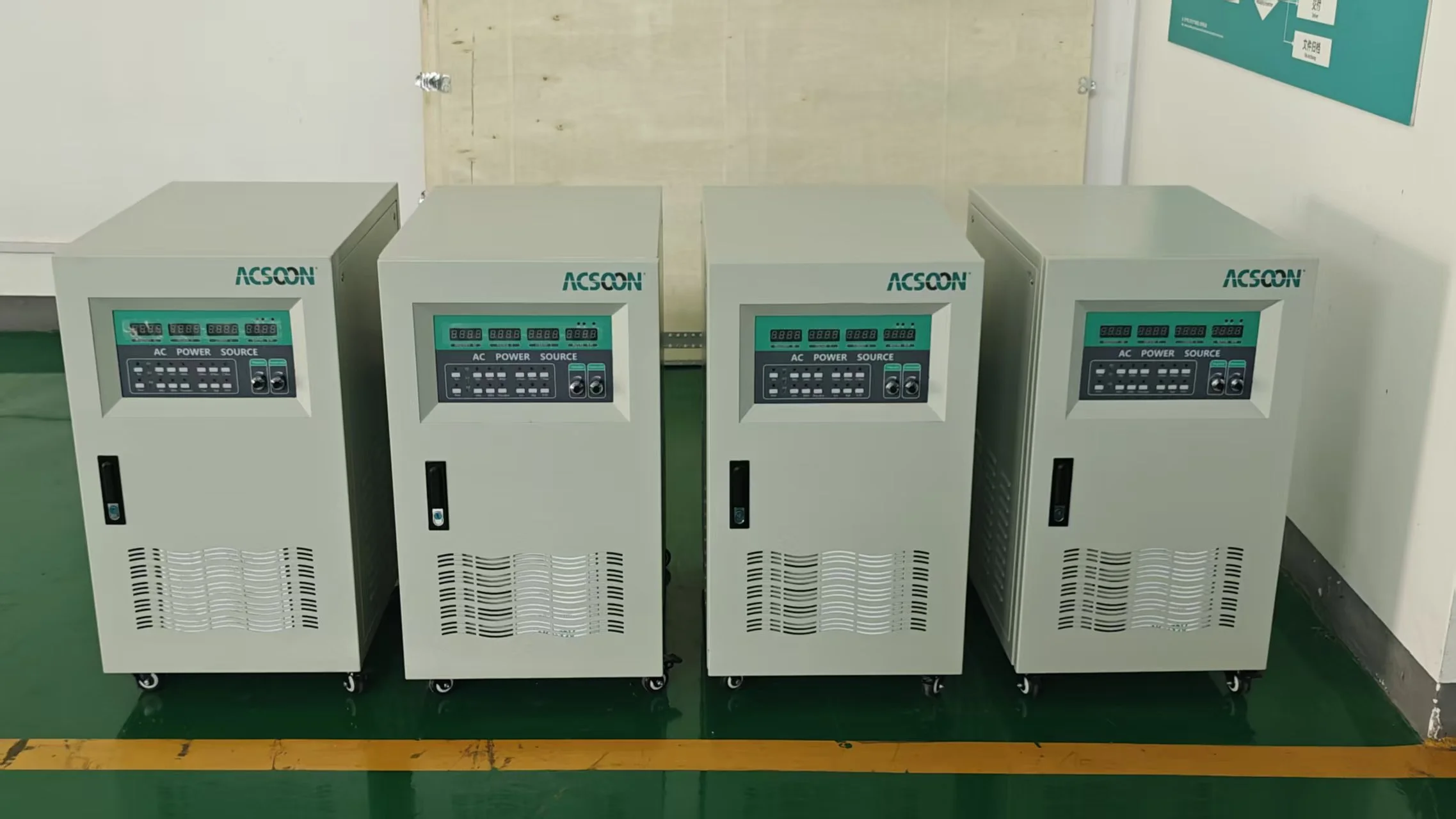

Quality Control

Bi-directional Performance Validation: Rigorous testing verifies seamless transition and stability in both source and sink modes across the entire power range.
Standards-Algorithm Verification: Pre-installed compliance test profiles (e.g., LVRT, FRT) are executed and verified against reference results.
Precision Calibration: Output voltage, current, and frequency are calibrated using traceable high-accuracy standards to ensure measurement integrity.
Thermal & Stability Burn-in: Units undergo extended operation at maximum bidirectional power to ensure long-term thermal and electrical stability.

R&D Results

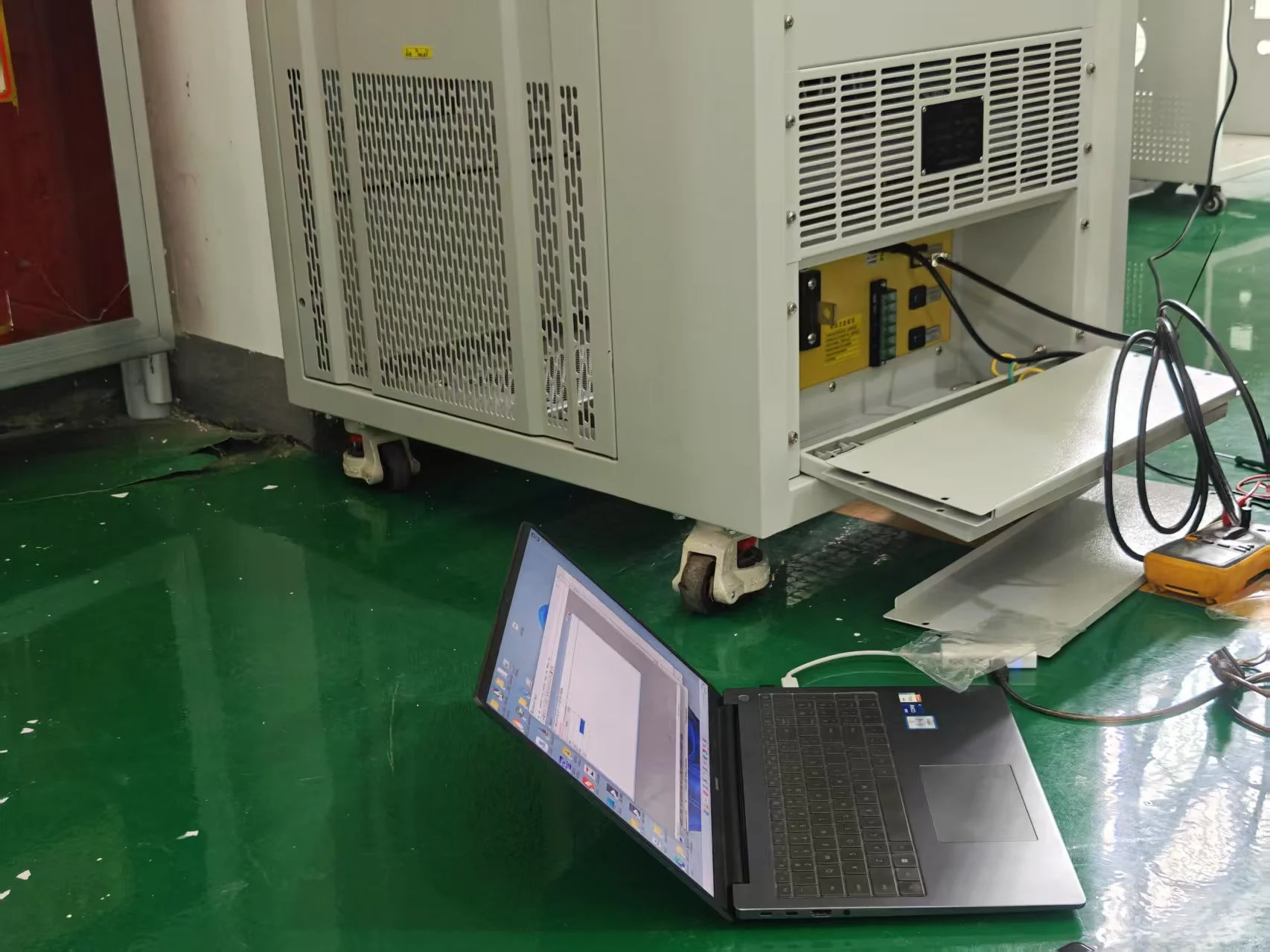

Advanced Phase-Locked Loop (PLL) Design: Developed a high-performance PLL for stable synchronization under severely distorted or unbalanced simulated grid conditions.
Real-Time Digital Simulator (RTDS) Interface: Created optional hardware interfaces to connect with RTDS for Hardware-in-the-Loop (HIL) testing of complex power systems.
High-Speed Data Streaming: Engineered a direct data streaming capability for capturing detailed transient waveforms during fault ride-through tests.
User-Configurable Test Automation Software: Developed powerful, flexible software allowing engineers to build complex, multi-stage test sequences without programming.

Packaging and Transportation

Robust Industrial Packaging: The mainframe is secured in a custom, shock-absorbent wooden crate with internal bracing for international freight.
Dedicated Accessory Cases: Sensitive communication cards, cables, and calibration accessories are shipped in separate, protected hard cases.
Comprehensive Documentation Suite: Includes detailed API programming manual, application notes for common renewable energy tests, and full system schematics.
Technical Liaison Support: We assign a project liaison to coordinate shipping, customs, and initial system arrival checks at your facility.

After‑Sales Service

We offer a 24-month warranty, dedicated application engineering support, regular firmware and software updates, and global access to calibration services and spare parts.

Qualification Certification

ISO 9001:2015 Certified manufacturing processes;CE Compliant for safety and EMC;Performance Validation Reports: Detailed test reports are provided, demonstrating key specifications and standard compliance mode functionality;Calibration Traceability: All measurement circuits are calibrated with certificates traceable to national standards.

FAQ
Q1: What is the key difference between this and a standard programmable AC source?
A: This unit offers true four-quadrant (bi-directional) power flow, meaning it can both supply power like a source AND absorb power like a load. This is essential for testing inverters that feed power back into the grid. Standard AC sources can only supply power.
Q2: Can it test for anti-islanding protection as per UL 1741?
A: Yes. It can be programmed to simulate the precise impedance changes and test profiles required for anti-islanding protection (non-islanding and intentional islanding) tests outlined in UL 1741 and similar standards.
Q3: Is it suitable for Hardware-in-the-Loop (HIL) testing?
A: Absolutely. With its fast digital control, real-time communication interfaces (like Ethernet), and optional RTDS compatibility, it is an ideal power amplifier for HIL test benches simulating complex grid environments.
Q4: What power level do I need for testing a 100kW inverter?
A: You would typically need an AC Power Unit rated higher than 100kVA. A 120kVA or 150kVA unit is recommended to provide sufficient headroom for over-current tests, reactive power testing, and to account for efficiency losses.
Q5: How is this unit different from a "grid emulator"?
A: They are functionally the same in this context. "AC Power Unit for Renewable Energy Testing" and "Grid Simulator/Emulator" are often used interchangeably. This product is specifically optimized and characterized for the rigorous demands of renewable energy and power electronics testing.

Contact Us

For technical specifications or global solutions for the AC Power Unit for Renewable Energy Testing: acpower@acsoonpower.com, or submit your requirements using the form at the bottom of our website.
