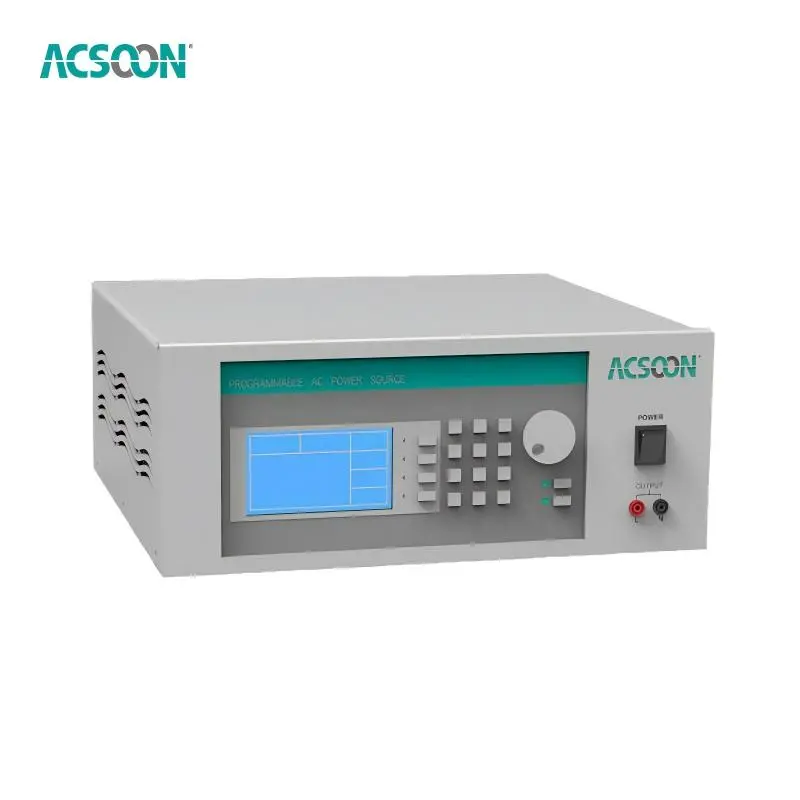

Digital Controlled AC Power Supply System

1.Power Capacity: 45kVA (modular expandable design)
2.Topology: All-digital control with high-speed DSP
3. Input Voltage: 3-phase 480VAC ±15%, 47-63Hz
4. Output Performance: 0-300VAC, 45-500Hz (fully programmable)
5. Key Applications: Electronics manufacturing, appliance testing, renewable energy simulation
6. Ingress Protection Grade: IP21
7. Key Features: Pure sine wave output; digital phase locking; remote monitoring; multi-unit synchronization
8. Brand: ACSOON (support OEM)

Send Inquiry Download

Product Description

Digital Controlled AC Power Supply System | Precision AC Power for Testing and Manufacturing

XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures high-performance digital controlled AC power supply systems for precision power applications. With over 15 years of power electronics expertise, we deliver reliable solutions that ensure accurate power delivery for critical testing and manufacturing processes. Our systems are recognized for their stability, flexibility, and advanced control capabilities, serving global customers in technology and industrial sectors.

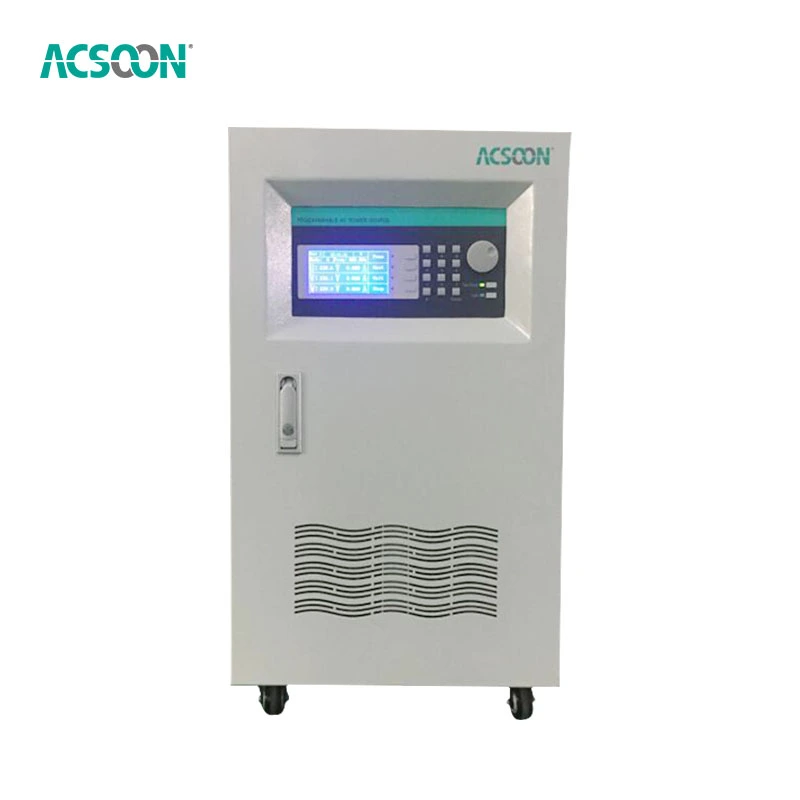

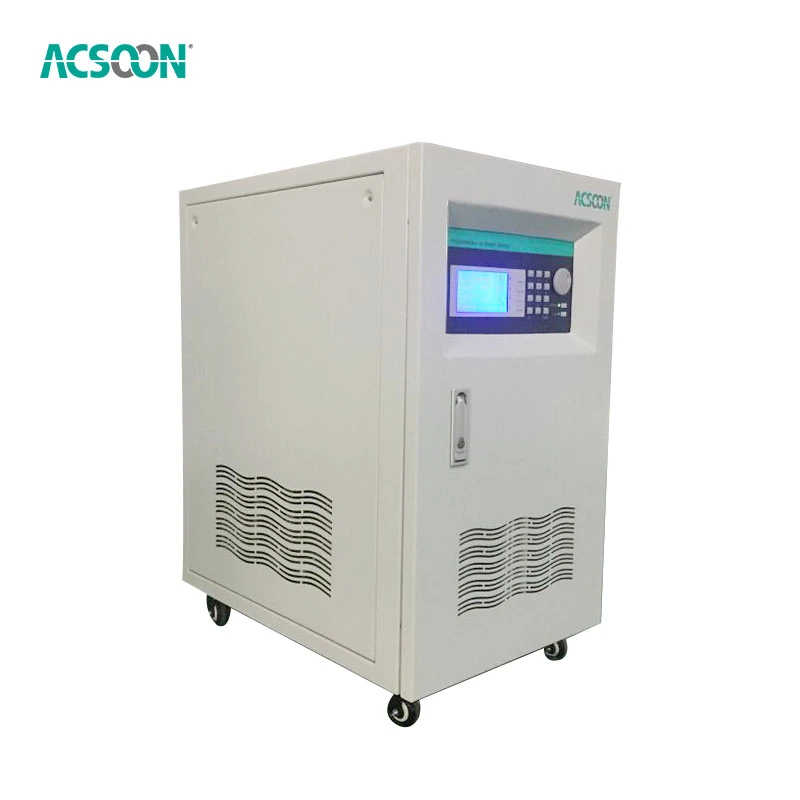

Digital Controlled AC Power Supply System

ACSOON Digital Controlled AC Power Supply System Main Features

Isolated output transformer,suitable for any unbalance loads.Every single phase can be used independently
It can perform 10 sets of different voltage, frequency,operation time settings, and can conduct continuous multiple cycle tests
It has error information storage, can store 9 groups of fault records, which are convenient to query specific fault occurrence time and fault type
Pure sine wave sinusoidal output Low harmonic distortion
Built- in RS232, RS485,communication port, suitable for remote monitoring.
Capable for each phase unbalance loads, with hardware and software double protection

Main Features

ACSW static Digital Controlled AC Power Supply System as one ac power source integrate IGBT SPWM modulation, and combines micro processor and ARM & DSP control for quick response and high reliability.

Technical Specifications

Feature	Specification
Capacity (Single Phase)	1kVA to 200kVA
Capacity (Three Phase)	1kVA to 2000kVA
Input Voltage	110V-440V AC (Customizable)
Input Frequency	50/60HZ or 40-70HZ
Output Voltage	0-520V AC (Customizable)
Output Frequency	50/60/100/200/400HZ or 40-800HZ adjustable
Voltage Regulation	±1%
Frequency Stability	≤0.1%
Output VTHD	<3% @ Linear load
Response Time	≤2ms
Power Factor	≥0.8 (≥0.9 optional)
Overall Efficiency	≥85%
Overload Capacity	125% for 60s, 150% for 30s
Cooling	Forced air
Operating Temperature	-10°C to 50°C
Altitude	<1800m

Digital Controlled AC Power Supply Systems?

Why Choose ACSOON Digital Controlled AC Power Supply Systems?

ACSOON brings innovation and reliability to power conversion technology. Our systems offer:

Exceptional Output Quality: Clean sine wave with low distortion (<1% THD)
Wide Frequency Range: 45-500Hz programmable output frequency
Advanced Digital Control: Precise voltage and frequency regulation
Scalable Architecture: Modular design for power expansion
Global Standards Compliance: Meets international safety and EMC requirements

Application Areas

Our digital controlled AC power supply systems are widely used in:

Electronics Manufacturing: Testing of power adapters, chargers, and electronic devices
Home Appliance Testing: Validation of refrigerators, air conditioners, and washing machines
Renewable Energy Sector: Simulation of grid conditions for solar and wind systems
Industrial Automation: Powering and testing of motor drives and control systems
Research Laboratories: Academic research and product development testing
Quality Assurance: Production line testing and quality verification
Educational Institutions: Engineering education and technical training
Service Centers: Repair and maintenance testing facilities

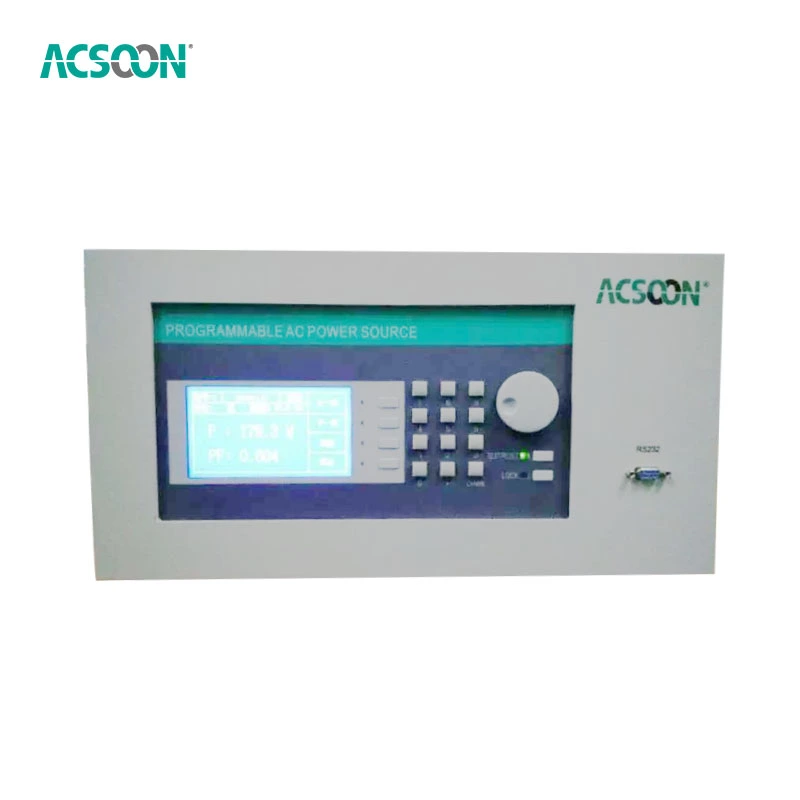

Application Areas

Details display

Quality Assurance

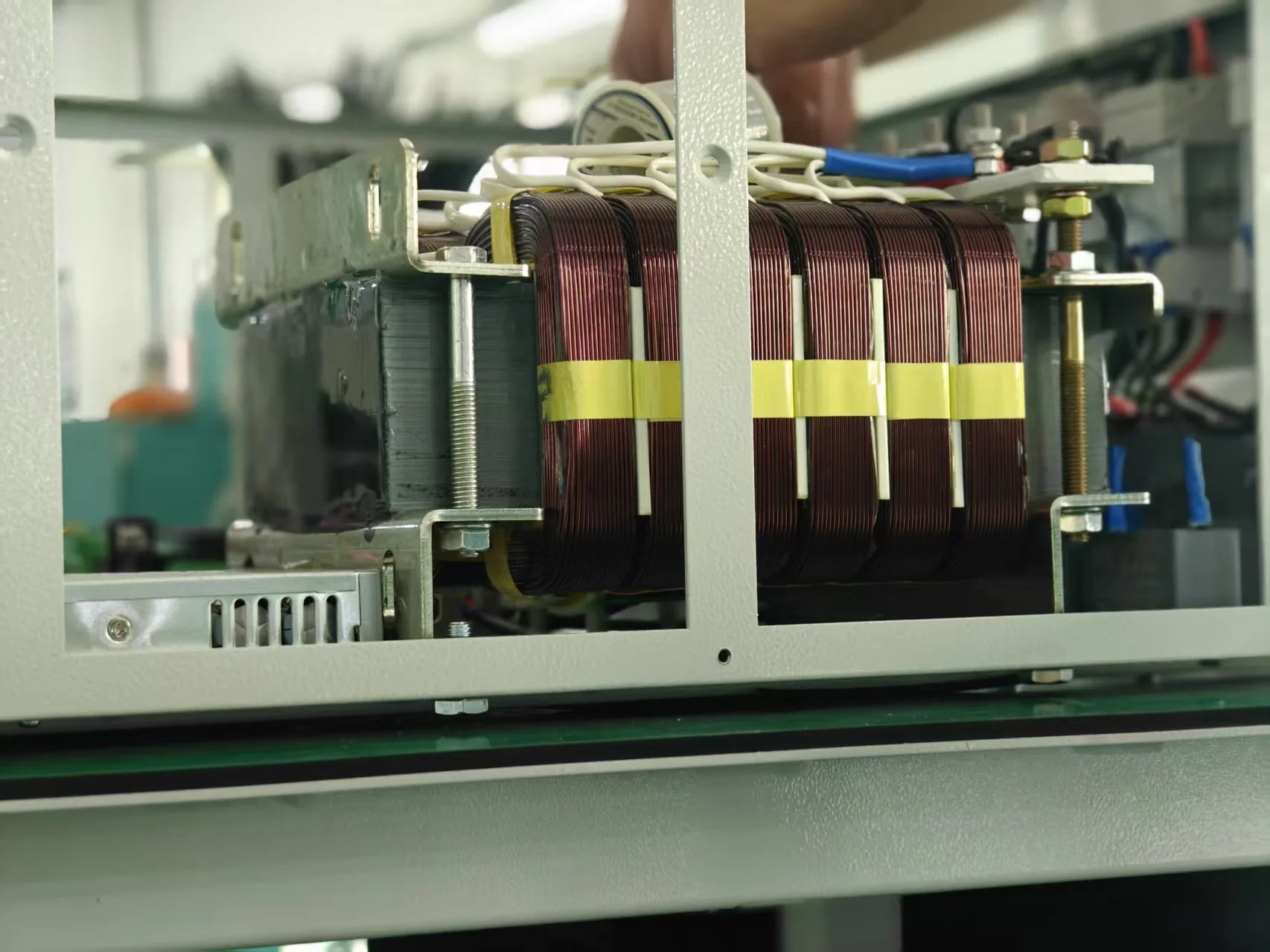

Quality Assurance

Every digital controlled AC power supply system undergoes strict quality verification:

Component-level quality screening
Full-load performance validation
Environmental stress testing
Safety certification compliance testing
Continuous production monitoring

Technical Innovation

Our R&D achievements in digital controlled AC power supply systems include:

Advanced digital signal processing technology
Intelligent thermal management systems
Enhanced communication protocol integration
Power density optimization solutions

Technical Innovation

After-Sales Service

After-Sales Service

Comprehensive customer support includes:

24/7 technical assistance
Scheduled maintenance services
Regular software updates
Operational training programs
Global spare parts network

Certification

Our products comply with:

ISO 9001:2015 Quality Management System
CE, RoHS, and REACH standards

CE Certification

FAQ
Q1: What is the typical applications for a digital controlled AC power supply system?
A: It is commonly used in applications requiring precise AC power control, such as product testing, manufacturing, and research development.
Q2: Can the output frequency be adjusted in real-time?
A: Yes, our systems support real-time frequency adjustment through both local interface and remote control.
Q3: What communication interfaces are available?
A: Standard interfaces include Ethernet, USB, RS232/485, and optional GPIB or wireless modules.
Q4: How efficient is the system at partial loads?
A: Our systems maintain high efficiency across the entire load range thanks to advanced power conversion technology.
Q5: Do you provide customized solutions?
A: Yes, we offer custom designs including special voltage ranges, form factors, and control requirements.
