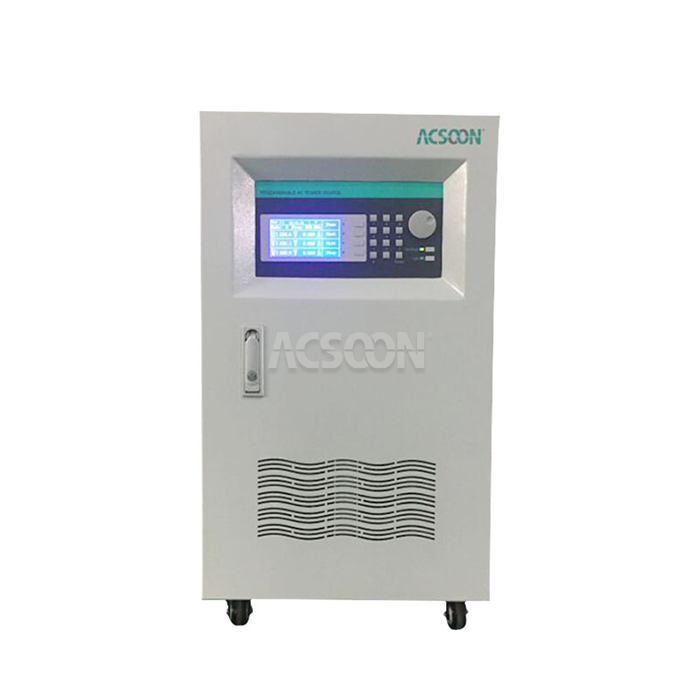

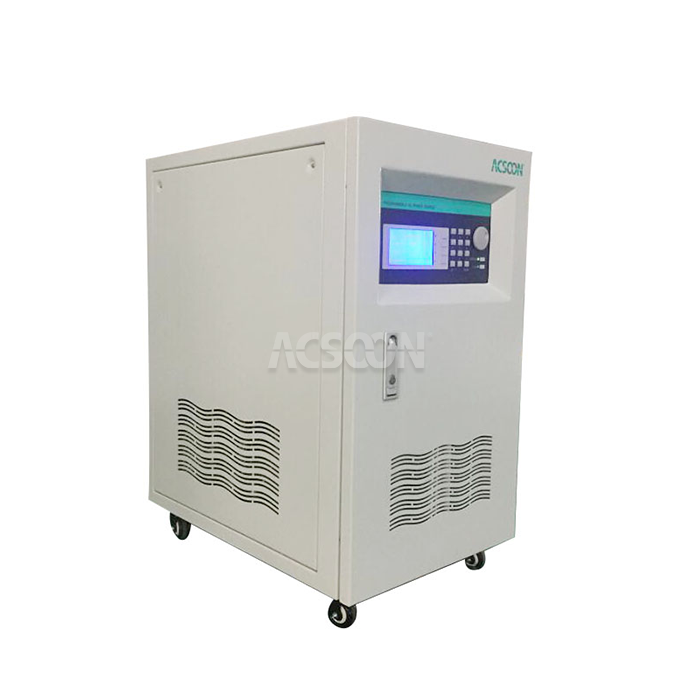

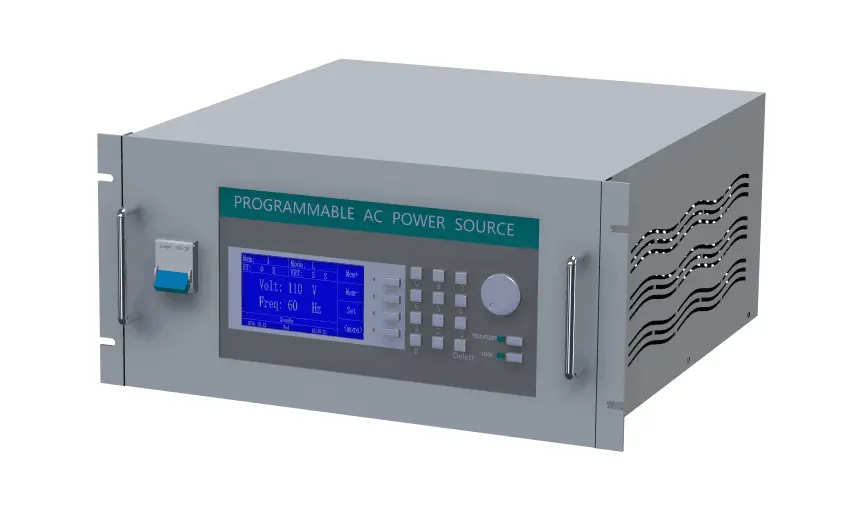

Programmable AC Power Source 45-800Hz
2.Technology: IGBT-based SPWM Static Frequency Converter with Microprocessor & DSP Control
3.Input: Single/Three Phase, 110V-480V, 50/60Hz
4.Output: Fully programmable AC output, voltage 0-520V (L-L), frequency 45-800Hz (standard), up to custom ranges.
5.Key Applications: R&D laboratory, avionics testing, military equipment evaluation, motor & transformer testing, power quality simulation.
6.Core Features: 10 pre-set program memory, fault event logging, RS232/RS485 communication, pure sine wave (<3% THD), high stability.
7.Brand: ACSOON (OEM/ODM Supported).
- Product Description
Programmable AC Power Source 45-800Hz | Variable Frequency & Voltage AC Supply
XI'AN JERRYSTAR INSTRUMENT CO., LTD designs and manufactures advanced Programmable AC Power Source 45-800Hz systems for the most demanding research, development, and validation environments. This sophisticated static frequency converter goes beyond simple conversion, offering precise, programmable control over output voltage and frequency to simulate utility power conditions worldwide or create specific test profiles for aerospace, defense, and industrial applications. Engineered for accuracy, reliability, and flexibility, it is an indispensable tool for engineers and testing laboratories.
Datasheet
| Parameter | Specification |
|---|---|
| Model Series | ACSOON ACSW Series Static Frequency Converter |
| Input | Voltage: 1-Phase 110-240V or 3-Phase 208-480V ±15% Frequency: 50Hz / 60Hz (40‑70Hz range) |
| Output | Voltage: 0-150V (L-N) / 0-300V (L-N); 0-260V (L-L) / 0-520V (L-L) adjustable Frequency: 45Hz – 400Hz adjustable (800Hz custom option) Phase: 1-Phase or 3-Phase configurable |
| Power Ratings | 1kVA to 400kVA (Standard Single & Three Phase models available) |
| Voltage Regulation | ≤ ±1% FS |
| Frequency Stability | ≤ ±0.1% FS |
| Output THD | <3% @ linear load |
| Waveform | Pure Sine Wave |

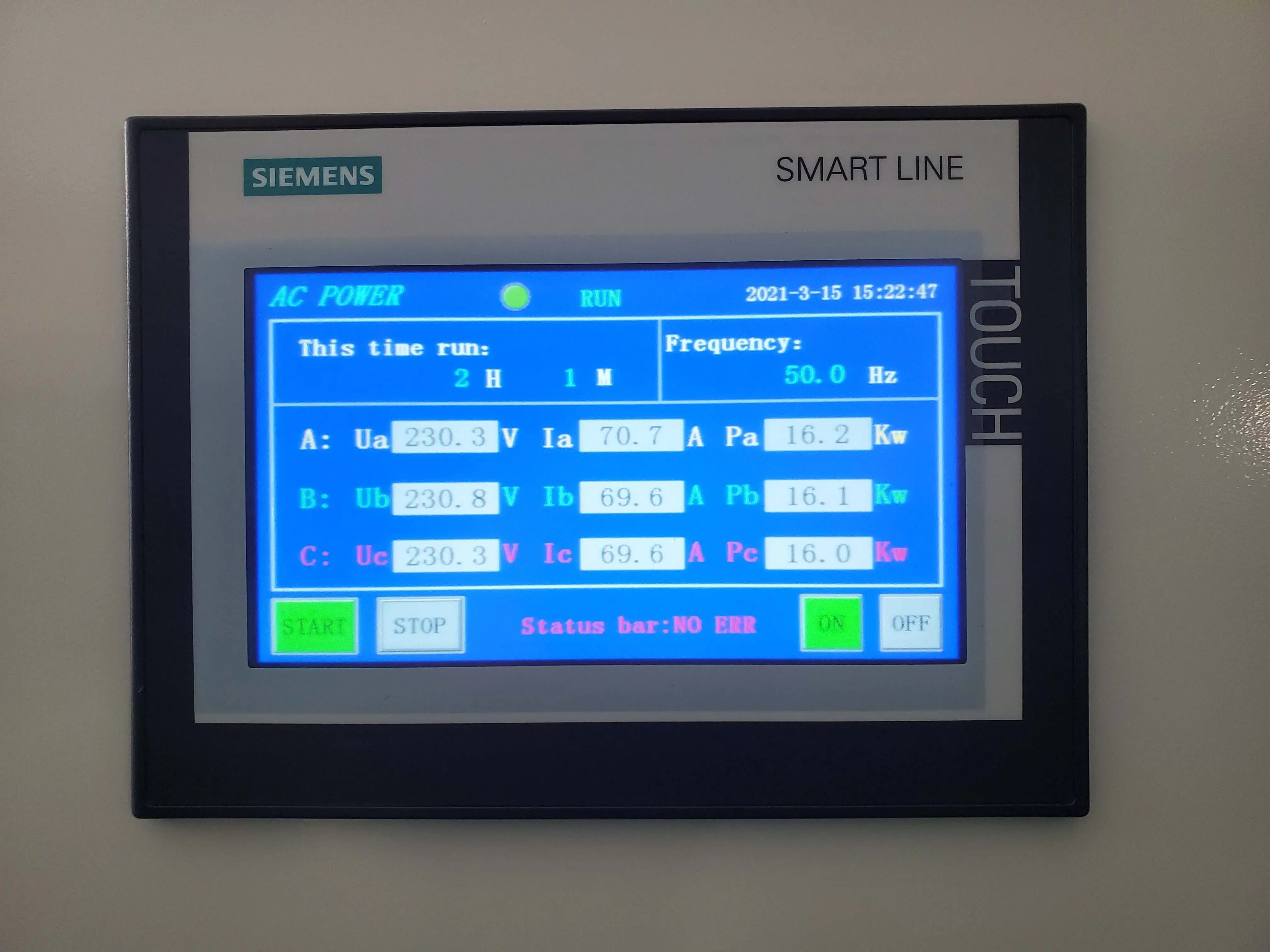

| Display | LCD Digital (V, I, F, P, PF, Time, Program Status) |
| Control Interface | Front Panel Knob/Buttons, RS232 / RS485 Communication Ports |
| Memory | 10 Program Sets, 9 Fault Event Logs |
| Efficiency | ≥85% |
| Protections | Over/Under Voltage, Over Current, Short Circuit, Over Temperature, Phase Loss |
| Cooling | Forced Air (Fans) |
| Operating Temp. | -10°C to 45°C |
| Standards | EN60204-1, IEC 62321, EN61000-6-3 |
Programmable AC Power Source 45-800Hz Main Features
- Wide Programmable Range: Output frequency adjustable from 45Hz to 800Hz; wide voltage adjustment.
- High-Fidelity Output: Pure sine wave with low THD (<3% at linear load).
- Advanced Control: Microprocessor (ARM & DSP) control for fast response and stability.
- Memory Function: Stores up to 10 sets of voltage/frequency/time profiles for automated testing.
- Communication Ready: Built-in RS232/RS485 for remote control and monitoring.
- Comprehensive Protection: Full suite of electrical and thermal protections.
Why Choose ACSOON Programmable AC Power Source 45-800Hz?
Our Programmable AC Power Source 45-800Hz delivers unmatched flexibility and precision for demanding test environments. It offers wide-range programmability, high stability, and robust performance in a single unit, simplifying your test setup and ensuring reliable, repeatable results for compliance and R&D.

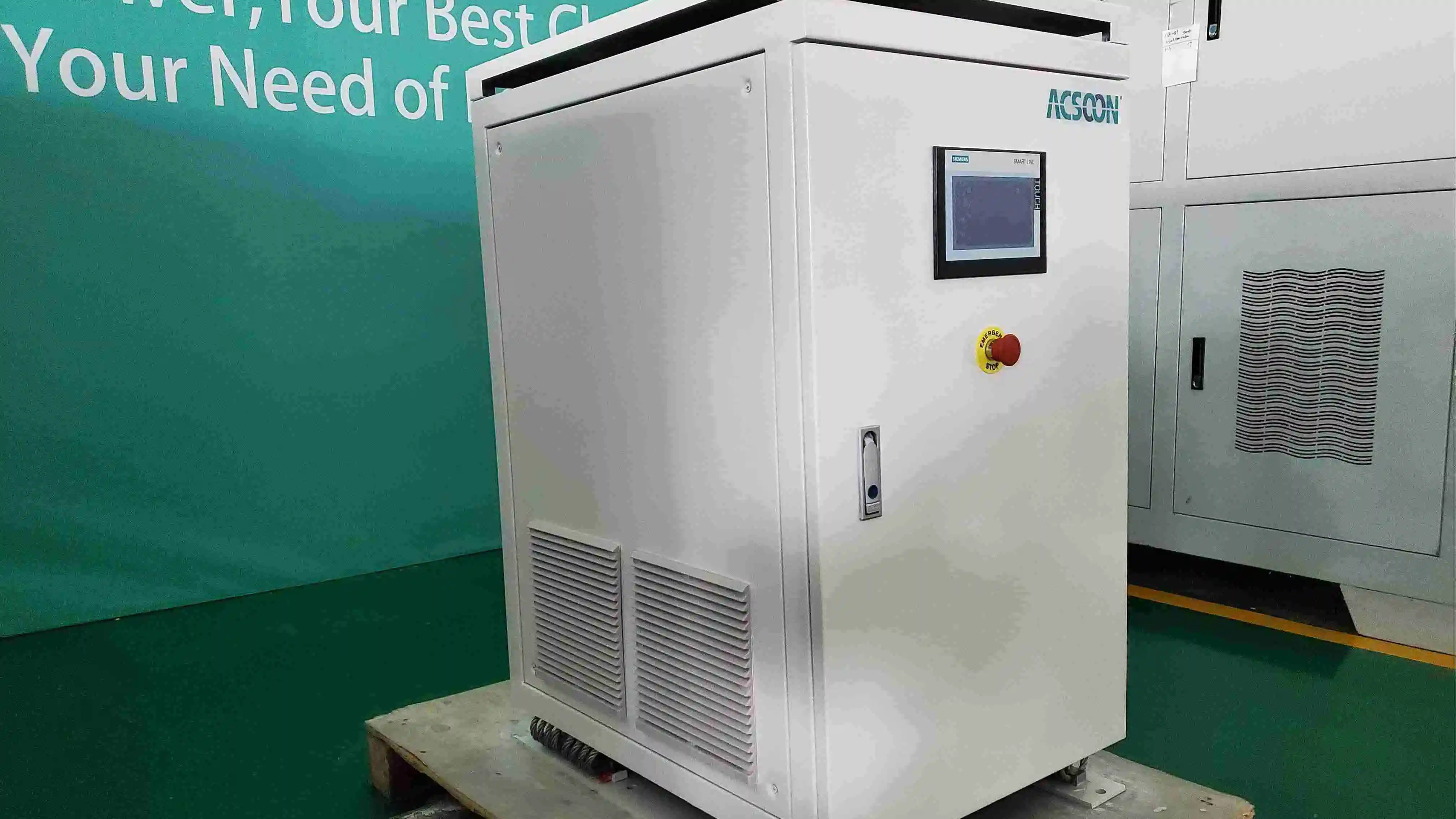

Programmable AC Power Source 45-800Hz Application Areas
- Avionics & Aerospace: Testing 400Hz aircraft systems and components.
- Defense & Military: Evaluating equipment per MIL-STD-704 and other standards.
- R&D Laboratories: Simulating various global mains conditions (45Hz, 50Hz, 60Hz, 400Hz, up to 800Hz).
- Power Electronics: Testing transformers, motors, and inverters under variable frequency.
- Appliance Manufacturing: Quality verification for products destined for different international markets.
Our Services
Quality Control
- Developed extended frequency capability (up to 800Hz) for specialized defense applications.
- Implemented advanced DSP+ARM control for faster response and precise waveform generation.
- Designed user-friendly interface with multi-profile storage for complex test automation.
R&D Results
- Our development achieved advanced SPWM control, compact modular design, and intelligent software for precise waveform generation and sequencing.
Packaging and Transportation
- Securely packed in plywood cases with foam cushioning.
- Shipped globally via air or sea freight with tracking.
- Documentation includes manual, certificate, and test report.
After‑Sales Service
- 24-month warranty.
- Remote and on-site technical support.
- Firmware updates and maintenance guidance.
- Available spare parts supply.
Qualification Certification
ISO 9001:2015 Certified；CE Compliant；Complies with EN60204-1, IEC 62321, EN61000-6-3.
FAQ |
|---|
| Q1: What does "programmable" mean for this AC power source? |
| A: It allows you to pre-set and store multiple output profiles (voltage, frequency, duration) and run automated test sequences without manual adjustment. |
| Q2: Why is a range up to 800Hz important? |
| A: It is critical for testing specialized aerospace, military, and high-speed motor drives that operate at frequencies beyond the standard 50/60/400Hz. |
| Q3: Can it simulate power quality issues like sags or surges? |
| A: Yes, through its programmable voltage and timing functions, you can create precise voltage variations to test equipment immunity. |
| Q4: Is it suitable for testing three-phase equipment? |
| A: Absolutely. Three-phase models are available and can handle balanced or unbalanced load conditions thanks to the isolated output transformer design. |
| Q5: What is the main advantage over a standard variable frequency drive (VFD)? |
| A: This source provides a clean, pure sine wave output with very low distortion, precise regulation, and programmability suitable for sensitive electronics testing, which most VFDs cannot do. |
