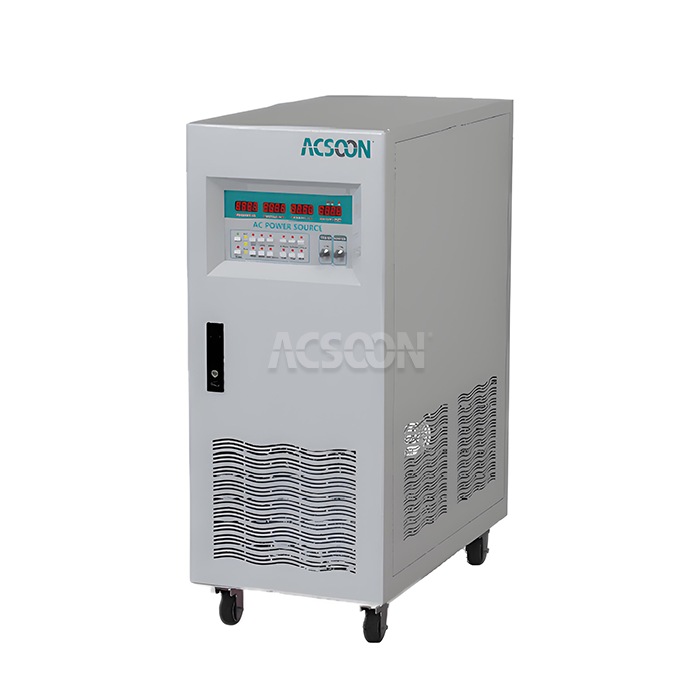

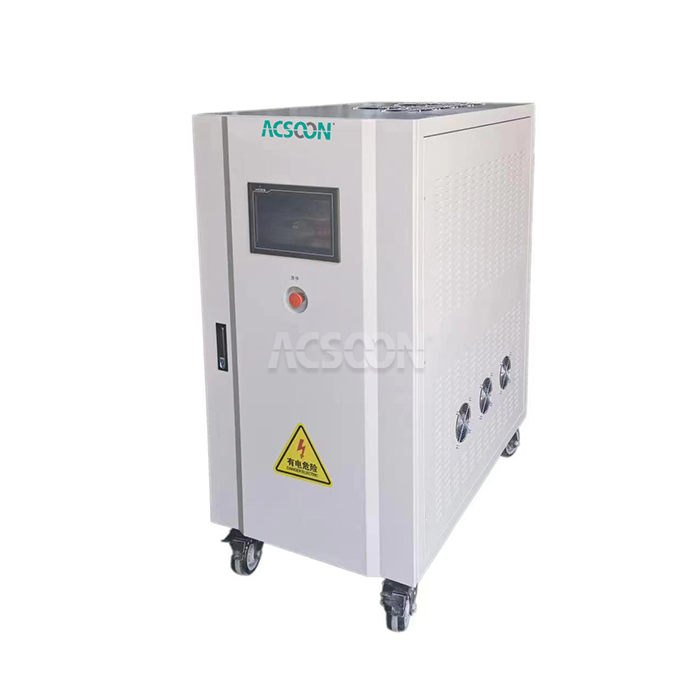

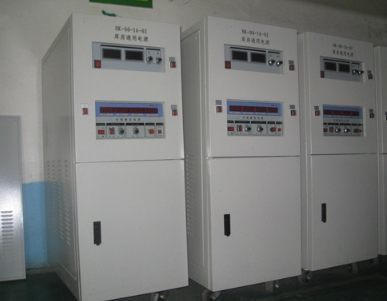

Railway AC Power Supply
1.Power Range: 10kVA to 300kVA (Single & Three Phase)
2.Technology: Rugged IGBT-based Static Converter with Isolated Transformer
3.Input: 110V/220V/380V, 50/60Hz (or 16.7Hz for special applications)
4.Output: Stable, Regulated AC Power (Custom Voltages), Low Harmonic Distortion
5.Applications: Railway Signaling Systems, Station Infrastructure, Rolling Stock Testing, Tunnel Electrification
6.Core Features: High Immunity to Surges & Transients, Wide Input Tolerance, Compact & Durable Design
7.Brand: ACSOON (Compliant with Railway Industry Standards).
2.Technology: Rugged IGBT-based Static Converter with Isolated Transformer
3.Input: 110V/220V/380V, 50/60Hz (or 16.7Hz for special applications)
4.Output: Stable, Regulated AC Power (Custom Voltages), Low Harmonic Distortion
5.Applications: Railway Signaling Systems, Station Infrastructure, Rolling Stock Testing, Tunnel Electrification
6.Core Features: High Immunity to Surges & Transients, Wide Input Tolerance, Compact & Durable Design
7.Brand: ACSOON (Compliant with Railway Industry Standards).
- Product Description
Railway AC Power Supply | AC Power for Railway and Signaling Systems
XI'AN JERRYSTAR INSTRUMENT CO., LTD engineers robust Railway AC Power Supply solutions for the demanding electrical environments of rail transport. These specialized power supplies ensure the continuous, clean, and stable operation of critical railway infrastructure—from signaling and communication networks to station equipment and maintenance facilities—enhancing safety, reliability, and efficiency across rail operations.
Datasheet
| Parameter | Specification |
|---|---|
| Model Series | ACSOON RPS Series |
| Input | Voltage: Custom (e.g., 110V, 220V, 380V) ±20% Frequency: 50/60Hz (16.7Hz optional) |
| Output | Voltage: Custom (e.g., 110V, 230V, 400V) ±2% Power: 10kVA to 300kVA THD: <3% @ linear load |
| Isolation | Galvanic Isolation (Transformer) |
| Efficiency | ≥88% |
| Protections | Input Surge/Sag, Output Overload/Short Circuit, Over Temperature |
| Operating Temp. | -25°C to 55°C (Extended range available) |
Railway AC Power Supply Main Features
- High Surge Immunity: Designed to absorb and isolate equipment from high-voltage transients induced by traction systems.
- Wide Input Range: Tolerates significant input voltage fluctuations from unstable rural or overhead line supplies.
- Galvanic Isolation: Integrated isolation transformer protects sensitive electronics from ground loops and common-mode noise.
- Comprehensive Monitoring: Local display for voltage, current, and system status, with optional remote communication interfaces.
Why Choose ACSOON Railway AC Power Supply?
- Designed for Railway Environments: Built to withstand high levels of electrical noise, voltage spikes, and vibrations common in rail applications.
- Ensures Signaling Integrity: Provides ultra-clean and stable power critical for the fault-free operation of signaling and train control systems.
- Robust & Reliable: Utilizes industrial-grade components and protective features for 24/7 operation with minimal maintenance.
- Customizable Solutions: Configurable input/output voltages and frequencies to match specific national rail standards and project requirements.

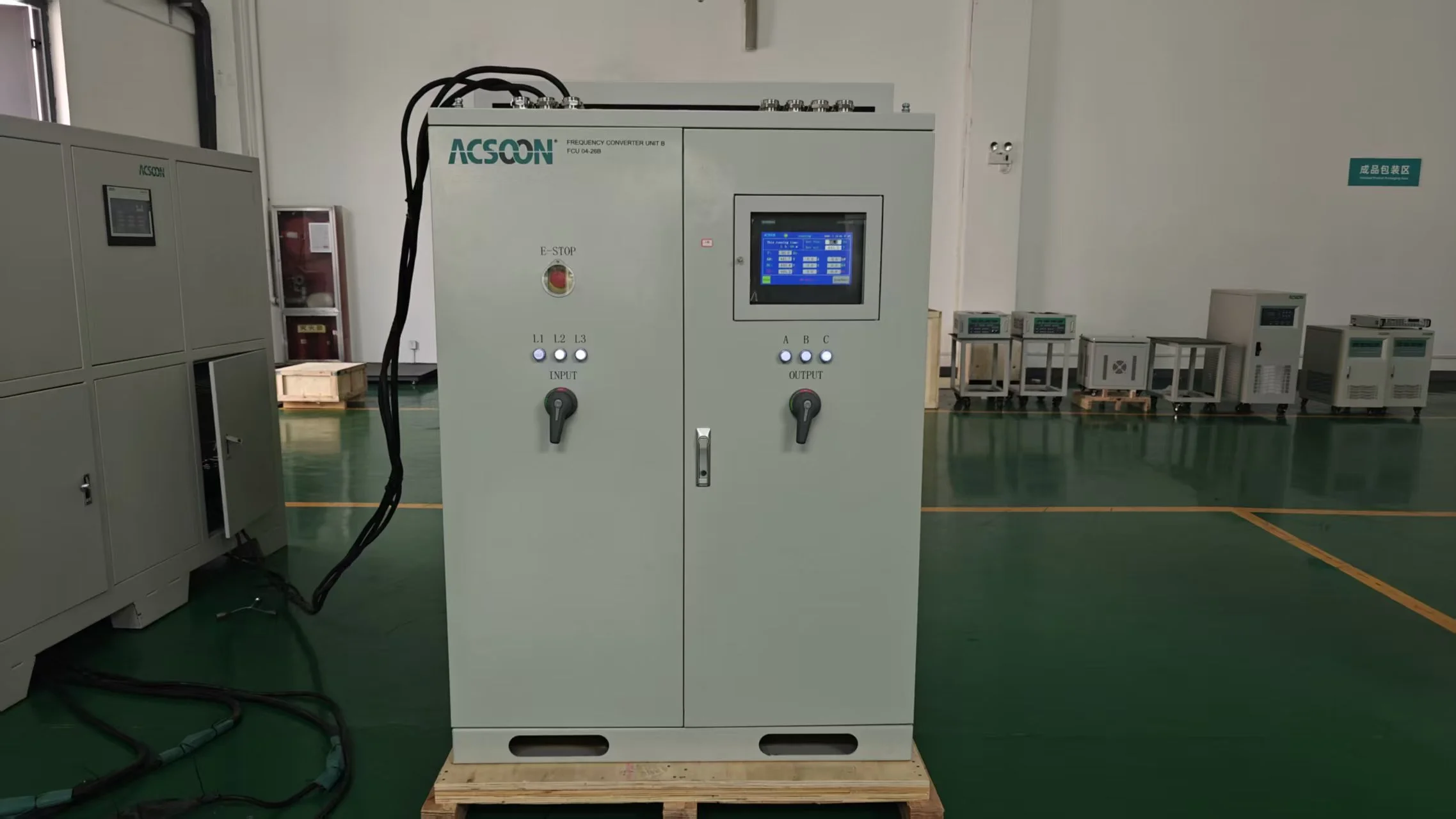

Railway AC Power Supply Application Areas
- Signaling & Interlocking Systems: Primary or backup power for trackside signals, point machines, and level crossing controls.
- Station & Depot Infrastructure: Powering lighting, escalators, elevators, communication systems, and maintenance workshop equipment.
- Rolling Stock Testing & Maintenance: Providing clean power for testing train components, onboard systems, and auxiliary power units in depots.
- Tunnel & Wayside Power Systems: Ensuring reliable electrification for ventilation, lighting, and emergency systems in tunnels.
Our Services
01
Quality Control
- Surge & Transient Immunity Testing: Each unit is tested against simulated railway electrical disturbances to verify robust performance.
- Vibration & Shock Testing: Mechanical resilience is validated to ensure operation in trackside and rolling stock environments.
- Extended Thermal Cycle Testing: Units undergo temperature cycling to ensure reliability across the specified operating range.
- Safety & Function Compliance Check: All electrical safety standards and protective functions are rigorously verified before shipment.
02

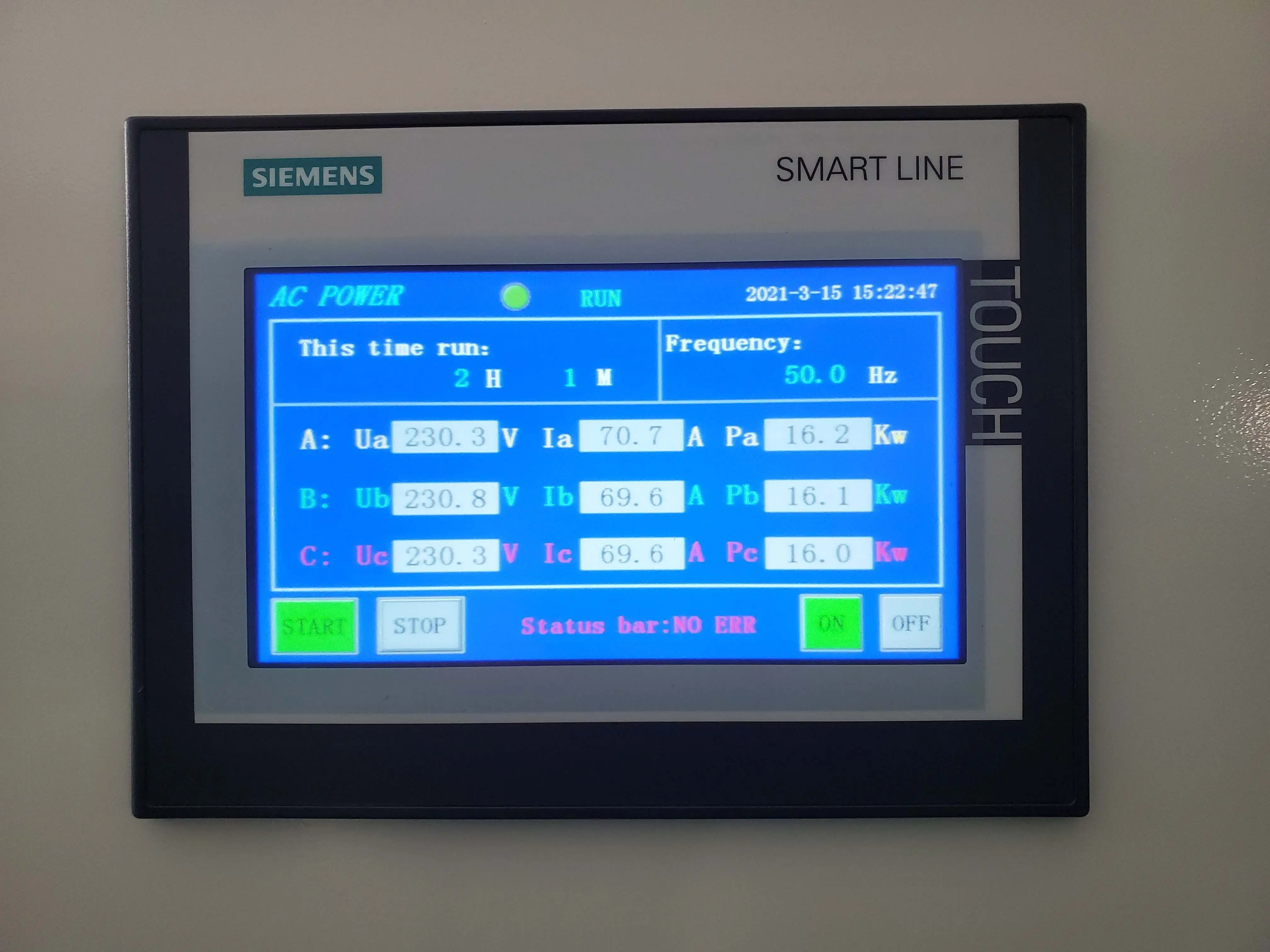

R&D Results
- Advanced EMI/RFI Filtering: Developed specialized filtering to reject high-frequency interference from pantograph arcing and traction drives.
- Compact Enclosure Design: Engineered rugged, sealed enclosures (up to IP54) suitable for outdoor or harsh trackside installation.
- Compliance-Oriented Design: Products are developed with key railway standards (e.g., EN 50155, EN 50121) in mind, simplifying project approval.
- Modular & Serviceable Design: Created a modular architecture for easy on-site maintenance and component replacement.
03

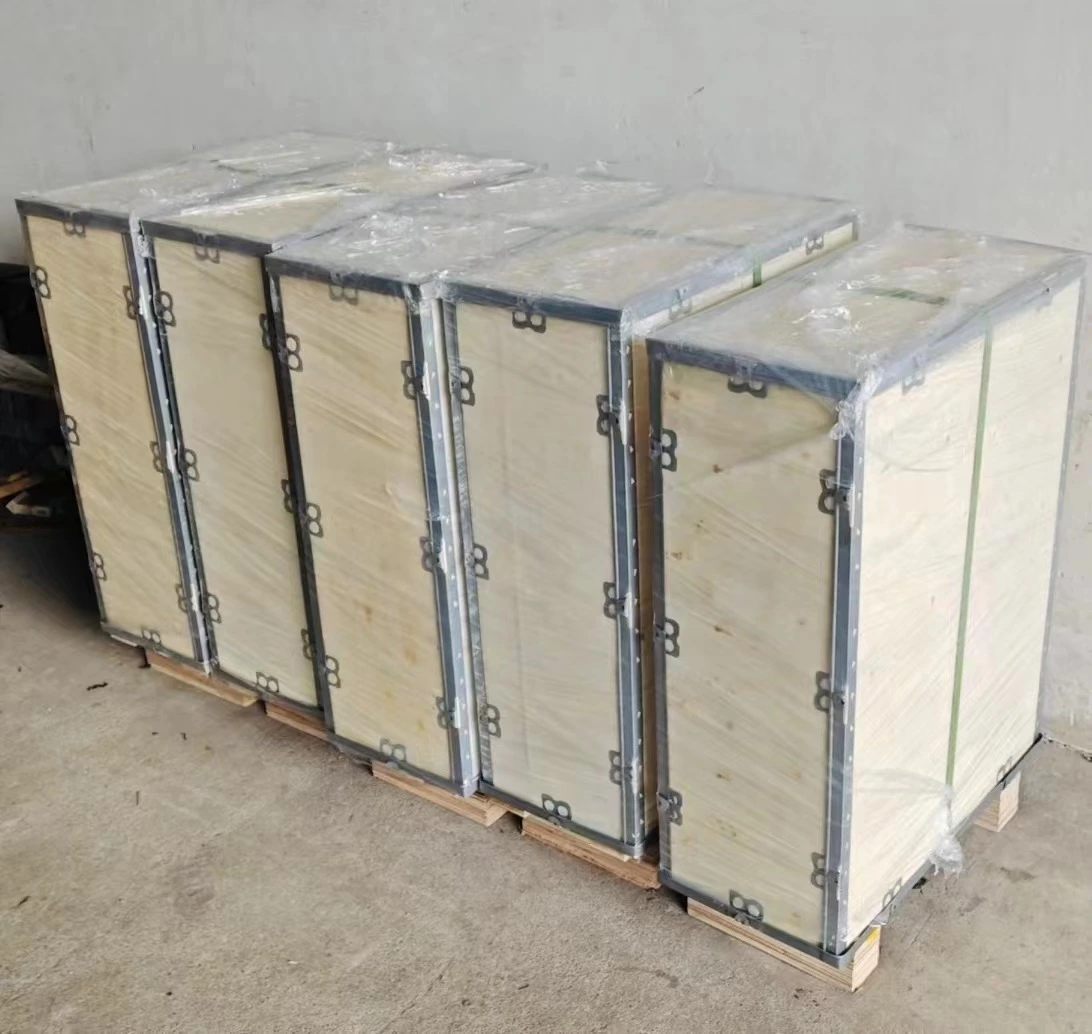

Packaging and Transportation
- Ruggedized Shipping Crates: Products are secured in heavy-duty, weather-resistant wooden crates for protection during long-distance and site delivery.
- Clear Handling Instructions: Packaging includes labels and instructions for safe handling and installation specific to railway site conditions.
- Project Documentation Pack: Includes technical manuals, test certificates, wiring diagrams, and compliance documentation tailored for railway engineers.
- Global Project Logistics: We coordinate complex logistics to project sites, including remote or temporary rail access points.
04
After‑Sales Service
We offer an 18-month warranty, extended support contracts, and a dedicated service network familiar with railway operational constraints to ensure rapid response and minimal downtime.
Qualification Certification
ISO 9001:2015 Certified quality management system; CE Marked for the European market; Design & Test Support: We provide documentation and testing support to assist with compliance to relevant railway industry standards (e.g., EN 50155 for rolling stock equipment).
FAQ |
|---|
| Q1: What makes a power supply suitable for railway applications? |
| A: Railway-specific supplies are built for high electrical noise immunity, wide voltage input ranges, mechanical ruggedness, and extended temperature operation to survive the harsh and electrically noisy environment near tracks and trains. |
| Q2: Can this supply be used for both trackside and onboard (rolling stock) applications? |
| A: Our series includes models suitable for trackside/fixed installations. For onboard use (e.g., in a train carriage), compliance with standards like EN 50155 is critical, and we offer models developed to meet such requirements. |
| Q3: How does it handle power surges from the railway traction system? |
| A: It incorporates heavy-duty surge protection devices (SPDs) and advanced filtering at the input stage to clamp high-voltage transients and prevent them from reaching the sensitive connected equipment. |
| Q4: Can you provide power supplies for special railway frequencies like 16.7Hz? |
| A: Yes. We can engineer custom solutions for special railway electrification frequencies, including 16.7Hz used in some European countries. |
| Q5: What information is needed for a quotation? |
| A: Please provide: Application (e.g., signaling, station), Required Input Voltage/Frequency, Required Output Voltage/Power (kVA), Environmental Conditions, and any specific industry standards that must be met. |
