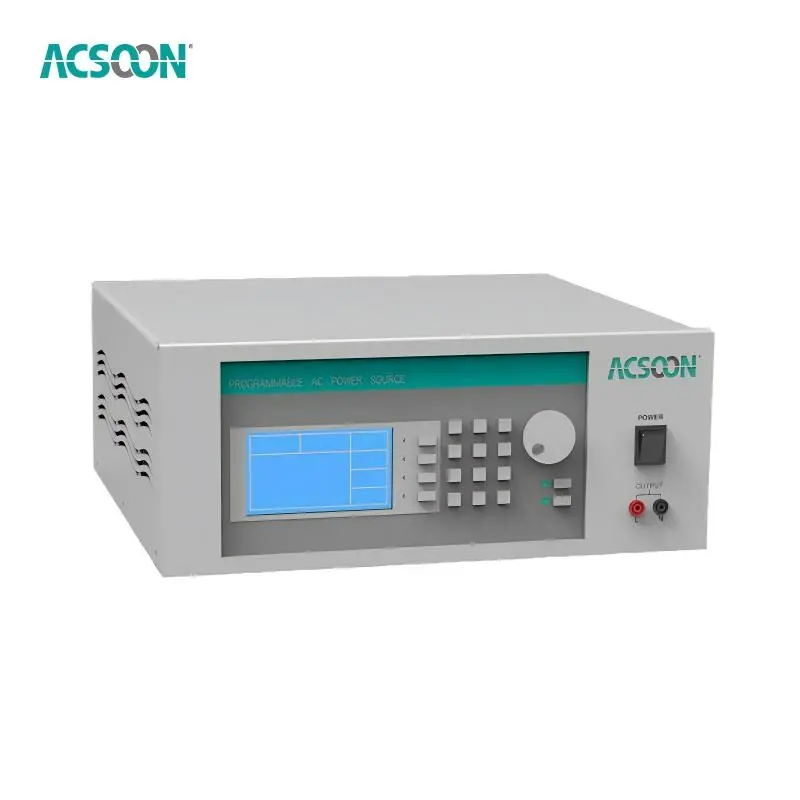

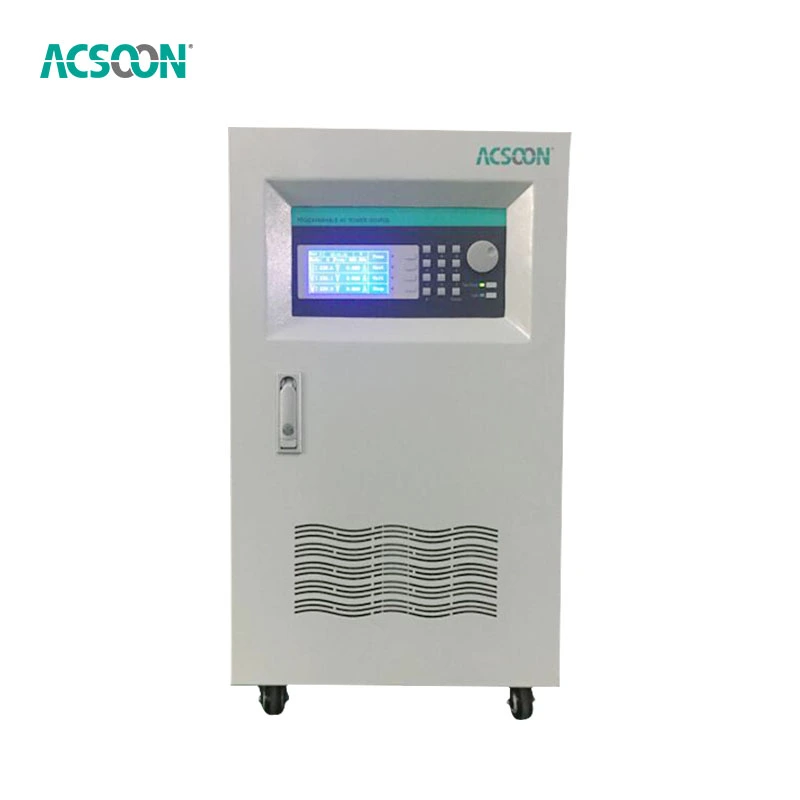

Static Converter 400Hz Panel
2.Technology: Solid-state static frequency converter (SFC) with IGBT/SPWM technology.
3.Input: Compatible with 50Hz/60Hz single or three-phase mains (100V-480V).
4.Output: Stable 115V/200V or 120V/208V, 400Hz pure sine wave AC power.
5.Core Application: Integrated power panel for avionics test benches, aerospace system simulators, and modular ground support equipment.
6.Key Advantages: Panel-mount design, excellent regulation, compact form factor, and easy system integration.
7.Brand: ACSOON – a specialist in modular and integrated power solutions.
- Product Description

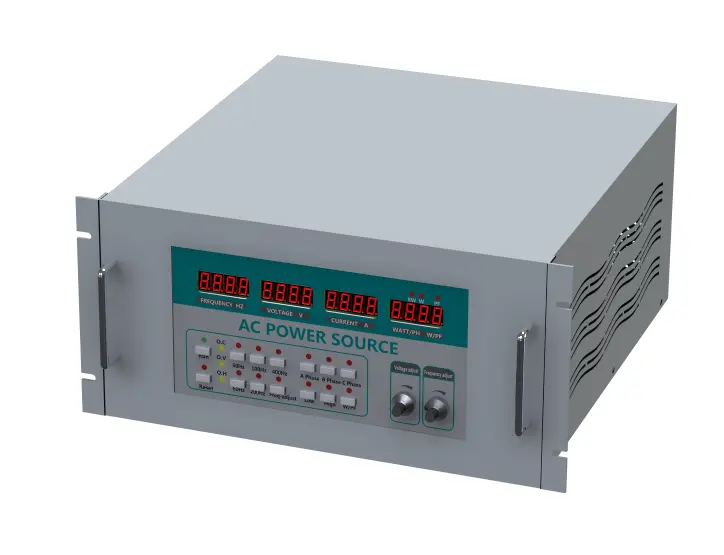

Static Converter 400Hz Panel | Rack-Mount 400Hz Power Panel for Aerospace Test Systems
XI'AN JERRYSTAR INSTRUMENT CO., LTD introduces the Static Converter 400Hz Panel, a specialized power conversion module engineered for seamless integration into test racks, control consoles, and modular power systems. This panel provides the critical 400Hz AC power required for aircraft and avionics, delivered in a compact, ready-to-install format. Ideal for system integrators and aerospace facilities, it offers a reliable and space-saving solution for building custom test and ground power setups.
Technical Summary
| Parameter | Specification |
|---|---|
| Input (AC) | |
| Phases | Single Phase or Three Phase |
| Voltage | Single: 100V-240V; Three: 200V-480V (±15%) |
| Frequency | 50Hz / 60Hz (47-63Hz range) |
| Output (AC) | |
| Phases | Single Phase or Three Phase (L-L & L-N available) |
| Voltage | 115V/120V (L-N), 200V/208V (L-L) (Adjustable) |
| Frequency | 400 Hz (Nominal) |
| Regulation | Voltage: ±1%; Frequency: ±0.1% |
| Performance | |
| Waveform | Pure Sine Wave |
| THD | <3% (Linear Load) |
| Efficiency | ≥85% |
| General | |
| Form Factor | 19" Rack Mount Panel (Standard) |
| Display | Front-panel LED Display |
| Protection | OVP, OCP, SCP, OTP |
| Overload | 125% for 1 second |
| Cooling | Internal Fan (Front to Rear) |
| Operating Temp. | 0°C to 45°C |
| Standards | EN60204-1, IEC 62321, EN61000-6-3 |
Static Converter 400Hz Panel Main Features
Panel-mountable static frequency converter (SFC) design.
Converts 50/60Hz input to precise 400Hz output.
Isolated output ensures safety and handles unbalanced loads.
Pure sinusoidal output waveform with low distortion (THD <3%).
Adjustable output voltage via front-panel controls or remote signals.

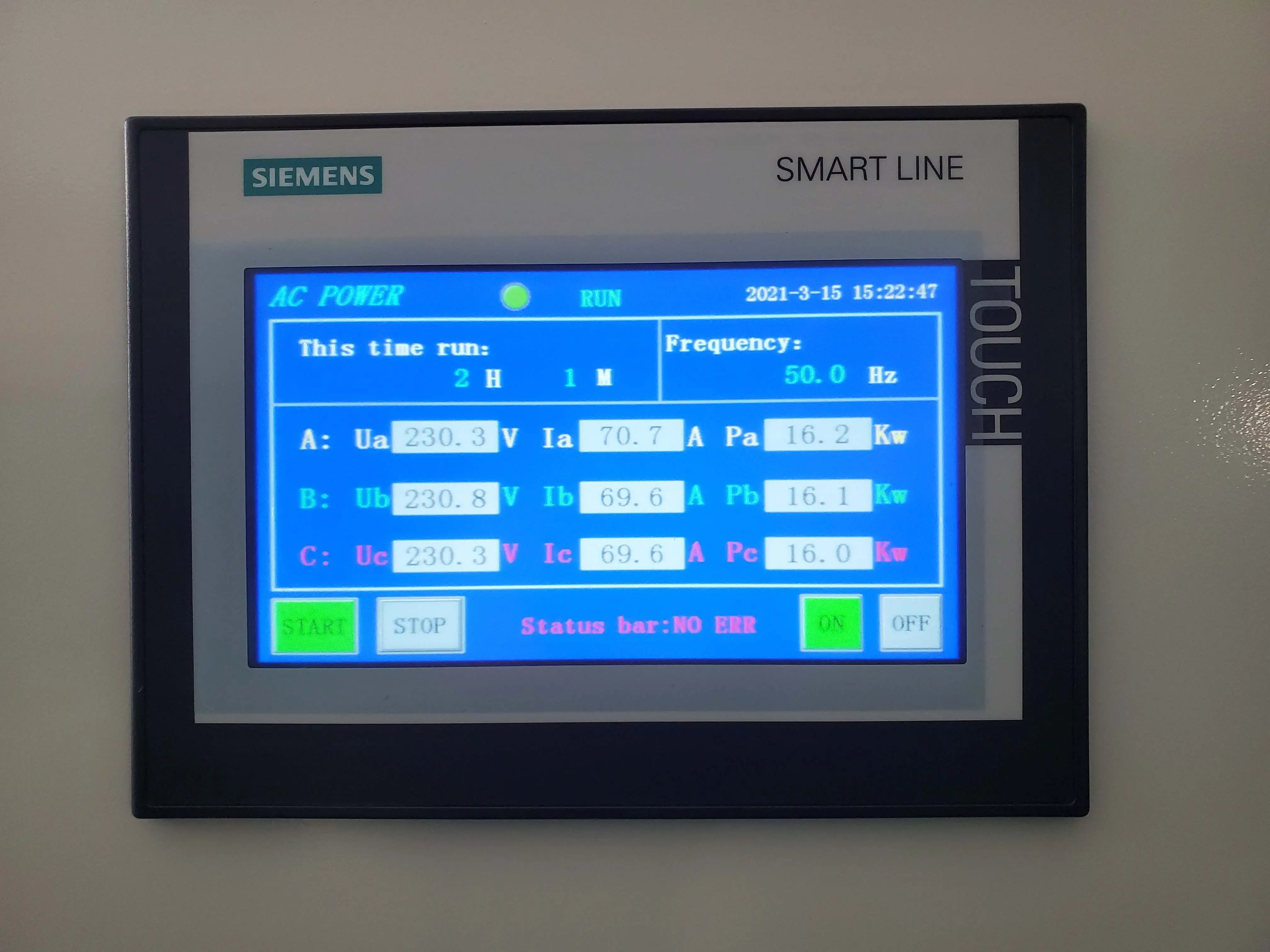

Digital LED display for output voltage, current, and frequency.
Comprehensive protection: Over Voltage, Over Current, Short Circuit, Over Temperature.
Forced air cooling with front-to-back airflow for rack compatibility.
Designed for compliance with EMC standards.
Why Choose ACSOON Static Converter 400Hz Panel?
The ACSOON Static Converter 400Hz Panel is designed for integration, reliability, and performance. Key benefits include:
Integrated Design Philosophy: A self-contained panel module simplifies wiring, saves space, and accelerates the assembly of custom test systems or power carts.
Guaranteed Power Fidelity: Delivers a clean, stable 400Hz sine wave with tight voltage (±1%) and frequency (±0.1%) regulation, meeting stringent avionics testing standards.
Robust & Serviceable Construction: Built with industrial-grade components in a durable metal enclosure, featuring front-access terminals for easy installation and maintenance.
Complete System Safety: Includes comprehensive electrical protection (overload, short circuit) and isolation, safeguarding both the converter and the valuable unit under test.
Operational Flexibility: Compatible with a wide range of input voltages, making it adaptable to various facility power configurations worldwide.

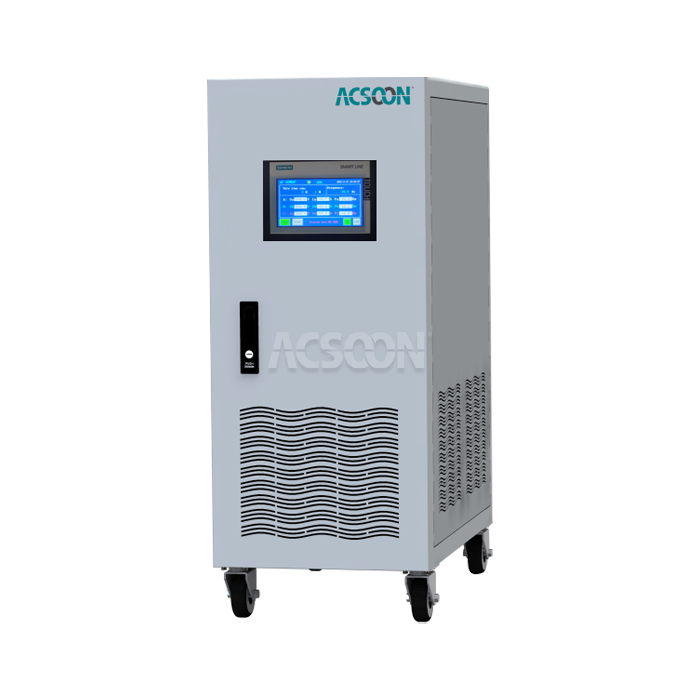

Application Areas
The Static Converter 400Hz Panel is the core power module for integrated systems in:
Avionics Test Consoles: Built into rack systems for testing flight displays, communication radios, navigation computers, and radar systems.
Aerospace System Simulators: Providing authentic 400Hz power within full-flight simulators or subsystem trainers.
Modular Ground Power Units (GPU): Serving as the power conversion heart in containerized or cart-based mobile GPU systems.
Aircraft Maintenance Workstations: Integrated into portable or bench-top test stations for component-level repair and verification.
Military System Integration: Used in shelters, command posts, and mobile testing platforms for military aircraft electronics.
Production Test Rigs: Incorporated into automated test equipment (ATE) for functional testing of aircraft components on the assembly line.
Our Services

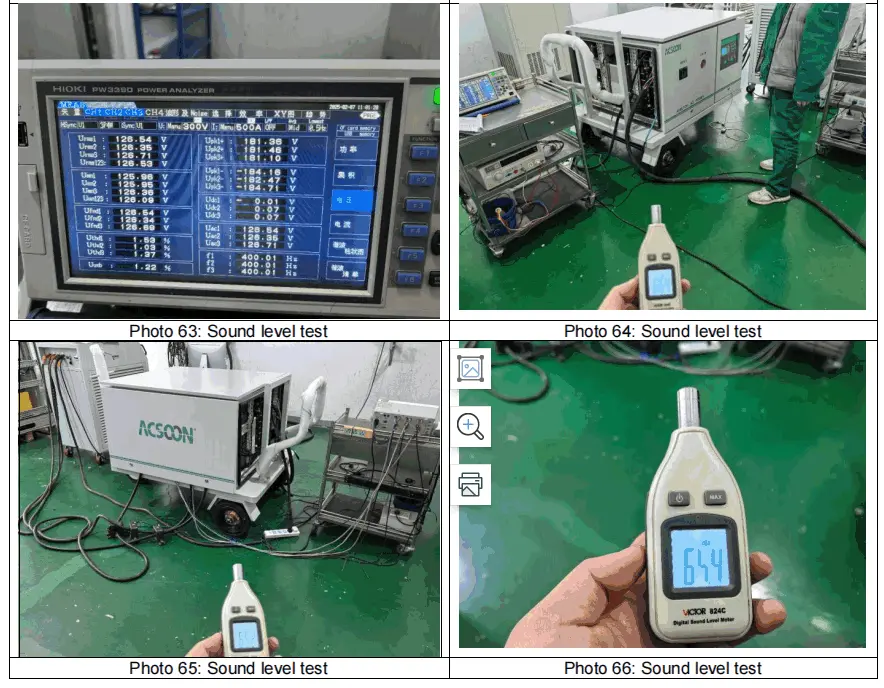

Quality Control
Every Static Converter 400Hz Panel undergoes rigorous validation to ensure integration-ready reliability:
Incoming inspection of all power semiconductors and magnetic components.
Automated functional test of control logic and protection circuits.
Full-power burn-in test at elevated temperature to validate thermal design.
Final verification of output waveform quality, regulation accuracy, and safety interlocks.

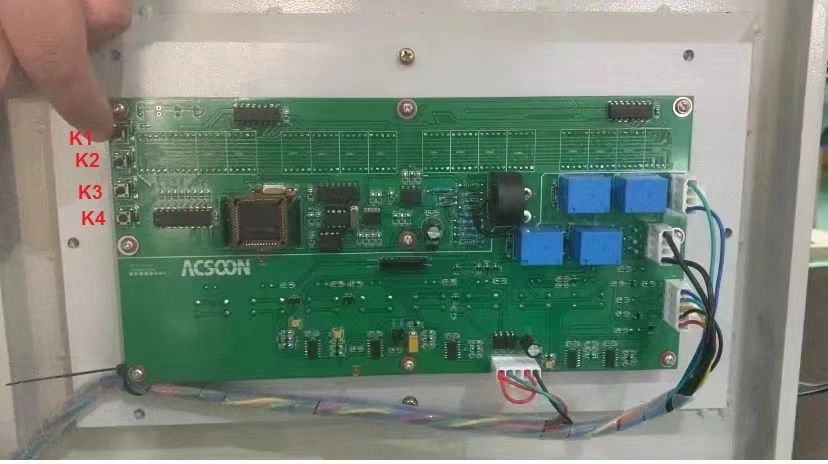

R&D Results
Our R&D continuously refines the Static Converter 400Hz Panel for better integration:
Development of slimmer, more power-dense designs for higher kVA ratings in standard rack units.
Implementation of standardized communication protocols (e.g., CAN bus, Ethernet) for smarter system control.
Optimization of cooling airflow to meet stringent thermal requirements of densely packed racks.

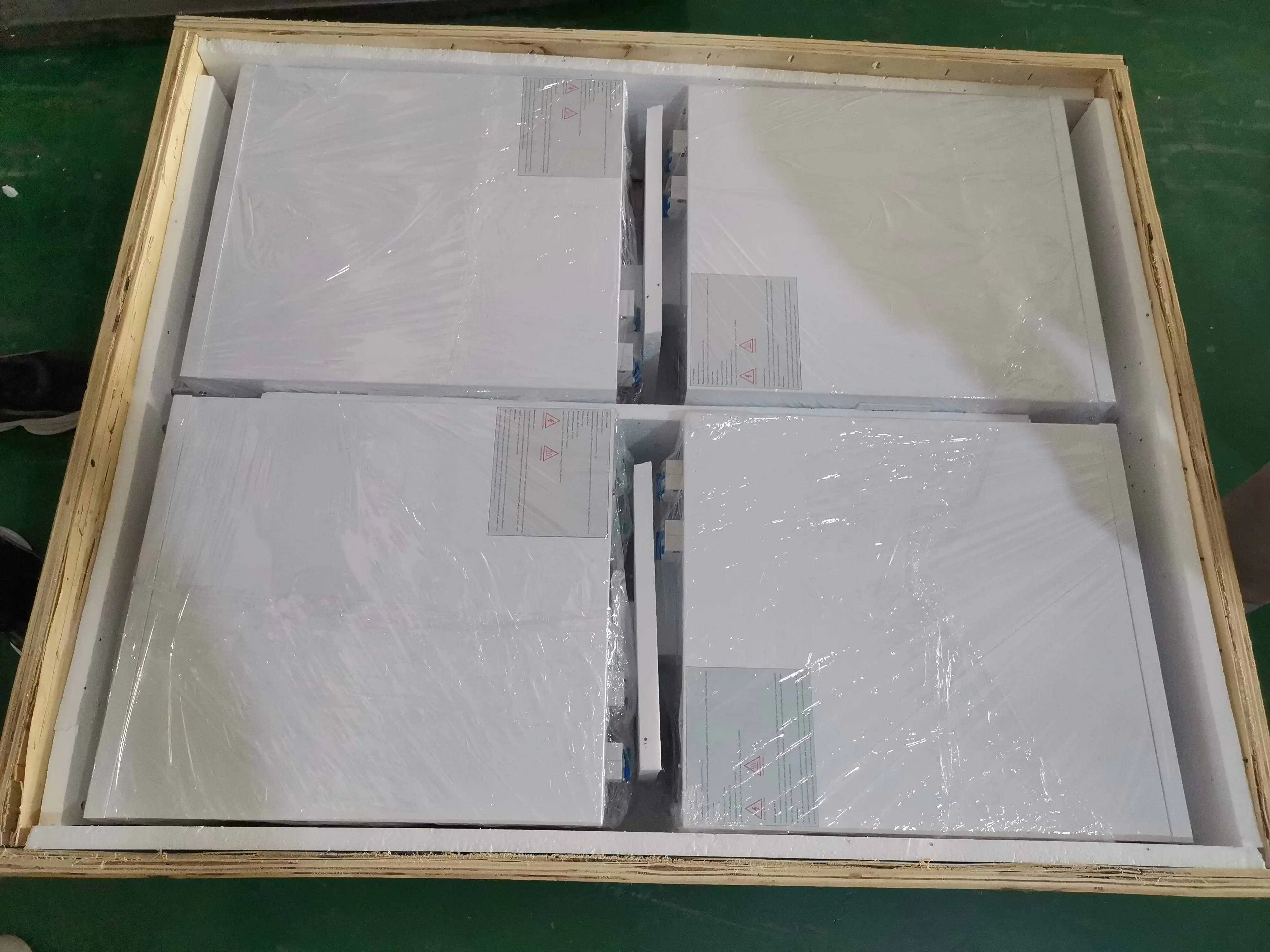

Packaging and Transportation
Each panel is securely packed in an individual cardboard box with high-density foam.
Multiple units can be palletized for bulk shipments.
All accessories (mounting brackets, hardware, manual) are included in the package.

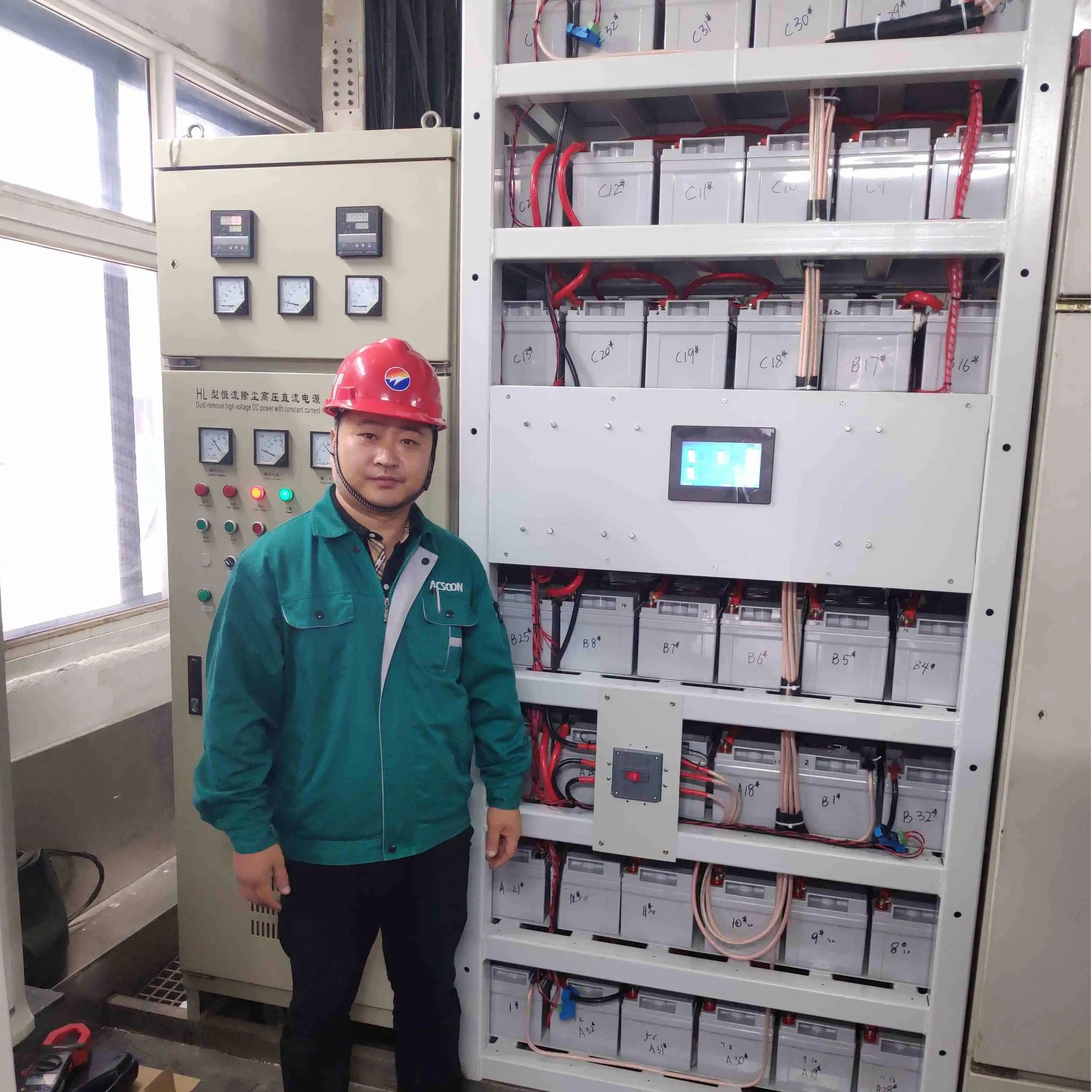

After-Sales Service
Comprehensive 18-month warranty.
Detailed integration guide and mechanical drawings available.
Technical support for system integration queries.
Guaranteed availability of replacement modules and sub-assemblies.
Qualification Certification
CE Marking (EMC & LVD Directives)；ISO 9001:2015 Quality Management System；Designed to meet the environmental and electrical requirements of MIL-STD-810 and MIL-STD-461 for rugged applications.
FAQ |
|---|
| Q1: What is the main advantage of a panel-mount converter versus a standalone unit? |
| A2: The Static Converter 400Hz Panel is designed for direct integration into a 19-inch equipment rack, saving space, simplifying cabling, and creating a streamlined, professional test or power system. |
| Q2: What are the standard rack dimensions (RU) for this panel? |
| A2: The height varies by power rating (e.g., 3U for 10kVA, 5U for 30kVA). The standard width is 19 inches (483mm), and depth is typically 500-600mm. Please consult the datasheet for the specific model. |
| Q3: Can the output of multiple panels be synchronized or paralleled? |
| A3: Standard models operate independently. For synchronized or paralleled operation to achieve higher power, please consult our engineering team for customized solutions. |
| Q4: Is remote control and monitoring supported? |
| A4: While the standard model features front-panel controls, optional communication cards (RS485, Ethernet) are available for remote monitoring, control, and data logging. |
| Q5: Can this panel be used in mobile applications (e.g., on a truck)? |
| A5: Yes, its robust construction makes it suitable for mobile applications. For environments with high vibration, special mounting arrangements and optional conformal coating on the PCB are recommended. |
Contact Us
For technical specifications, integration drawings, or customized Static Converter 400Hz Panel solutions: acpower@acsoonpower.com, or submit your requirements using the form at the bottom of our website.
