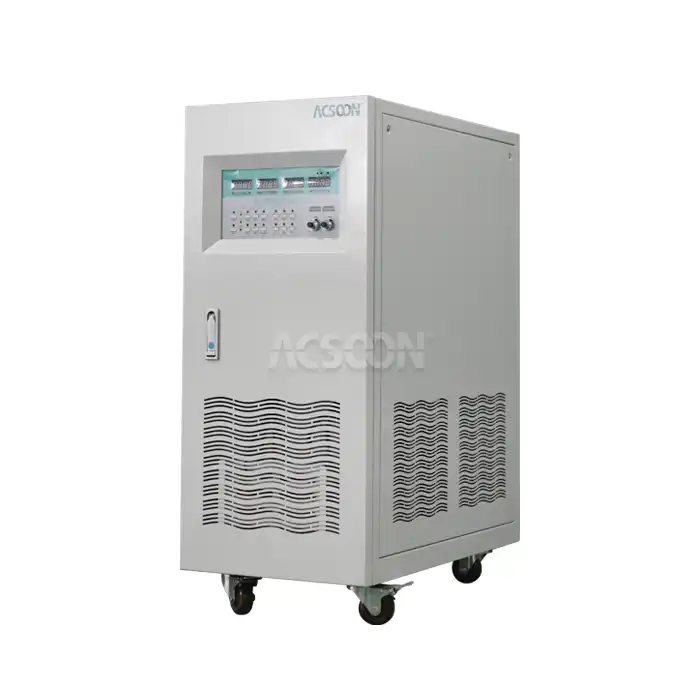

Three-Phase Motor Test AC Power Supply
2.Technology: IGBT-based Static Converter with High Overload Capacity
3.Input: 3-Phase, 380V-480V, 50/60Hz Mains Power
4.Output: 0-520V Adjustable, 5Hz-400Hz Variable Frequency, Pure Sine Wave
5.Key Applications: Industrial Motor Performance Testing, Drive System Validation, Pump & Compressor Testing, Burn-in Rigs
6.Core Features: High Starting Current Support, Wide Frequency Range, Robust Design for Inductive Loads
7.Brand: ACSOON (Custom Voltage & Frequency Profiles Available).
- Product Description

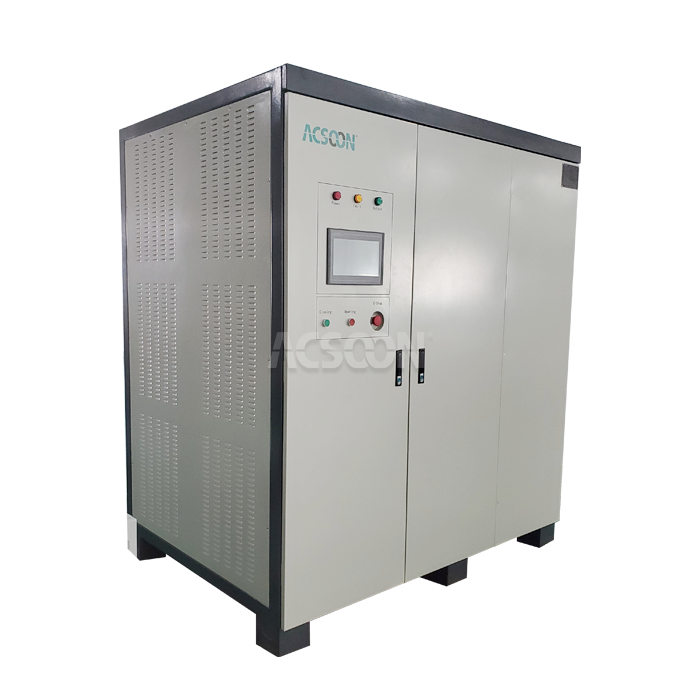

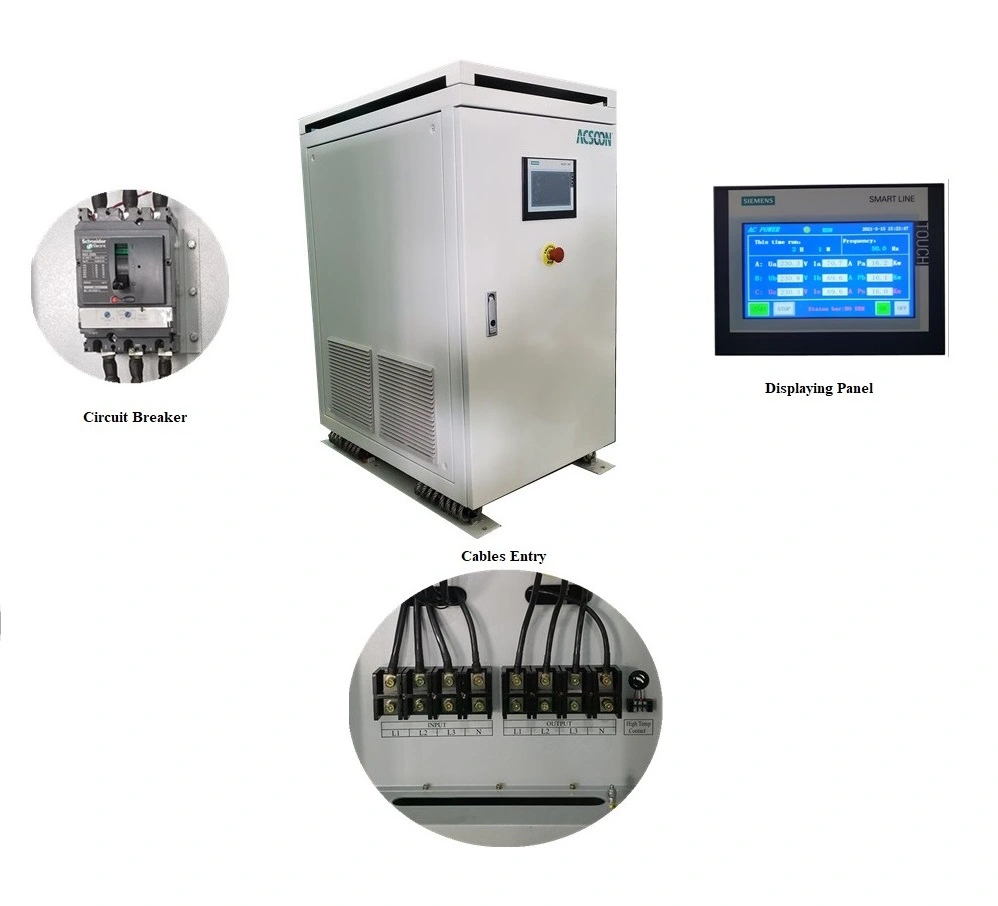

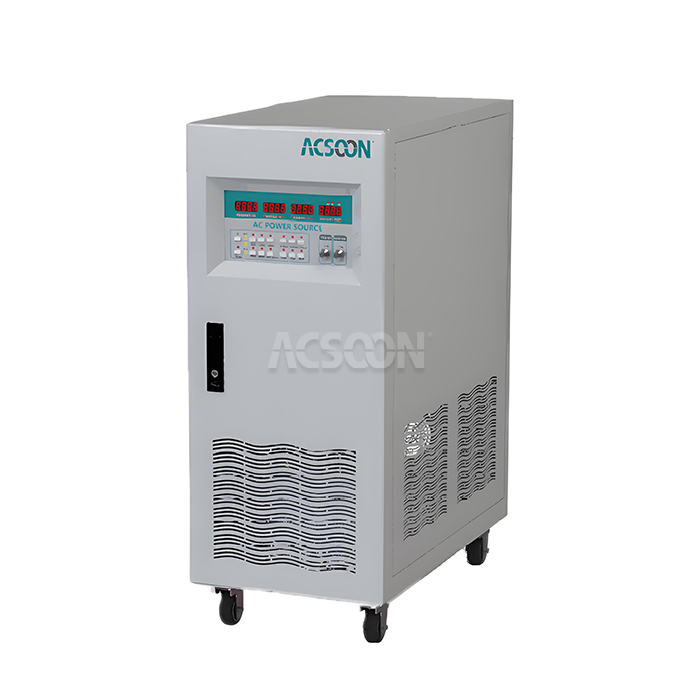

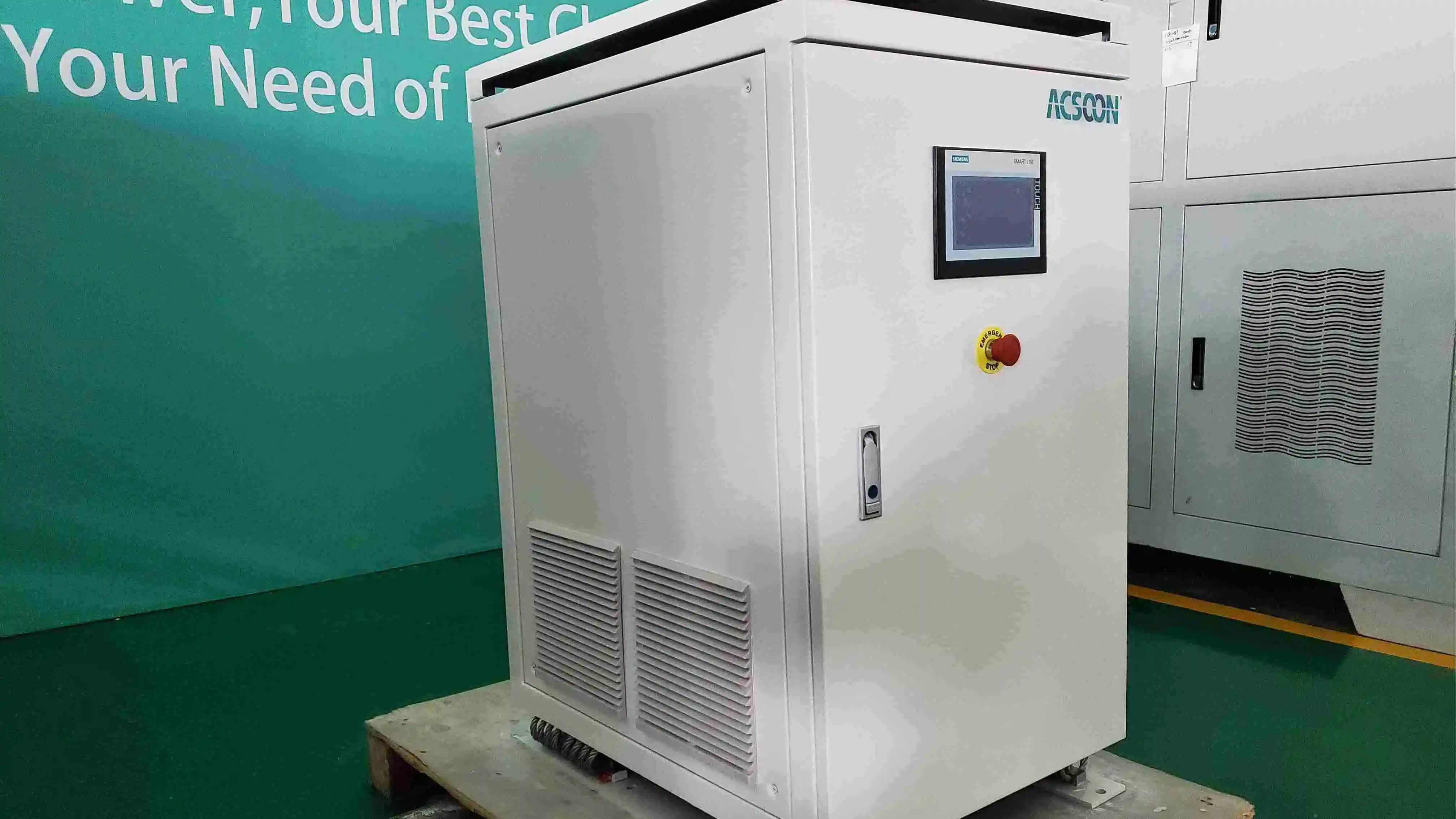

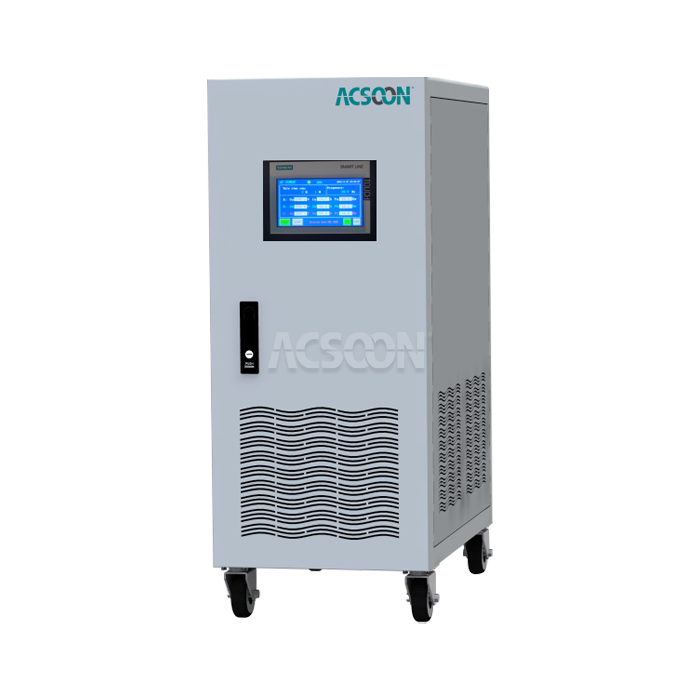

Three-Phase Motor Test AC Power Supply | Variable Frequency Drive Simulator
XI'AN JERRYSTAR INSTRUMENT CO., LTD introduces the Three-Phase Motor Test AC Power Supply, a robust and versatile power source engineered for the rigorous testing of industrial motors and associated drive systems. This supply simulates various grid conditions and provides variable voltage and frequency output to validate motor performance, efficiency, and durability under controlled, repeatable laboratory conditions, from low-speed start-up to high-speed operation.
Datasheet
| Parameter | Specification |
|---|---|
| Model Series | ACSOON AF400M Series |
| Input | Voltage: 3-Phase 380V, 400V, 415V, 480V ±15% Frequency: 50Hz / 60Hz |
| Output | Voltage: 0-520V (L-L) adjustable Frequency: 5Hz – 400Hz adjustable Configuration: 3-Phase, 4-Wire + PE Power: 10, 15, 20, 30, 45, 60, 75, 100, 150, 200, 300 kVA |
| Overload Capacity | 150% for 60 seconds, 200% for 10 seconds (for motor start) |
| Output Quality | THD: <3% @ linear load Waveform: Pure Sine Wave |
| Regulation | Voltage: ≤ ±1.5% FS Frequency: ≤ ±0.2% FS |
| Cooling | Forced Air with Temperature Control |
Three-Phase Motor Test AC Power Supply Main Features
Adjustable V/F Profiles: Allows programming of Voltage-per-Hertz (V/Hz) curves to simulate different motor control methods and test motor response.
High Starting Current Capability: Robust output stage sustains the high torque required for motor start-up and acceleration under load.

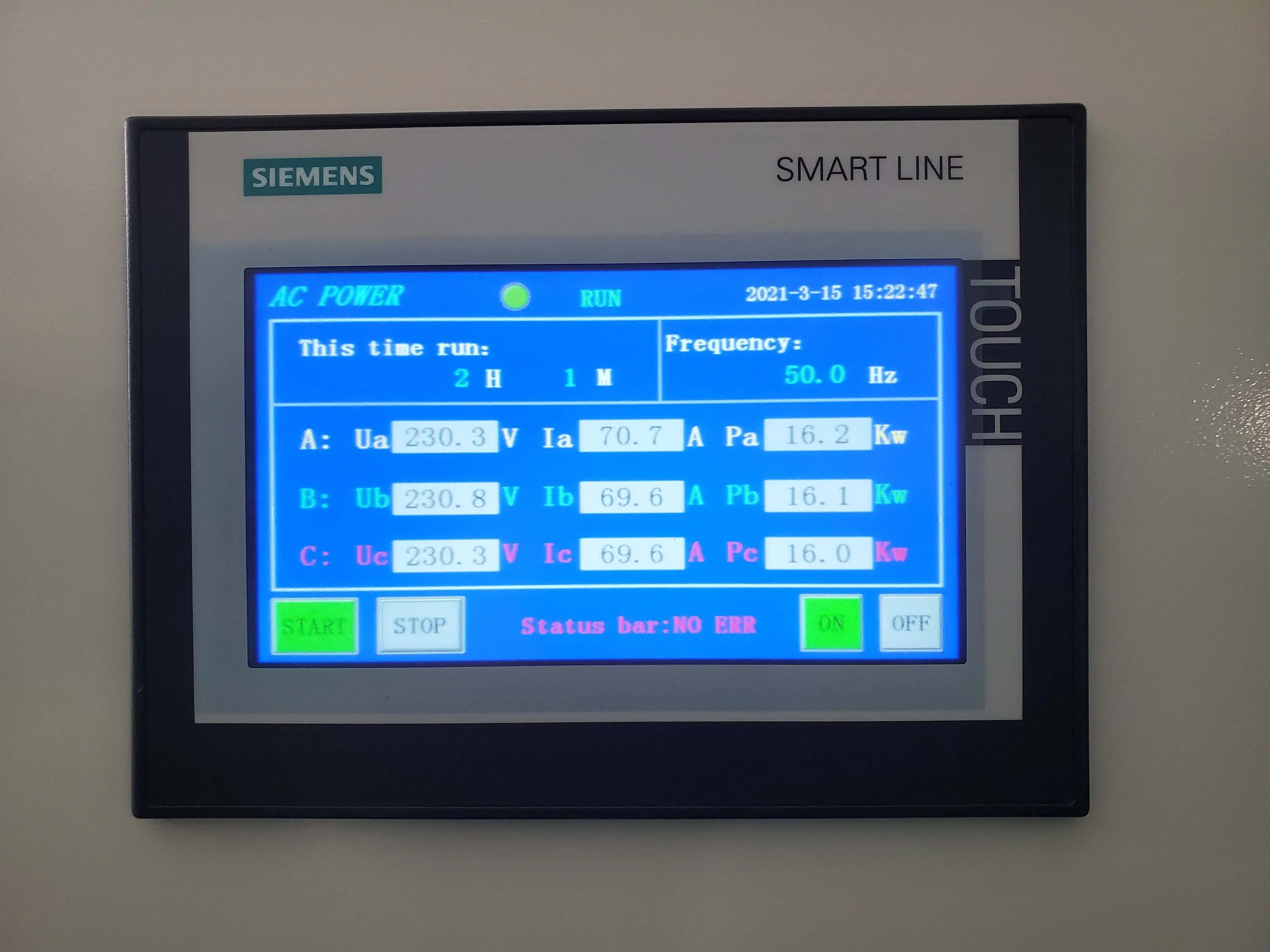

Comprehensive Measurements: Built-in metering for three-phase voltage, current, power (kW), power factor, and frequency for direct performance analysis.
Protection & Safety: Features phase-loss protection, over-temperature shutdown, and short-circuit protection to safeguard both the supply and the motor under test.
Why Choose ACSOON Three-Phase Motor Test AC Power Supply?
High Overload Capacity: Specifically designed to handle high inrush currents (up to 150-200% of rated current) typical of motor starting, without nuisance tripping.
Wide Frequency Range: Output frequency adjustable from 5Hz to 400Hz, allowing testing of motors across their entire speed range and for special applications.
Precise Power Control: Delivers clean, stable three-phase power with excellent voltage and frequency regulation, enabling accurate torque and efficiency measurements.
Durability Under Load: Built with industrial-grade components and an isolation transformer rated for continuous operation with highly inductive and unbalanced loads.

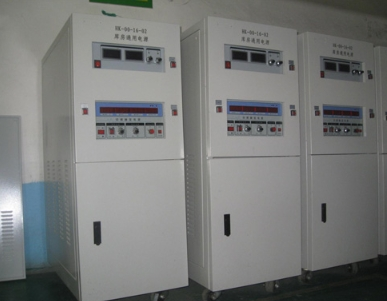

Three-Phase Motor Test AC Power Supply Application Areas
Motor Manufacturing QC: Final performance testing, efficiency mapping, and burn-in of AC induction, synchronous, and servo motors.
Drive & Inverter Testing: Serving as a programmable grid simulator to test variable frequency drives (VFDs) and inverter-fed motor systems.
Pump & Fan Testing: Simulating real-world operating conditions for performance validation of motor-driven industrial pumps, compressors, and blowers.
Research & Development: Used in labs to study motor characteristics, develop new control algorithms, and test insulation systems under different power qualities.
Our Services

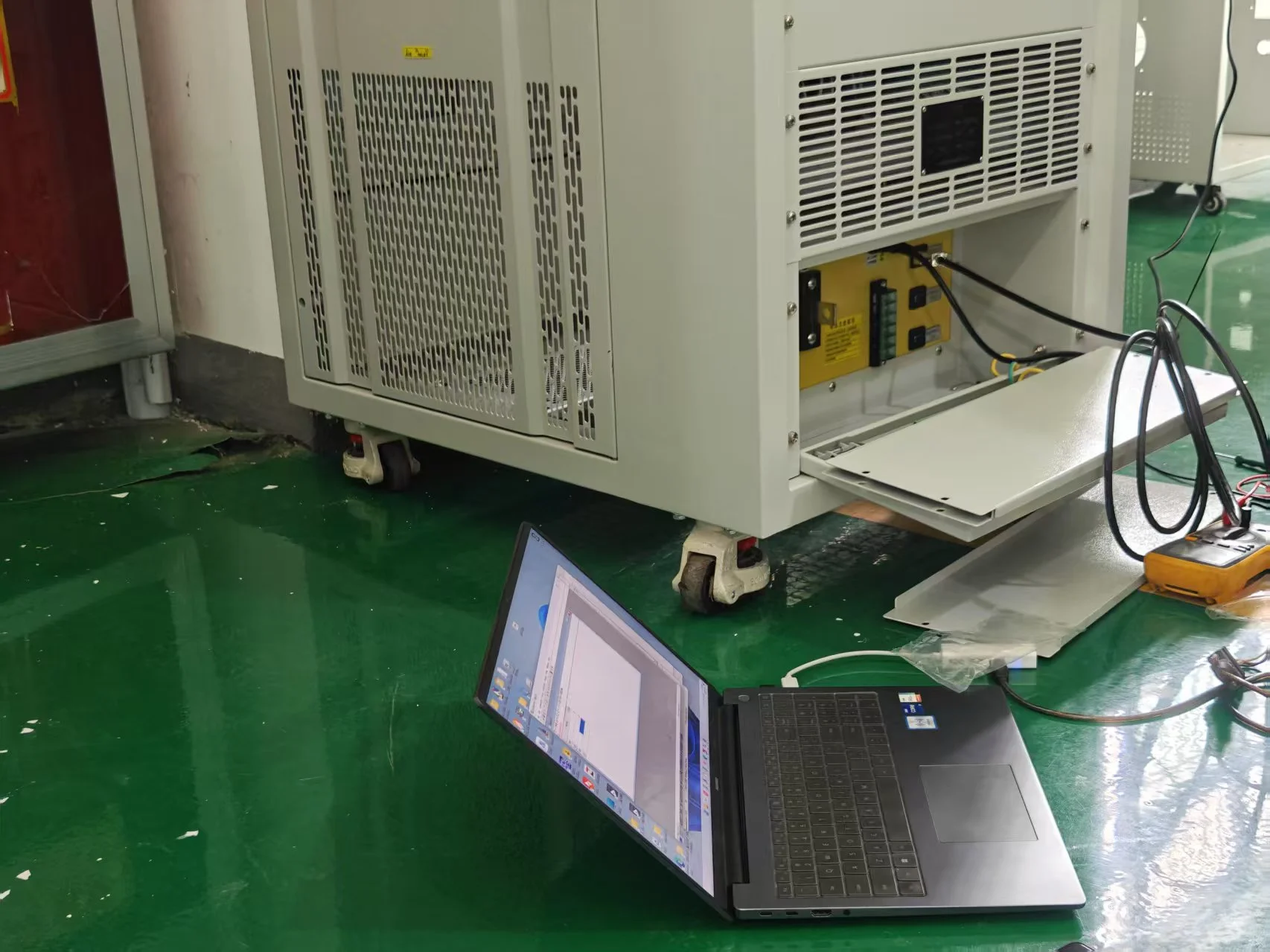

Quality Control
Component Stress Testing: IGBT modules and output transformers are selected and tested for high peak current handling capability.
Inductive Load Burn-in: Each unit undergoes an extended test driving a standard three-phase inductive load to verify stability and thermal performance.
Voltage/Frequency Ramp Testing: The programmability and accuracy of V/Hz profiles are thoroughly verified across the entire output range.
Protection Circuit Validation: All motor-relevant protections (phase imbalance, overload) are tested under simulated fault conditions.
R&D Results
Enhanced Dynamic Response: Developed control algorithms to provide stable output voltage during rapid motor load changes and start-up transients.
Low-Frequency Stability: Engineered solutions to maintain clean sine wave output and stability even at very low frequencies (e.g., 5-10Hz) for start-up testing.
Custom Test Sequence Software: Created optional software that allows users to create automated test sequences involving ramps, dwells, and cycles of voltage and frequency.
Improved Measurement Integration: Designed analog/digital output ports to easily connect with external torque sensors, data loggers, and power analyzers.

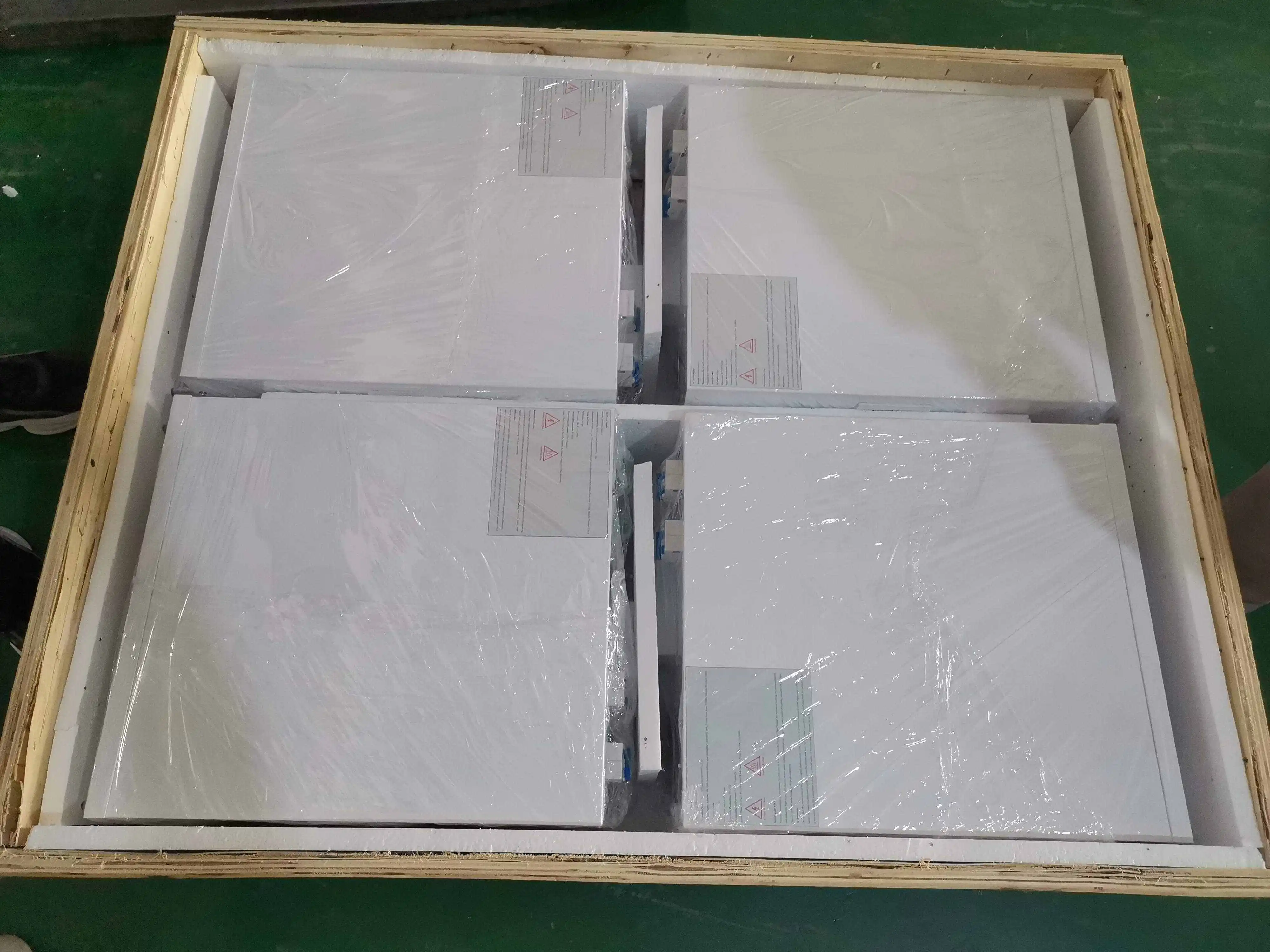

Packaging and Transportation
Heavy-Duty Industrial Crating: The unit is secured within a reinforced wooden crate with steel strapping, suitable for heavy machinery shipping.
Vibration Dampening: Internal bracing and high-density foam isolate the unit from shocks and vibrations during transit.
Complete Technical Documentation: Includes detailed wiring diagrams for test setups, application notes for motor testing, and a full set of operation manuals.
Global Freight Management: We handle all logistics, offering both sea and air freight options with professional export documentation.
After‑Sales Service
We provide an 18-month warranty, dedicated technical support for application setup, access to firmware updates, and a ready inventory of critical spare parts like IGBT modules and fan assemblies.
Qualification Certification
ISO 9001:2015 Certified manufacturing and quality assurance processes;CE Marking, confirming compliance with EU safety and EMC directives for industrial equipment;Performance Test Report: Each unit is shipped with a detailed report verifying its output specifications and overload capabilities.
FAQ |
|---|
| Q1: What is the main advantage of using this over a standard Variable Frequency Drive (VFD) for motor testing? |
| A: This supply provides a clean, pure sine wave output with precise regulation and wide adjustability, ideal for measuring true motor performance without the harmonic distortion introduced by a VFD's PWM output. It acts as a perfect grid simulator. |
| Q2: Can it test single-phase motors as well? |
| A: While designed for three-phase loads, it can be configured to supply one phase (L-N) for testing larger single-phase motors, utilizing its robust current capability. |
| Q3: How do I simulate different line voltages (e.g., 208V or 600V) for motors designed for those standards? |
| A: The output voltage is continuously adjustable from 0V. You can set the L-L voltage to match the motor's nameplate rating (e.g., 208V or 480V). For voltages beyond 520V, a custom output transformer option is available. |
| Q4: Is it suitable for testing motors with attached loads (like a pump or gearbox)? |
| A: Absolutely. Its high overload capacity makes it ideal for testing the motor while it is coupled to its actual mechanical load, simulating real startup and run conditions. |
| Q5: Can the output frequency go above 60Hz or 50Hz to test overspeed conditions? |
| A: Yes, the frequency is adjustable up to 400Hz, allowing you to test motor performance, bearing stability, and insulation at speeds above the base frequency (overspeed testing). |
