28VDC Aircraft Starter Power Unit
2. Rated Output: 28V DC, 600A
3. Input Voltage & Frequency: 3 Phase 380V, 60HZ
4. Technology: Heavy-Duty SCR (Silicon Controlled Rectifier)
5. Mobility: Towable trailer design with integrated tow bar
6. Ingress Protection Grade: IP23 (Standard indoor/outdoor use)
7. Applications: Engine starting and ground power for regional jets, helicopters, and military aircraft.
8. Brand: ACSOON (support OEM)
9. Features: High current output for reliable engine cranking. Built for durability and ease of use.
- Product Description
ACSOON 28V DC Aircraft Starter Power Unit | Reliable 600A Engine Starting
XI'AN JERRYSTAR INSTRUMENT CO., LTD delivers dependable ground power solutions with our robust 28V DC Aircraft Starter Power Unit. Designed for simplicity and reliability, this ACSOON unit provides the high current essential for starting aircraft engines and powering onboard systems. It is the go-to choice for operations that value straightforward performance and rugged durability.
Why Choose Our 28V DC Aircraft Starter Power Unit?
Powerful Engine Starting、Simple and Robust Design、Easy to Operate、Essential Protections、Cost-Effective Solution
Product Introduction: Dependable DC Ground Power
Our 28V DC Aircraft Starter Power Unit is a workhorse on the ramp. It provides a straightforward and powerful solution for the critical task of starting aircraft engines and providing auxiliary power during ground operations.
Technical Specifications
| Feature | Specification |
|---|---|
| Input Voltage | 200-440VAC (L-L) ±20%, 3-Phase Delta or Wye |
| Input Frequency | 40 - 70HZ |
| Output Voltage | 28.5VDC (Adjustable 24-32V) |
| Output Current | 50A to 1000A models available |
| Voltage Regulation | +/-1% |
| Power Factor | ≥0.9 |
| Efficiency | ≥85% |
| Ripple | <150mV (max 250mV rms) |
| Display | VFD / LCD showing Voltage, Current, Power |
| Overload Capacity | 125% for 10 min, 150% for 60s, 200% for 10s |
| Protections | Overvoltage, Undervoltage, Current Limiting, Overheating, Short Circuit |
| Operating Temperature | -10°C to 50°C |
| Humidity Tolerance | 10% - 95% |
| Altitude | <1800 meters |
| MTBF | 30,000 hours |
| MTTR | <30 minutes |
Typical Applications
Starting regional jet and helicopter engines.
Providing ground power for military transport aircraft.
Auxiliary power during maintenance and pre-flight checks.
Flight schools and training facilities.

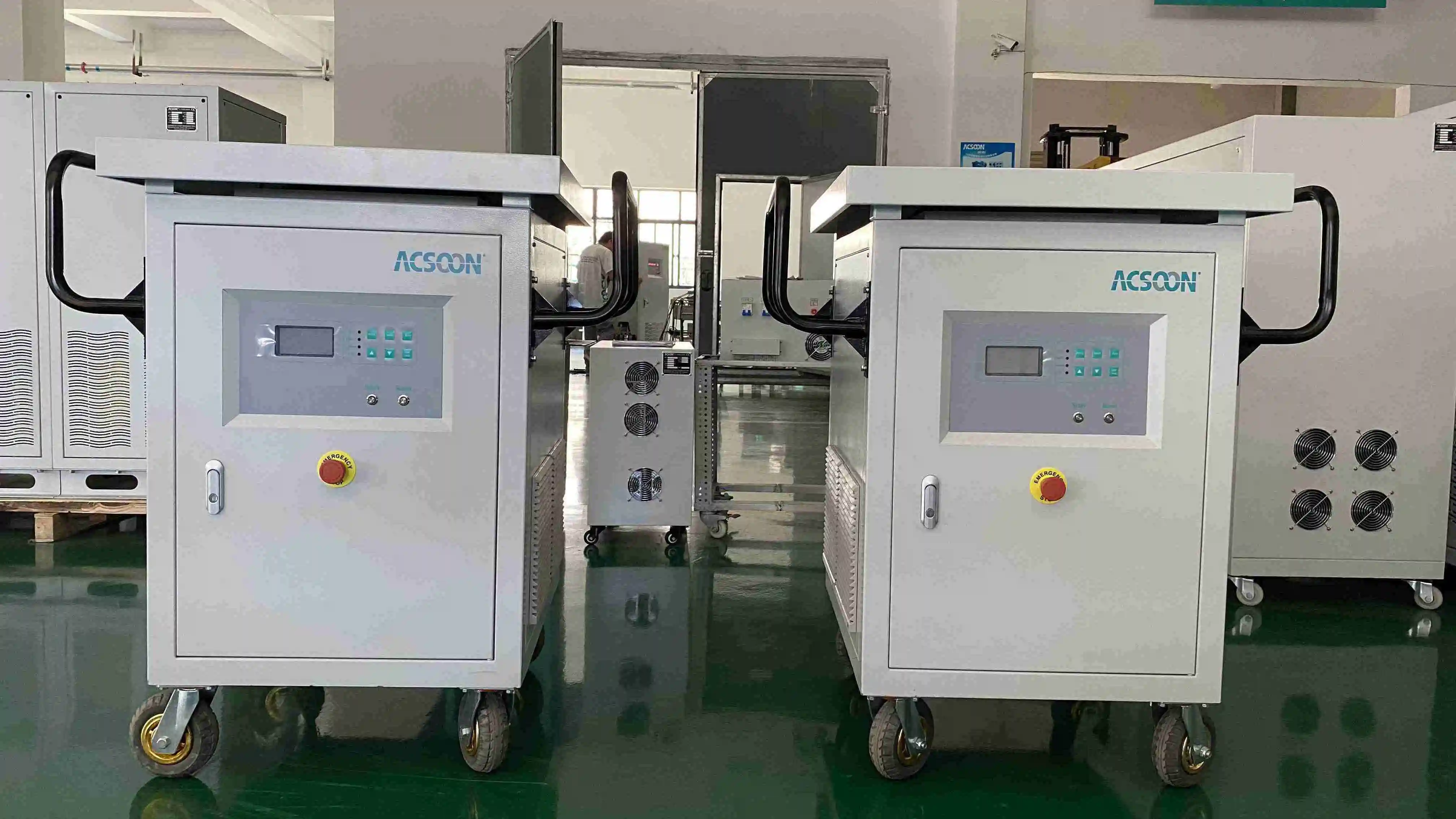

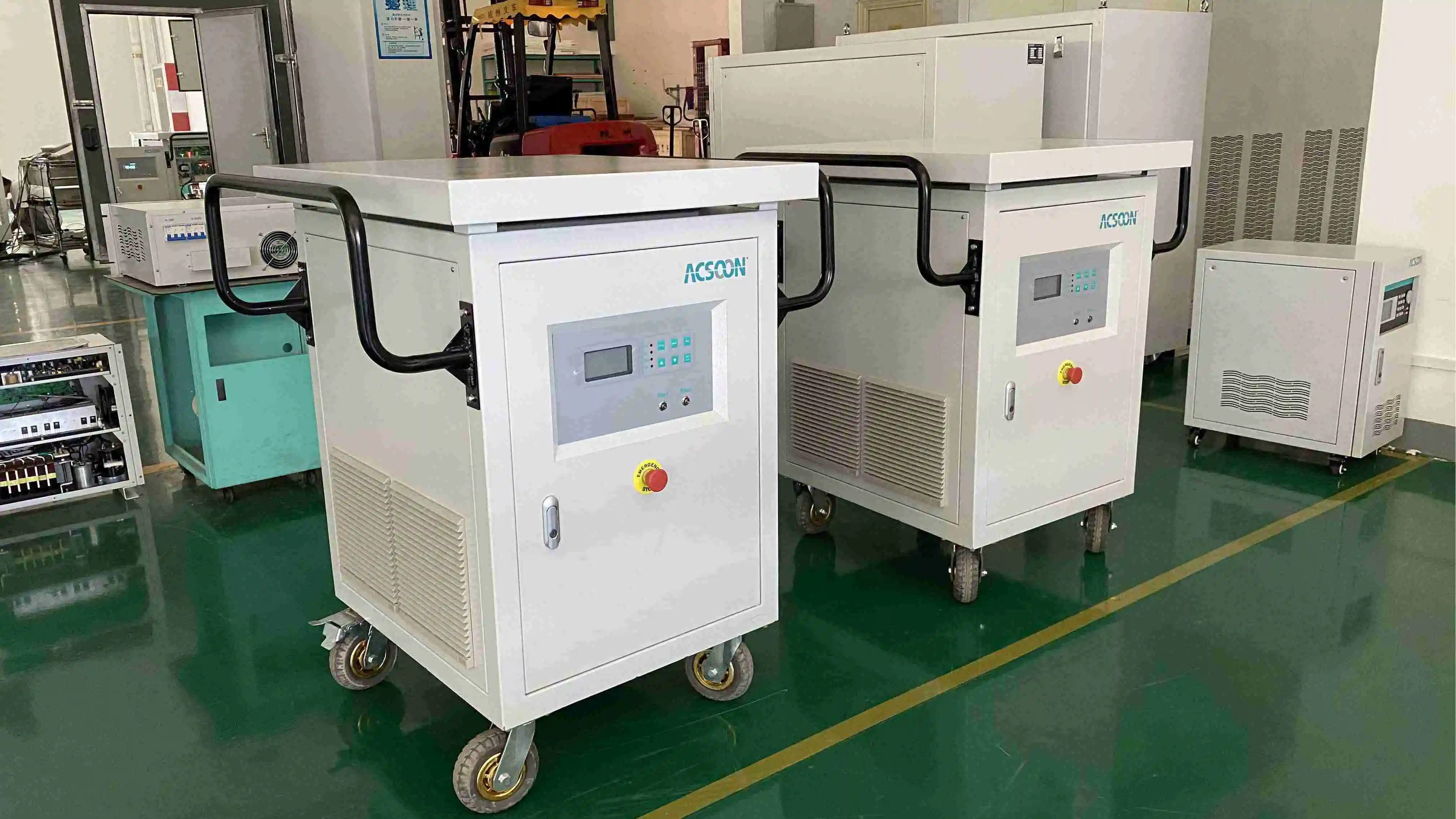

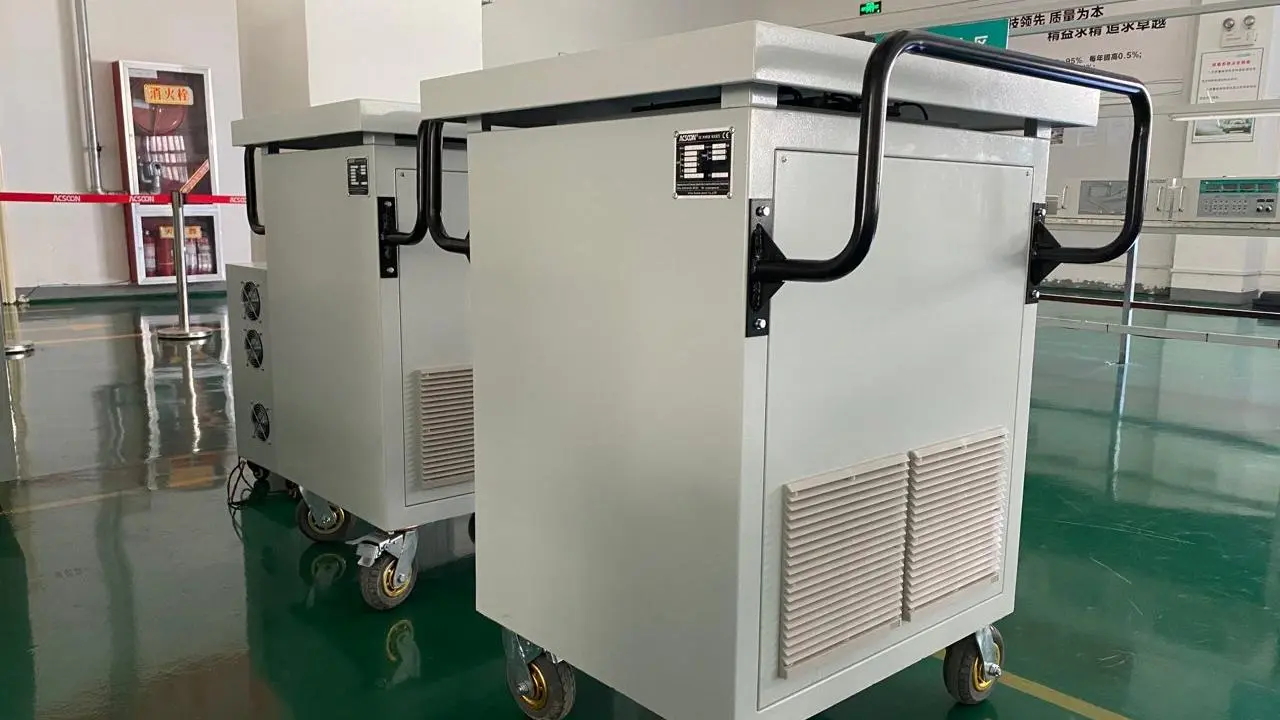

Details display
01
Quality Construction
Robust steel frame construction.
Quality components from trusted suppliers.
Final testing under simulated load conditions.
02
Design Features
Clear analog meters for voltage and current display.
Heavy-duty output cables with aircraft-standard connectors.
Easy-access panels for simplified maintenance.
03
After-Sales Service
Comprehensive 12-month warranty.
Technical support via email and phone.
Availability of common spare parts.
04
Certifications
CE Certified
ISO 9001:2015 Manufacturing Standards
FAQ |
|---|
| Q1: What is the maximum output current? |
| A: This unit provides a continuous 600A, with higher surge current for starting. |
| Q2: What connectors are provided? |
| A: Standard military-style connectors are provided. Custom connectors can be specified. |
| Q3: Is training provided? |
| A: Yes, we provide operation manual and online video training upon request. |
| Q4: What are the requirements for the input power source? |
| A: The unit requires a standard 3-phase 380V-480V, 50/60Hz industrial power source. A minimum supply capacity of 80kVA is recommended to ensure optimal performance during engine start-up surges. |
| Q: How does the cooling system work? |
| A: The unit is equipped with a thermostatically controlled forced-air cooling system. High-capacity fans automatically activate based on temperature to ensure critical components operate within a safe range, even under high ambient temperatures or prolonged heavy loads. |
Contact Us
Interested in our reliable 28V DC Aircraft Starter Power Unit? Contact our team for more information and pricing at acpower@acsoonpower.com.
