Business Aviation GPU for Corporate Jets
2.Technology: Integrated Solid-State System with Low-Noise Operation
3.Input: 3-Phase, 208V/400V/480V, 50/60Hz (FBO/Hangar Supply)
4.Output: MIL-STD-704 Compliant 28VDC & 115V 400Hz AC for Avionics & Systems
5.Key Applications: Corporate Jet Terminals (FBOs), Private Hangars, VIP Aircraft Handling
6.Core Features: Ultra-Quiet Operation, Compact Footprint, User-Friendly Interface, Rapid Turnaround Support
7.Brand: ACSOON (Custom Branding for FBOs Available).
- Product Description

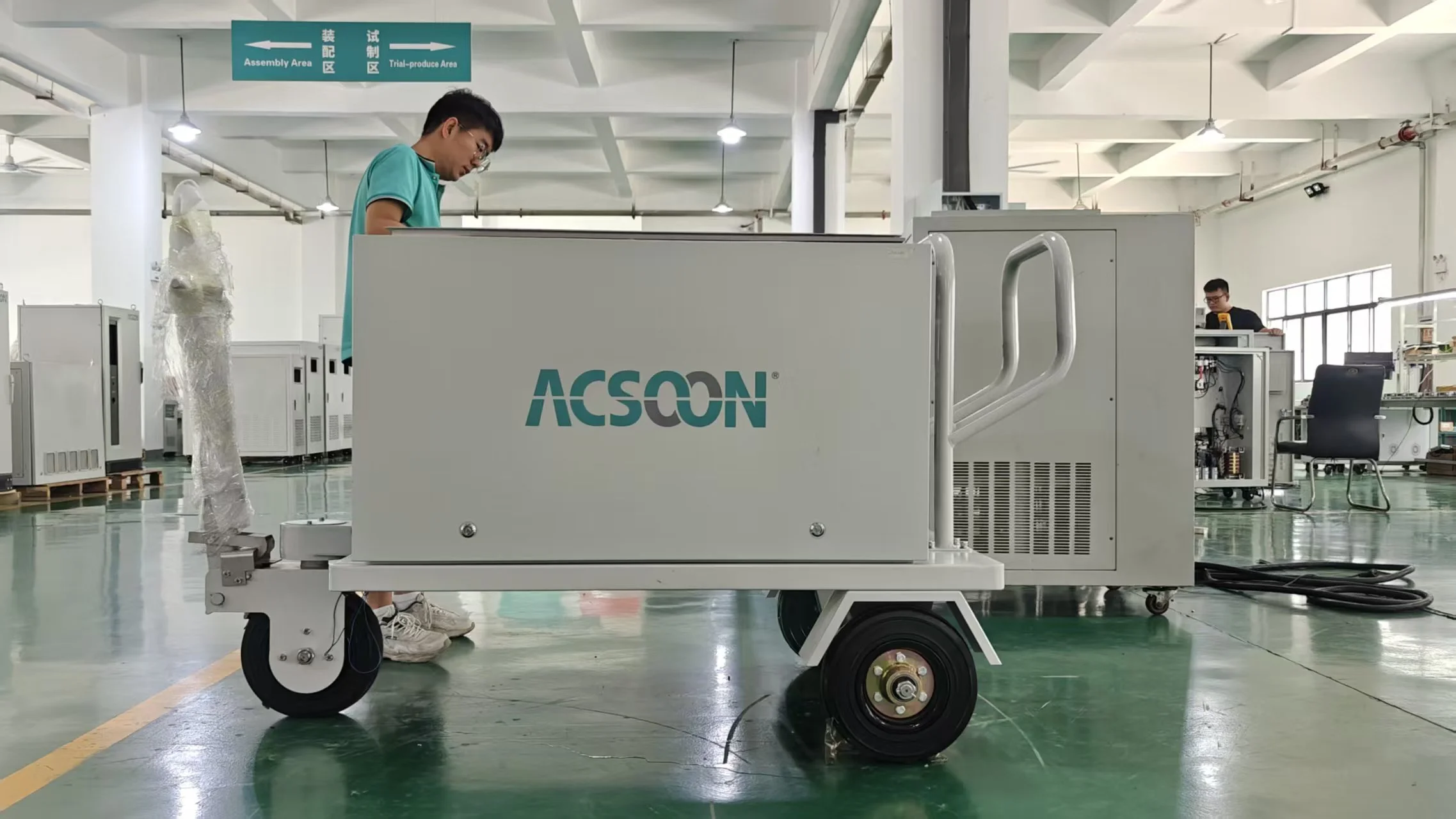

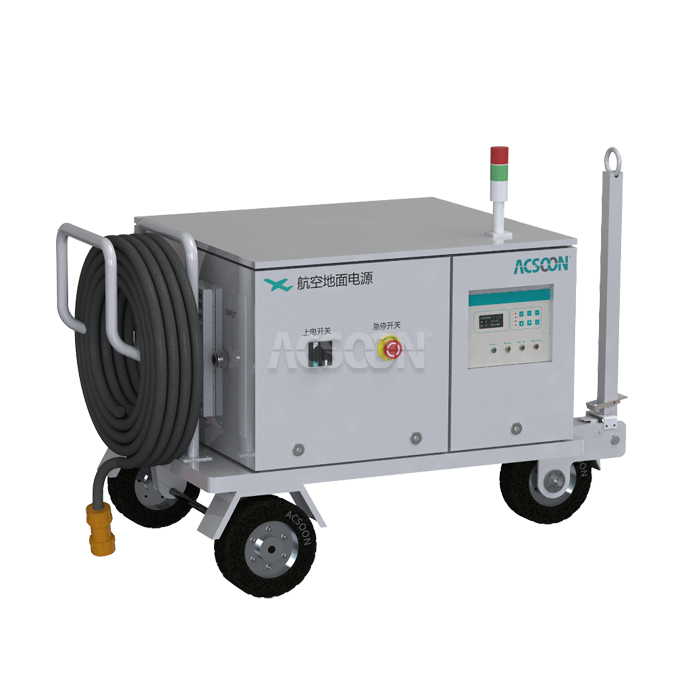

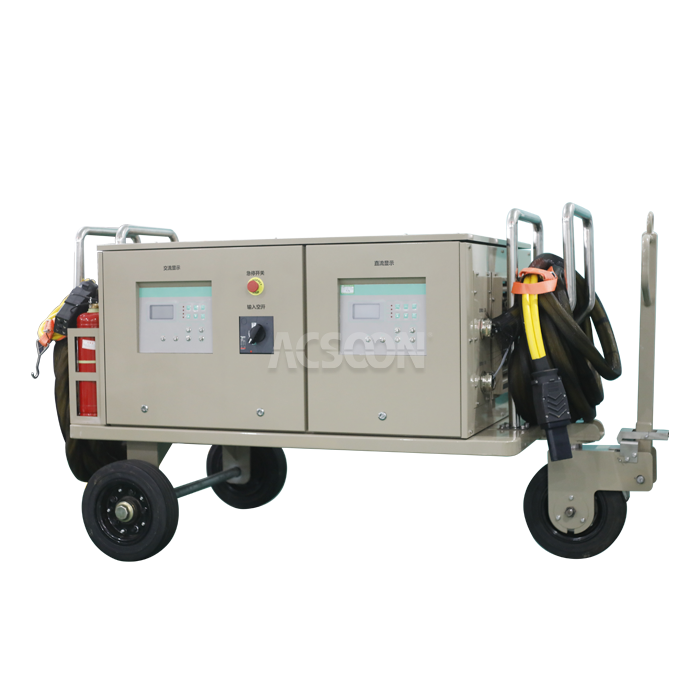

Business Aviation GPU for Corporate Jets | FBO Ground Power Unit
XI'AN JERRYSTAR INSTRUMENT CO., LTD presents the Business Aviation GPU for Corporate Jets, a premium ground power solution designed for the exacting standards of corporate flight departments and Fixed-Base Operators (FBOs). This unit combines reliable 28VDC and 400Hz AC power in a single, quiet, and compact package, ensuring seamless and efficient turnarounds for mid-size to large business jets while operating discreetly in upscale aviation environments.
Datasheet
| Parameter | Specification |
|---|---|
| Model Series | ACSOON Combi GPU Series |
| Input | 3-Phase 208V/400V/480V, 50/60Hz |
| DC Output | 28.5VDC (Adj.), up to 600A Continuous |
| Peak Current | 125% for 10min,150% for 60s,200% for 30s..upto 400% for 1s |
| AC Output | 115V/200V, 400Hz, up to 90kVA |
| Compliance | MIL-STD-704F (AC & DC Characteristics) |
| Noise Level | < 60 dB(A) at 1 meter (Typical) |
| Enclosure | IP54, Powder-Coated Steel, Compact Design |
| Control | 7" Color Touchscreen HMI |
Business Aviation GPU for Corporate Jets Main Features
Low-Noise Operation: Advanced acoustic damping and smart fan control minimize operational sound, crucial for airport noise restrictions and client comfort.
Intuitive Smart Control Panel: Color touchscreen interface with clear status, fault diagnostics, and usage logging for easy operation by ground crews.
Compact & Maneuverable: Designed with a small footprint and optional wheel kit or tow bar for easy positioning around aircraft in crowded ramps.
High Efficiency & Low Emissions: Utilizes efficient conversion technology, reducing electricity costs and supporting FBO sustainability goals.
Why Choose ACSOON Business Aviation GPU for Corporate Jets?
Tailored for Corporate Aircraft: Precisely matches the power requirements of popular long-range and large-cabin business jets (e.g., Gulfstream, Bombardier, Dassault).
FBO-Optimized Design: Features a compact footprint for tight spaces, ultra-quiet operation for a premium customer environment, and a clean, professional aesthetic.
Dual-Power Versatility: Provides both essential power outputs (28VDC & 115V 400Hz) from one unit, streamlining ground handling and reducing equipment needs.
Enhanced Reliability & Uptime: Built for high-cycle daily use typical of busy FBOs, with robust components and easy serviceability to maximize availability.
Business Aviation GPU for Corporate Jets Application Areas
Fixed-Base Operators (FBOs): Primary ground support for visiting and based corporate jets, enhancing service quality.
Corporate Flight Department Hangars: Dedicated power for daily operations, pre-flight checks, and maintenance of owned aircraft.
VIP & Special Mission Terminals: Providing discrete and reliable power for government and head-of-state aircraft operations.
Completion & Refurbishment Centers: Used during interior outfitting and avionics upgrades where stable, clean power is critical.
Our Services
Quality Control
Performance Validation per Mil-Spec: AC and DC outputs are tested to verify full compliance with the relevant sections of MIL-STD-704F.
Acoustic Performance Testing: Noise levels are measured in a controlled environment to ensure they meet the low-noise specification.
Ergonomics & Interface Check: The control panel layout and user interface are validated for intuitive operation by ground handling staff.
Durability Cycle Testing: Key functions are put through high-cycle tests to simulate the frequent use typical in an FBO environment.

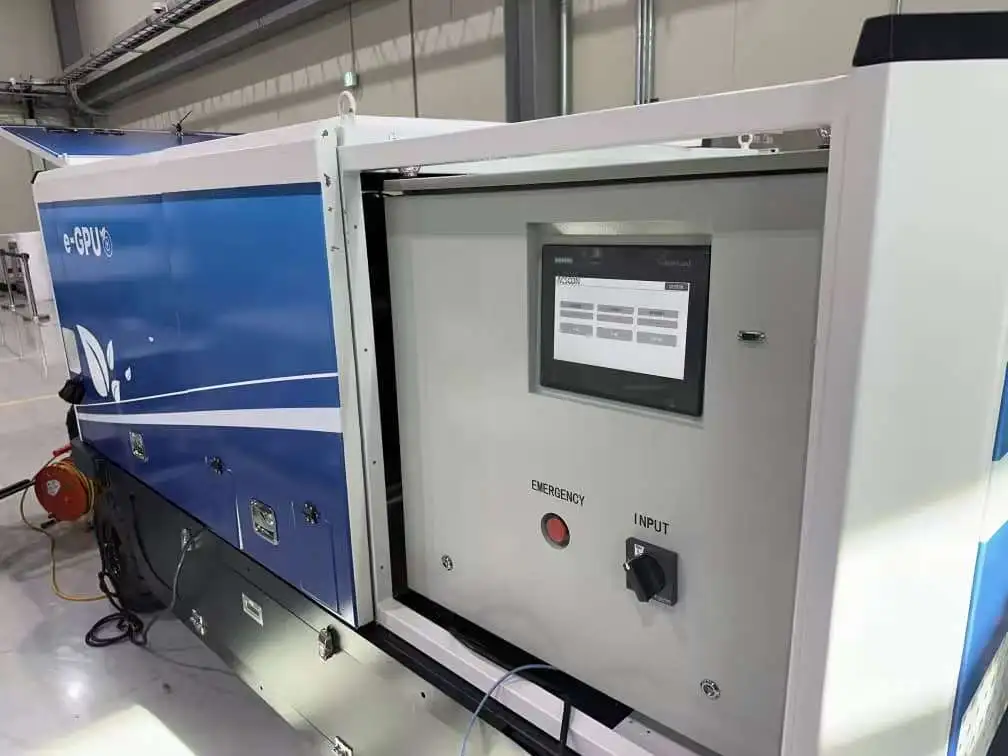

R&D Results
Acoustic Engineering: Developed specialized enclosure designs, fan blade shapes, and vibration damping to achieve significant noise reduction.

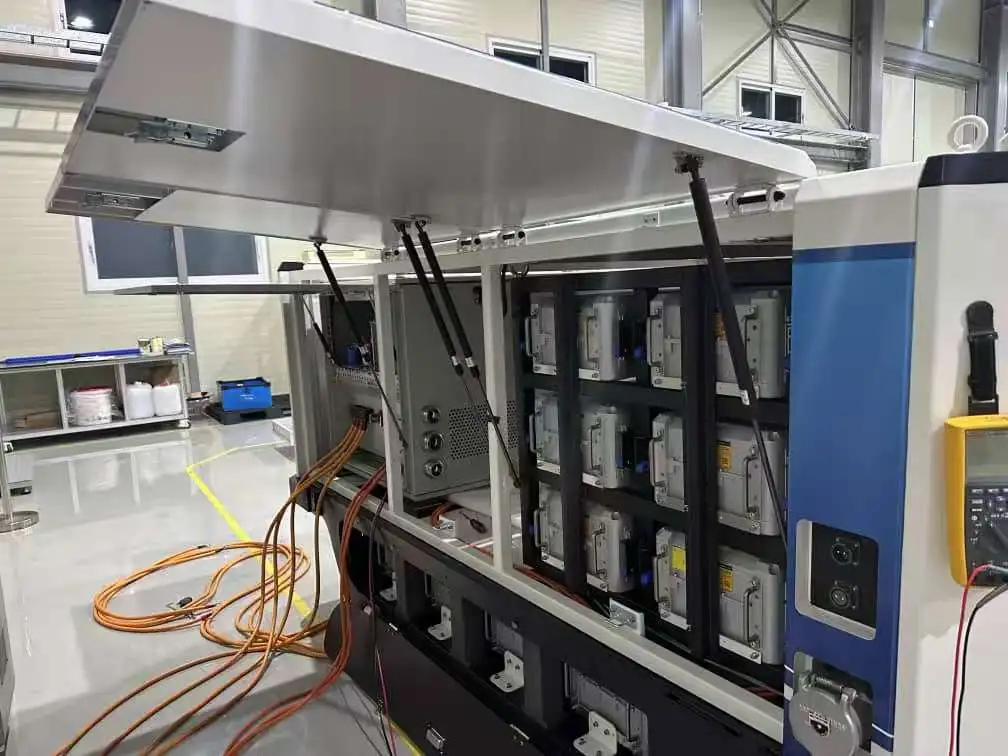

Space-Efficient Layout: Pioneered a compact internal component arrangement that houses both power systems without sacrificing performance or service access.
Smart Diagnostic Software: Created an intelligent system that guides operators through connection checks and provides plain-language fault descriptions.

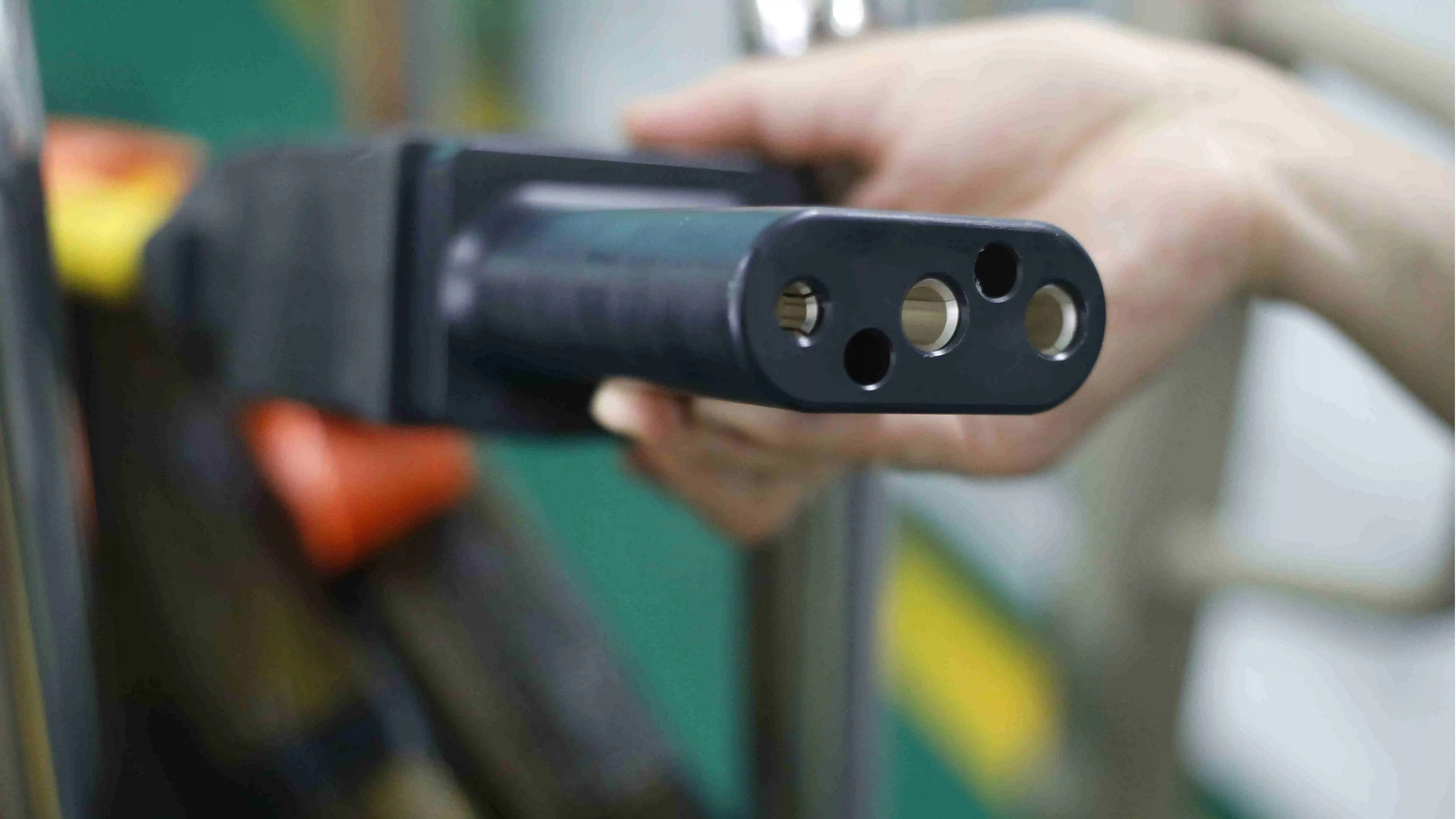

Fast-Connection Interface: Engineered a user-friendly, robust output panel with color-coded, safety-enhanced connectors for quick and error-free aircraft hookup.
Packaging and Transportation
FBO-Ready Delivery: The unit is shipped fully assembled and tested. Protective film is applied to surfaces for removal upon installation.
Minimal On-Site Assembly: Requires only connection to mains power, with all necessary cables and hardware included.
Professional Documentation: Pack includes quick-start guide, full manual, and warranty information in a branded presentation folder.
Global Logistics to FBOs: We coordinate reliable shipping to airports worldwide, with expertise in navigating airport delivery protocols.
After‑Sales Service
We offer a comprehensive 24-month warranty with optional extended coverage. Our support includes a dedicated helpline for FBOs, access to online training materials, and a network of service partners for prompt on-site assistance.
Qualification Certification
ISO 9001:2015 Certified manufacturing and quality assurance;CE Marked for the European market;Design Compliance: Engineered to meet the power quality requirements of major business jet manufacturers (OEM specifications);Test Certificate: Each unit ships with a performance test certificate.
FAQ |
|---|
| Q1: Which specific business jet models is this GPU designed to support? |
| A: It is designed to support mid to large-cabin jets such as the Gulfstream G650/G550, Bombardier Global series, Dassault Falcon 7X/8X, and similar aircraft that require both 28VDC and 115V 400Hz ground power. |
| Q2: Why is low noise a critical feature for an FBO GPU? |
| A: Low noise is essential for maintaining a professional and comfortable environment for clients and staff on the ramp, complying with local airport noise regulations, and allowing for 24/7 operations without disturbance. |
| Q3: Can this unit replace two separate GPU carts (one DC, one AC)? |
| A: Absolutely. Its integrated dual-output design consolidates functions, saving valuable ramp space, reducing capital equipment costs, and simplifying logistics for ground crews. |
| Q4: How does it handle quick turnarounds for charter operations? |
| A: It features fast boot-up, intuitive one-person operation, and rapid connection systems to minimize ground time, supporting efficient back-to-back charter flights. |
| Q5: Is remote monitoring possible for a fleet manager? |
| A: Yes, with its standard communication ports (Ethernet, RS485), the unit can be integrated into a hangar or FBO network for remote monitoring of status, usage hours, and fault alerts. |
Contact Us
For technical specifications or global solutions for the Business Aviation GPU for Corporate Jets: acpower@acsoonpower.com, or submit your requirements using the form at the bottom of our website.
