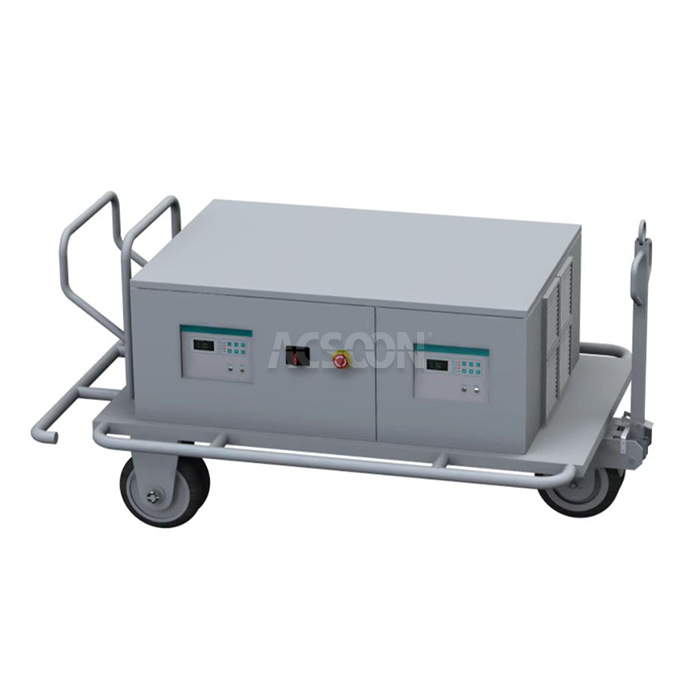

Dual-Output Ground Power Unit
2.Technology: Solid-state frequency conversion with 12-pulse rectification
3. Input: 3-phase 400VAC ±15%, 50/60Hz auto-sensing
4. Output: 115VAC 400Hz & 28.5VDC (simultaneous operation)
5. Key Applications: Aircraft ground support, military operations, maintenance hangars
6. Key Features: Pure sine wave output; auto voltage compensation; digital fault diagnosis; IP54 protection
7.Brand: ACSOON (OEM configurations available).
- Product Description

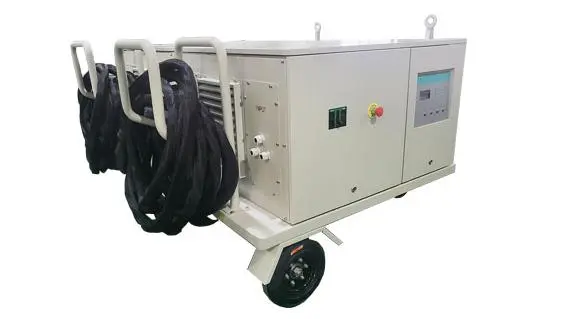

Dual-Output Ground Power Unit | 400Hz AC & 28VDC Aircraft Power Supply
XI'AN JERRYSTAR INSTRUMENT CO., LTD designs and manufactures high-performance dual-output ground power units for reliable aircraft ground support. With proven expertise in aviation power systems, we provide efficient solutions that deliver both 400Hz AC and 28VDC power for aircraft servicing and maintenance. Our systems are built to meet rigorous aviation standards, ensuring safe and stable power delivery for various aircraft types.
Technical Specifications
| Feature | Specification |
|---|---|
| AC Output | 60kVA, 3 Phase 115V/200V, 400Hz (±0.01%) |
| DC Output | 28VDC, 600A(Customized) (±0.5%) |
| Input Voltage | 380V-480V, 3 phase |
| Frequency | 50HZ/60HZ |
| Emissions | Zero CO2 emissions |
| Operational Mode | Battery-powered or Mains electricity |

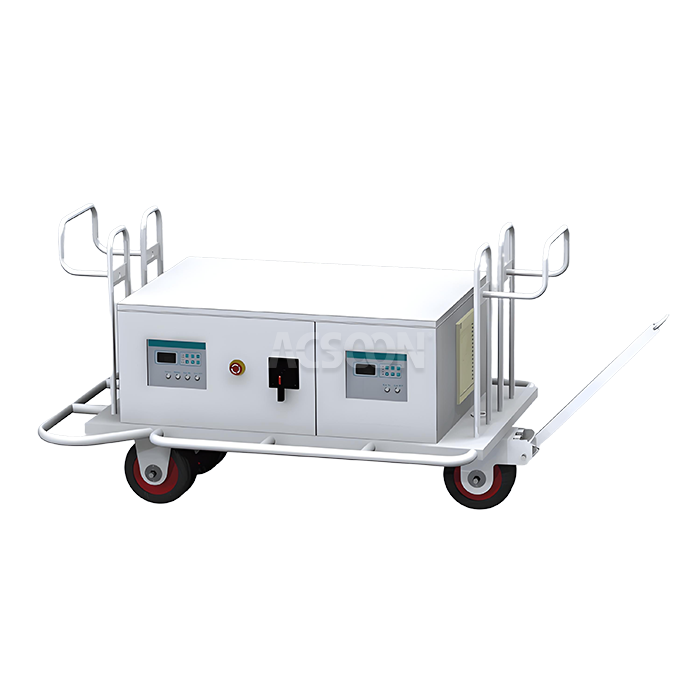

ACSOON Dual-Output Ground Power Unit Main Features
- Auto voltage compensation system, ideal voltage at aircraft connector
- Self diagnose system which would show error code on digital display
- 10 events memory stores
- Pure sine wave, sinusoidal output
- Completely protection and alarm for over voltage, over current and overheating, etc
- Eco-friendly, lower power consumption with high efficiency
- With 28VDC military interlock
Why Choose ACSOON Dual-Output Ground Power Units?
ACSOON combines innovation with reliability in ground power technology. Key advantages include:
- Dual Power Output: Simultaneous 400Hz AC and 28VDC power supply
- High Efficiency Operation: ≥93% efficiency with active power factor correction
- Advanced Protection: Complete protection against overvoltage, overcurrent, and overheating
- Aviation Compliance: Meets MIL-STD-704F and ISO6858 standards
- User-Friendly Interface: Digital display with error code diagnostics and event memory

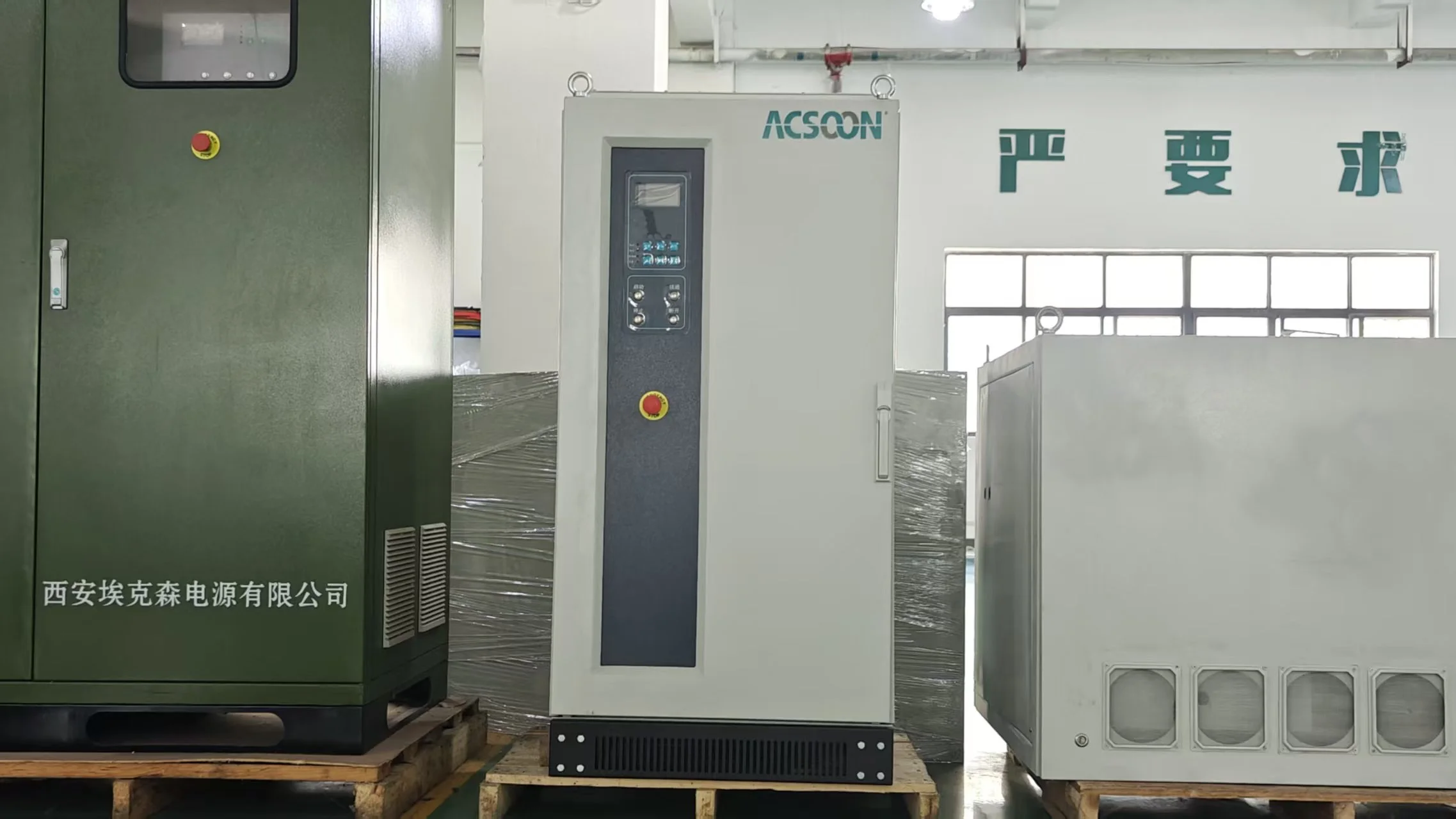

Application Areas
Our dual-output ground power units are essential for:
- Commercial Airport Gates: Aircraft power during passenger boarding and servicing
- Military Air Bases: Ground power for military aircraft and equipment
- Maintenance Hangars: Aircraft testing and maintenance operations
- Cargo Terminals: Power support for cargo aircraft operations
- Emergency Services: Backup power for emergency response aircraft
- Flight Line Operations: Transient aircraft power support
- MRO Facilities: Maintenance, repair, and overhaul operations
Details display
Quality Assurance
Each dual-output ground power unit undergoes rigorous testing:
Full-load endurance testing (72+ hours)
Thermal performance validation
Safety and protection system verification
Environmental condition testing
Final calibration and certification
Technical Features
Our dual-output ground power unit incorporates:
- SPWM modulation technology
- Auto voltage compensation system
- Digital control and monitoring
- Forced air cooling system
- Military-style interlock connectors
Packaging and Installation
We ensure proper delivery and setup:
- Heavy-duty packaging protection
- Complete installation documentation
- Worldwide shipping support
- On-site commissioning available
After-Sales Service
Comprehensive support package includes:
24/7 technical assistance
Preventive maintenance programs
Software and firmware updates
Operator training services
Global spare parts network
Certifications
FAQ |
|---|
| Q1: What aircraft types can the dual-output ground power unit support? |
| A: Our units are designed to support various aircraft including regional jets, business aircraft, and military aircraft requiring both 400Hz AC and 28VDC power. |
| Q2: What is the typical setup time for the unit? |
| A: The unit can be operational within 30 minutes of delivery with proper infrastructure preparation. |
| Q3: What maintenance is required? |
| A: Regular maintenance includes air filter cleaning, electrical connection checks, and periodic performance verification as specified in the manual. |
| Q4: Can the unit operate in extreme temperatures? |
| A: Yes, our units are designed for operation from -20°C to 50°C with derating above 40°C. |
| Q5: Do you provide custom connector configurations? |
| A: Yes, we offer various aircraft connector options to meet specific requirements. |
