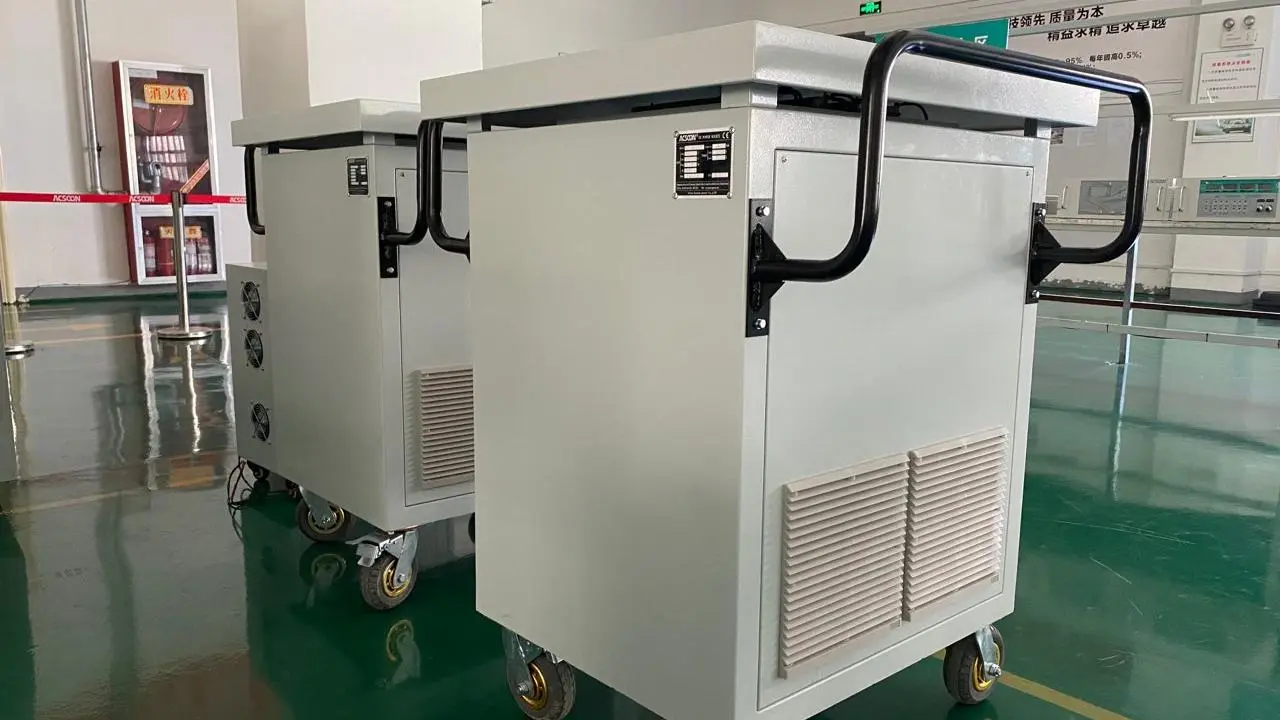

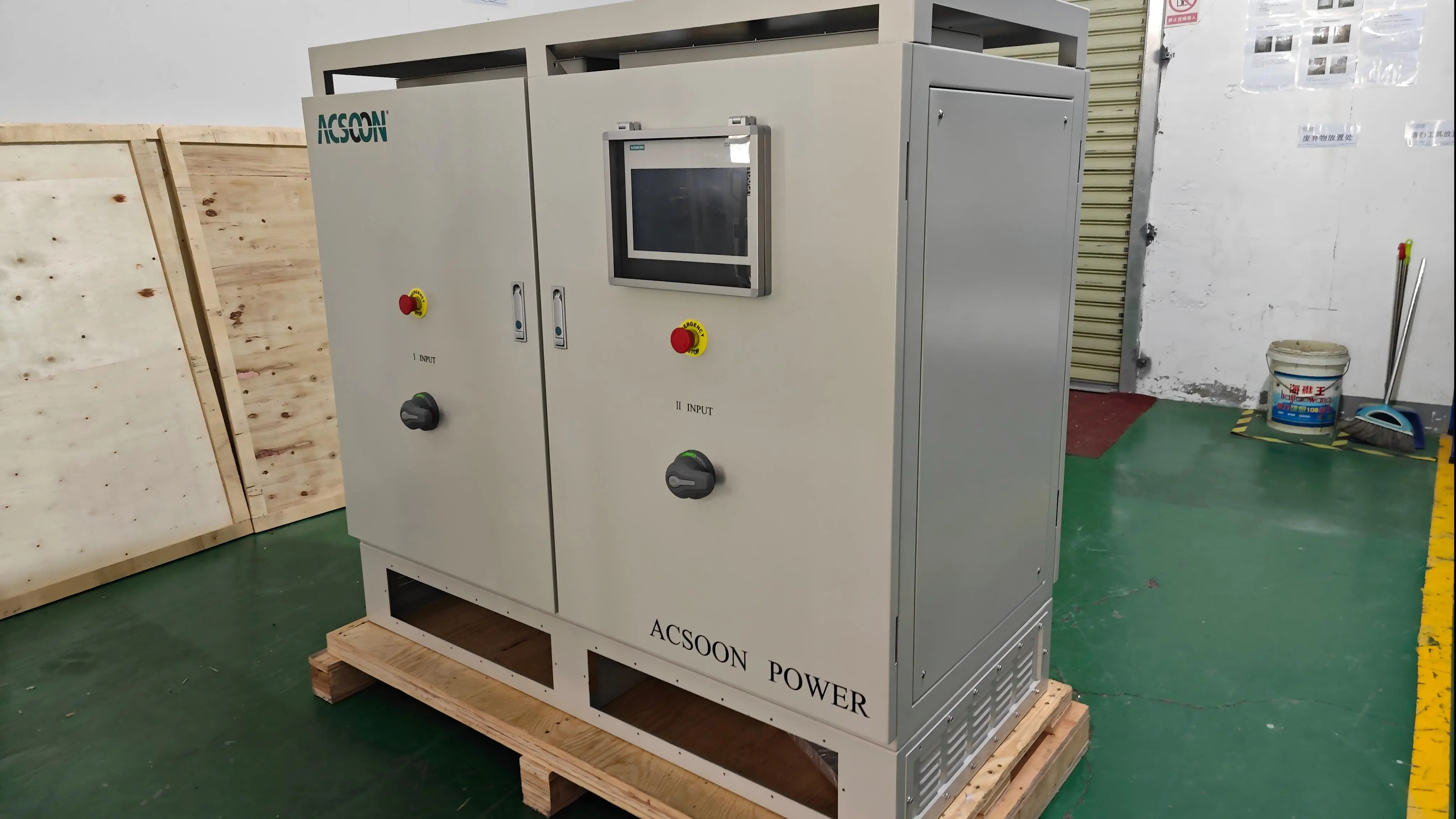

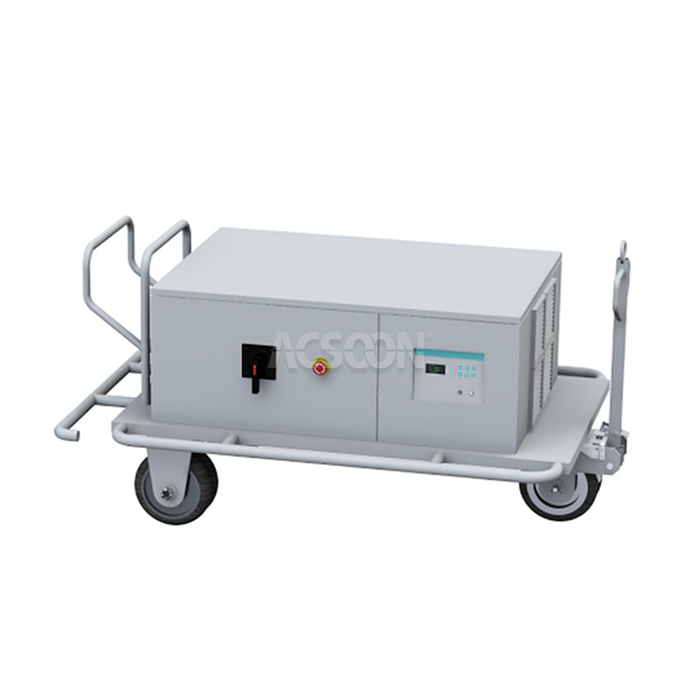

Electrolytic Power Supply Unit
2.Output Range: 0-600VDC, 0-2000A adjustable
3.Voltage Stability: ±0.5% under full load variations
4.Current Stability: ±0.5% with automatic crossover
5.Ripple Factor: <0.5% RMS for critical processes
6.Input Power: 380V/400V/415V, three-phase, 50Hz/60Hz
7.Cooling System: Liquid cooling with temperature control
8.Brand: ACSOON (support OEM)
9.Key Applications: Industrial electrolysis, electrochemical processing, research.
- Product Description
XI'AN JERRYSTAR INSTRUMENT CO., LTD introduces the advanced Electrolytic Power Supply Unit, specifically engineered for demanding industrial electrolysis applications. Our Electrolytic Power Supply Unit delivers precise DC power with exceptional stability and reliability, making it ideal for electrochemical processes, metal refining, and industrial electrolysis operations requiring high-current DC power.
Technical Specifications
| Feature | Specification |
|---|---|
| Input | Three Phase: 200-440VAC (L-L) ±20% |
| Frequency | 40 - 70HZ |
| Output Voltage | DC 28.5V (adjustable 24V-32V) |
| Output Current | 50A to 1000A |
| Voltage Regulation | ±1% |
| Power Factor | ≥0.9 |
| Efficiency | ≥85% |
| Ripple | <150mV, max 250mV (rms) |
| Display | VFD / LCD (Voltage, Current, Power) |
| Overload Capacity | 125% for 10 min, 150% for 60s, 200% for 10s |
| Protections | Overvoltage, Undervoltage, Current Limiting, Overheating, Short Circuit |
| Operating Temperature | -10°C to 50°C |
| Humidity | 10% - 95% |
| Altitude | <1800 meters |
| MTBF | 30,000 hours |
| MTTR | <30 minutes |
| Standards Compliance | EN61000-6-2:2005, GJB152A-97, MIL-STD-704F |
Electrolytic Power Supply Unit Main Features
- Auto voltage compensation system, ideal voltage at aircraft connector
- Self diagnose system which would show error code on digital display
- 10 events memory stores
- Pure sine wave, sinusoidal output
- Completely protection and alarm for over voltage, over current and overheating, etc
- Eco-friendly, lower power consumption with high efficiency
- With 28VDC military interlock
Why Choose ACSOON Electrolytic Power Supply Unit?
ACSOON Electrolytic Power Supply Unit offers superior performance for electrochemical applications:
Precision Control: Accurate voltage and current regulation for consistent process quality
High Efficiency: Advanced power conversion with ≥94% efficiency
Robust Construction: Industrial-grade components for continuous operation
Smart Monitoring: Real-time parameter monitoring and data recording
Comprehensive Protection: Overload, short circuit, and thermal protection systems

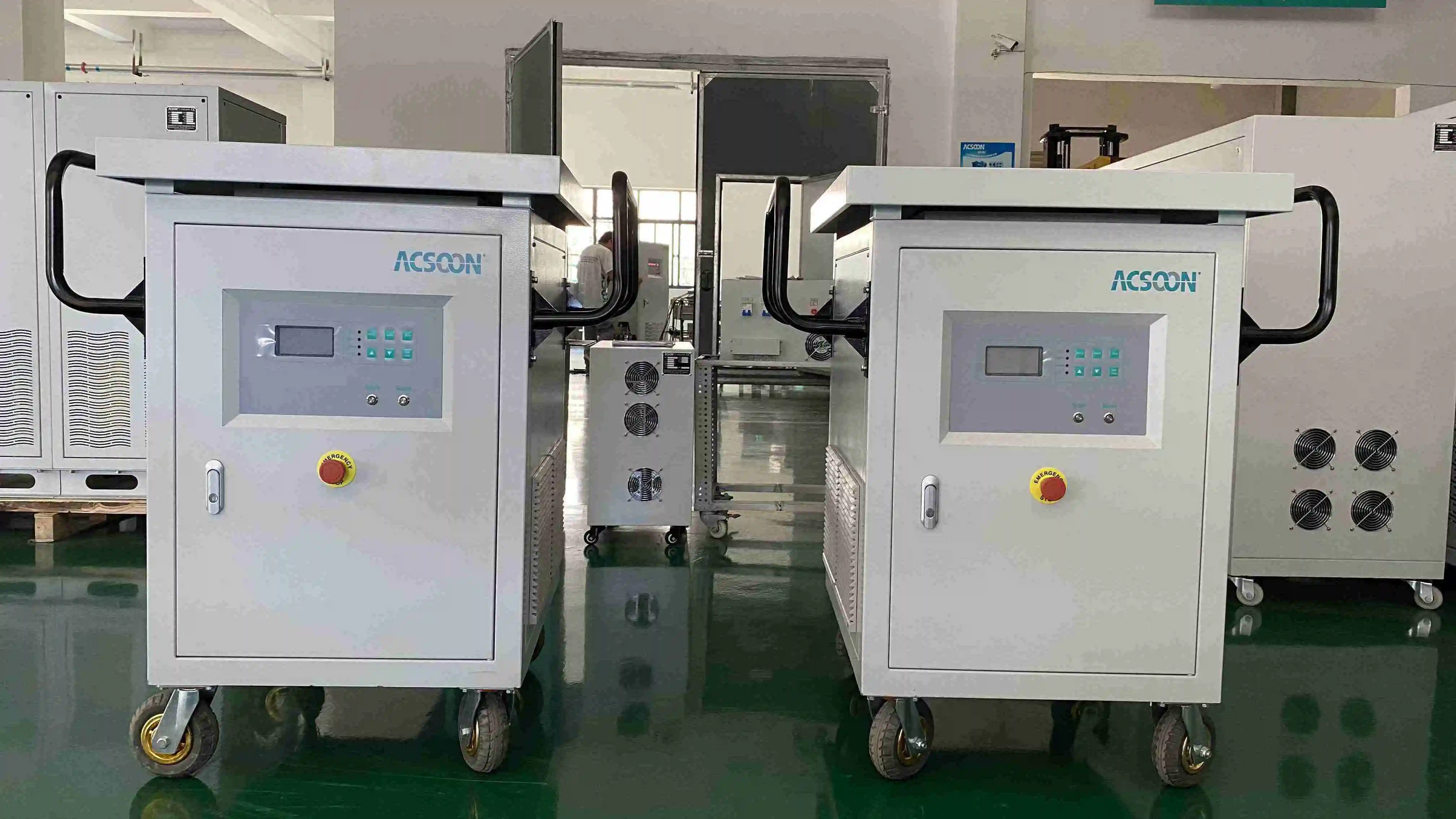

Application Areas
Our Electrolytic Power Supply Unit serves critical functions in industrial processes:
Metal Electrowinning: Copper, zinc, and other metal extraction processes
Electrorefining: Purification of metals through electrolytic processes
Chlor-alkali Production: Chlorine and caustic soda manufacturing
Water Treatment: Electrolytic water treatment and disinfection
Research & Development: Electrochemical research and process development
Industrial Coating: Electroplating and surface treatment applications
Our Services
Quality Control
Each Electrolytic Power Supply Unit undergoes rigorous industrial validation:
Component-level testing and verification
Full-load endurance testing for extended periods
Thermal performance validation under maximum load
Safety certification to international standards
Performance calibration with precision instruments
R&D Results
Our technical innovations in Electrolytic Power Supply Unit technology include:
Advanced power conversion topology for improved efficiency
Enhanced cooling systems for stable high-current operation
Smart control algorithms for precise process control
Reduced output ripple for sensitive electrochemical processes
Modular design for easy maintenance and scalability
Packaging and Transportation
We ensure secure delivery of every Electrolytic Power Supply Unit:
Heavy-duty industrial packaging with reinforced protection
Customized crating for large-capacity units
Comprehensive documentation including operation manuals
Global logistics support for industrial equipment
After-Sales Service
We provide comprehensive support for all Electrolytic Power Supply Unit installations:
Technical assistance for process integration
On-site commissioning and system optimization
Preventive maintenance programs for continuous operation
Remote monitoring and diagnostic capabilities
Operator training for industrial process operation
Qualification Certification
FAQ |
|---|
| Q1: What makes your Electrolytic Power Supply Unit suitable for industrial electrolysis? |
| A: Our units provide precise DC power with low ripple and excellent stability, essential for consistent electrolysis process results. |
| Q2: Can your unit handle continuous 24/7 operation? |
| A: Yes, our units are designed for continuous industrial operation with robust cooling systems and industrial-grade components. |
| Q3: What control interfaces are available for process automation? |
| A: Standard interfaces include RS485/Modbus, with optional Ethernet and Profibus interfaces for integration with process control systems. |
| Q4: How does your unit maintain stability under varying load conditions? |
| A: Advanced feedback control systems automatically adjust output to maintain set parameters despite load variations. |
| Q5: What safety features are included for industrial environments? |
| A: Safety features include over voltage protection, over current protection, short circuit protection, ground fault detection, and thermal overload protection. |
