Ground Power Unit (gpu) Pesawat DC
2.Current Capacity: 400A to 1200A, multiple current ratings available
3.Input Power: 380V-480V, three-phase, 50Hz/60Hz industrial supply
4.Voltage Stability: ±0.5% under line and load variations
5.Ripple Performance: ≤0.15V RMS for clean DC output
6.Primary Applications: Military aircraft, regional jets, business aviation
7.Key Features: High-efficiency rectification, military interlock, mobile trolley design
8.Brand: ACSOON (support OEM)
9.Compliance Standards: MIL-STD-704F, GJB181A-2003, aviation safety standards.
- Product Description

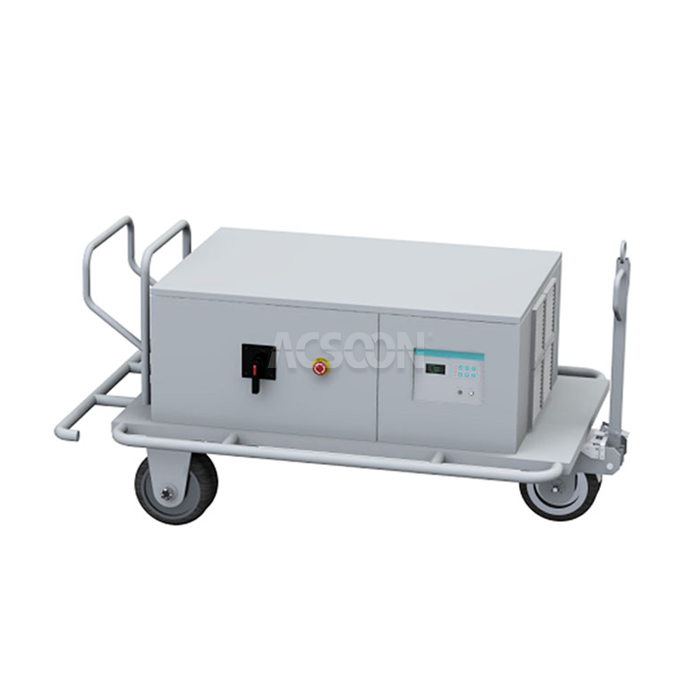

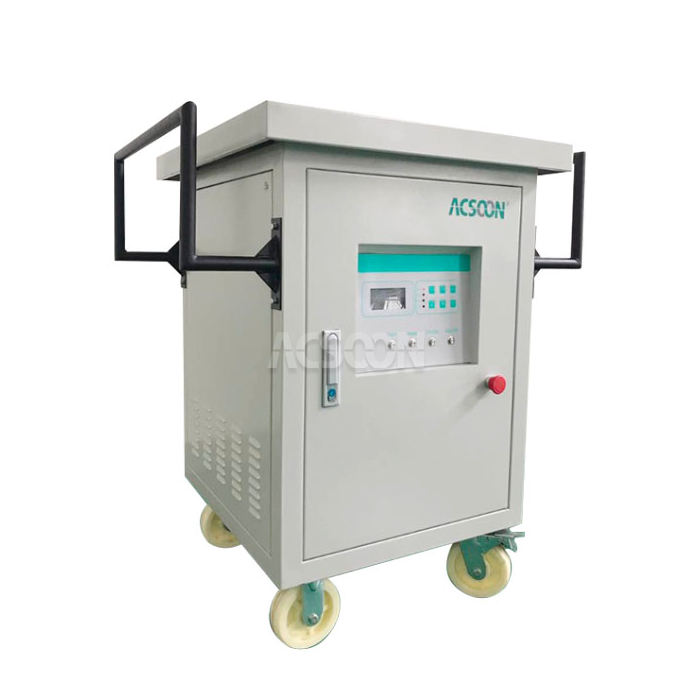

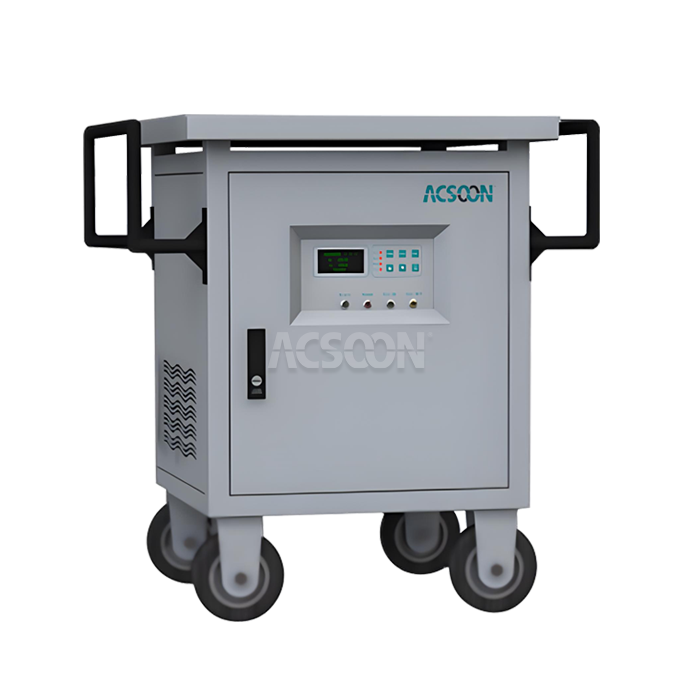

Ground Power Unit (gpu) Pesawat DC | Aircraft DC Ground Power Supply System
XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures specialized Ground Power Unit (gpu) Pesawat DC systems for aircraft requiring reliable DC ground power. Our Ground Power Unit (gpu) Pesawat DC delivers stable 28.5VDC power for aircraft systems, ensuring optimal performance during maintenance, engine starting, and avionics testing operations in various aviation environments.
Technical Specifications
| Feature | Specification |
|---|---|
| Input | Three Phase: 200-440VAC (L-L) ±20% |
| Frequency | 40 - 70HZ |
| Output Voltage | DC 28.5V (adjustable 24V-32V) |
| Output Current | 50A to 1000A |
| Voltage Regulation | ±1% |
| Power Factor | ≥0.9 |
| Efficiency | ≥85% |
| Ripple | <150mV, max 250mV (rms) |
| Display | VFD / LCD (Voltage, Current, Power) |
| Overload Capacity | 125% for 10 min, 150% for 60s, 200% for 10s |
| Protections | Overvoltage, Undervoltage, Current Limiting, Overheating, Short Circuit |
| Operating Temperature | -10°C to 50°C |
| Humidity | 10% - 95% |
| Altitude | <1800 meters |
| MTBF | 30,000 hours |
| MTTR | <30 minutes |
| Standards Compliance | EN61000-6-2:2005, GJB152A-97, MIL-STD-704F |
Ground Power Unit (gpu) Pesawat DC Main Features
- Auto voltage compensation system, ideal voltage at aircraft connector
- Self diagnose system which would show error code on digital display
- 10 events memory stores
- Pure sine wave, sinusoidal output
- Completely protection and alarm for over voltage, over current and overheating, etc
- Eco-friendly, lower power consumption with high efficiency
- With 28VDC military interlock
Why Choose ACSOON Ground Power Unit (gpu) Pesawat DC?
ACSOON Ground Power Unit (gpu) Pesawat DC systems provide superior performance for specialized aviation power requirements:
Military Standard Compliance: Meets MIL-STD-704F and GJB181A-2003 aircraft power standards
Precision Voltage Control: Excellent regulation with minimal ripple for sensitive avionics
Robust Construction: Heavy-duty design built for demanding aviation operations
Advanced Cooling System: Efficient thermal management for continuous operation
Intelligent Monitoring: Comprehensive display system with real-time parameter monitoring
Application Areas
Our Ground Power Unit (gpu) Pesawat DC serves critical functions in specialized aviation operations:
Military Aircraft: Ground power for fighter jets, transport aircraft, and helicopters
Business Aviation: DC power supply for business jets and VIP aircraft
Regional Aircraft: Power supply for regional jets and turboprop aircraft
Helicopter Operations: Ground power for military and civilian helicopter platforms
Maintenance Facilities: Aircraft maintenance and repair operations
Emergency Services: Power supply for search and rescue aircraft operations
Our Services
Quality Contro
Each Ground Power Unit (gpu) Pesawat DC undergoes rigorous aviation-grade quality validation:
Component-level military specification testing
Full-load endurance testing under simulated aircraft loads
Environmental testing for extreme temperature and humidity conditions
Vibration and shock testing for mobile deployment
Final certification to military and aviation standards
R&D Results
Our technical advancements in Ground Power Unit (gpu) Pesawat DC technology include:
Enhanced rectification efficiency through advanced semiconductor technology
Improved electromagnetic compatibility for sensitive aviation environments
Intelligent thermal management with adaptive cooling control
Reduced output ripple through multi-stage filtering technology
Modular power architecture for flexible configuration options
Packaging and Transportation
We ensure secure delivery of every Ground Power Unit (gpu) Pesawat DC system:
Aviation-grade packaging with enhanced protection
Custom shock-absorbent design for sensitive components
Complete documentation including test certificates
Global logistics support for aviation equipment
After-Sales Service
We provide comprehensive support for all Ground Power Unit (gpu) Pesawat DC installations:
24/7 specialized technical support for aviation operations
On-site commissioning and operator certification
Preventive maintenance programs with remote diagnostics
Software updates and system enhancements
Global spare parts network for operational readiness
Qualification Certification
FAQ |
|---|
| Q1: What aircraft types are compatible with your Ground Power Unit (gpu) Pesawat DC? |
| A: Our systems are compatible with various military aircraft, business jets, regional aircraft, and helicopters requiring 28VDC ground power. |
| Q2: How does your Ground Power Unit (gpu) Pesawat DC ensure power quality for sensitive avionics? |
| A: We maintain voltage stability within ±0.5% and ripple below 0.15V RMS, ensuring clean DC power for sensitive aircraft avionics. |
| Q3: What safety features are included in your Ground Power Unit (gpu) Pesawat DC? |
| A: Safety features include over voltage protection, over current protection, short circuit protection, thermal overload protection, and military-grade interlocks. |
| Q4: Can your Ground Power Unit (gpu) Pesawat DC operate in extreme environmental conditions? |
| A: Yes, our units are designed for operation in temperatures from -20°C to 50°C with enhanced environmental protection. |
| Q5: What is the deployment time for your Ground Power Unit (gpu) Pesawat DC? |
| A: With quick-connect systems and mobile design, our units can be operational within 3-5 minutes of arrival at aircraft. |
