115V 400Hz Converter
2.Power Capacity: 15KVA to 60KVA, multiple capacity options
3.Input Voltage: 220V/380V/480V, single or three phase, 50Hz/60Hz
4.Voltage Stability: ±1% under varying load conditions
5.Frequency Precision: ±0.01% with crystal-controlled accuracy
6.Primary Applications: Avionics testing, aircraft systems, aerospace equipment
7.Key Features: Pure sine wave output, compact design, portable configuration
8.Brand: ACSOON (support OEM)
9.Compliance Standards: MIL-STD-704F, ISO6858, EN61000-6-3.
- Product Description

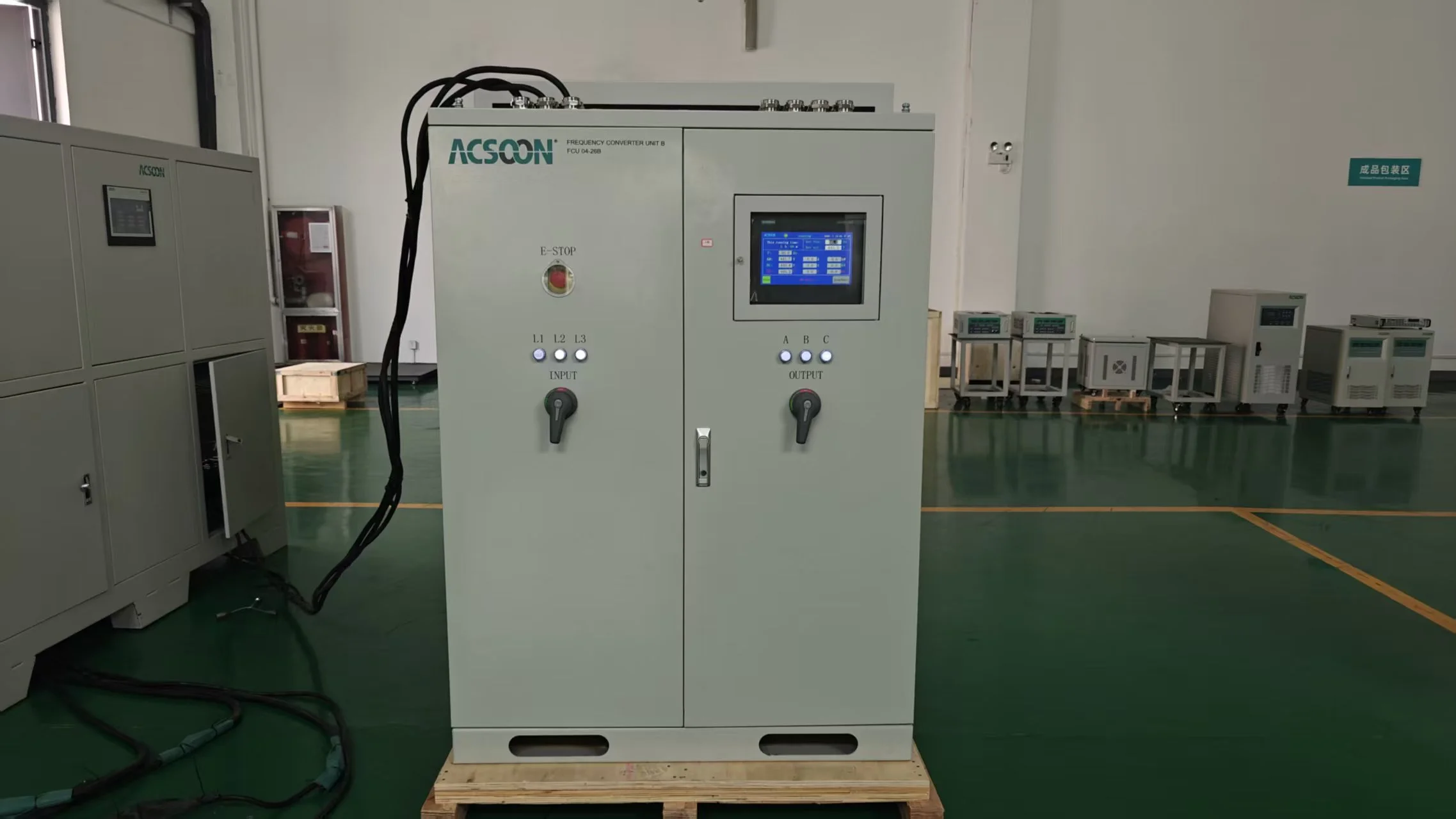

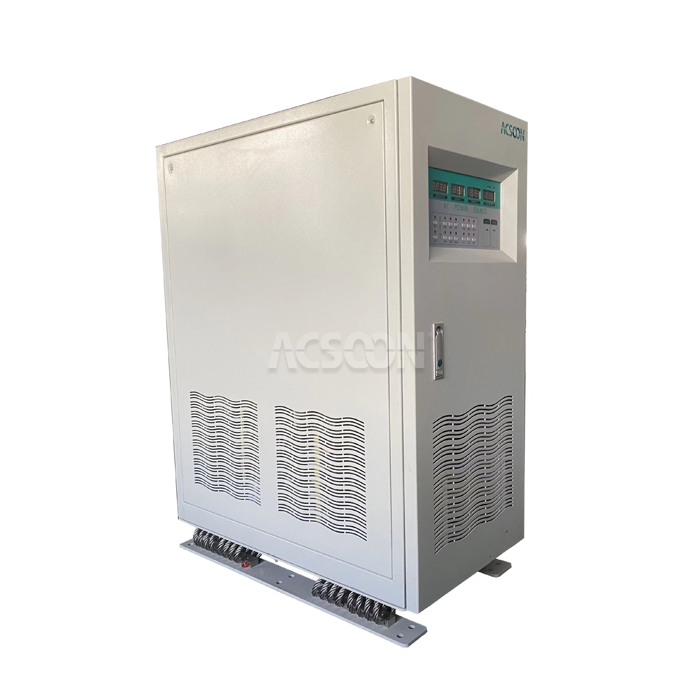

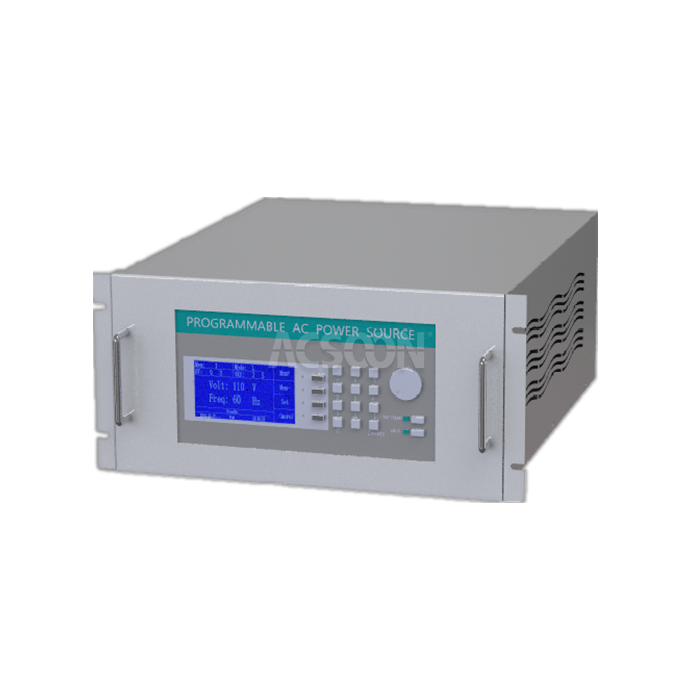

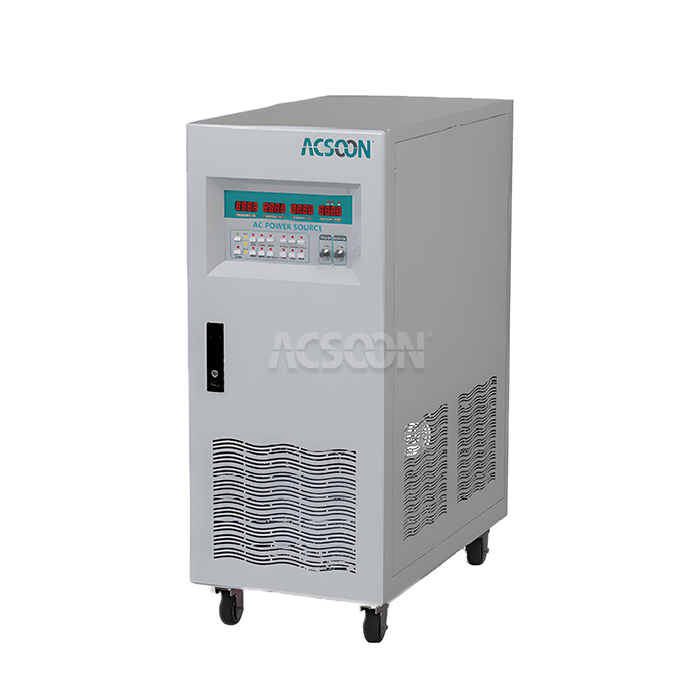

115V 400Hz Converter | Aircraft Frequency Power Supply Unit
XI'AN JERRYSTAR INSTRUMENT CO., LTD specializes in manufacturing high-precision 115V 400Hz Converter systems for aviation and aerospace applications. Our 115V 400Hz Converter delivers clean and stable 400Hz power that meets stringent aircraft power quality standards, making it ideal for testing, maintenance, and operation of aircraft systems and avionics equipment in various environments.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity (Single Phase Output) | 1kVA - 200kVA |
| Capacity (Three Phase Output) | 1kVA - 2000kVA |
| Input Voltage (Single Phase) | 110-230VAC ±20% |
| Input Voltage (Three Phase) | 200-440VAC ±20% |
| Input Frequency | 50/60HZ or 40-70HZ |
| Output Voltage (Single Phase) | 0-300Vac |
| Output Voltage (Three Phase) | 0-520Vac |
| Output Frequency | 50/60/100/200/400HZ or 40-800HZ adjustable |
| Frequency Regulation | ≤0.1% |
| Voltage Regulation | ±1% |
| Output VTHD | <3% @ Linear load |
| Response Time | ≤2ms |
| Power Factor | ≥0.8 (Standard), ≥0.9 (12 Pulse Optional) |
| Overall Efficiency | ≥85% |
| Overload Capacity | 125% for 60s, 150% for 30s |
| Working Temperature | -10°C to 50°C |
| Altitude | <1800m |
115V 400Hz Converter Main Features
- Isolated output transformer,suitable for any unbalance loads, each single phase can be used independently
- EMC compatible
- Compatible with both 50Hz and 60Hz power supply network
- Low harmonic distortion
- Pure sine wave,sinusoidal output
- Completely protection and alarm for over voltage, over current and overheating, etc
- Display real-time data: voltage,current,frequency, power / power factor
Why Choose ACSOON 115V 400Hz Converter?
ACSOON 115V 400Hz Converter systems offer exceptional performance for aviation power requirements:
Aircraft Standard Compliance: Meets MIL-STD-704F aircraft power quality specifications
High Precision Output: Excellent voltage and frequency stability for sensitive avionics
Compact and Portable: Space-saving design with optional mobility features
Advanced Protection: Comprehensive safeguards including overload and short circuit protection
User-Friendly Operation: Clear digital display with intuitive control interface
Application Areas
Our 115V 400Hz Converter serves essential functions in aviation and related industries:
Avionics Testing: Testing and development of aircraft electronic systems
Aircraft Maintenance: Ground power for aircraft system verification and maintenance
Aerospace Manufacturing: Production testing of aircraft components and systems
Research Laboratories: Aerospace research and development facilities
Military Applications: Testing and operation of military aviation equipment
Educational Institutions: Aviation training and engineering education programs
Our Services
Quality Control
Each 115V 400Hz Converter undergoes rigorous quality validation processes:
Component-level testing and verification
Full-load performance testing with aviation-grade loads
Environmental testing for operational temperature range
Safety certification testing to international standards
Final calibration and performance verification
R&D Results
Our engineering innovations in 115V 400Hz Converter technology include:
Enhanced power conversion efficiency through advanced topology
Improved thermal management for reliable continuous operation
Smart frequency control algorithms for precise output
Reduced electromagnetic interference for cleaner power output
Modular design approach for easier maintenance and service

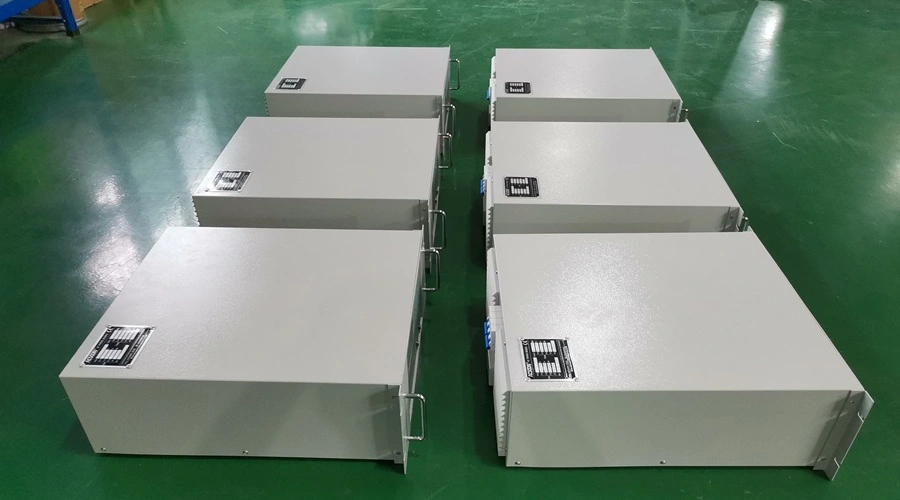

Packaging and Transportation
We ensure secure delivery of every 115V 400Hz Converter:
Robust packaging with custom protective materials
Comprehensive documentation including calibration certificates
Worldwide shipping options with professional handling
Special logistics support for international aviation customers
After-Sales Service
We provide dedicated support for all 115V 400Hz Converter installations:
Technical assistance for aviation-specific applications
Calibration services to maintain precision performance
Remote troubleshooting and diagnostic support
Operator training for optimal system utilization
Rapid response for critical technical requirements
Qualification Certification
FAQ |
|---|
| Q1: What makes 400Hz power essential for aircraft applications? |
| A: 400Hz allows for smaller and lighter electrical components in aircraft systems, which is critical for weight savings and efficiency in aviation applications. |
| Q2: Can your 115V 400Hz Converter operate from single-phase power sources? |
| A: Yes, our converter is designed to work with both single-phase and three-phase input power, providing flexibility in various installation environments. |
| Q3: What protection features are included in your 115V 400Hz Converter? |
| A: Standard protections include over voltage, over current, short circuit, overload, and thermal protection with comprehensive alarm systems. |
| Q4: How compact is your 115V 400Hz Converter system? |
| A: Our converter features a compact design with dimensions optimized for easy integration into laboratory, hangar, and mobile applications. |
| Q5: What is the typical delivery time for the 115V 400Hz Converter? |
| A: Standard units are typically available within 3-4 weeks, with expedited options available for urgent aviation requirements. |
