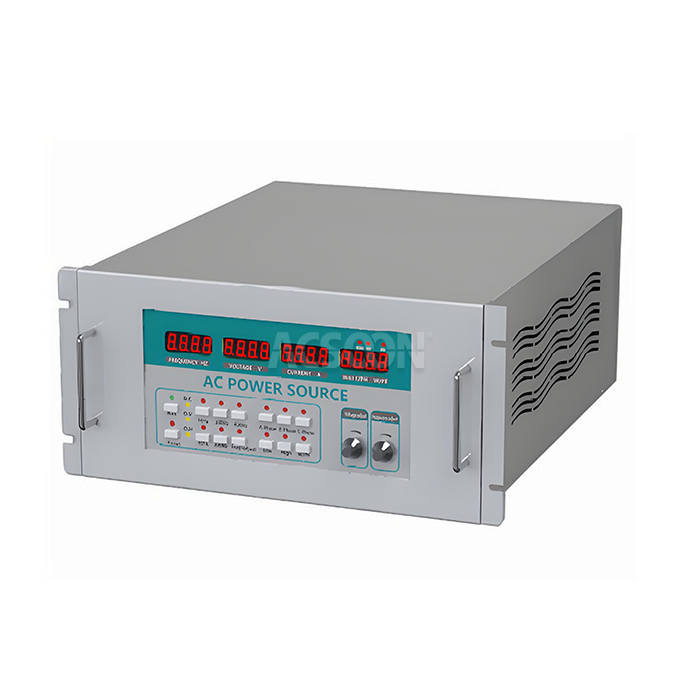

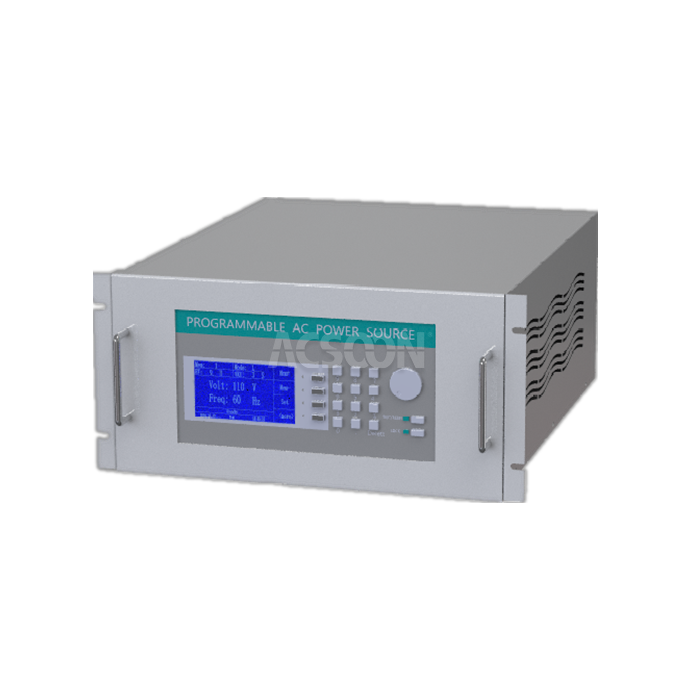

220V Single Phase to 220V 3 Phase

1.Power Range: 1 kVA to 30 kVA, designed for single-unit and continuous operation.
2.Technology: Static Phase Converter (SPC) utilizing IGBT-based inverter technology.
3.Input: Standard single-phase, 220V AC, 50Hz/60Hz mains supply.
4.Output: Balanced three-phase, 220V AC (L-L) power with stable voltage and frequency.
5.Core Application: Enabling operation of three-phase motors and equipment in locations with only single-phase power infrastructure.
6.Key Advantages: Creates three-phase power from a single-phase source, compact design, plug-and-play operation, and motor soft-start capability.
7.Brand: ACSOON – providing practical solutions for power accessibility and conversion.

Send Inquiry Download

Product Description

220V Single Phase to 220V 3 Phase | Static Phase Converter for Motors & Industrial Equipment

XI'AN JERRYSTAR INSTRUMENT CO., LTD offers a specialized 220V Single Phase to 220V 3 Phase converter, solving a common industrial challenge. This innovative unit allows you to run standard three-phase machinery—such as motors, pumps, and compressors—using a readily available single-phase 220V power outlet. Ideal for workshops, farms, remote sites, or older buildings without three-phase wiring, the ACSOON converter provides a cost-effective and reliable alternative to expensive electrical infrastructure upgrades.

Technical Summary

Parameter	Specification
Input (AC)
Phases	Single Phase + Neutral + Ground
Voltage	220V AC (±15%)
Frequency	50Hz / 60Hz
Output (AC)
Phases	Three Phase (No Neutral Required)
Voltage	220V AC (L-L)
Frequency	Same as Input (50Hz or 60Hz)
Voltage Balance	< 3% (between phases under full load)
Performance
Rated Power	1 kVA, 3 kVA, 5 kVA, 10 kVA, 15 kVA, 20 kVA, 30 kVA
Waveform	Pure Sine Wave
Efficiency	≥ 88%
General
Display	LED for Voltage, Current, Alarms
Protection	Input UVP/OVP, Output OLP, SCP, OTP
Cooling	Fan Cooled
Operating Temp.	0°C to 45°C
Enclosure	IP20 (Standard)

220V Single Phase to 220V 3 Phase Main Features

Static conversion from single-phase 220V to three-phase 220V.
Pure sine wave output for compatible operation with sensitive three-phase controls.
Balanced output voltages under varying load conditions.
Soft-start function to reduce mechanical stress on motors during startup.
Digital display for monitoring output voltage, current, and frequency.
Comprehensive protection: Input Under/Over Voltage, Output Overload, Short Circuit, Over Temperature.
High efficiency operation, minimizing energy loss during conversion.
Rugged metal enclosure for industrial environments.

Why Choose ACSOON 220V Single Phase to 220V 3 Phase Converter?

The ACSOON 220V Single Phase to 220V 3 Phase converter is designed for simplicity, reliability, and performance. Key advantages include:

Eliminates Infrastructure Costs: Avoids the high expense of installing three-phase utility lines, enabling immediate use of three-phase equipment anywhere.
Protects Your Equipment: Generates a balanced three-phase output with built-in protections against voltage imbalance, overloads, and short circuits, safeguarding your valuable machinery.
Enhances Motor Performance: Provides smooth, three-phase power that improves motor starting torque, reduces current inrush, and ensures efficient, cooler running compared to crude phase-shifting methods.
Compact & Easy to Install: A fully solid-state, plug-and-play solution that requires no complex setup or maintenance, saving time and space.
Versatile Power Solution: A single unit can power multiple pieces of equipment sequentially, offering great flexibility for diverse operational needs.

Application Areas

The 220V Single Phase to 220V 3 Phase converter is essential in numerous scenarios lacking three-phase power:

Small Workshops & Garages: Running lathes, milling machines, drill presses, and industrial air compressors.
Agricultural & Farming: Powering irrigation pumps, grain augers, feed mixers, and ventilation systems.
HVAC & Refrigeration: Operating commercial three-phase condensing units and large air handlers.
Rural & Remote Facilities: Enabling industrial processes in locations where the utility only provides single-phase service.
Retrofit Projects: Modernizing equipment in older residential or commercial buildings without three-phase wiring.
Mobile Applications: Used with a generator to create three-phase power for temporary job sites.

Our Services

Quality Control

Every 220V Single Phase to 220V 3 Phase converter is thoroughly validated:

Testing of all power semiconductors and magnetic components.
Full-load testing with a representative three-phase motor load to verify voltage balance and starting performance.
Functional testing of all protection mechanisms under fault conditions.
Final performance certification.

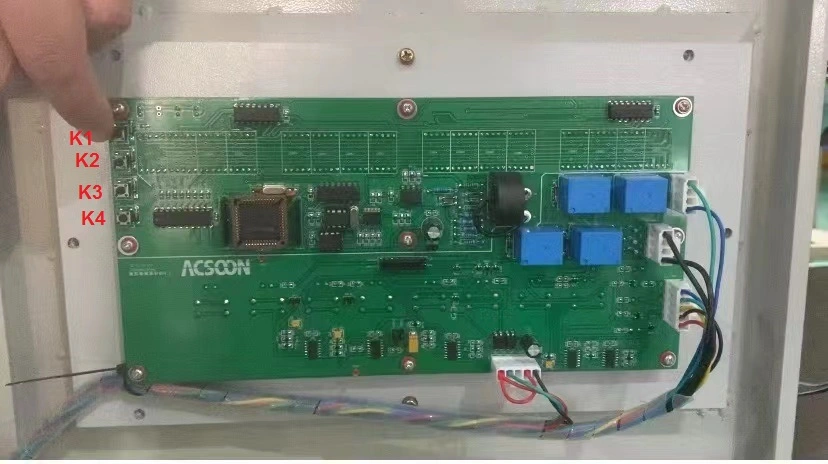

R&D Results

Our development focuses on improving the 220V Single Phase to 220V 3 Phase technology:

Advanced algorithms for better voltage balance under highly unbalanced motor loads.
Design optimizations for higher efficiency and power density.
Integration of smart features like load profiling and fault diagnostics.

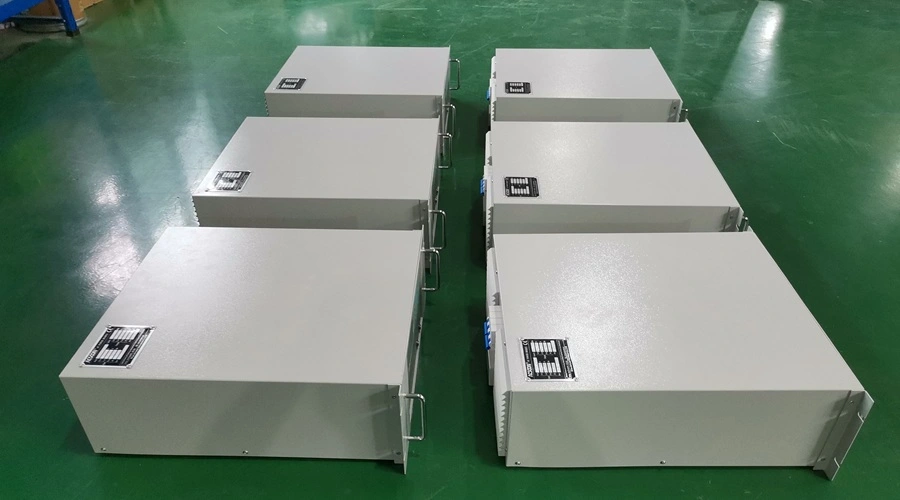

Packaging and Transportation

Unit is packed in a sturdy cardboard box with protective foam.
Clearly labeled with electrical specifications and connection diagrams.
Shipped via standard courier or freight services.

After-Sales Service

18-month standard warranty.
Detailed user manual with wiring examples and troubleshooting guide.
Technical support for application-specific questions.

Qualification Certification

CE Certification (EMC & LVD)；RoHS Compliance

FAQ
Q1: What types of motors can this converter run?
A: It can run most standard three-phase induction motors (squirrel-cage type) within its power rating. It is ideal for applications with a single major motor load.
Q2: Can it power multiple three-phase machines at the same time?
A: The total connected load must not exceed the converter's kVA rating. It is generally recommended to power one major motor and its ancillary controls at a time for best performance.
Q3: What is the difference between a Static Phase Converter and a Rotary Phase Converter?
A: A Static Phase Converter (like this unit) is electronic, silent, maintenance-free, and more compact. A Rotary Phase Converter uses a spinning idler motor; it can handle heavier startup loads but is larger, noisier, and requires maintenance.
Q4: Is derating required for motor starting?
A: Our converters are designed with a soft-start feature and overload capacity to handle typical motor starting currents. Always ensure the converter's rated power is at least equal to the motor's full-load current rating.
Q5: Can it create a three-phase output with a neutral wire?
A: The standard output is three wires (three phases). A neutral is not typically required for three-phase motor loads. If your equipment requires a 220V L-N voltage, please consult our team for a special configuration.

Contact Us

For technical specifications or assistance in selecting the right 220V Single Phase to 220V 3 Phase converter for your motor: acpower@acsoonpower.com, or submit your requirements using the form at the bottom of our website.
