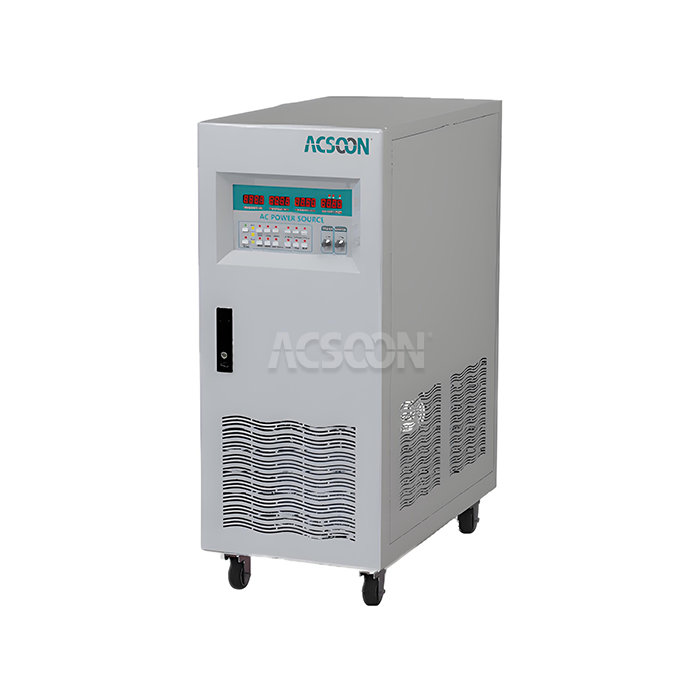

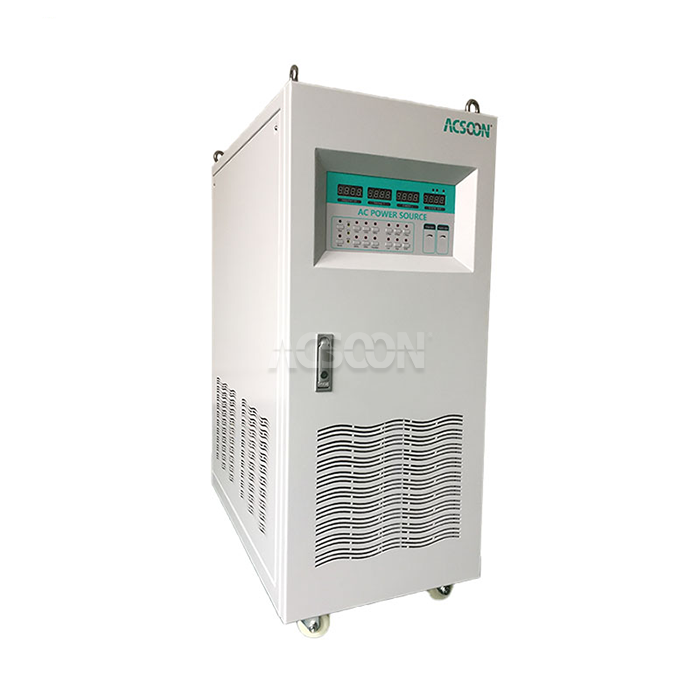

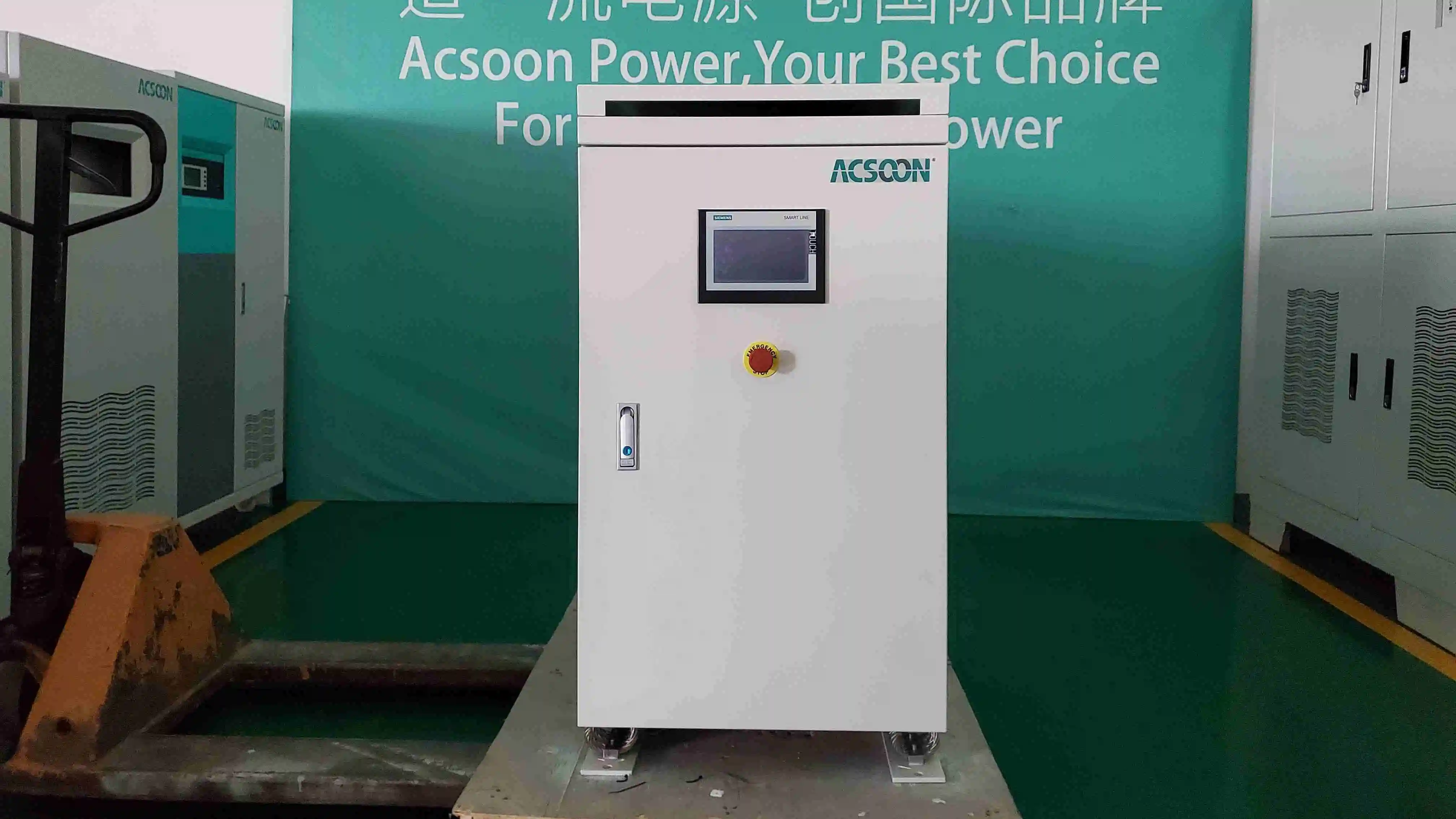

Precision 400Hz AC Power Source
2.Technology: IGBT-based Static Frequency Converter with DSP Control
3.Input: 115V/230V/400V, 50/60Hz Single or Three Phase
4.Output: 115V/200V/400V, 400Hz, Ultra-Stable & Low Distortion
5.Applications: Avionics R&D, Military Equipment Testing, Aerospace Component Burn-in, Precision Motor Testing
6.Core Features: Exceptional Voltage/Frequency Stability, Pure Sine Wave, Programmable, MIL-STD-704F Compatible
7.Brand: ACSOON (OEM/ODM Supported).
- Product Description
Precision 400Hz AC Power Source | Aerospace & Military Test Power Supply
XI'AN JERRYSTAR INSTRUMENT CO., LTD introduces the Precision 400Hz AC Power Source, a benchmark instrument for testing applications demanding the highest power quality. Designed specifically to generate pristine 400Hz AC power, this source delivers unparalleled stability, accuracy, and low distortion, making it indispensable for the development, qualification, and maintenance of sensitive aerospace, defense, and high-performance electromechanical systems.
Datasheet
| Parameter | Specification |
|---|---|
| Model Series | ACSOON AF400M / ACF400M Series |
| Input | Voltage: 1-Phase 115/230V or 3-Phase 400V ±15% Frequency: 50/60Hz (47-63Hz range) |
| Output | Voltage: 115V/200V/400V, adjustable range Frequency: 400Hz ±0.1% (300-500Hz adjustable) Power: 1kVA to 60kVA models |
| Voltage Regulation | ≤ ±1% FS (Line & Load) |
| Output THD | <3% @ linear load |
| Efficiency | ≥85% |
| Display | 4-digit LED or LCD (V, I, F, P, PF) |
| Protections | Over Voltage/Current, Short Circuit, Over Temperature |
| Cooling | Forced Air |
| Operating Temp. | -10°C to 45°C |
| Standards | MIL-STD-704F (Design Compatible), EN61000-6-3 |
Precision 400Hz AC Power Source Main Features
- Dual Conversion Topology: AC-DC-AC design ensures output isolation and immunity to input power fluctuations.
- High Resolution Control: Fine adjustment of output voltage and frequency via front panel or remote interface.
- Comprehensive Monitoring: Digital display shows real-time Voltage, Current, Frequency, Power, and Power Factor.
- Complete Protection Suite: Includes safeguards against over-voltage, over-current, short-circuit, and over-temperature conditions.
Why Choose ACSOON Precision 400Hz AC Power Source?
Laboratory-Grade Accuracy: Provides exceptional voltage regulation (±1%) and frequency stability (±0.1%) for reliable and repeatable test results.
Ultra-Clean Output: Generates a pure sine wave with very low harmonic distortion (THD <3%), essential for testing sensitive avionics and control systems.
Rugged & Reliable: Built with industrial-grade components and robust cooling for continuous, dependable operation in demanding test environments.
Flexible & Programmable: Offers adjustable voltage/frequency and communication interfaces (RS232/485) for automated test system integration.
Precision 400Hz AC Power Source Application Areas
Avionics Development & Test: Powering and testing flight control computers, navigation systems, and cockpit displays requiring precise 400Hz power.
Military Equipment Validation: Qualifying radar systems, communication gear, and other military electronics per MIL-STD-704F standards.
Aerospace Component Burn-in: Providing stable power for reliability testing of components like actuators, sensors, and power converters.
High-Speed Motor & Generator Test: Testing the performance of 400Hz motors, generators, and transformers used in aerospace applications.
Our Services
Quality Control
Component Verification: All semiconductors and magnetics are tested to ensure they meet stringent performance and temperature ratings.
Full-Power Burn-in: Every unit undergoes an extended operational test at full rated load and temperature to ensure long-term reliability.
Precision Calibration: Output voltage and frequency are calibrated using traceable standards to guarantee specified accuracy.
Waveform Analysis: Final verification of output waveform purity (THD) and stability under various load conditions.

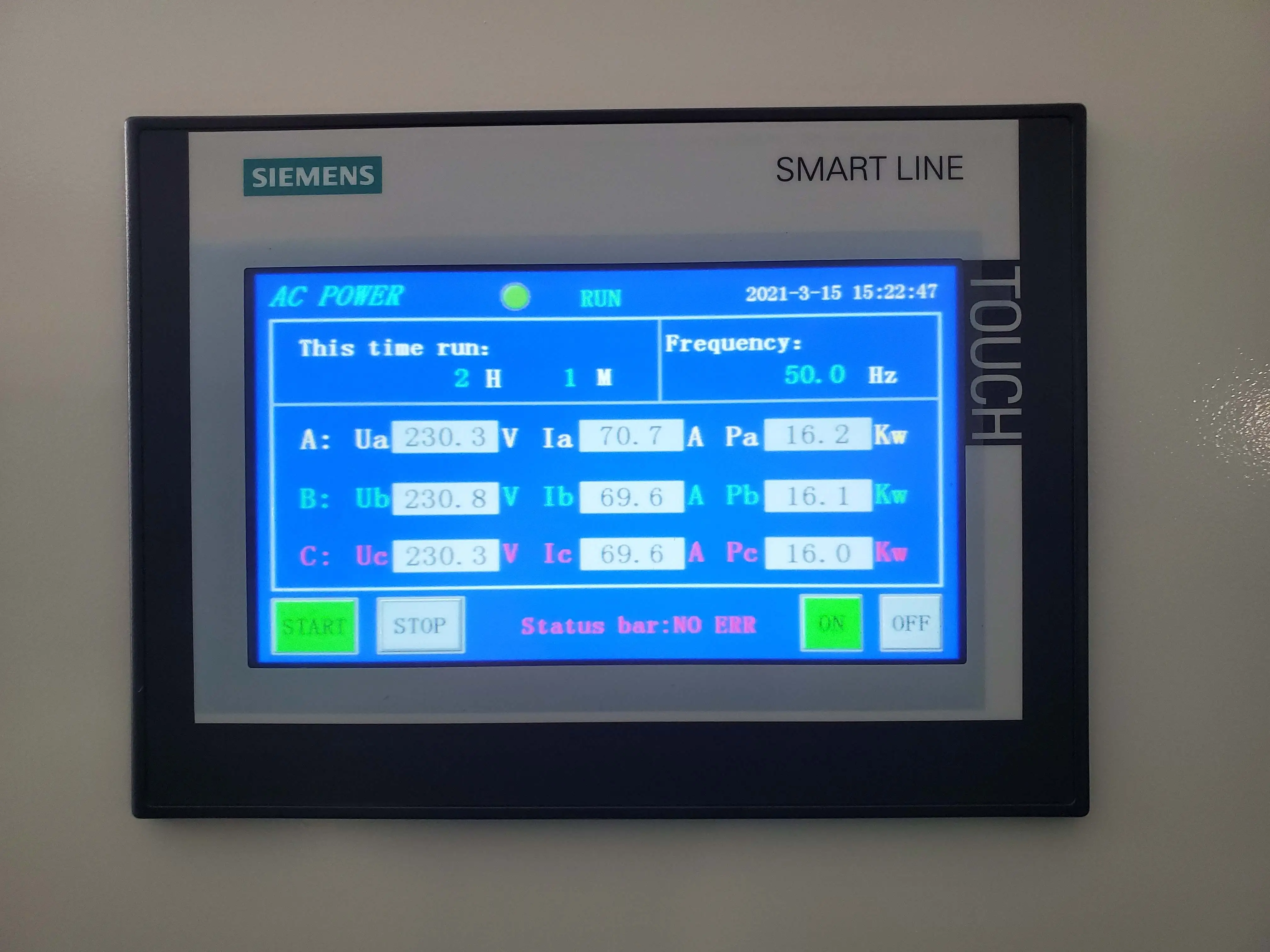

R&D Results
Advanced DSP Control: Implementation of high-speed digital signal processing allows for precise real-time regulation and fast transient response.
Optimized Filter Design: Developed output filtering techniques that minimize switching noise while maintaining waveform fidelity at 400Hz.
Enhanced Communication Protocol: Created a robust command set for remote operation, facilitating easy integration into automated test stands.
Modular Scalability: Engineered a platform that allows power capacity to be scaled while maintaining consistent performance and form-factor.
Packaging and Transportation
Secure Crating: Units are mounted in custom-fitted, high-density foam within sturdy wooden crates for maximum protection.
Climate Control: Desiccant packs are included to control humidity during shipping, especially for long sea voyages.
Complete Kit: Each shipment includes the power source, user manual, test report, and necessary communication cables.
Global Export Expertise: We manage all export documentation and logistics partnerships for reliable worldwide delivery.
After‑Sales Service
We provide a standard 24-month warranty, access to detailed technical documentation, responsive remote support, and a global network for spare parts and service.
Qualification Certification
ISO 9001:2015 Certified Production, ensuring consistent quality in design and manufacturing;CE Marked, demonstrating compliance with European safety and EMC directives;Performance Test Reports supplied with each unit, validating all key electrical parameters against the datasheet.
FAQ |
|---|
| Q1: Why is 400Hz used in aerospace applications? |
| A: 400Hz allows for the use of smaller, lighter, and more efficient motors and transformers in aircraft, which is critical for weight savings. Our source replicates this on-ground for testing. |
| Q2: Can this power source simulate abnormal conditions like surges or sags? |
| A: While primarily a precision source, its adjustable voltage function allows you to set specific output levels to simulate steady-state under-voltage or over-voltage conditions for testing. |
| Q3: Is it suitable for testing equipment with high inrush currents? |
| A: The unit features a strong overload capacity (typically 125-150%). It is designed to handle the momentary inrush currents of motors and transformers commonly encountered in 400Hz systems. |
| Q4: How does this differ from a Variable Frequency Drive (VFD)? |
| A: A VFD is for motor control and often outputs a non-sinusoidal waveform. This is a Precision AC Power Source designed to output a clean, pure sine wave with high stability and low distortion, suitable for powering sensitive electronics, not just motors. |
| Q5: Can the output frequency be set to other values besides 400Hz? |
| A: Yes, many models are field-adjustable across a range (e.g., 300-500Hz) to support testing of equipment designed for similar but non-standard high frequencies. |
