Programmable Wide-Frequency AC Power System
2. Technology: IGBT-based SPWM inversion with DSP control
3. Input: 3-phase 380VAC ±15%, 50/60Hz auto-sensing
4.Output: 0-520VAC, 45-800Hz fully programmable
5. Key Applications: R&D laboratories, avionics testing, precision manufacturing
6. Ingress Protection Grade: IP21
7.Key Features: Pure sine wave output; programmable voltage/frequency curves; multi-step sequencing; RS485 communication
8. Brand: ACSOON (support OEM).
- Product Description

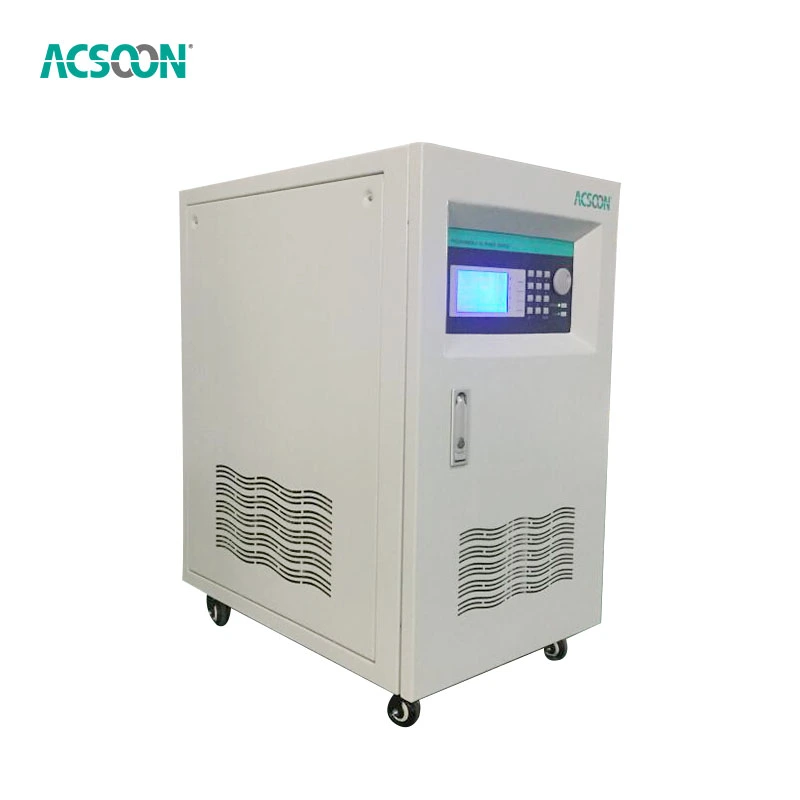

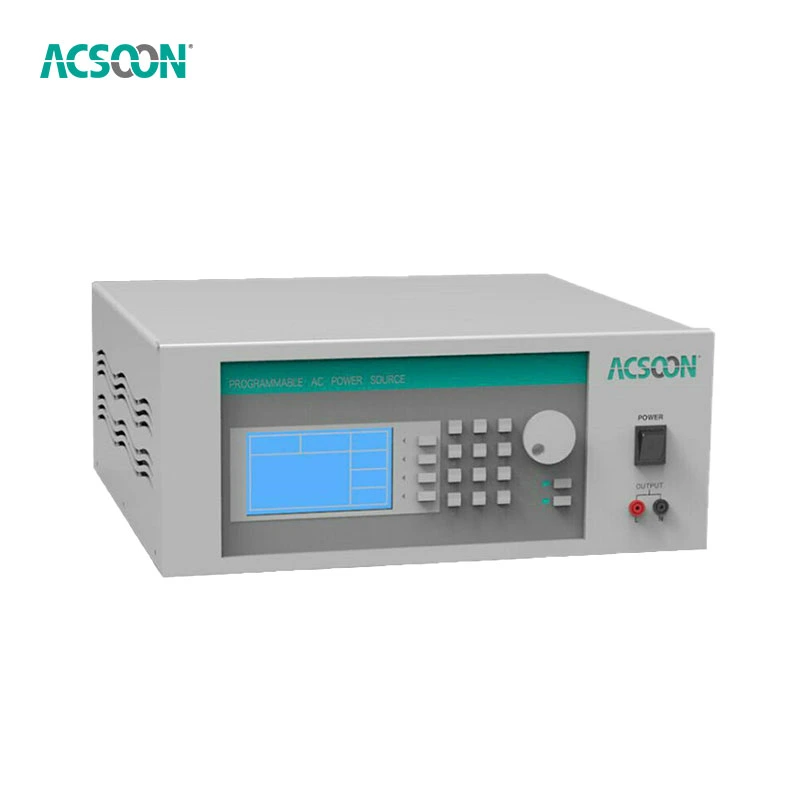

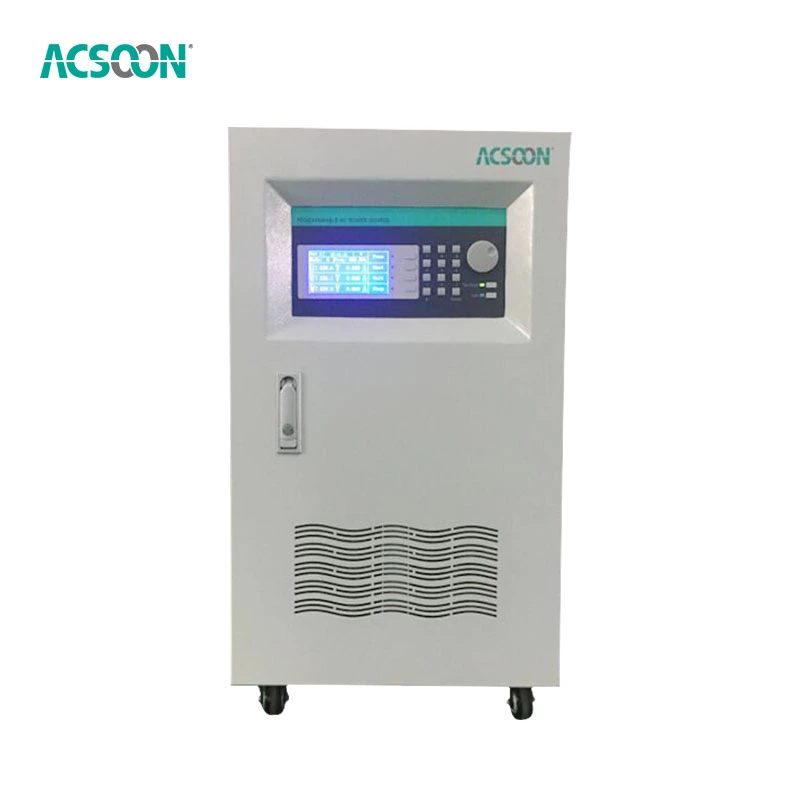

Programmable Wide-Frequency AC Power System | Precision AC Source for Testing & Research
XI'AN JERRYSTAR INSTRUMENT CO., LTD designs and manufactures advanced programmable wide-frequency AC power systems for precision testing and research applications. With extensive expertise in power electronics, we provide flexible solutions that simulate various global power conditions with exceptional accuracy. Our systems are engineered for reliability and precision, serving research institutions, manufacturing facilities, and testing laboratories worldwide.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity (Single Phase) | 1kVA to 200kVA |
| Capacity (Three Phase) | 1kVA to 2000kVA |
| Input Voltage | 110V-440V AC (Customizable) |
| Input Frequency | 50/60HZ or 40-70HZ |
| Output Voltage | 0-520V AC (Customizable) |
| Output Frequency | 50/60/100/200/400HZ or 40-800HZ adjustable |
| Voltage Regulation | ±1% |
| Frequency Stability | ≤0.1% |
| Output VTHD | <3% @ Linear load |
| Response Time | ≤2ms |
| Power Factor | ≥0.8 (≥0.9 optional) |
| Overall Efficiency | ≥85% |
| Overload Capacity | 125% for 60s, 150% for 30s |
| Cooling | Forced air |
| Operating Temperature | -10°C to 50°C |
| Altitude | <1800m |

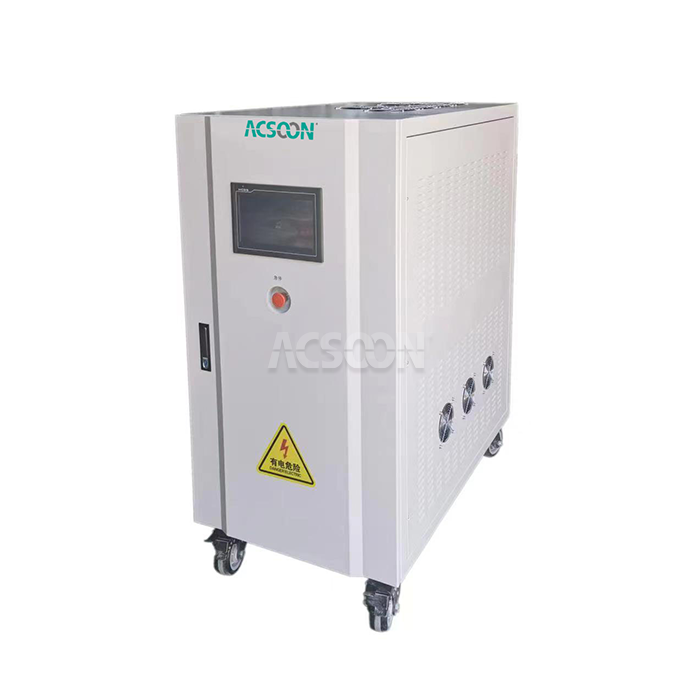

ACSOON Programmable Wide-Frequency AC Power System Main Features
- Isolated output transformer,suitable for any unbalance loads.Every single phase can be used independently
- It can perform 10 sets of different voltage, frequency,operation time settings, and can conduct continuous multiple cycle tests
- It has error information storage, can store 9 groups of fault records, which are convenient to query specific fault occurrence time and fault type
- Pure sine wave sinusoidal output Low harmonic distortion
- Built- in RS232, RS485,communication port, suitable for remote monitoring.
- Capable for each phase unbalance loads, with hardware and software double protection
Why Choose ACSOON Programmable Wide-Frequency AC Power Systems?
ACSOON represents the pinnacle of precision power technology. Our systems offer:
Exceptional Frequency Range: 45-800Hz programmable output frequency
High Accuracy Output: ±0.1% frequency stability, ±1% voltage regulation
Advanced Programming: 10 sets of voltage/frequency/time settings
Wide Compatibility: Suitable for single-phase and three-phase applications
Global Standards Compliance: Meets international safety and EMC requirements

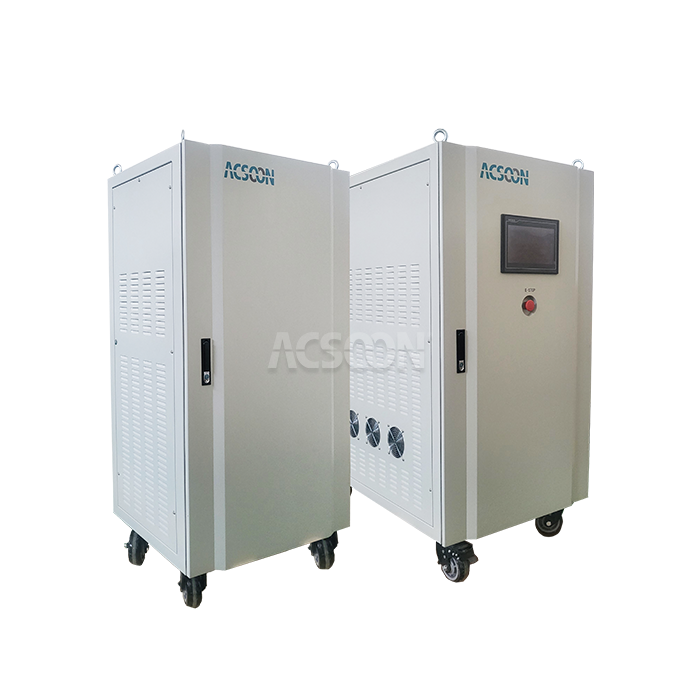

Application Areas
Our programmable wide-frequency AC power systems are essential for:
Research Laboratories: Scientific instruments and experimental setups
Avionics Testing: Aircraft electronics and systems validation
Manufacturing Quality Control: Product testing and certification
Educational Institutions: Engineering research and education
Power Electronics Development: Converter and inverter testing
Military Applications: Defense equipment testing and validation
Automotive Electronics: Component testing and validation
Renewable Energy Research: Power system simulation and testing
Details display

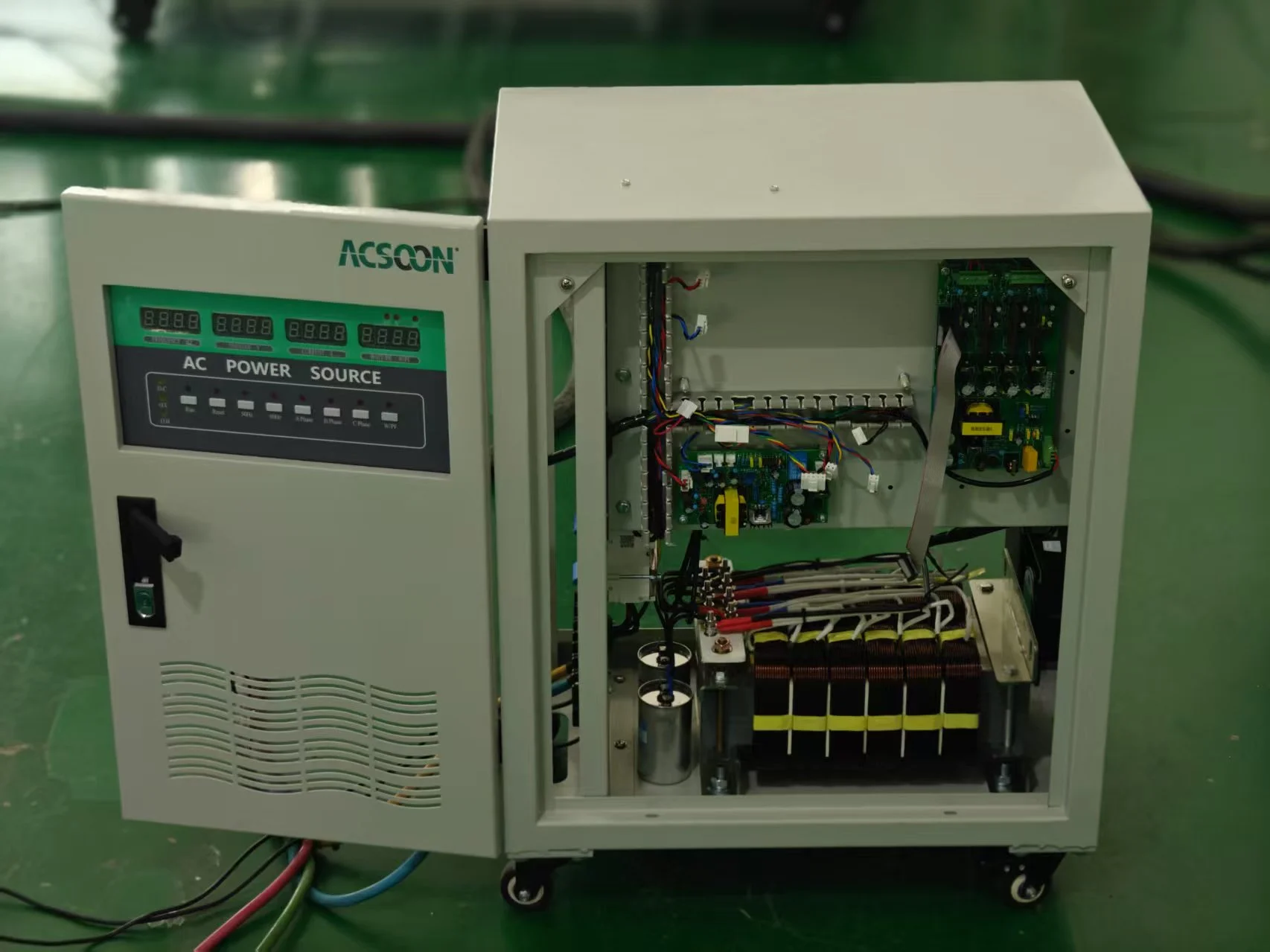

Quality Assurance
Each programmable wide-frequency AC power system undergoes rigorous validation:
Component-level testing and screening
Full-load performance testing (72 hours)
Environmental stress testing
Safety certification compliance verification
Final calibration and performance verification
Technical Features
Our programmable wide-frequency AC power system incorporates:
DSP-based digital control system
SPWM modulation technology
Isolated output transformer design
Comprehensive protection systems
Advanced cooling system with temperature-controlled fans
Packaging and Delivery
We ensure secure global delivery:
Industrial-grade protective packaging
Environmental monitoring during transportation
Worldwide logistics coordination
Professional installation support available
After-Sales Service
Comprehensive support package includes:
24/7 technical support services
Scheduled maintenance programs
Firmware update services
Operational training programs
Global spare parts availability
Certifications
FAQ |
|---|
| Q1: What is the primary application of a programmable wide-frequency AC power system? |
| A: These systems are primarily used for testing and research applications requiring precise control of AC power parameters, including avionics testing, product validation, and research experiments. |
| Q2: Can the system simulate different international power standards? |
| A: Yes, our systems can simulate various international voltage and frequency standards through programmable settings. |
| Q3: What communication interfaces are available? |
| A: Standard interfaces include RS232, RS485, and optional Ethernet connectivity for remote monitoring and control. |
| Q4: How is cooling managed in these systems? |
| A: We use advanced forced air cooling systems with temperature-controlled fans for optimal thermal management. |
| Q5: Do you provide custom programming options? |
| A: Yes, we offer customized programming and configuration services to meet specific application requirements. |
