Shore to Ship Power Supply
2.Rectifying Circuit Type: 6 pulse (12 pulse optional)
3.Input Voltage & Frequency: 3 Phase Mains Supply, 50Hz/60Hz
4.Output Voltage & Frequency: 3 Phase,60Hz/50Hz, voltage can be customized
5.Applications: marine offshore, shipyard, shore to ship power supply
6.Features: It can be connected to any worldwide dockside power system；Precise output voltage and frequency in stability and regulation
7.Brand: ACSOON (support OEM)
- Product Description
Shore to Ship Power Supply: Sustainable Maritime Power Solutions
XI'AN JERRYSTAR INSTRUMENT CO., LTD is a leading manufacturer and supplier of shore to ship power supply systems. With over 15 years of experience, we offer cutting-edge solutions to reduce emissions and comply with marine power regulations at sea shore. Our product systems are known for their reliability, efficiency, and advanced technology, making us a trusted partner in maritime electrification.

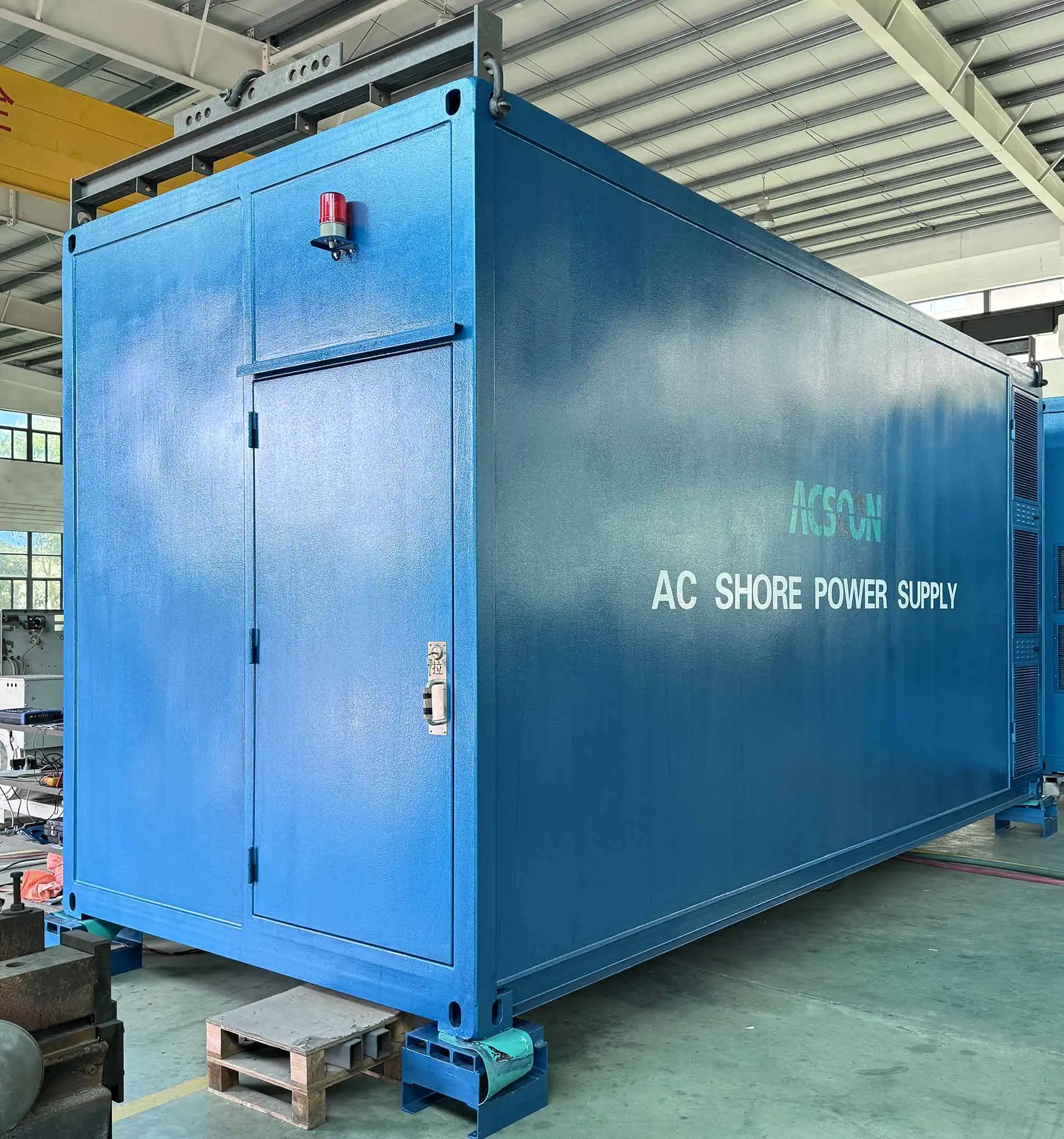

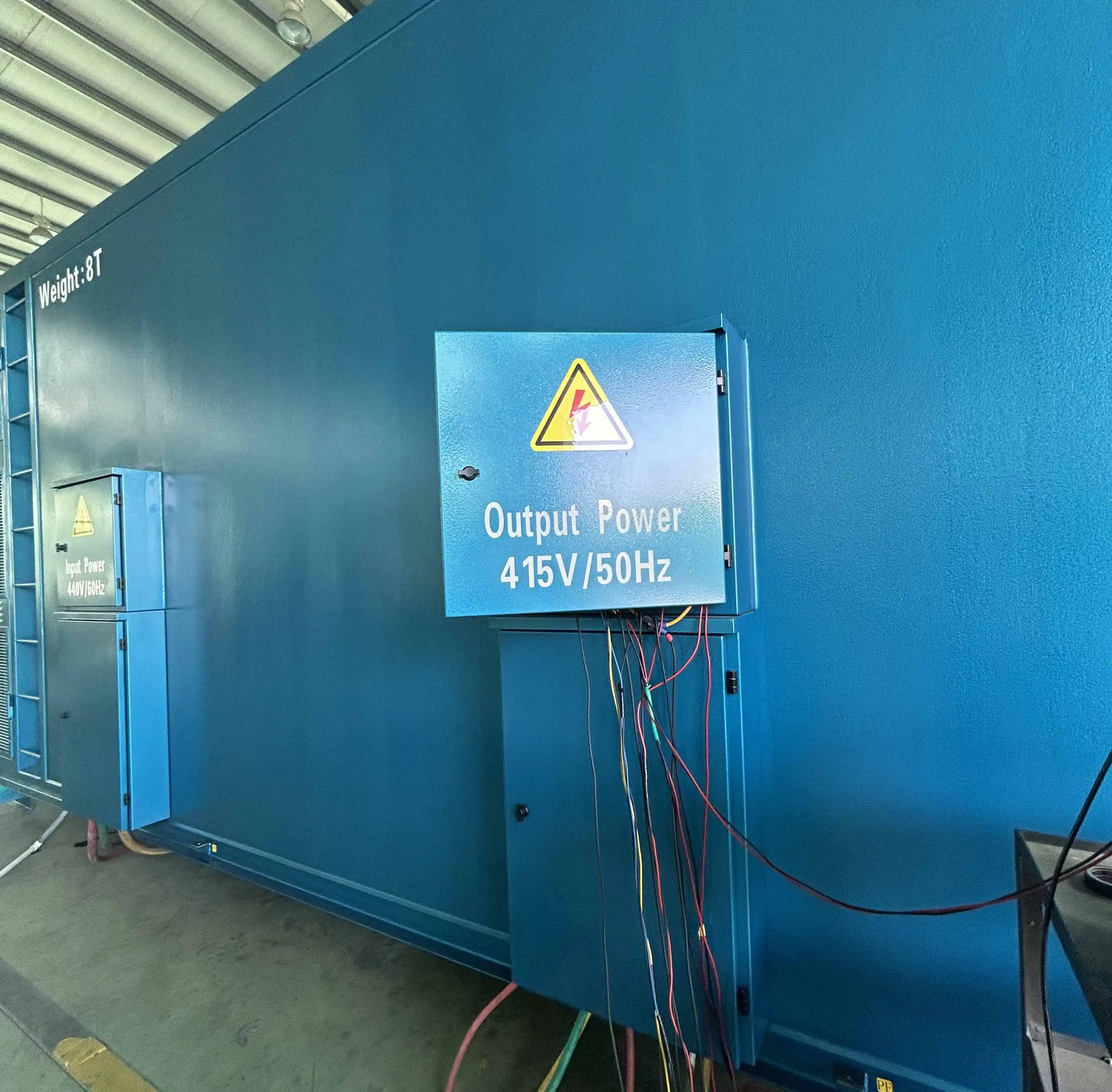

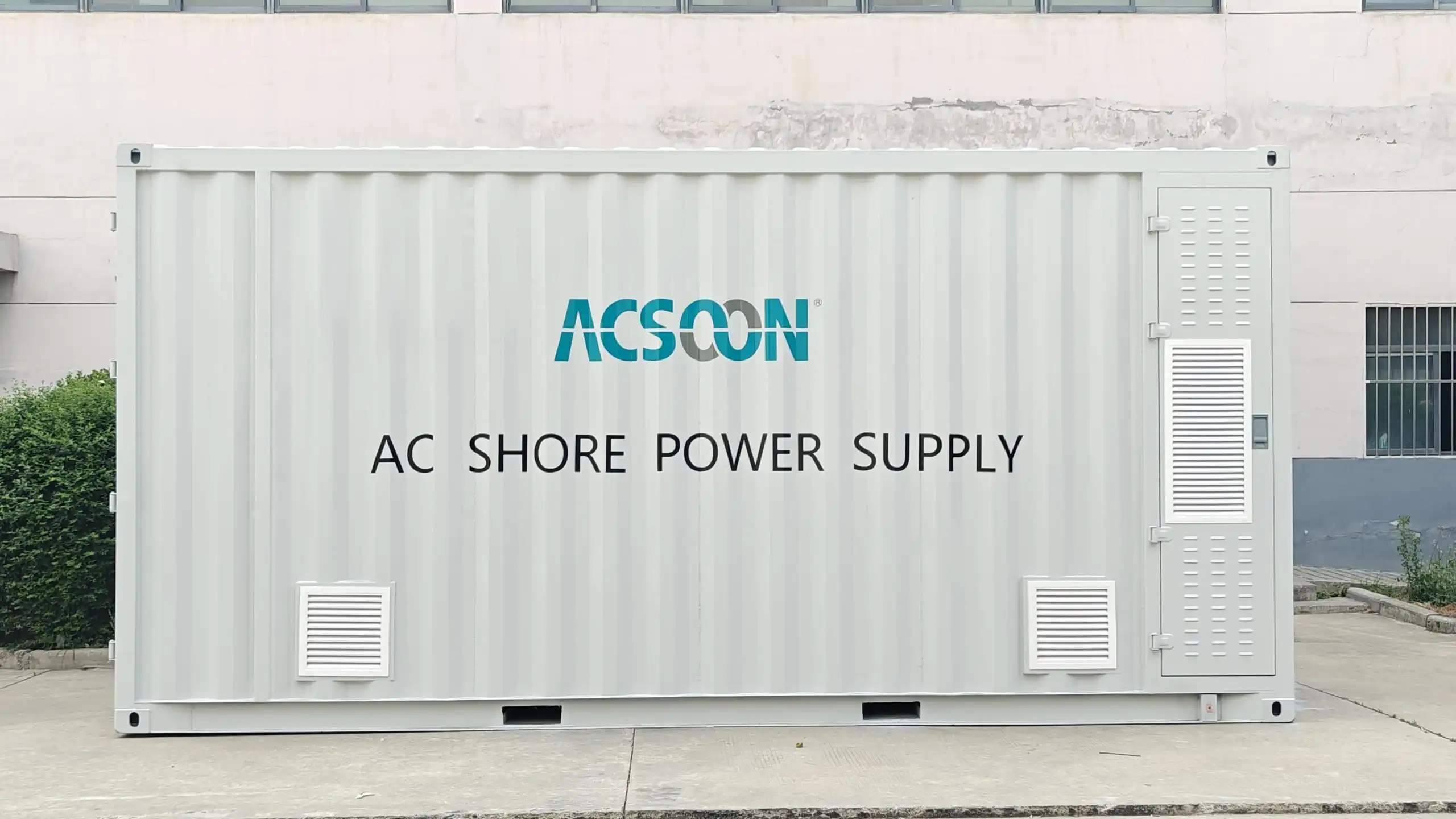

400kVA-2000kVA Containerized AC Shore Power
Why Choose ACSOON Shore to Ship Power Supply?
ACSOON, our flagship brand, delivers state-of-the-art product solutions that meet the evolving needs of the maritime industry. Here's why our systems stand out:
- High Performance: Our shore power systems offer superior power quality and stability, ensuring seamless operation for vessels of all sizes.
- Regulatory Compliance: ACSOON systems help ports and ships meet IMO/MARPOL standards and local environmental regulations.
- Cost-Effective: Reduce fuel consumption and operational costs while minimizing environmental impact.
- Scalable Solutions: From small harbors to major international ports, we offer customizable product options.
- Expert Support: Our team provides comprehensive technical assistance, from initial design to installation and maintenance.
Technical Specifications
| Feature | Specification |
|---|---|
| Power Capacity | Three Phase Output: 1250kVA |
| Input | Three Phase: 380Vac, 400Vac, 415Vac, 440Vac, 480Vac and 690Vac in ±20% variation. 3 Phase Delta or 3 Phase 4 Wire Wye type |
| Input Frequency | 50/60Hz, 40hz - 70hz |
| Output | Three Phase: 380Vac, 400Vac, 415Vac, 440Vac, 480Vac and 690Vac etc., 3 Phase Delta or 3 Phase 4 Wire Wye type |
| Output Frequency | 60/50Hz or 400Hz |
| Circuit Breakers | Input & Output MCCBs circuit breakers |
| AC Output | One output terminal, with terminal strip inside front panel door |
| Frequency Regulation | ≦0.1% |
| Voltage Regulation | +/-1% |
| Output VTHD | <3% @ Linear load |
| Power Factor | ≧0.8 (Standard), ≧ 0.9 (12 Pulse Optional) |
| Display | LCD digital display: Voltage, Current, Frequency, Power, Run, Stop and Set |
| Emergency Stop | Included |
| Protection | Over/under voltage, overload, overheat, short circuit and warning |
| Overload Capacity | 125% for 30 seconds, 150% for 2 seconds |
| Communication | Modbus mode RS232 / RS485 (Optional) |
| Cooling | Forced air |
| MTBF | 30,000H |
| Mean Time to Restoration | < 30 min |
| Working Temperature | -10℃ to 50℃ |
| IP Grade | IP21 / IP32 / IP54 /IP65 (Alternate enclosures available) |
| Optional | ATS, seamless transfer between two power units |
| Standards | EN61000-6-3 & EN60204-1 |
Application Areas
Our product systems are versatile and can be applied in various maritime environments:
- Commercial Ports: Enable large cargo and container ships to connect to land-based electricity while docked.
- Cruise Terminals: Provide clean power to passenger vessels, enhancing air quality for tourists and local communities.
- Naval Bases: Support military vessels with reliable shore power, reducing operational costs and improving readiness.
- Shipyards: Power vessels during maintenance and repair operations, ensuring a safe working environment.
- Offshore Platforms: Supply stable electricity to support operations and living quarters on oil and gas rigs.
- Ferries and RoRo Terminals: Facilitate quick connections for frequent short-sea shipping routes.
- Inland Waterways: Offer shore power solutions for river ports and marinas, protecting sensitive ecosystems.
- Fishing Harbors: Provide clean energy to fishing fleets, supporting sustainable fishing practices.
By implementing our shore to ship power supply systems, ports and shipping companies can significantly reduce their carbon footprint and contribute to cleaner, more sustainable maritime operations.
Quality Control
At XI'AN JERRYSTAR INSTRUMENT CO., LTD, quality is paramount. Our product systems undergo rigorous testing and quality control processes:
- Component Inspection: Each part is thoroughly checked before assembly.
- Functional Testing: Comprehensive performance tests ensure reliability.
- Environmental Simulation: Systems are tested under various conditions to ensure durability.
- Compliance Verification: All products meet international standards and regulations.
- Continuous Monitoring: Regular quality audits maintain high standards throughout production.
R&D Results
Our commitment to innovation has led to several breakthroughs in product technology:
- Advanced Power Conversion: Improved efficiency and reduced energy loss.
- Smart Grid Integration: Seamless connection with local power grids for optimal performance.
- Remote Monitoring Systems: Real-time diagnostics and predictive maintenance capabilities.
- Eco-friendly Materials: Reduced environmental impact throughout the product lifecycle.
Packaging and Transportation
We ensure that our product systems reach you safely:
- Robust Packaging: Shock-resistant crates protect sensitive components.
- Climate-Controlled Transport: Temperature and humidity monitoring during shipping.
- Customized Logistics: Flexible shipping options to meet your project timeline.
- On-Site Support: Technical team available for installation and commissioning.
After-Sales Service
Our commitment to your success extends beyond the initial sale:
- 24/7 Technical Support: Expert assistance available round-the-clock.
- Preventive Maintenance: Scheduled check-ups to ensure optimal performance.
- Software Updates: Regular upgrades to enhance functionality and security.
- Training Programs: Comprehensive user training for your technical staff.
- Spare Parts Inventory: Quick access to replacement components when needed.

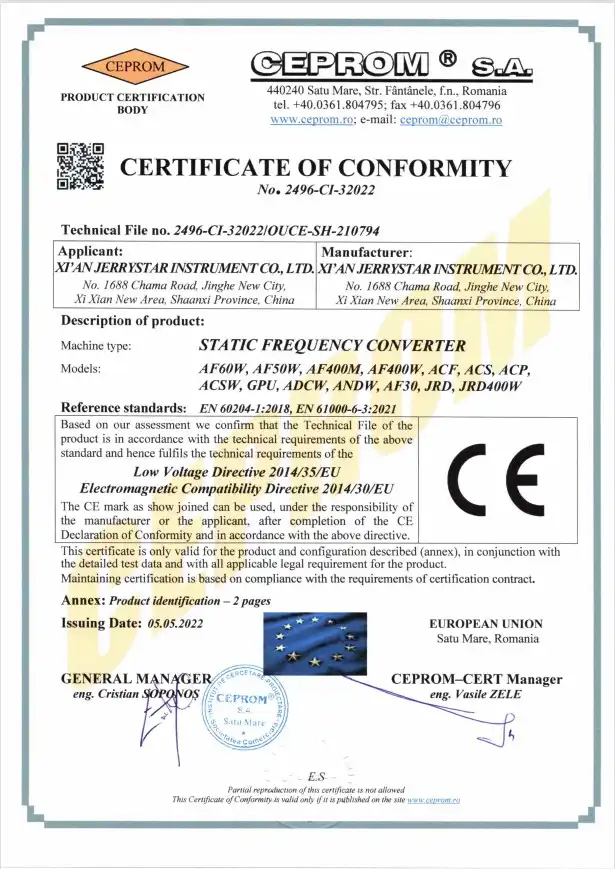

Qualification Certification
XI'AN JERRYSTAR INSTRUMENT CO., LTD holds several certifications that demonstrate our commitment to quality and safety:
- ISO 9001:2015 Quality Management System
- CE Certification for European Market Compliance
FAQ
Q: What is the main benefit of using a product?
A: The primary benefit is reducing emissions and noise pollution in ports by allowing ships to use clean, land-based electricity instead of running their engines while docked.
Q: How long does it take to install a product system?
A: Installation time varies depending on the port's infrastructure, but typically ranges from 3 to 6 months for a complete system setup.
Q: Can your shore power systems accommodate different vessel types?
A: Yes, our systems are designed to be versatile and can be customized to meet the power requirements of various vessel types, from small ferries to large container ships.
Q: What maintenance is required for a product system?
A: Regular maintenance includes periodic inspections, cleaning, and component checks. We provide detailed maintenance schedules and can offer service contracts for ongoing support.
Q: How does shore power help with regulatory compliance?
A: Shore power significantly reduces emissions in port areas, helping shipping companies and ports comply with increasingly stringent environmental regulations, such as IMO's sulfur cap and local air quality standards.
