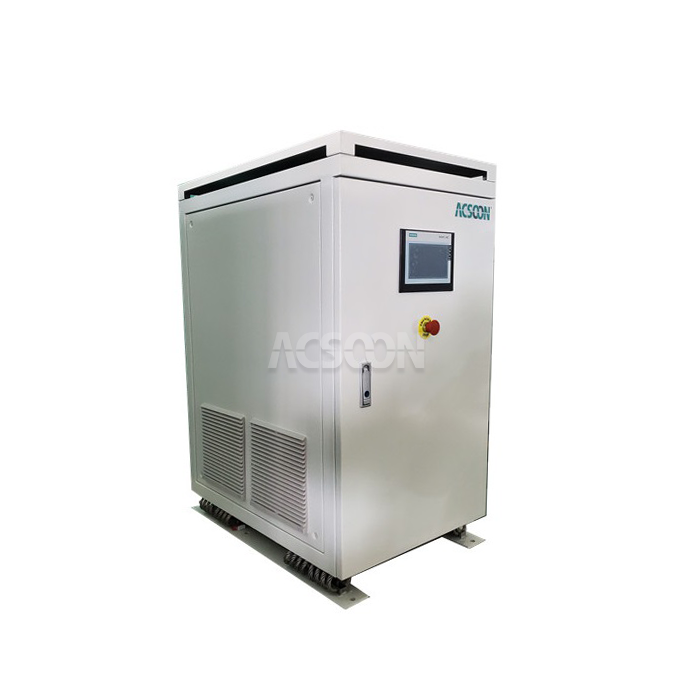

Shore to Ship Frequency Converter Acme

1.Rated Power: 100-2000kVA, power capacity can be customized
2.Rectifying Circuit Type: 6 pulse (12 pulse optional)
3.Input Voltage & Frequency: 3 Phase Mains Supply, 50Hz/60Hz
4.Output Voltage & Frequency: 3 Phase, 60Hz/50Hz, voltage can be customized
5.Applications: marine offshore, shipyard, shore to ship power supply
6.Features: Can be connected to any worldwide dockside power system; Precise output voltage and frequency in stability and regulation
7.Brand: ACSOON (support OEM).

Send Inquiry Download

Product Description

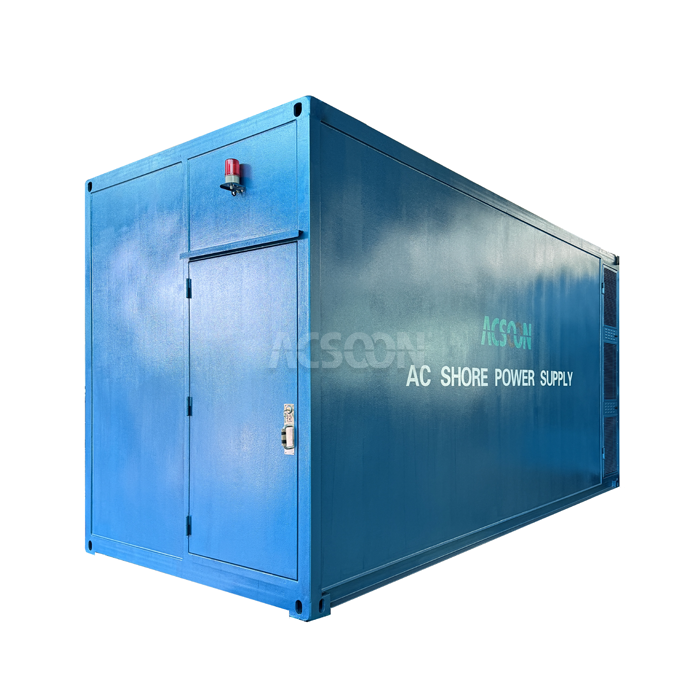

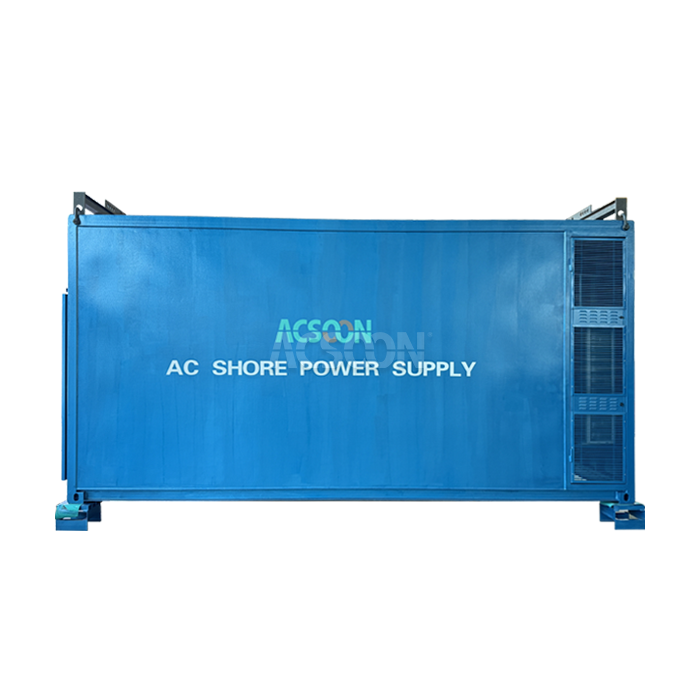

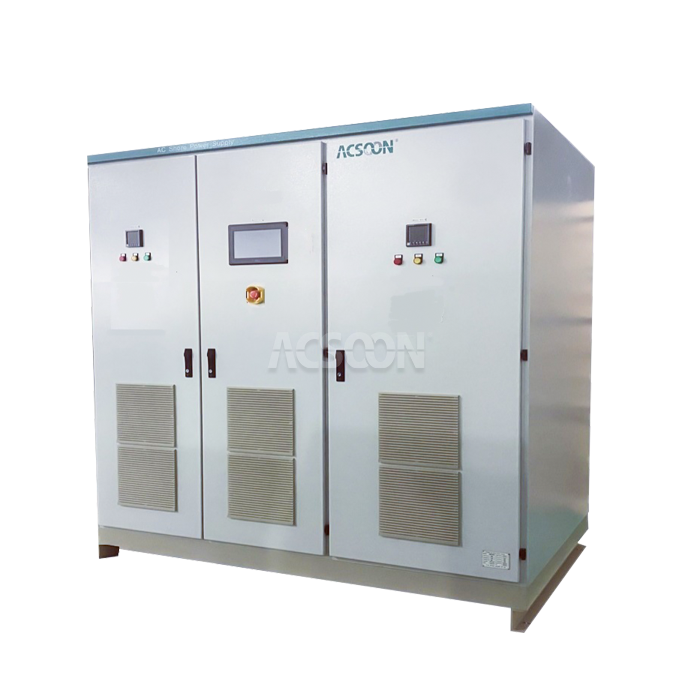

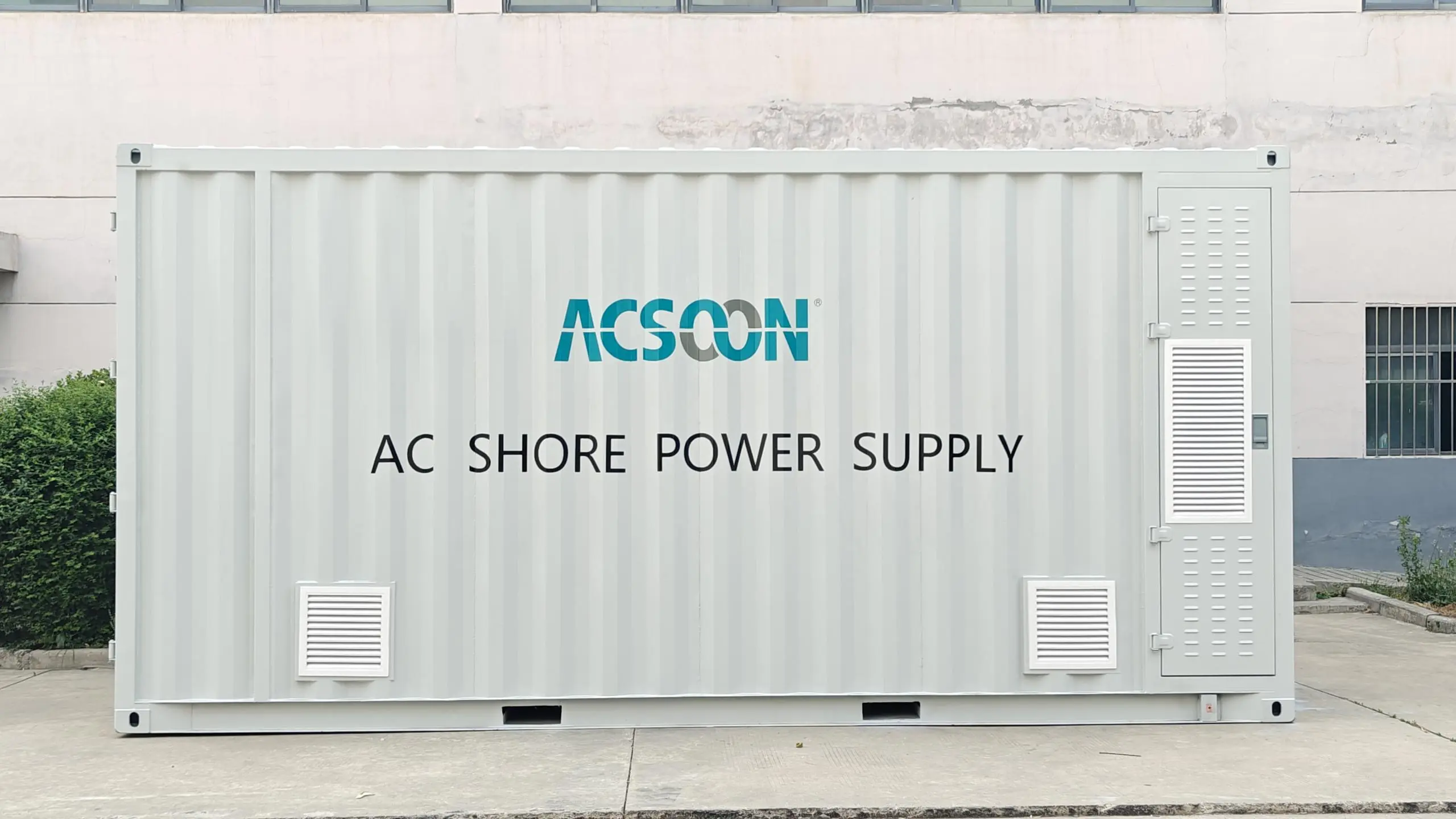

Shore to Ship Frequency Converter Acme | Marine Shore Power Supply System

XI'AN JERRYSTAR INSTRUMENT CO., LTD is a leading manufacturer and supplier of shore to ship power supply systems, including the advanced Shore to Ship Frequency Converter Acme. With over 15 years of experience, we offer cutting-edge solutions to reduce emissions and comply with marine power regulations at ports worldwide. Our Shore to Ship Frequency Converter Acme systems are known for their reliability, efficiency, and advanced technology, making us a trusted partner in maritime electrification.

Technical Data Sheet

Parameter	Specification
INPUT
Number of Phases	3 Phase + PE
Nominal Input Voltage	380V, 400V, 415V, 440V, 480V (L-L)
Voltage Tolerance	±15%
Nominal Frequency	50Hz / 60Hz
OUTPUT
Number of Phases	3 Phase + PE
Nominal Output Voltage	380V, 400V, 415V, 440V (L-L) - Customizable
Voltage Adjustable Range	0-520V (L-L)
Nominal Output Frequency	50Hz / 60Hz (Converted from input)
Frequency Stability	±0.1%
Voltage Regulation	Static: ≤±1%
Output THD	≤3% @ Linear Load
Efficiency	≥85%
Overload Capacity	125% for 60 seconds
Cooling	Forced-air cooling
Protection	Over voltage, over current, short circuit, over temperature, phase loss
Display	LCD for Voltage, Current, Frequency, Power, Power Factor
Communication	Optional: RS485/Modbus
Enclosure IP Rating	IP54 (Standard for port applications)
Operating Temperature	-10°C to 45°C

Shore to Ship Frequency Converter Acme Main Features

Galvanic Isolation & Output Transformer: Safe operation, handles unbalanced loads, each phase can be used independently.
Pure Sine Wave Output: Low harmonic distortion (THD <3% at linear load), suitable for sensitive avionics and marine electronics.
Wide Input Range: Accepts voltage variation up to ±15%, frequency tolerance 40‑70Hz.
Precise Regulation: Voltage stability within ±1%, frequency stability within ±0.1%.
Robust Protection: Comprehensive safeguards against over-voltage, over-current, short circuit, and overheating.
User-Friendly Interface: LED/LCD display for real-time monitoring of voltage, current, frequency, and power.
High Efficiency: Overall efficiency ≥85%, reducing energy loss.
Rugged Enclosure: IP20/IP21 standard (IP32/IP54 optional), powder-coated steel cabinet.

Why Choose ACSOON Shore to Ship Frequency Converter Acme?

ACSOON’s Shore to Ship Frequency Converter Acme provides state-of-the-art power conversion technology tailored for harbor and vessel electrification. Here’s what sets our solution apart:

High Reliability & Stability: Ensures continuous and clean power output with excellent voltage and frequency regulation, protecting sensitive onboard equipment.
Global Compatibility: Connects seamlessly to various dockside power standards worldwide (50Hz/60Hz inputs, adjustable outputs).
Regulatory Alignment: Helps ports and ship operators meet IMO and local environmental regulations by enabling shore power connection.
Operational Efficiency: Reduces fuel consumption, engine wear, and maintenance costs for docked vessels.
Scalable Design: Modular and customizable power ratings from 100kVA upwards to suit different berth and vessel requirements.
Comprehensive Support: End-to-end project assistance from system design and commissioning to training and maintenance.

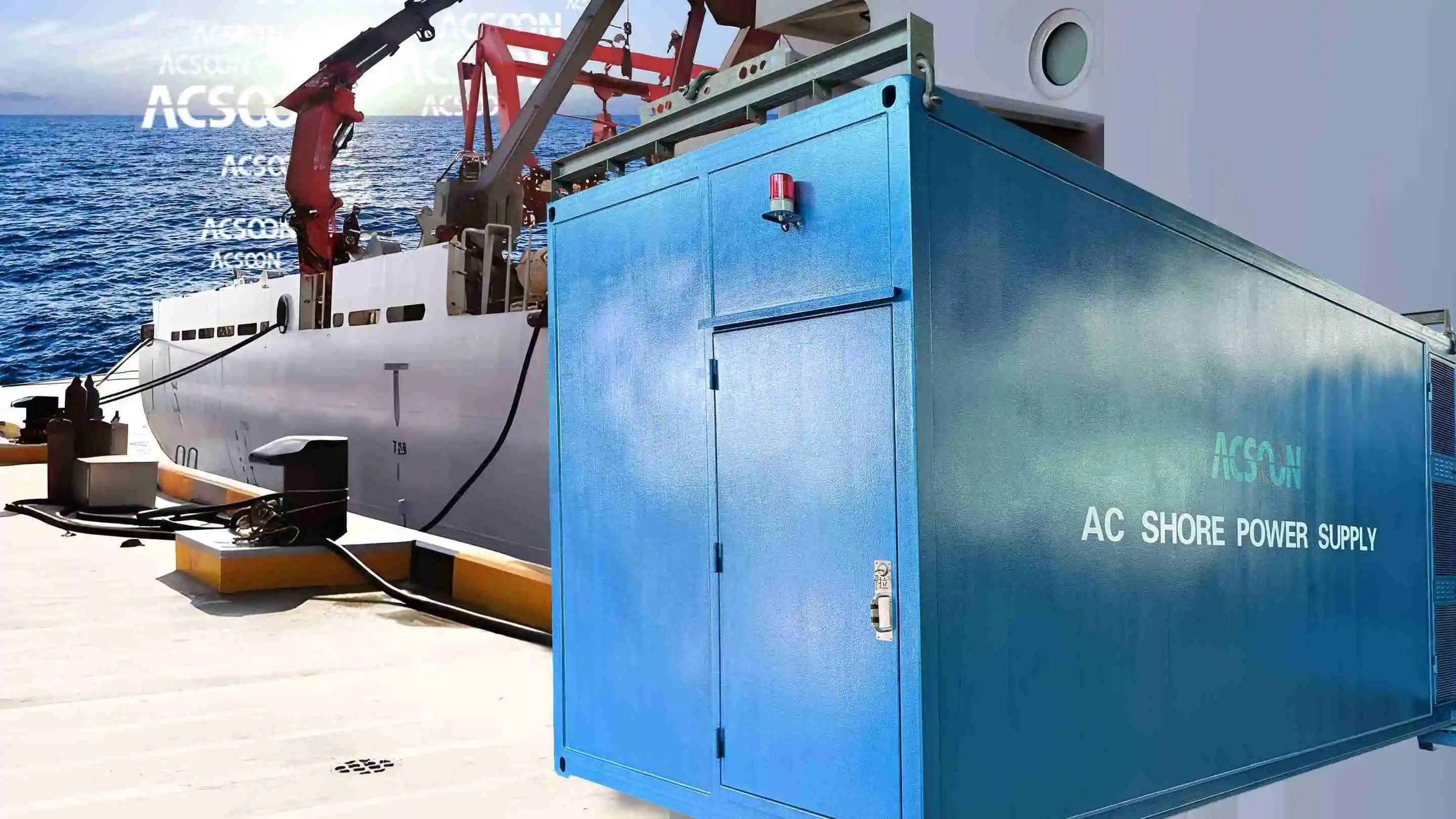

Application Areas

The Shore to Ship Frequency Converter Acme is versatile and essential for multiple maritime scenarios:

Commercial Ports & Container Terminals: Power large cargo ships during loading/unloading operations.
Cruise Ship Berths: Supply clean power to passenger liners to enhance portside air quality.
Shipyards & Dry Docks: Provide stable power during vessel construction, repair, and maintenance.
Naval Bases: Support military vessels with reliable shore-based electricity.
Ferry & RoRo Terminals: Facilitate quick turnarounds with efficient power hookup.
Offshore Supply Bases: Deliver power to support platform operations and docked supply vessels.
Inland Ports & Marinas: Enable green electrification for river and canal shipping.
Fishing Harbors: Reduce emissions by powering fishing fleets at dock.

Our Services

Quality Control

Every Shore to Ship Frequency Converter Acme undergoes stringent quality checks:

Incoming component inspection and testing.
Full-load operational testing under simulated dock conditions.
Environmental stress screening (temperature, humidity, vibration).
Compliance verification with international marine and electrical standards.
Final audit and certification before shipment.

R&D Results

Our R&D focus for the Shore to Ship Frequency Converter Acme has achieved:

Enhanced IGBT‑based inverter topology for higher efficiency and compact design.
Advanced DSP control for superior dynamic response and waveform quality.
Integrated communication interfaces (RS485/Modbus) for remote monitoring and smart grid integration.
Robust marine‑grade components for corrosion resistance and long service life in harsh environments.

Packaging and Transportation

We ensure safe delivery of the Shore to Ship Frequency Converter Acme:

Heavy‑duty wooden crates with shock‑absorbent interior packaging.
Climate‑controlled and GPS‑tracked logistics options.
Flexible Incoterms to suit project needs.
On‑site supervision available for unloading and installation.

After‑Sales Service

24/7 technical support via email and phone.
Preventive maintenance plans and onsite service.
Software and firmware updates.
Operator training and documentation.
Global spare‑parts supply network.

Qualification Certification

ISO 9001:2015 Quality Management System Certified；CE Marked for European compliance；Designed and tested in accordance with IEC/EN marine electrical standards.

FAQ
Q1: What is the primary function of the Shore to Ship Frequency Converter Acme?
A: It converts shore‑side electrical power (typically 50Hz or 60Hz) to the precise voltage and frequency required by a ship’s onboard system, allowing the vessel to shut down its auxiliary engines while docked.
Q2: Can the system handle different input voltages from various ports worldwide?
A: Yes, the converter accepts a wide input voltage range (±15%) and common industrial voltages (380V‑480V 3‑phase), making it compatible with most port grids.
Q3: How does the Shore to Ship Frequency Converter Acme help with environmental regulations?
A: By enabling ships to use clean shore power, it drastically reduces exhaust emissions (SOx, NOx, PM) and noise in port areas, aiding compliance with IMO MARPOL Annex VI and local green port initiatives.
Q4: What is the typical lead time for a 400kVA unit?
A: Standard lead time is 8‑10 weeks after order confirmation; expedited production is available.
Q5: Do you provide turnkey installation services?
A: Yes, we offer design, installation, commissioning, and training services globally through our engineering partners.
