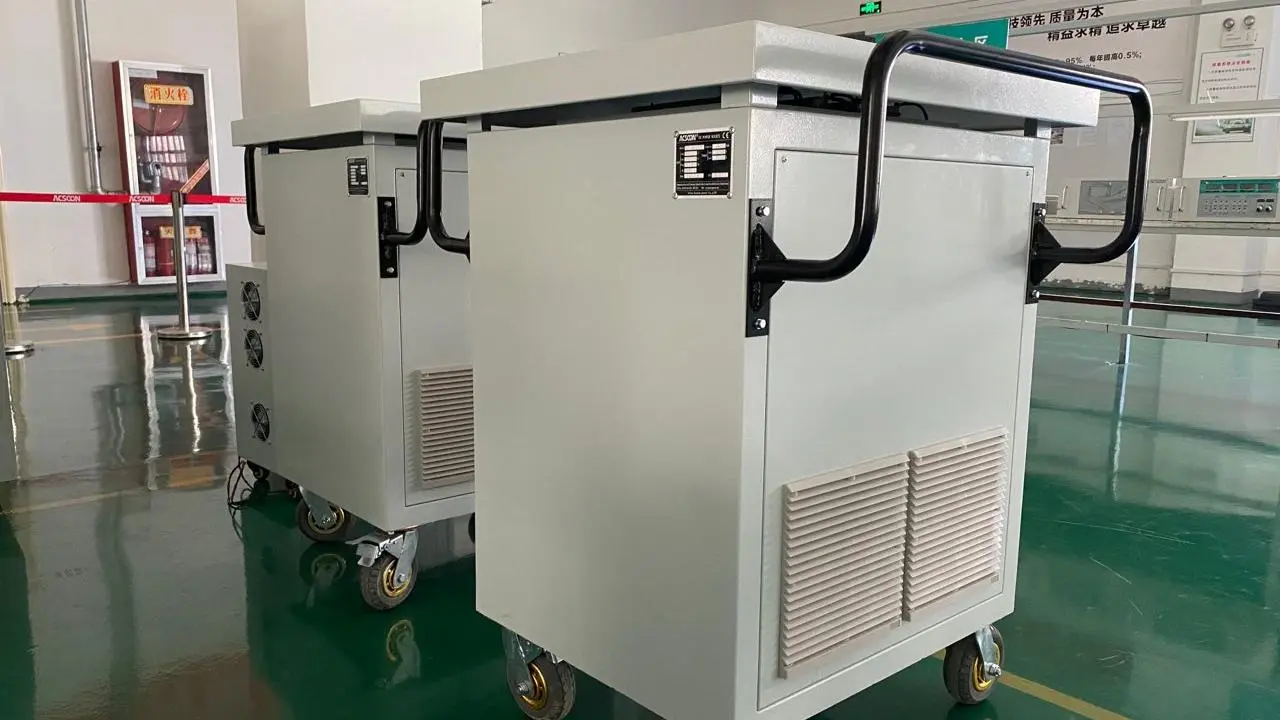

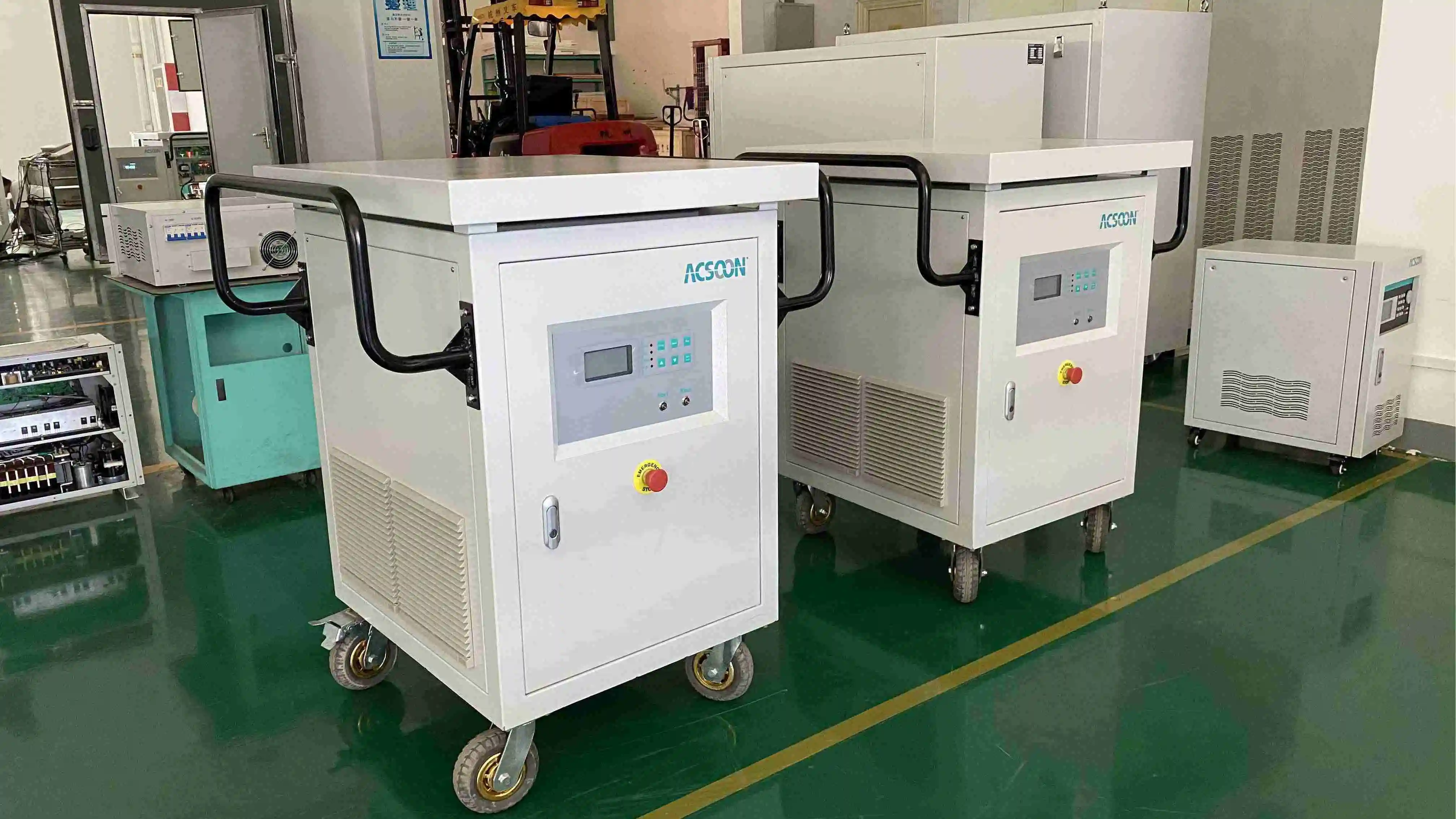

DC 28VDC 800A Rectifier
1.Rated Output: 28.5 VDC, 800A (22.8 kW) continuous power, designed for extreme-duty applications.
2.Technology: High-frequency switching rectifier with advanced digital control and 12-pulse input topology.
3.Input: Standard three-phase AC mains (380V-480V, 50/60Hz), wide tolerance for unstable grids.
4.Output: Precision-regulated, ultra-low ripple DC power suitable for the most sensitive and demanding loads.
5.Core Application: Critical DC power for heavy military equipment, large commercial aircraft ground support, industrial electroplating, and mega-watt scale battery charging.
6.Key Advantages: Massive current output, exceptional reliability, military-grade ruggedness, and intelligent system management.
7.Brand: ACSOON – engineering power solutions for the most challenging ground support and industrial requirements.
2.Technology: High-frequency switching rectifier with advanced digital control and 12-pulse input topology.
3.Input: Standard three-phase AC mains (380V-480V, 50/60Hz), wide tolerance for unstable grids.
4.Output: Precision-regulated, ultra-low ripple DC power suitable for the most sensitive and demanding loads.
5.Core Application: Critical DC power for heavy military equipment, large commercial aircraft ground support, industrial electroplating, and mega-watt scale battery charging.
6.Key Advantages: Massive current output, exceptional reliability, military-grade ruggedness, and intelligent system management.
7.Brand: ACSOON – engineering power solutions for the most challenging ground support and industrial requirements.
- Product Description
XI'AN JERRYSTAR INSTRUMENT CO., LTD presents the DC 28VDC 800A Rectifier, a cornerstone of high-power ground support infrastructure. Engineered to deliver an immense and unwavering 800-ampere DC current, this rectifier is the definitive solution for applications where power demand is critical and non-negotiable. Transforming robust three-phase AC into flawless DC power, the ACSOON rectifier ensures the reliable operation of heavy military vehicles, serves as the backbone for aircraft starting systems, and drives high-energy industrial processes with absolute precision and safety.
Technical Summary
| Parameter | Specification |
|---|---|
| Input (AC) | |
| Phases | Three Phase + N + PE |
| Voltage | 380V, 400V, 415V, 440V, 480V (±15%) |
| Frequency | 50Hz / 60Hz (45-66Hz) |
| Power Factor | ≥ 0.92 |
| Output (DC) | |
| Voltage | 28.5 VDC (Adjustable 24V - 32V) |
| Current | 800 A (Continuous) |
| Ripple & Noise | < 1% RMS |
| Regulation | Line: ≤ ±0.5%; Load: ≤ ±0.5% |
| Performance | |
| Efficiency | ≥ 90% (at full load) |
| General | |
| Display | Graphical LCD with Touch Interface |
| Protection | OVP, OCP, SCP, OTP, Phase Loss, Fan Fail |
| Overload | 110% continuous, 150% for 1 minute |
| Cooling | Forced Air with Redundant Fans |
| Operating Temp. | -10°C to 50°C |
| Enclosure | IP20 (Standard), IP54 (Optional) |
| Standards | MIL-STD-1275 (Design Considered), CE, ISO 9001 |
DC 28VDC 800A Rectifier Main Features
- Ultra-high current output: 28.5VDC at 800A continuous.
- 12-pulse input rectifier for low line harmonics and clean power draw.
- Fully digital DSP-based control for precise regulation and monitoring.
- Comprehensive multi-stage protection: Over Voltage (OVP), Over Current (OCP), Short Circuit (SCP), Over Temperature (OTP), and Input Phase Loss.
- Large graphical LCD display for clear readout of voltage, current, power, status, and alarm history.
- Redundant cooling system with temperature-controlled, high-airflow fans.
- Standard communication ports (RS485, CAN Bus) for integration into SCADA and network management systems.
- Rugged, industrial enclosure designed for harsh environments (optional IP54).
Why Choose ACSOON DC 28VDC 800A Rectifier?
The ACSOON DC 28VDC 800A Rectifier is engineered to set the benchmark for power, precision, and durability in extreme environments. Key advantages include:
- Unrivaled Power Density: Delivers a continuous 800A from a single, compact unit, eliminating the complexity of paralleling multiple smaller systems for high-current needs.
- Military-Grade Precision & Stability: Provides rock-solid voltage regulation (±1%) and exceptionally low ripple, meeting the stringent requirements of sensitive avionics and communication systems.
- Built for Maximum Uptime: Utilizes top-tier components, a robust thermal design, and comprehensive fault protection to ensure mission-critical reliability in the most demanding conditions.
- Intelligent Power Management: Features advanced digital control with configurable parameters, real-time system diagnostics, and remote monitoring capabilities for seamless integration and proactive maintenance.
- Superior Electrical Performance: High input power factor (≥0.92) and efficiency (≥90%) minimize energy costs and environmental impact while reducing strain on the facility's electrical infrastructure.
Application Areas
The DC 28VDC 800A Rectifier is indispensable for sectors where massive, reliable DC power is the foundation of operations:
- Defense & Military Bases: Starting main battle tanks, heavy transport vehicles, and providing primary power for radar stations and mobile command centers.
- Aviation Mega-Hangars: As the central DC power source for multiple aircraft servicing bays or for starting the largest commercial aircraft auxiliary power units.
- Industrial Manufacturing: High-current electroplating, anodizing lines, and powering massive DC drives in steel processing or mining.
- Telecommunications Infrastructure: Serving as the rectifier module in ultra-high capacity DC power plants for hyperscale data centers.
- Marine & Shipbuilding: Shore-to-ship power conversion and battery bank charging for large naval vessels and commercial ships.
- Renewable Energy Integration: Grid-forming DC source for microgrids or as a massive battery charger for grid-scale energy storage systems.
Our Services
01

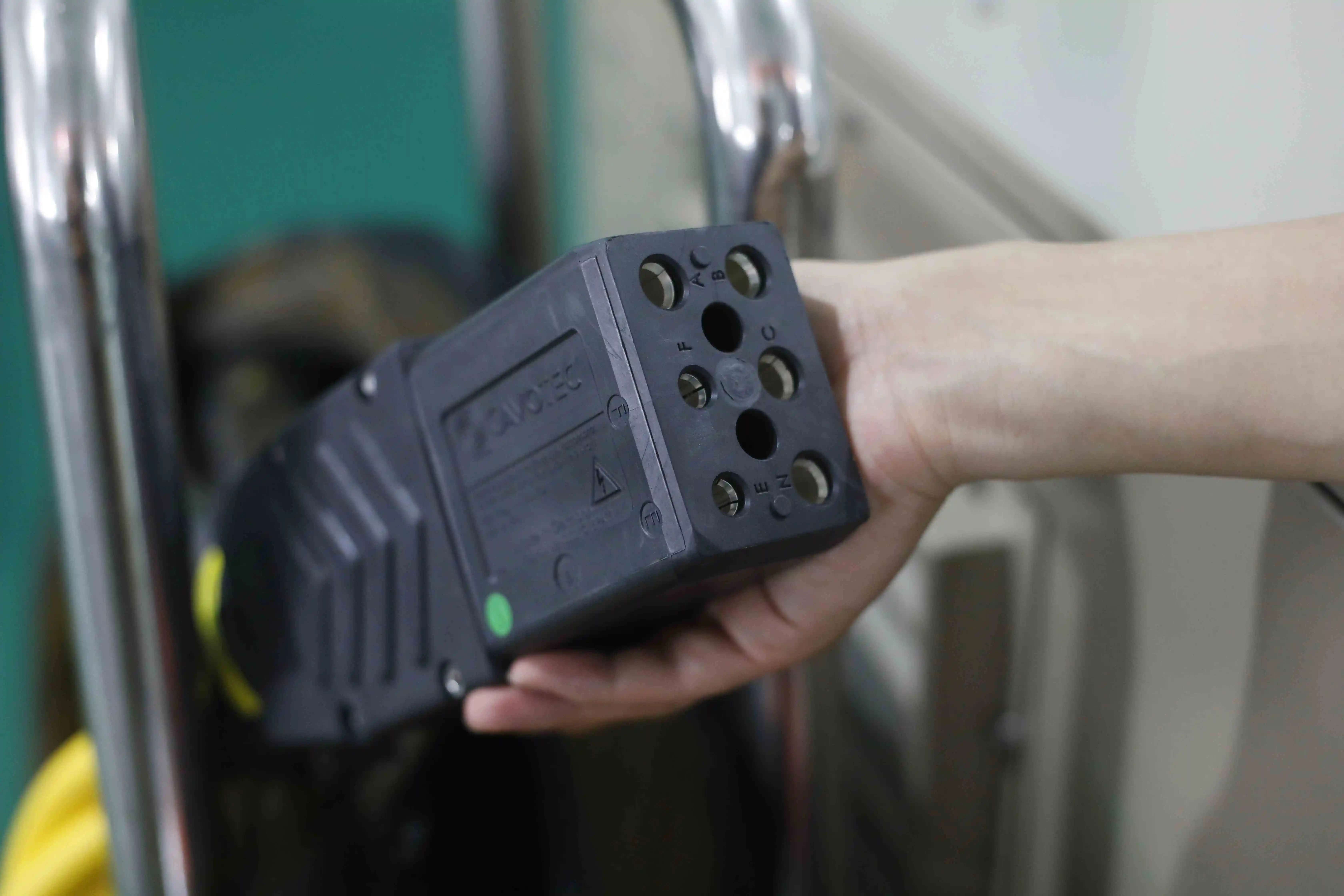

Quality Control
Every DC 28VDC 800A Rectifier is subjected to a brutal validation regime befitting its role:
- High-current stress testing of all busbars, connectors, and semiconductor assemblies.
- Full-power, 100% duty cycle burn-in testing for a minimum of 72 hours to validate thermal stability and long-term reliability.
- Transient response testing under simulated worst-case load steps.
- Complete environmental stress screening (ESS) for units designated for military use.
- Final certification of all performance metrics and safety functions.
02
R&D Results
Our R&D for the DC 28VDC 800A Rectifier focuses on pushing the boundaries of power electronics:
- Implementation of silicon carbide (SiC) MOSFETs in next-gen models for even higher efficiency and power density.
- Development of advanced active current-sharing technology for seamless N+1 redundant parallel systems.
- Integration of AI-driven predictive maintenance algorithms to forecast component lifespan and prevent failures.
03
Packaging and Transportation
- The unit is a heavy-weight system, shipped on a custom-engineered, wheeled steel skid for mobility and protection.
- Secured within a reinforced wooden crate or container for ocean freight, with integrated lifting points.
- Accompanied by full as-built drawings, detailed installation manuals, and comprehensive test documentation.
04
After-Sales Service
- Extended 24-month warranty with performance guarantee.
- Dedicated application engineering support from specification through commissioning.
- Global network of service engineers for on-site maintenance and emergency repair.
- Lifetime support for firmware updates and technical documentation.
Qualification Certification
CE Marking (Full Compliance)；ISO 9001:2015 Quality Management System；Design and Testing per MIL-STD-1275B (Military Vehicle Power)；ISO 6858 (Aircraft Ground Support)
FAQ |
|---|
| Q1: What makes 800A a significant threshold for a DC rectifier? |
| A: 800A represents a tier of power required for starting the largest diesel engines, charging massive battery banks in minutes, or driving high-energy industrial processes. It signifies a transition from standard industrial equipment to specialized, high-power infrastructure. |
| Q2: Can this rectifier be used in a parallel/redundant configuration? |
| A: Yes, it is designed with peer-to-peer parallel capability. Multiple units can be connected to share load for higher currents or to provide N+1 redundancy for critical applications where zero downtime is required. |
| Q3: What are the specific cable requirements for the 800A DC output? |
| A: It requires heavy-duty, finely-stranded copper cables, typically two sets of 500 MCM or equivalent, per terminal. Proper crimping, insulation, and routing to manage electromagnetic forces are crucial. We provide detailed specification sheets. |
| Q4: How is heat dissipation managed at full load? |
| A: The unit employs a multi-zone, forced-air cooling system with high-static-pressure fans and an optimized, finned-aluminum heatsink design. Airflow is front-to-back, making it suitable for racking in a controlled airflow environment. |
| Q5: Is customization available for different voltage/current ratings? |
| A: Absolutely. The 28VDC 800A is a standard high-power model. We engineer custom rectifiers from 100A to several thousand amps, and from 12VDC to 600VDC, tailored to unique project specifications. |
