Military DC Power System
2.Technology: Ruggedized design with MIL-STD compliance
3.Input: 3-phase 400VAC ±20%, 47-63Hz wide range
4.Standards: MIL-STD-1275/704F compliant
5.Key Applications: Military vehicles, defense systems, field operations
6.Key Features: Military grade; rugged construction; wide input range; EMI protected
7.Brand: ACSOON (military configurations available)
- Product Description
XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures robust military DC power systems for demanding defense and military applications. Our systems are built to military standards, providing reliable 28.5VDC power for military vehicles, defense equipment, and field operations where durability, wide operating ranges, and mission-critical reliability are essential.
Technical Specifications
| Feature | Specification |
|---|---|
| Input | Three Phase: 200-440VAC (L-L) ±20% |
| Frequency | 40 - 70HZ |
| Output Voltage | DC 28.5V (adjustable 24V-32V) |
| Output Current | 50A to 1000A |
| Voltage Regulation | ±1% |
| Power Factor | ≥0.9 |
| Efficiency | ≥85% |
| Ripple | <150mV, max 250mV (rms) |
| Display | VFD / LCD (Voltage, Current, Power) |
| Overload Capacity | 125% for 10 min, 150% for 60s, 200% for 10s |
| Protections | Overvoltage, Undervoltage, Current Limiting, Overheating, Short Circuit |
| Operating Temperature | -10°C to 50°C |
| Humidity | 10% - 95% |
| Altitude | <1800 meters |
| MTBF | 30,000 hours |
| MTTR | <30 minutes |
| Standards Compliance | EN61000-6-2:2005, GJB152A-97, MIL-STD-704F |
ACSOON Military DC Power System Main Features
- Auto voltage compensation system, ideal voltage at aircraft connector
- Self diagnose system which would show error code on digital display
- 10 events memory stores
- Pure sine wave, sinusoidal output
- Completely protection and alarm for over voltage, over current and overheating, etc
- Eco-friendly, lower power consumption with high efficiency
- With 28VDC military interlock
Why Choose ACSOON Military DC Power Systems?
ACSOON delivers military-grade reliability and performance:
Military Compliance: Meets MIL-STD-1275/704F requirements
Rugged Design: Built for harsh environments and field use
Wide Operating Range: Handles extreme input variations
EMI Protection: Electromagnetic interference hardened
Mission Ready: Reliable performance in critical situations
Application Areas
Our military DC power systems are essential for:
Military Vehicles: Tactical and support vehicles
Defense Systems: Weapon and radar systems
Field Operations: Mobile military operations
Communications: Military comms equipment
Emergency Power: Backup power systems
Base Operations: Military facility power
Training Systems: Military training equipment
Mobile Units: Deployable military systems

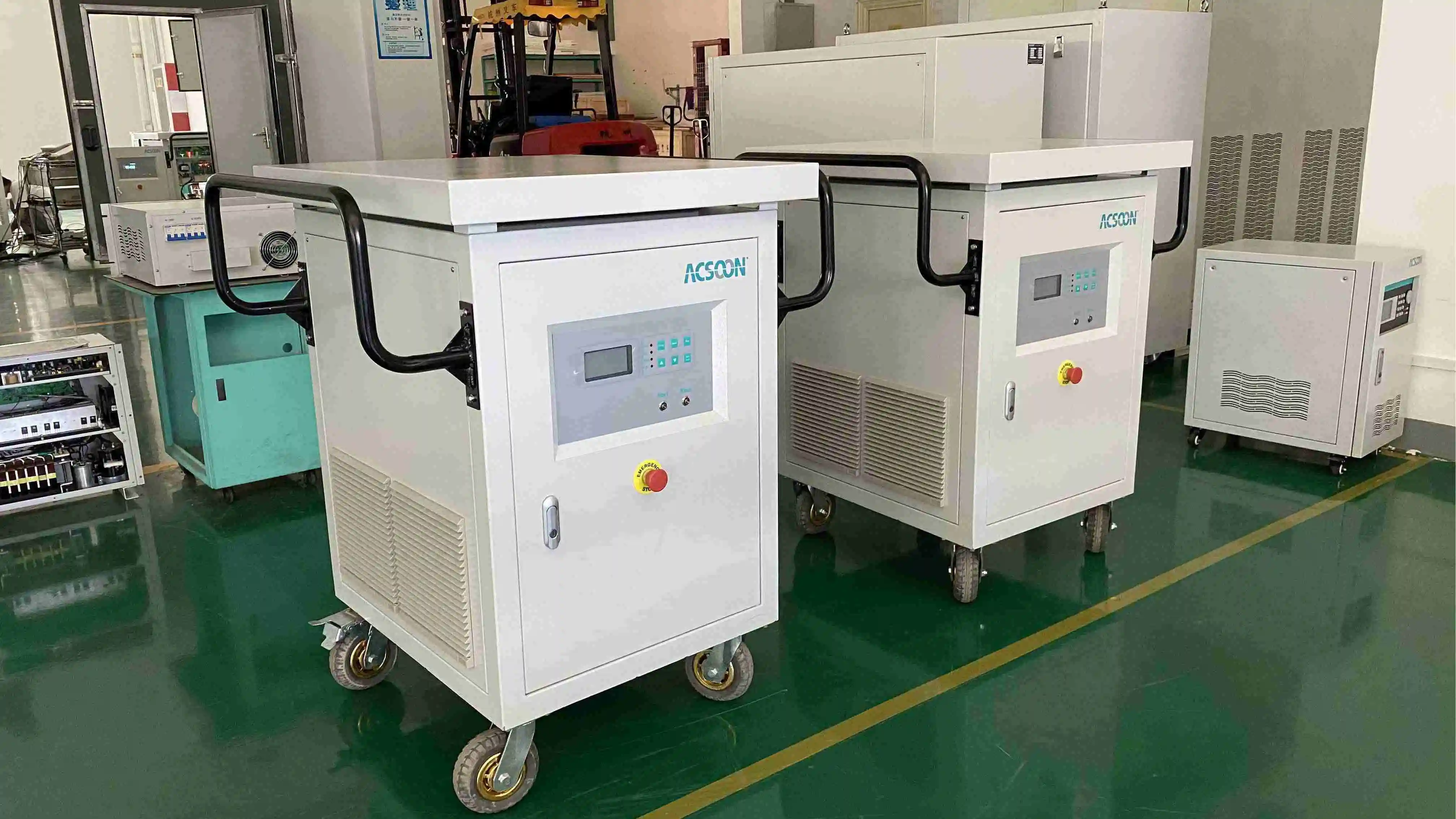

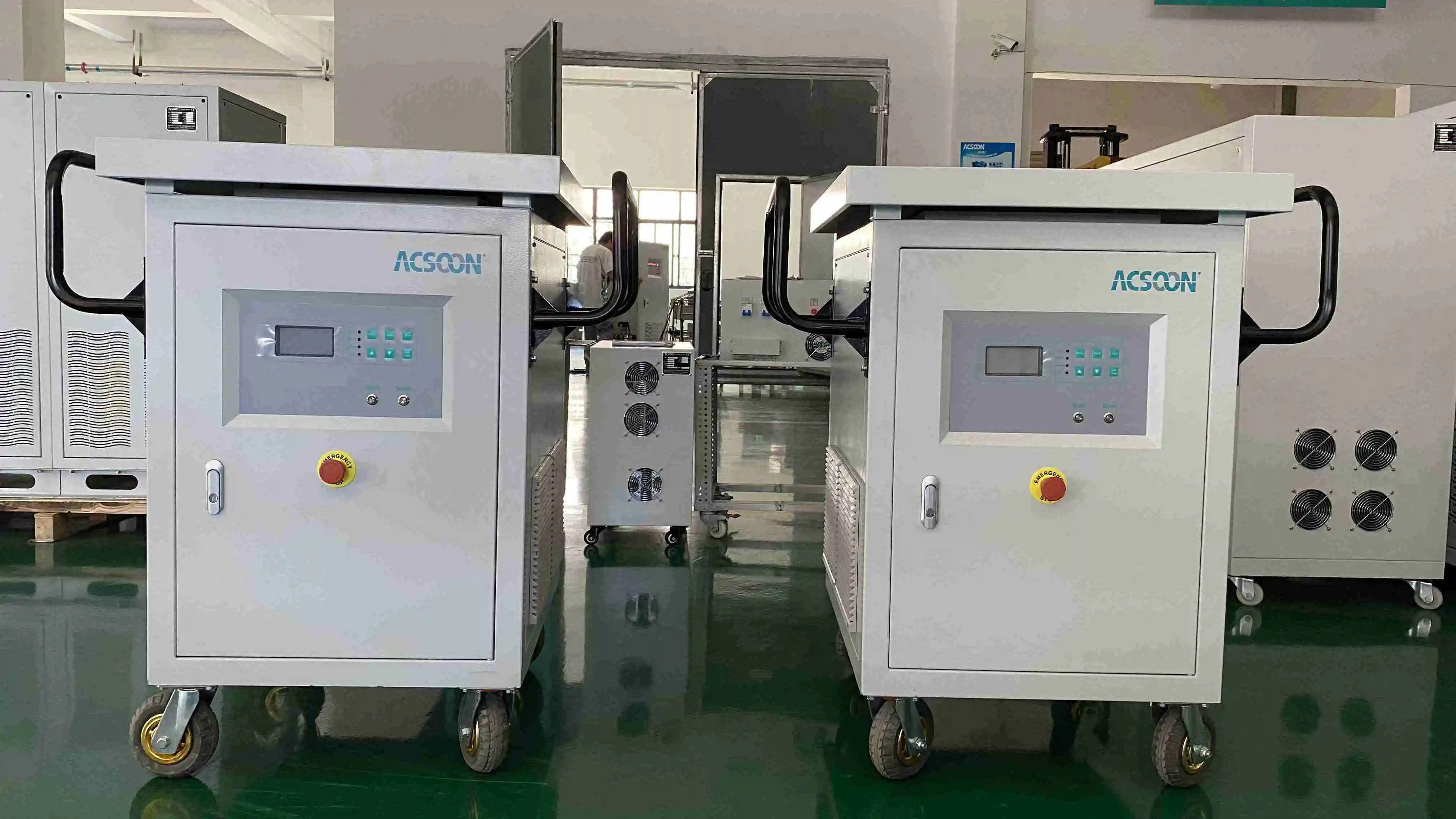

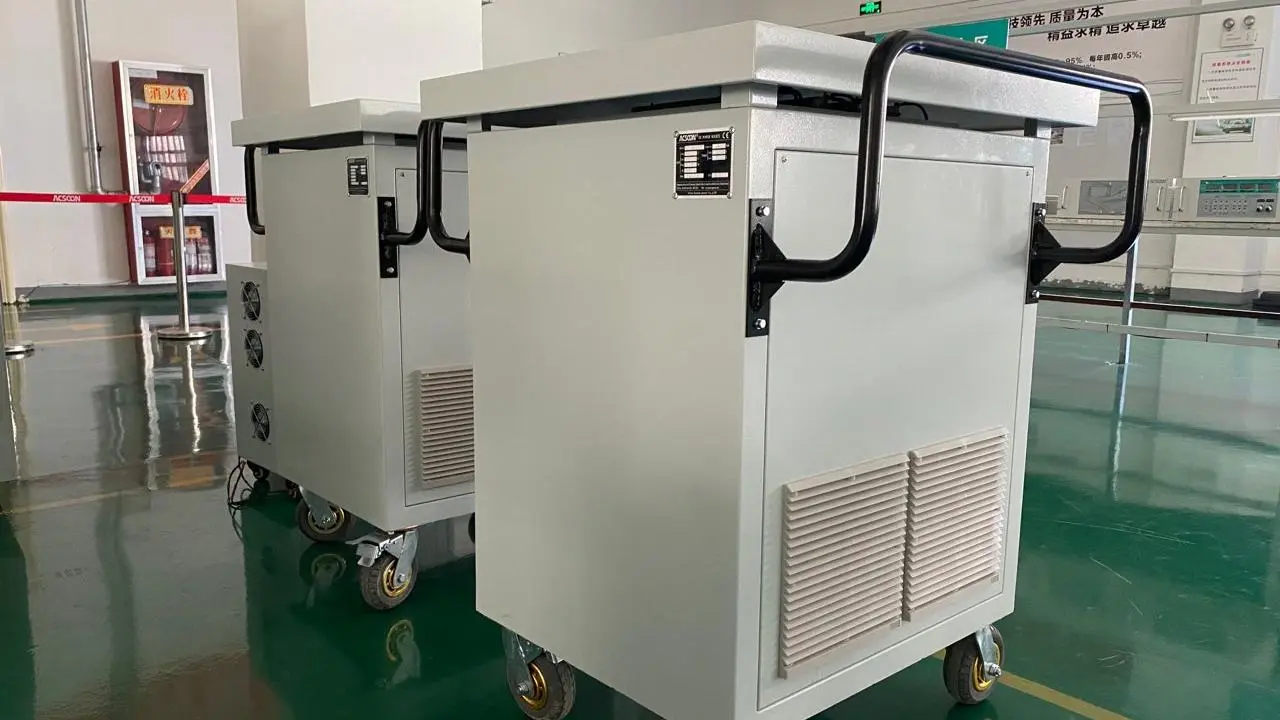

Details display
Quality Assurance
Each military DC power system undergoes extreme testing:
- MIL-STD environmental testing
- Vibration and shock testing
- EMI/EMC compliance testing
- Temperature extreme testing
- Reliability validation
Technical Features
Our military DC power system incorporates:
Military-grade components
Ruggedized construction
Wide-range input capability
EMI suppression technology
Environmental sealing
Packaging and Delivery
We ensure military-grade packaging:
Heavy-duty protective packaging
Environmental sealing
Worldwide shipping services
Installation support
After-Sales Service
Military support package includes:
24/7 technical support
Emergency maintenance
Spare parts inventory
Training programs
Field service support
Certifications
FAQ |
|---|
| Q1: What standards do military DC power systems meet? |
| A: MIL-STD-1275 for vehicles and MIL-STD-704F for aircraft applications. |
| Q2: How rugged is the construction? |
| A: Built to withstand military environment challenges. |
| Q3: What input variations can be handled? |
| A: ±20% voltage variation and wide frequency range. |
| Q4: How is EMI protection achieved? |
| A: Through advanced filtering and shielding technology. |
| Q5: What temperature ranges are supported? |
| A: Operation from -40°C to +65°C. |
