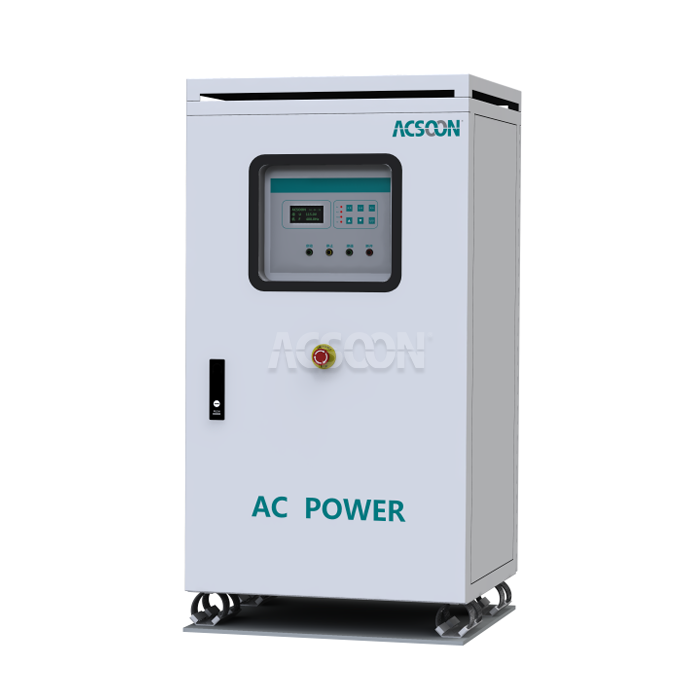

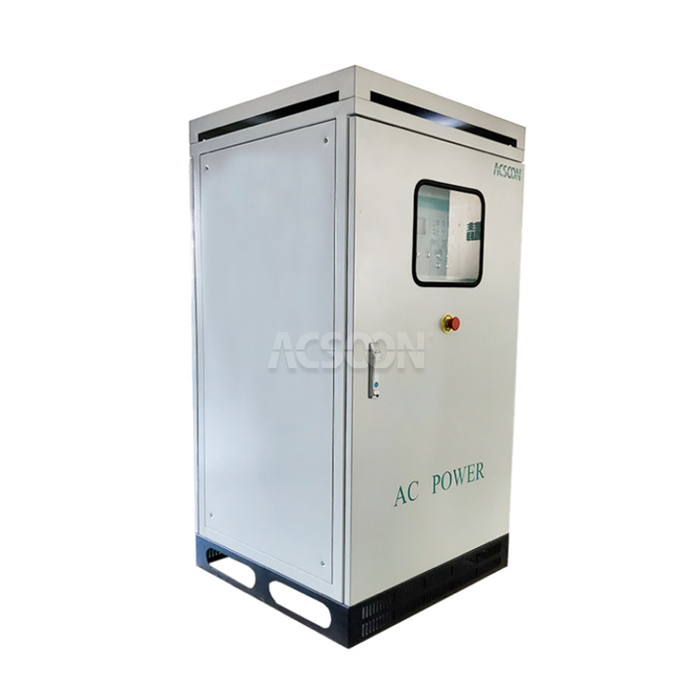

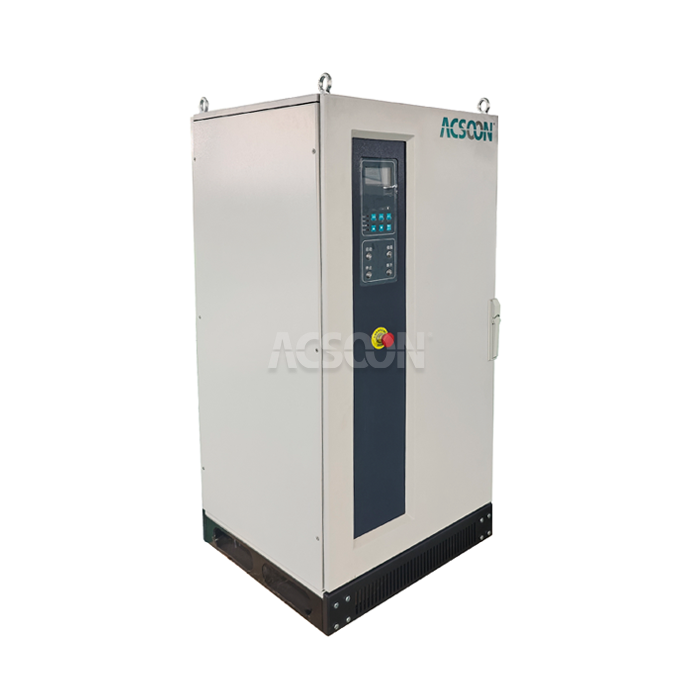

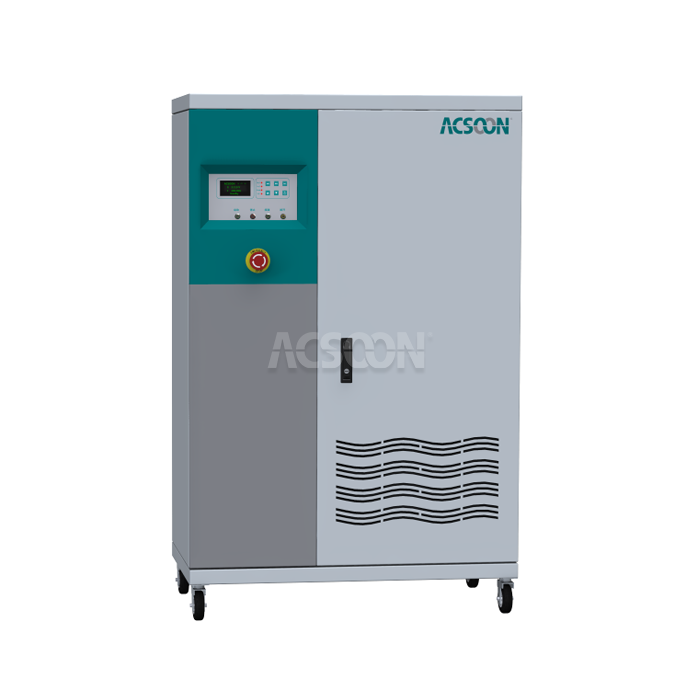

High-Capacity Static Frequency Converter GPU
2.Technology: 12-pulse rectification with IGBT inverter technology
3. Input: 3-phase 380-480VAC ±15%, 50/60Hz auto-sensing
4. Output: 115V/200VAC 400Hz, 3-phase 4-wire
5. Key Applications: Wide-body aircraft support, military transport aircraft, maintenance facilities
6. Ingress Protection Grade: IP21
7.Key Features: Ultra-low harmonic distortion (<2%); automatic voltage regulation; remote monitoring capability; forced air cooling system
8. Brand: ACSOON (support OEM).
- Product Description
High-Capacity Static Frequency Converter GPU | 400Hz Aircraft Ground Power Supply
XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures high-performance high-capacity static frequency converter GPUs for demanding aviation ground power applications. With extensive experience in high-power conversion technology, we provide robust solutions that deliver clean 400Hz power for large aircraft and military transport operations. Our systems are engineered for maximum reliability and meet stringent aviation power quality standards.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity (Three Phase Output) | 30kVA, 45kVA, 60kVA, 90kVA, 100kVA, 120kVA, 150kVA, 180kVA |
| Input Voltage (Three Phase) | 200Vac, 208Vac, 380Vac, 400Vac, 415Vac, 440VAC (L-L) ±20% |
| Input Frequency | 40 - 70HZ |
| Output Voltage (Three Phase) | 200VAC / 208VAC rated, 0-260Vac, 0-520VAC (L-L) |
| Output Frequency | 400HZ rated, 300HZ - 500HZ adjustable |
| Voltage Regulation | ±1% |
| Frequency Stability | ≤0.1% |
| VTHD | <2% |
| Power Factor | ≥0.8 (Standard), ≥0.9 (12 Pulse Optional) |
| Overall Efficiency | ≥85% |
| Overload Capacity | 125% for 10 mins, 150% for 60s, 200% for 30s, 400% for 1s |
| MTBF | 30,000 hours |
| Noise Level | <65dB at 1 meter |
ACSOON High-Capacity Static Frequency Converter GPU Main Features
- Auto voltage compensation system, ideal voltage at aircraft connector
- Self diagnose system which would show error code on digital display
- 10 events memory stores
- Pure sine wave, sinusoidal output
- Completely protection and alarm for over voltage, over current and overheating, etc
- Eco-friendly, lower power consumption with high efficiency
- With 28VDC military interlock
Why Choose ACSOON High-Capacity Static Frequency Converter GPUs?
ACSOON delivers superior performance in high-power ground support equipment. Our systems offer:
Exceptional Power Quality: Pure sine wave output with <2% THD
High Efficiency Design: ≥93% efficiency with active power factor correction
Advanced Monitoring: Comprehensive digital display and fault diagnostics
Robust Construction: IP54 protection for harsh environments
Regulatory Compliance: Meets MIL-STD-704F and international aviation standards
Application Areas
Our high-capacity static frequency converter GPUs are essential for:
Wide-body Aircraft Operations: Power support for large commercial aircraft
Military Transport: Ground power for military cargo and transport planes
Maintenance Facilities: High-power requirements for hangar operations
Cargo Hub Operations: Support for freighter aircraft servicing
Emergency Response: Backup power for large aircraft operations
Government Aviation: Special operations and VIP aircraft support
Aircraft Manufacturing: Power during production and testing phases
Details display

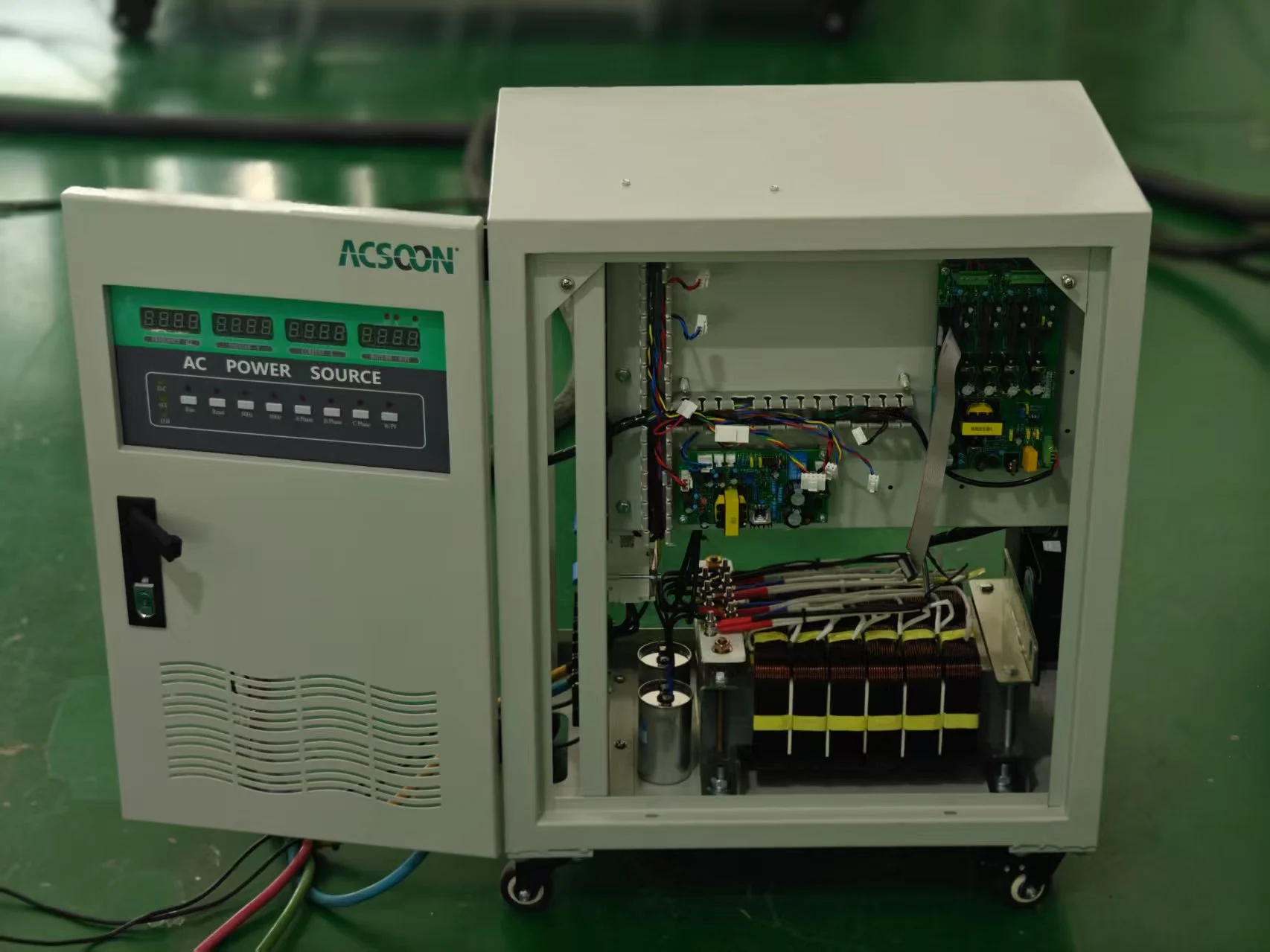

Quality Assurance
Each high-capacity static frequency converter GPU undergoes rigorous validation:
96-hour continuous full-load testing
Thermal management verification
Environmental condition testing
Safety system certification
Performance calibration and validation

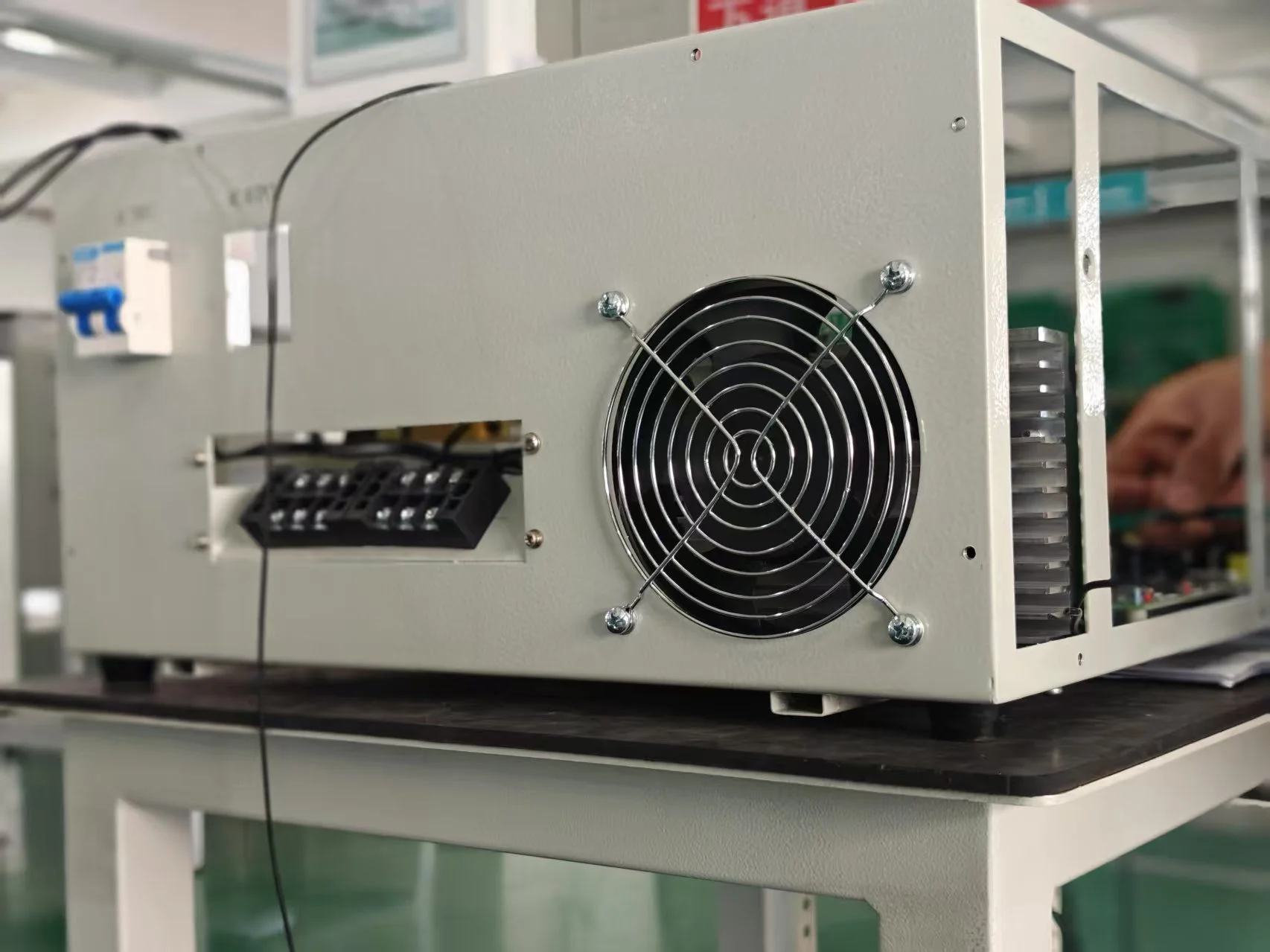

Technical Features
Our high-capacity static frequency converter GPU incorporates:
12-pulse rectification technology
SPWM modulation for clean output
Automatic voltage compensation
Comprehensive protection systems
Military-standard interlock compatibility
Packaging and Installation
We ensure secure delivery and proper setup:
Heavy-duty industrial packaging
Complete installation documentation
Global logistics coordination
Professional commissioning support
After-Sales Service
Comprehensive support package includes:
24/7 technical support hotline
Scheduled maintenance programs
Software and firmware updates
On-site training services
Worldwide spare parts availability
Certifications
FAQ |
|---|
| Q1: What types of aircraft can the high-capacity static frequency converter GPU support? |
| A: Our 180kVA units are designed to support wide-body aircraft, military transport planes, and other large aircraft with high power requirements. |
| Q2: What is the typical installation requirement for these units? |
| A: Installation requires proper three-phase power input, adequate ventilation for air cooling, and appropriate cable management systems. |
| Q3: What communication interfaces are available? |
| A: Standard interfaces include RS232/485 for remote monitoring and control, with optional Ethernet connectivity. |
| Q4: How is cooling managed in these high-power units? |
| A: We use advanced forced air cooling systems with temperature-controlled fans for optimal thermal management. |
| Q5: Can these units be integrated with existing pit systems? |
| A: Yes, our systems are designed for compatibility with standard aircraft pit systems and can be customized for specific requirements. |
