115V 400HZ GPU
2. Power Rating: 60kVA
3. Input Voltage & Frequency: 3 Phase 380V, 50HZ
4. Output Voltage & Frequency: 3 Phase 115V/200V, 400HZ
5. Type: Solid state GPU, mobile with trolley
6. Ingress Protection Grade: IP54
7. Applications: Aircraft training system,Aircraft component testing
8. Brand: ACSOON (support OEM)
9. Features:Precision 400HZ output with ultra-low distortion (Frequency stability±0.01% FS,Voltage regulation&Stability:± 1%FS)
- Product Description

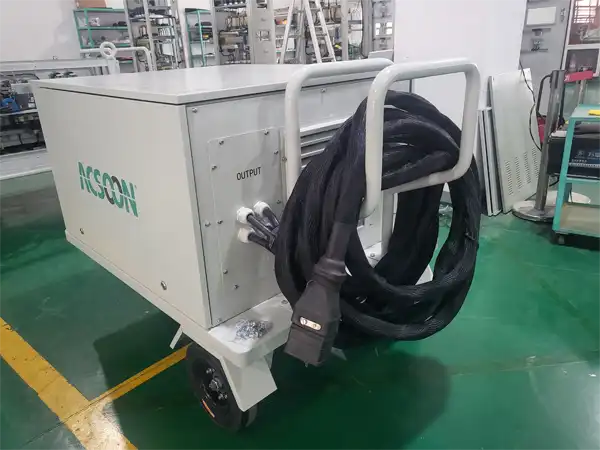

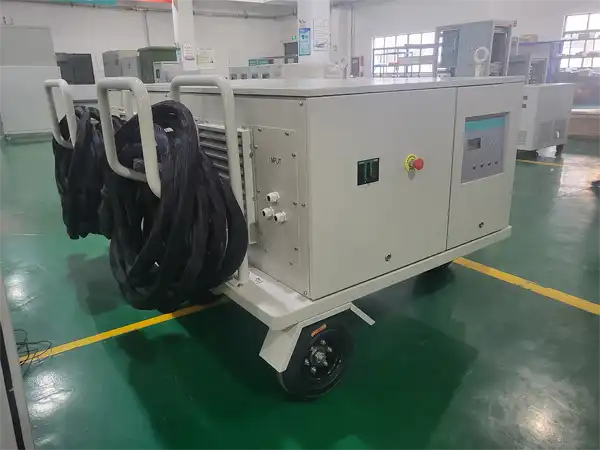

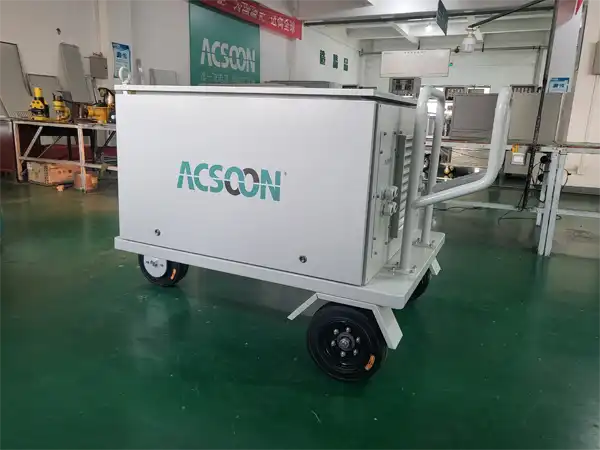

ACSOON 115V 400HZ GPU: Powering Precision in Aerospace and Beyond
At XI'AN JERRYSTAR INSTRUMENT CO., LTD, we're proud to be a leading manufacturer and supplier of high-quality 115V 400HZ GPUs. Our ACSOON brand product units are designed to meet the exacting standards of aerospace, defense, and industrial applications. With over 15 years of expertise in power conversion technology, we deliver reliable, efficient, and customizable solutions that keep your critical operations running smoothly.
Why Choose ACSOON 115V 400HZ GPUs?
- Unparalleled Reliability: Our product systems are built to withstand the most demanding environments, ensuring continuous operation in mission-critical scenarios.
- Precision Engineering: With voltage regulation of ±1% and frequency stability of ≤0.1%, our GPUs deliver the clean, stable power your sensitive equipment demands.
- Flexible Configurations: Available in capacities ranging from 30kVA to 180kVA, with customizable input and output options to suit your specific needs.
- Advanced Protection: Comprehensive safeguards against overcurrent, short circuits, and overheating ensure the safety of your valuable equipment.
- Global Compliance: CE certified and ISO 9001 approved, our GPUs meet international quality and safety standards.
- Responsive Support: Our dedicated team of engineers provides expert consultation and after-sales service to maximize your system's performance and longevity.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity (Three Phase Output) | 30kVA, 45kVA, 60kVA, 90kVA, 100kVA, 120kVA, 150kVA, 180kVA |
| Input Voltage (Three Phase) | 200Vac, 208Vac, 380Vac, 400Vac, 415Vac, 440VAC (L-L) ±20% |
| Input Frequency | 40 - 70HZ |
| Output Voltage (Three Phase) | 200VAC / 208VAC rated, 0-260Vac, 0-520VAC (L-L) |
| Output Frequency | 400HZ rated, 300HZ - 500HZ adjustable |
| Voltage Regulation | ±1% |
| Frequency Stability | ≤0.1% |
| VTHD | <2% |
| Power Factor | ≥0.8 (Standard), ≥0.9 (12 Pulse Optional) |
| Overall Efficiency | ≥85% |
| Overload Capacity | 125% for 10 mins, 150% for 60s, 200% for 30s, 400% for 1s |
| MTBF | 30,000 hours |
| Noise Level | <65dB at 1 meter |
Application Areas
Our versatile product systems are ideal for a wide range of industries and applications:
- Aerospace and Defense:
- Aircraft ground power supply
- Avionics testing and maintenance
- Radar systems
- Military communications equipment
- Industrial Manufacturing:
- High-precision CNC machines
- Automated production lines
- Robotics and servo motor systems
- Telecommunications:
- Data center power backup
- Mobile network infrastructure
- Medical Imaging:
- MRI and CT scanners
- X-ray machines
- Advanced diagnostic equipment
- Research and Development:
- Laboratories
- Testing facilities
- Prototype development
Quality Control
At ACSOON, quality is our top priority. Our rigorous quality control process includes:
- Stringent component selection and testing
- Multiple inspection points throughout the manufacturing process
- Comprehensive final testing under simulated load conditions
- Burn-in testing for enhanced reliability
- Regular calibration of test equipment to ensure accuracy
R&D Achievements
Our commitment to innovation has led to several breakthroughs:
- Advanced digital control algorithms for improved stability
- Modular design for easy maintenance and upgrades
- Intelligent power management systems for enhanced efficiency
- Compact form factors without compromising performance
Packaging and Transportation
We ensure the safe arrival of your 115v 400HZ GPU with:
- Custom-designed shock-absorbing packaging
- Moisture-proof wrapping for sensitive components
- Secure crating for larger units
- Detailed handling instructions for logistics partners
- Real-time shipment tracking
After-Sales Service
Count on ACSOON for comprehensive support:
- 24/7 technical assistance
- Remote diagnostics and troubleshooting
- On-site service available in select regions
- Regular maintenance programs
- Software updates and upgrades
Qualification Certifications
Our commitment to quality is backed by:
- ISO 9001:2015 Quality Management System
- CE Certification for European markets
- UL Listing for North American compliance
- RoHS and REACH environmental standards
Frequently Asked Questions
Q: What's the typical lead time for a custom product?
A: Lead times vary based on specifications, but we generally deliver within 4-6 weeks for standard configurations and 8-10 weeks for custom units.
Q: Can your GPUs be integrated with existing power management systems?
A: Yes, our GPUs feature Modbus RS485 communication protocol, allowing seamless integration with most modern power management systems.
Q: What warranty do you offer on your products?
A: We provide a standard 2-year warranty on all units, with options to extend up to 5 years.
Q: Are your GPUs suitable for use in extreme environments?
A: Absolutely. Our GPUs are designed to operate in temperatures from -20°C to +55°C and at altitudes up to 1800m.
Q: Do you offer rental options for short-term projects?
A: Yes, we provide flexible rental solutions for temporary power needs, including special events and maintenance periods.
Contact Us
Ready to power up your operations with ACSOON's 115v 400HZ GPU solutions? Our team is here to help you find the perfect fit for your needs. Reach out to us at acpower@acsoonpower.com for expert consultation and personalized quotes.
