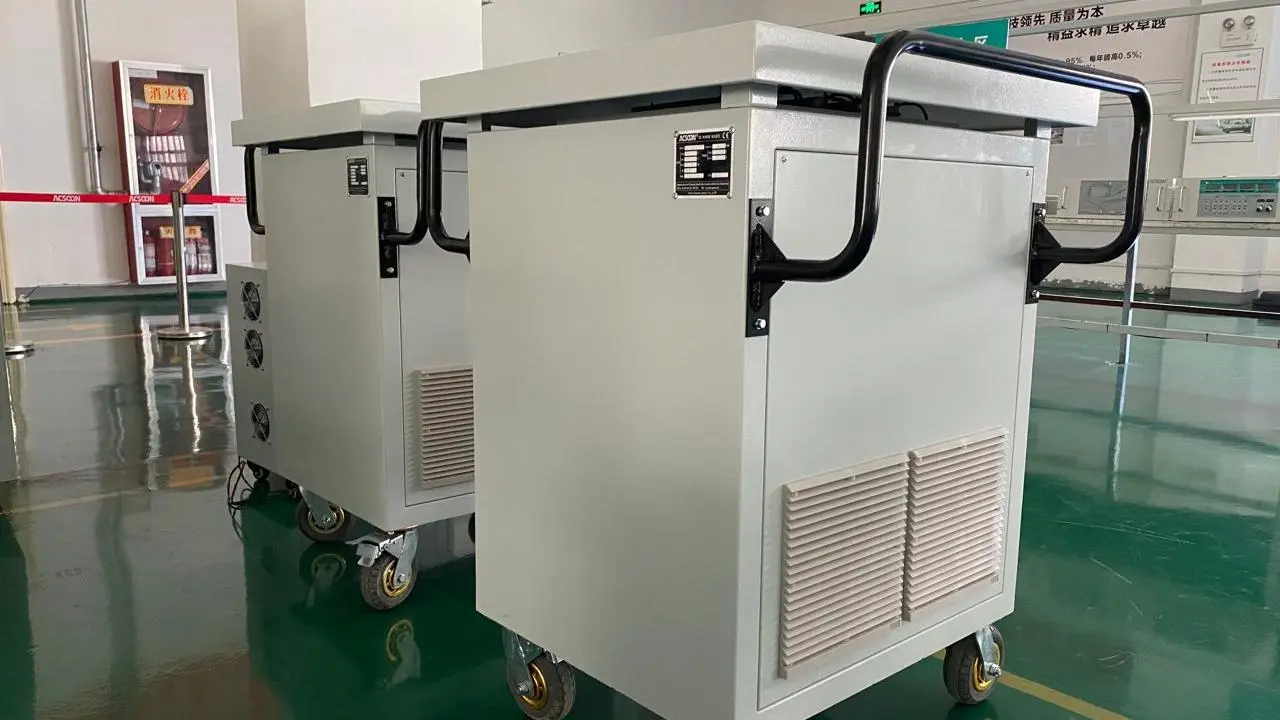

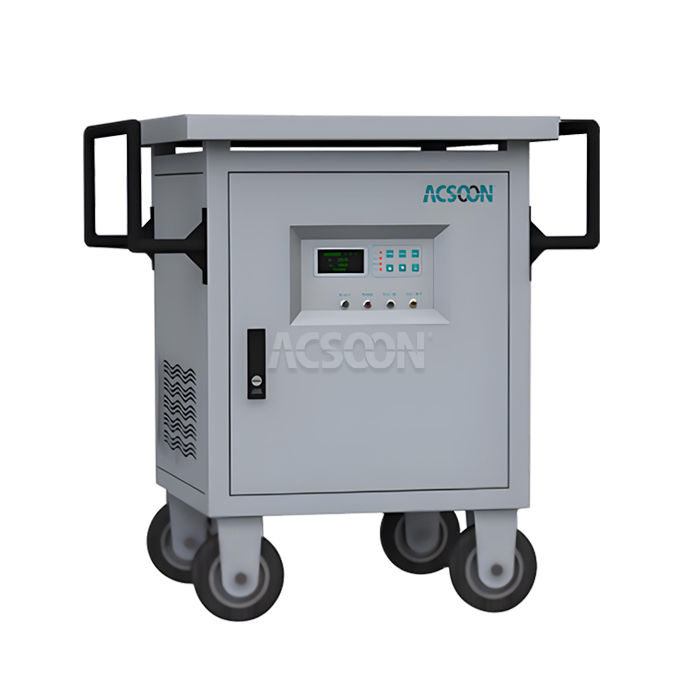

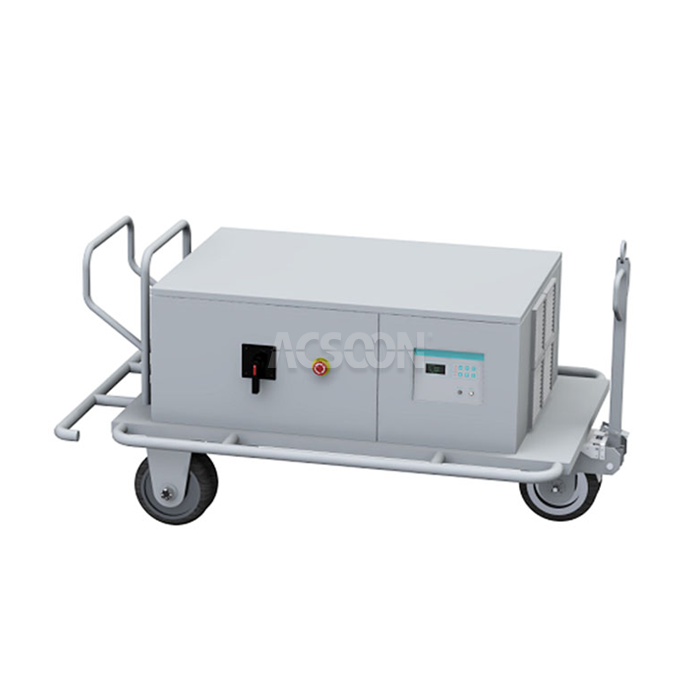

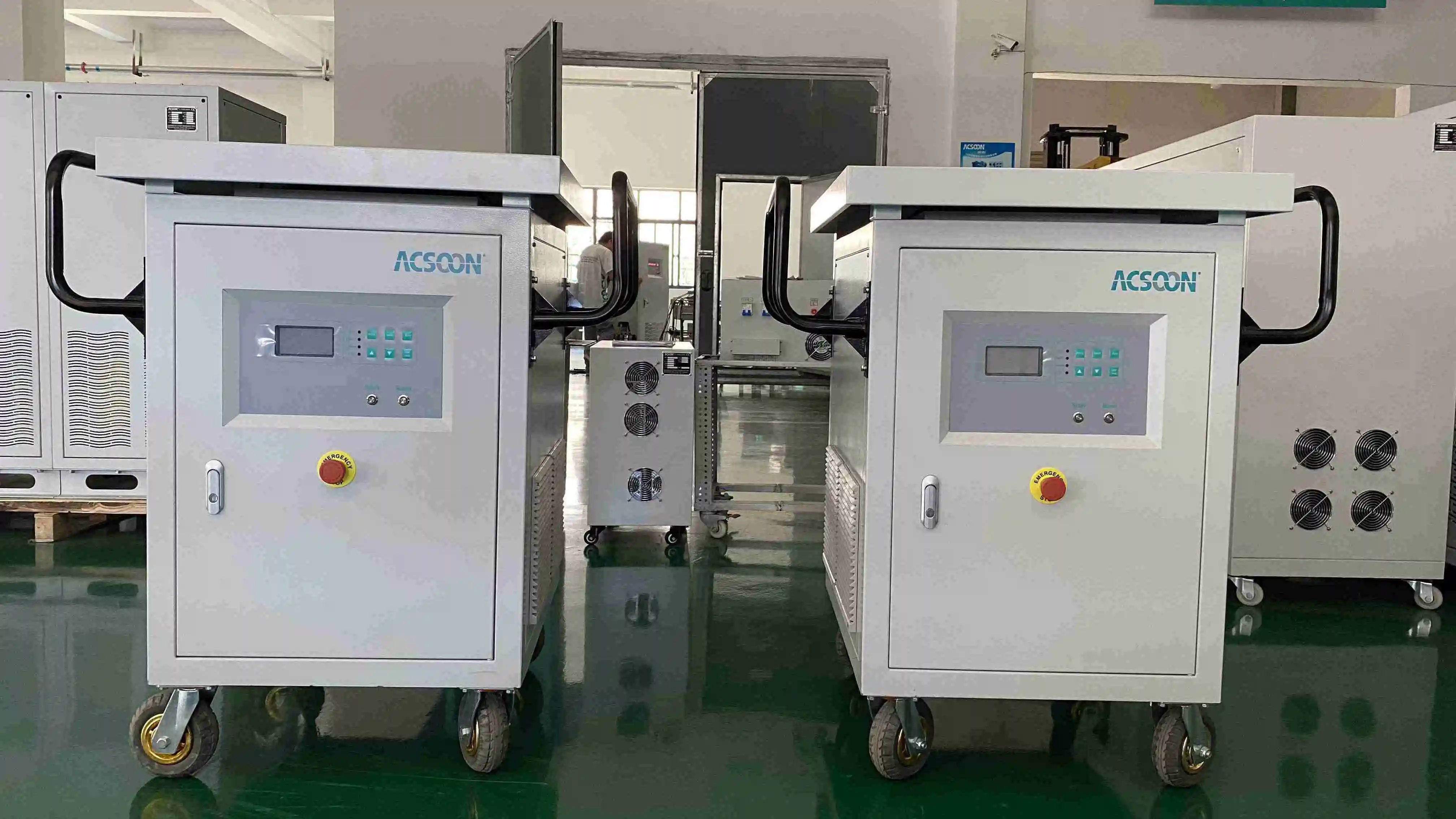

12 Pulse GBT Rectifier
2.Output Capacity: 28.5VDC, 300A to 2000A range
3.Input Power: 380V-480V, three-phase, 50Hz/60Hz
4.Voltage Stability: ±0.5% under line and load variations
5.Ripple Performance: ≤0.1V RMS for clean DC output
6.Efficiency Rating: ≥95% with advanced IGBT technology
7.Key Applications: Aircraft ground power, military equipment, industrial DC power
8.Brand: ACSOON (support OEM)
9.Cooling System: Intelligent forced air cooling with thermal management.
- Product Description
12 Pulse GBT Rectifier | Advanced Aircraft DC Ground Power System
XI'AN JERRYSTAR INSTRUMENT CO., LTD presents the advanced 12 Pulse GBT Rectifier, featuring state-of-the-art IGBT technology for superior DC power conversion. Our 12 Pulse GBT Rectifier delivers exceptional performance and reliability for aircraft ground power applications, providing clean and stable DC power with high efficiency and precise regulation.
Technical Specification
| PARAMETER | SPECIFICATION |
|---|---|
| INPUT | |
| Voltage | 380V-480V ±15% |
| Frequency | 50Hz/60Hz ±5% |
| Phase | Three-phase + Neutral |
| OUTPUT | |
| DC Voltage | 28.5VDC ±0.5% |
| Current Range | 300A-2000A |
| Ripple | ≤0.1V RMS |
| PERFORMANCE | |
| Efficiency | ≥95% at full load |
| Power Factor | ≥0.95 |
| Response Time | <10ms for load changes |
| PROTECTION | |
| Input | Over/under voltage, phase loss |
| Output | Overload, short circuit, over temperature |
| ENVIRONMENTAL | |
| Operating Temperature | -20°C to 50°C |
| Protection Grade | IP54 |
12 Pulse GBT Rectifier Main Features
- Auto voltage compensation system, ideal voltage at aircraft connector
- Self diagnose system which would show error code on digital display
- 10 events memory stores
- Pure sine wave, sinusoidal output
- Completely protection and alarm for over voltage, over current and overheating, etc
- Eco-friendly, lower power consumption with high efficiency
- With 28VDC military interlock
Why Choose ACSOON 12 Pulse GBT Rectifier?
ACSOON 12 Pulse GBT Rectifier offers superior advantages for DC power applications:
High Efficiency Operation: Advanced IGBT technology ensures ≥95% efficiency
Excellent Stability: ±0.5% voltage regulation with minimal ripple
Fast Response: <10ms response time for load variations
High Power Factor: ≥0.95 power factor reduces energy consumption
Robust Protection: Comprehensive protection systems for safe operation

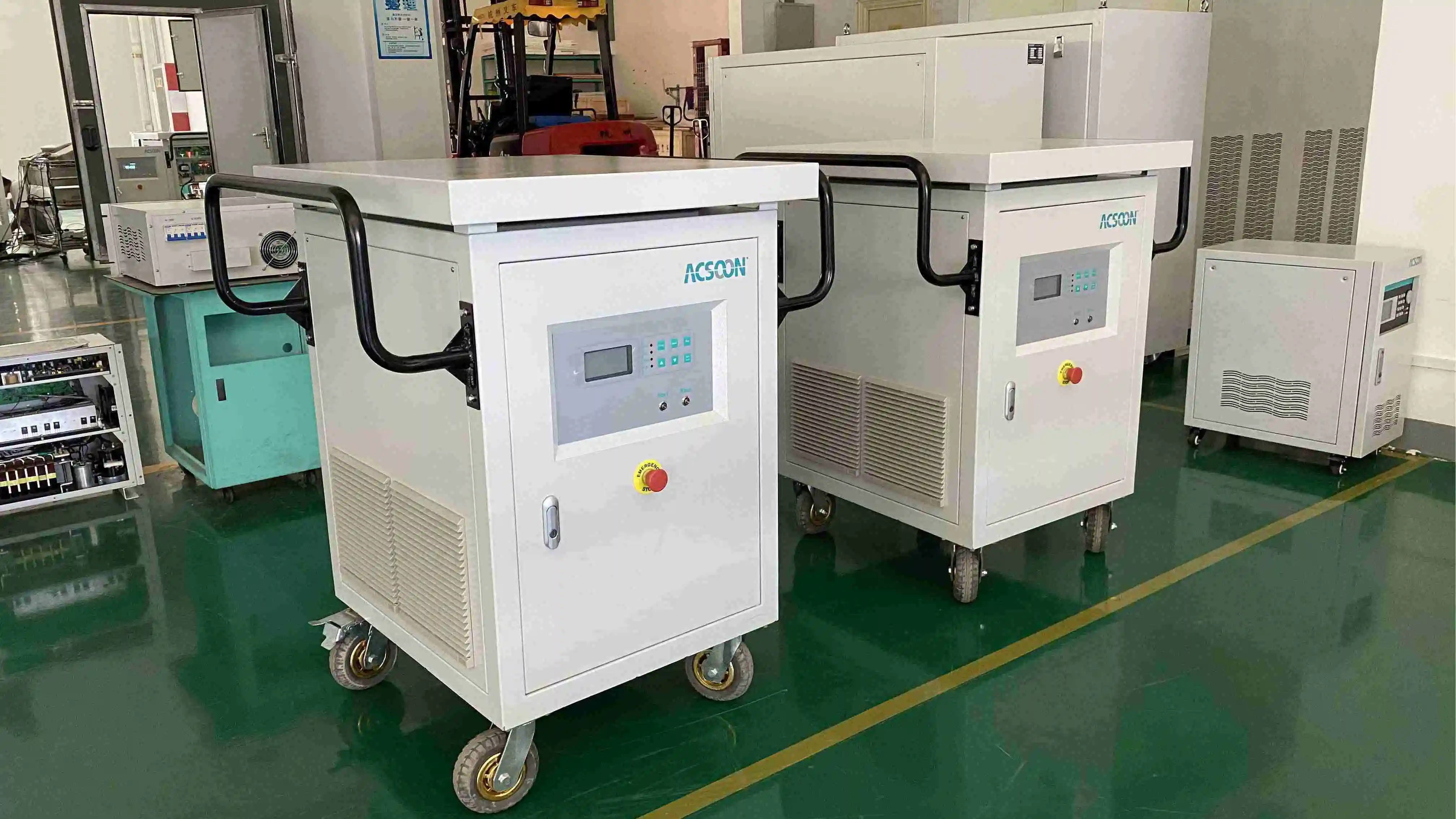

Application Areas
Our 12 Pulse GBT Rectifier serves critical functions in aviation and industrial sectors:
Aircraft Ground Power: DC power supply for aircraft systems and engine starting
Military Applications: Ground power for military aircraft and equipment
Industrial DC Power: Industrial processes requiring stable DC power
Telecommunications: Base station power systems
Emergency Power: Critical backup power systems
Test Facilities: Equipment testing and validation
Our Services
Quality Control
Each 12 Pulse GBT Rectifier undergoes comprehensive quality validation:
IGBT module testing and validation
Thermal performance testing under maximum load
Efficiency and power factor verification
Safety certification to international standards
Final calibration and performance testing
R&D Results
Our technical innovations in 12 Pulse GBT Rectifier technology include:
Advanced IGBT driver circuits for optimal performance
Enhanced thermal management systems
High-frequency switching technology
Advanced electromagnetic compatibility design
Smart power management algorithms
Packaging and Transportation
We ensure secure delivery of every 12 Pulse GBT Rectifier:
Industrial-grade packaging with shock protection
Custom packaging for different current ratings
Complete documentation including installation manuals
Global logistics support with tracking services
After-Sales Service
We provide comprehensive support for all 12 Pulse GBT Rectifier installations:
Technical assistance for system integration
Installation guidance and commissioning support
Maintenance services and performance optimization
Remote diagnostics and troubleshooting
Operator training programs
Qualification Certification
FAQ |
|---|
| Q1: What are the advantages of IGBT technology in rectifiers? |
| A: IGBT technology offers higher efficiency, faster switching, better thermal performance, and improved reliability compared to traditional rectifier technologies. |
| Q2: Can your 12 Pulse GBT Rectifier handle varying input voltages? |
| A: Yes, our rectifiers are designed to handle input voltage variations from 380V to 480V while maintaining stable output. |
| Q3: What safety features are included in your IGBT Rectifier? |
| A: Safety features include over voltage protection, over current protection, short circuit protection, thermal overload protection, and input phase loss protection. |
| Q4: How does your 12 Pulse GBT Rectifier maintain low ripple output? |
| A: Advanced high-frequency switching technology and multi-stage filtering ensure low ripple output for sensitive equipment. |
| Q5: What is the typical maintenance requirement for your 12 Pulse GBT Rectifier? |
| A: Our rectifiers require minimal maintenance due to solid-state design, with recommended quarterly inspections and annual comprehensive maintenance. |
