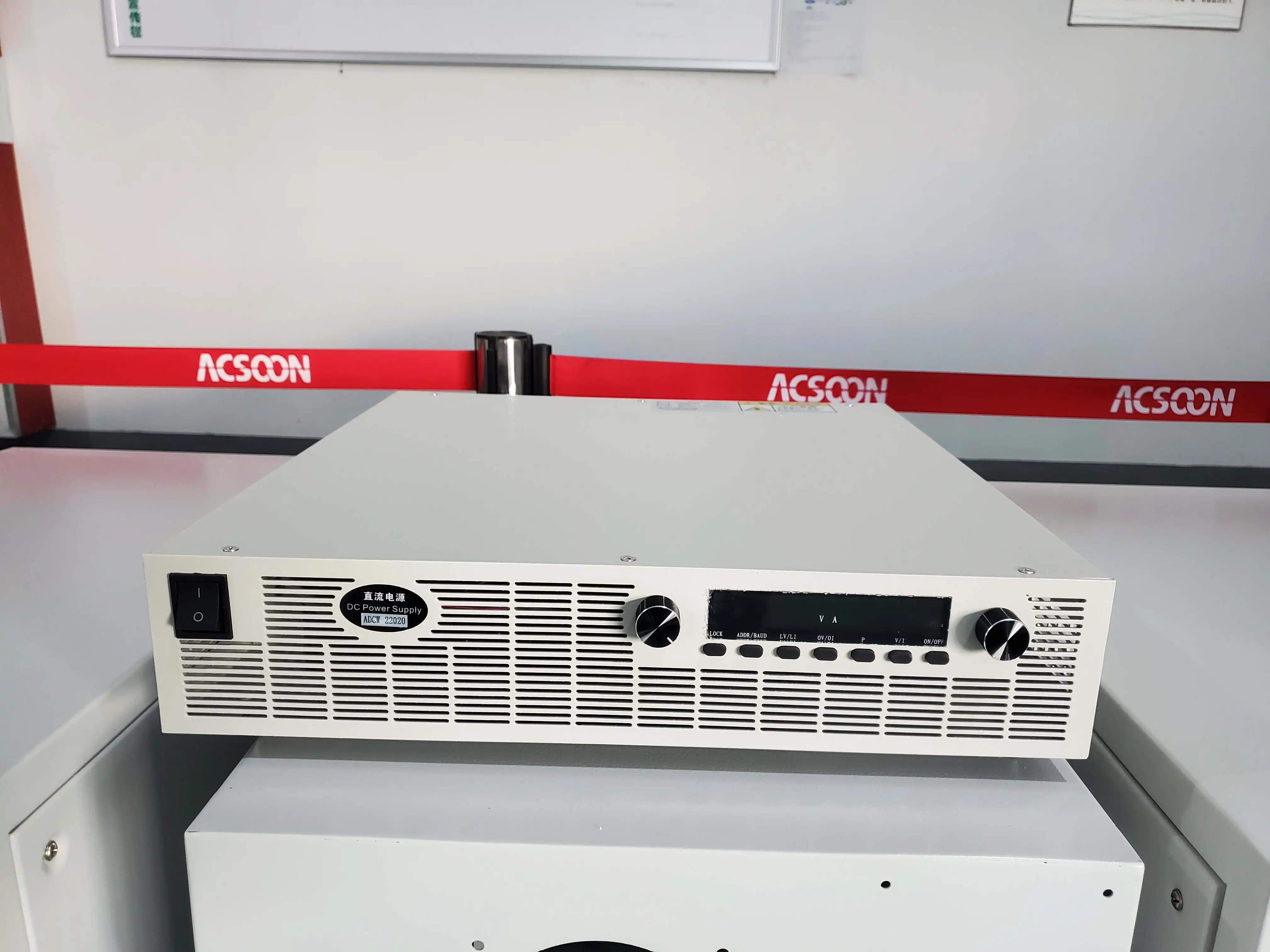

Power Supply 0 300V DC Adjustable
2. Power Rating: 15kW
3. Input Supply: AC Supply, Single / Three Phase, 50HZ-60HZ
4. Output Voltage & Current:300VDC, 50A
5. Type: DC Power Supply, DC Rectifier, Rack Mounted
6. Programmable: It can be connected with the PC through RSC232, RSC485 or LAN interface. On / Off time setup & Multiple groUPS of voltage and current values cycle test through PC control
7. Applications: Navigation Systems on Marine ship
8. Brand: ACSOON (support OEM)
9. Features:Electronics test on production line, electrical components aging, onboard battery power
- Product Description
XI'AN JERRYSTAR INSTRUMENT CO., LTD: Power Supply 0 300V DC Adjustable
Welcome to XI'AN JERRYSTAR INSTRUMENT CO., LTD, your go-to manufacturer and supplier of high-quality power supply 0 300v DC adjustable units. Since 2007, we've been at the forefront of power converter technology, delivering precision and reliability to industries worldwide. Our ACSOON brand power supplies are designed to meet the demanding needs of aviation, industrial, marine, and oil field applications.

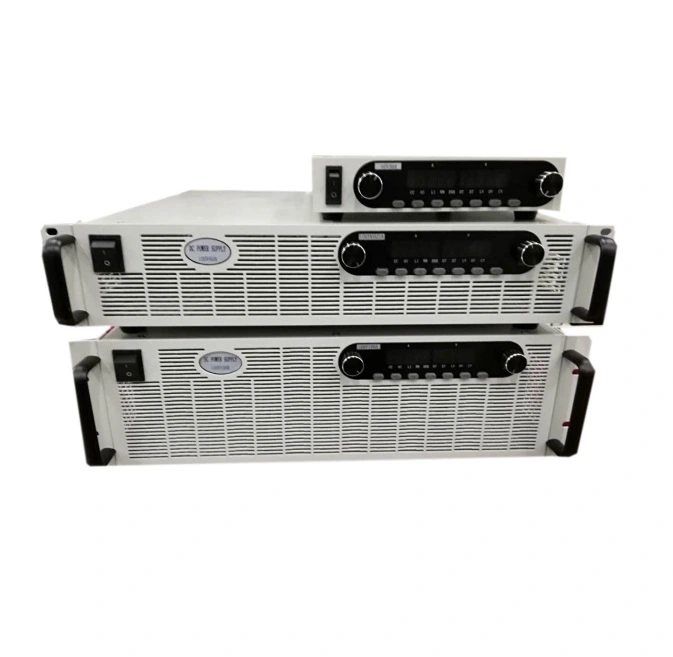

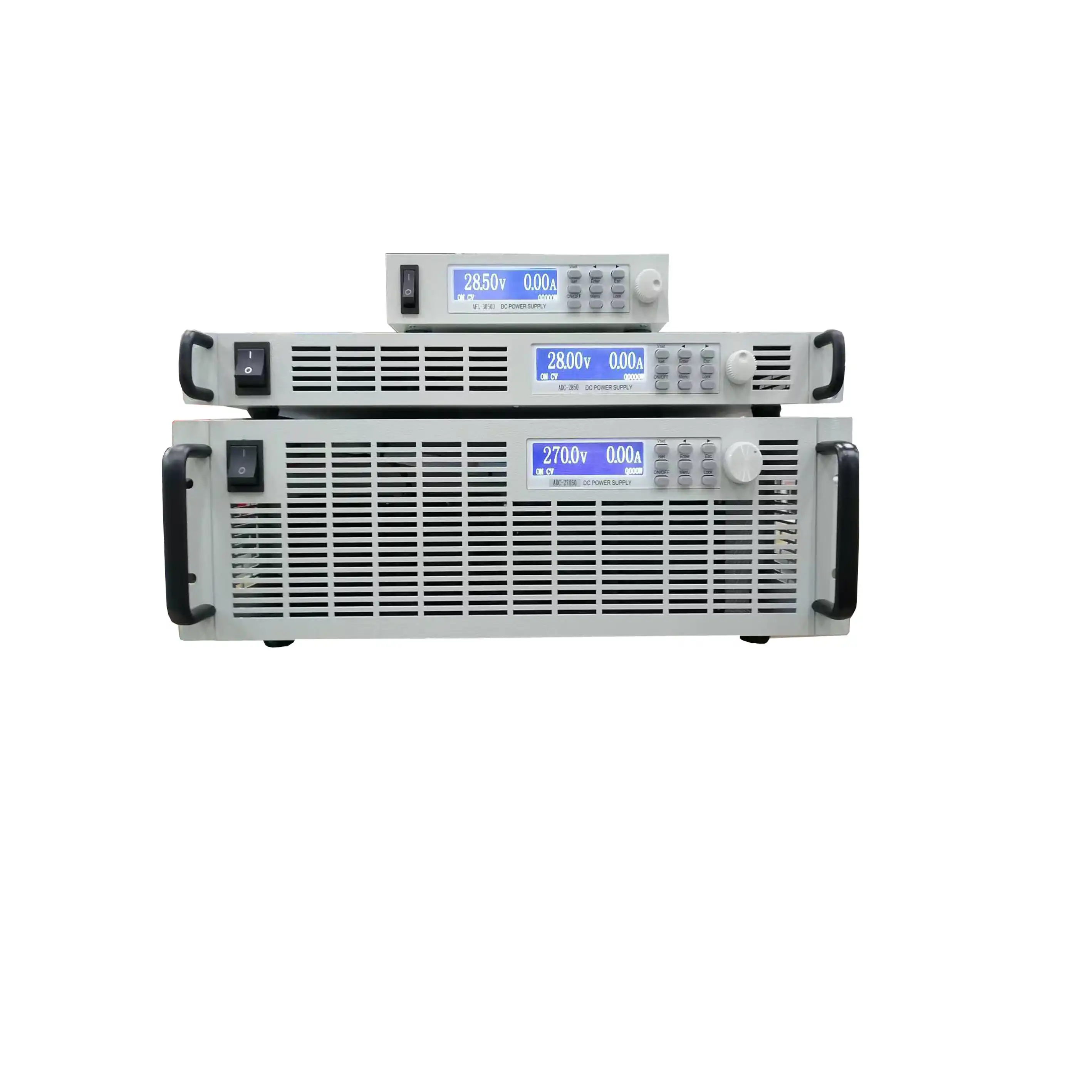

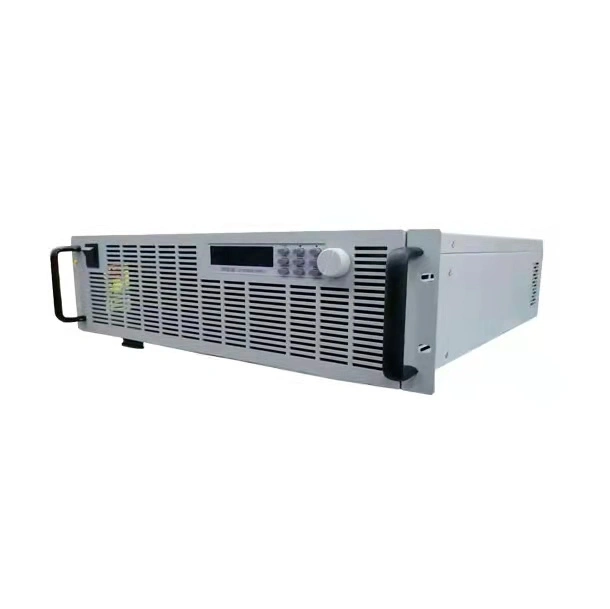

Technical Specifications: Model Series ADCW01
| Feature | Specification |
|---|---|
| Input | Single Phase or Three Phase + N +PE |
| 220VAC (L-N)±10%; 380Vac(L-L)±10%, or customized | |
| Frequency: 50HZ/60HZ | |
| Output Voltage | 0- Nominal Voltage adjustable |
| DC 12V, 15V, 24V, 30V, 50V, 60V, 100V, 150V, 300V, 600V or customized | |
| Current | 0- Nominal Current adjustable, with current limiting control |
| 1A to 1000A or customized | |
| Voltage Stability | Line regulation ≤ 0.5% Nominal |
| Load regulation ≤ 0.5% Nominal | |
| Ripple (rms) | RMS ≤ 0.5% Nominal Value |
| Power Control | Potentiometer switch knobs, 1-byte resolution adjustment |
| Interface | Modbus Protocol RS232 (RS485), PC control for voltage/current setting and on/off |
| Display Accuracy | Voltage: Four and a half VFD, Resolution > 0.1V |
| Current: Four and a half VFD, Resolution > 0.1A | |
| Protection | Input phase loss, Output overvoltage, Overload current limiting, Short circuit, Over temperature |
| Cooling | Air forced fan |
| IP Rating | IP20 (Customizable) |
| Color | RAL7035 |
| Working Temp. | -10℃ to 45℃ |
| Standards | EN61000-6-3 & EN60204-1 |
Application Areas
Our power supply 0 300v DC adjustable units are ideal for various industries and applications:
Electronics Manufacturing:Component & PCB Testing、Semiconductor、Characterization、Burn-in Testing
Research & Development:University & Scientific Labs、Product Development Centers
Industrial Automation:Motor & Machinery Control、Robotic Assembly、CNC Systems
Telecommunications:Network & Base Station Equipment、Fiber Optic Systems Testing
Medical Equipment:Diagnostic & Therapeutic Systems、Device Testing & Calibration
Renewable Energy:Solar/Wind Component Testing、Battery & Control Systems
Quality Control
At ACSOON, quality is our top priority. We implement rigorous quality control measures throughout our production process:
Stringent component selection and testing
Multi-stage quality inspections during assembly
Comprehensive functional testing before shipment
Regular calibration of testing equipment
Continuous improvement based on customer feedback
Why Choose ACSOON Power Supply 0 300v DC Adjustable?
R&D Results
Our commitment to innovation has led to several breakthroughs:Advanced digital control algorithms for improved stability、Compact, high-efficiency power conversion designs、Intelligent thermal management systems、User-friendly interfaces for ease of operation
Packaging and Transportation
We ensure the safe delivery of your product unit:
Custom-designed protective packaging
Shock-absorbing materials to prevent damage during transit
Clear labeling and handling instructions
Partnering with reliable logistics providers for global shipping
After-Sales Service
Our commitment to you doesn't end with the sale:
24/7 technical support
Comprehensive warranty coverage
On-site maintenance and repairs (where available)
Regular firmware updates and performance enhancements
Qualification Certifications
ACSOON power supplies meet international standards:
ISO 9001:2015 Quality Management System
CE Marking for European market compliance
RoHS certification for environmental safety
UL Listed for North American markets
FAQ |
|---|
| Q1: What is the warranty period for your product units? |
| A: We offer a standard 2-year warranty on all our power supplies, with options for extended coverage. |
| Q2: Can I integrate your power supplies into my automated testing system? |
| A: Absolutely! Our units feature RS232/RS485 interfaces for seamless integration with automated systems. |
| Q3: How quickly can you deliver custom power supply solutions? |
| A: Depending on the complexity, we typically deliver custom solutions within 4-8 weeks from order confirmation. |
| Q4: Are your power supplies suitable for high-altitude operations? |
| A: Yes, we offer models specifically designed for high-altitude environments. Please specify your requirements when ordering. |
| Q5: Do you provide training for operating and maintaining your power supplies? |
| A: We offer comprehensive training sessions, both online and on-site, to ensure you get the most out of your ACSOON power supply. |
Contact Us
Ready to power up your projects with our reliable power supply 0 300v DC adjustable units? Reach out to our expert team today at acpower@acsoonpower.com. We're here to answer your questions and provide tailored solutions for your power needs.
