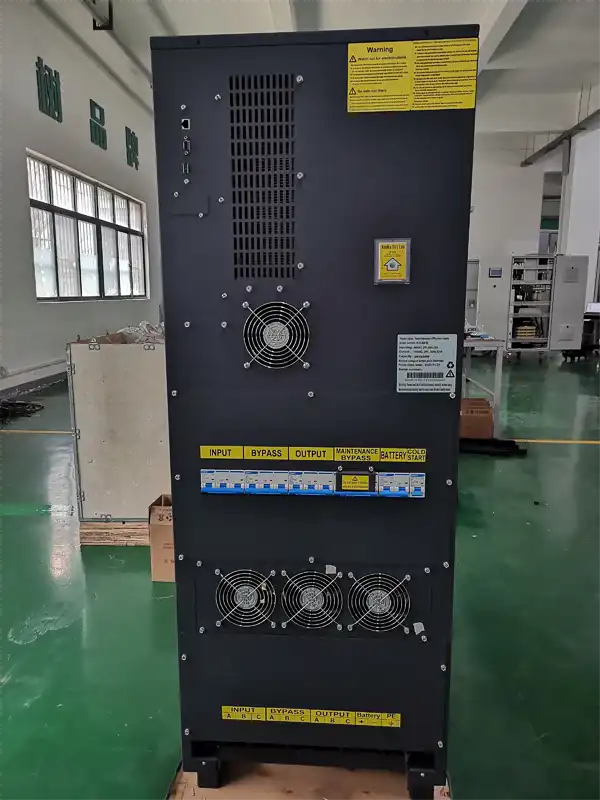

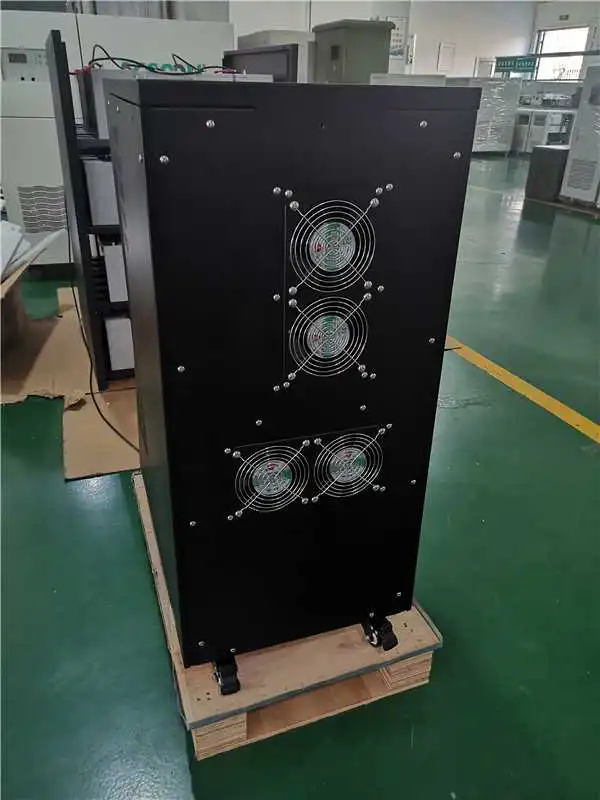

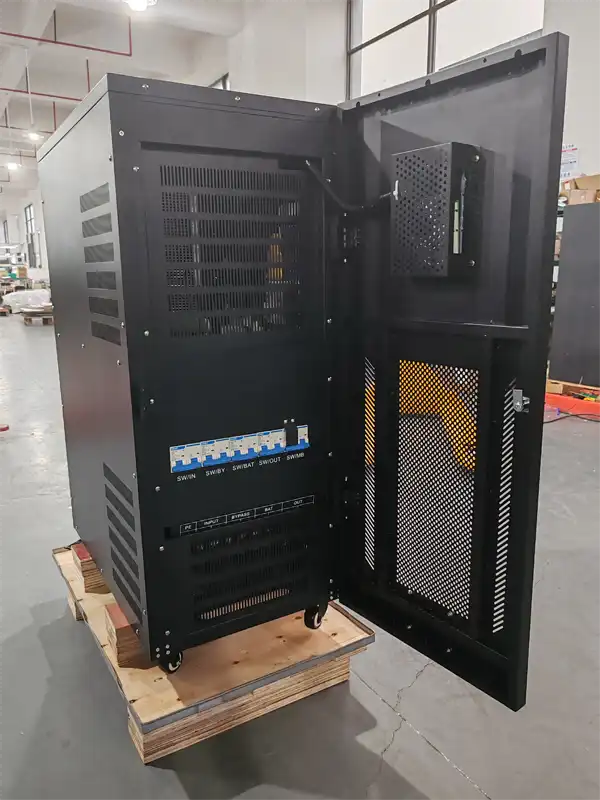

Heavy Duty UPS Power Supply
2.Power Rating: 5kVA to 2000kVA
3.Input: 3 Phase 380V, Voltage variation±20%, 50HZ/60HZ
4.Output Voltage & Frequency: 3 Phase 380V±2%, 50HZ/60HZ
5.Type: Static SCR controlled Voltage Stabilizer
6.Ingress Protection Grade: IP20 indoor, IP54 outdoor
7.Applications: Precision instruments, testing equipment, elevators, HVAC systems, LED lighting networks.
8.Brand: ACSOON (support OEM)
9.Features: DSP digital control with communication RS485 remote monitoring, overload: electronic detection, cut off output or turn to Utility power within 3 minutes after overload, uninterrupted automatic bypass，intelligent communication interface operation panel
- Product Description
Heavy Duty UPS Power Supply: Uninterrupted Power for Mission-Critical Operations
Are you looking for a reliable heavy duty UPS power supply to safeguard your critical operations? XI'AN JERRYSTAR INSTRUMENT CO., LTD is your trusted manufacturer and supplier of robust uninterruptible power systems. With over 15 years of expertise in power solutions, we deliver cutting-edge UPS technology that ensures continuous power for industries where downtime is not an option.
Why Choose ACSOON Heavy Duty UPS Power Supply?
At ACSOON, we understand that your business depends on consistent, clean power. Our product systems are designed to meet the most demanding requirements of data centers, telecommunications, healthcare, and industrial applications. Here's why ACSOON stands out:
- Unmatched Reliability: Built to withstand harsh environments and power fluctuations
- Scalable Solutions: Grow your power protection as your needs evolve
- Energy Efficiency: Reduce operational costs with high-efficiency designs
- Global Compliance: Meet international standards for safety and performance
- Customization Options: Tailor your UPS to specific site requirements
- 24/7 Technical Support: Expert assistance whenever you need it
Technical Specifications
Our SUC10KL~SUC250KL series offers a range of capacities to suit your power needs:
| Model SUC10KL~SUC250KL (6-pulse/12-pulse optional） | Specifications |
|---|---|
| Rated Capacity (kVA) | 10, 15, 20, 30, 40, 60, 80, 100, 120, 160, 200, 250, 300 |
| Utility Input | |
| Input Voltage Range | 380VAC ±25% |
| Input Frequency Range | 50HZ/60HZ ±5% (optional ±10%) |
| Input Power Factor | ≥0.95 |
| Output Power | |
| Output Voltage & Accuracy | 380VAC ±1% |
| Output Frequency & Accuracy | 50HZ/60HZ ±1% |
| Voltage Phase Deviation | 120° ±1° |
| Parallel Load Current Imbalance | ≤5% |
| Voltage Imbalance | Balanced load ≤1%; 50% unbalanced load ≤3%; 100% unbalanced load ≤5% |
| Waveform Distortion | Pure sine wave, ≤2% (resistive load); ≤3% (non-linear load) |
| Overload Capacity | 125% for 10 min; 150% for 60 sec |
| Current Crest Factor | 5:1 |
| Battery | |
| DC Voltage | 384VDC (customizable: 192VDC, 220VDC, 480VDC) |
| Battery Type | 2V/6V/12V sealed maintenance-free batteries |
| Configuration | External, 32 cells/12V (adjustable: 28–32 cells) |
| Backup Time | Determined by battery capacity |
| System | |
| Transfer Time | Utility ↔ Battery: 0 ms; Inverter ↔ Bypass: ≤2 ms |
| Protection Level | IP20 |
| Efficiency | ≥90% (inverter full load); ≥97% (ECO mode) |
| Noise | <55dB (1m); <58dB (1m); <60dB (1m) |
| Environment | |
| Operating Temperature | 0°C to 45°C |
| Relative Humidity | 0–93% (non-condensing) |
| Altitude | ≤2000m (customizable up to ≤6000m) |
| Dimensions & Weight | |
| W × D × H (mm) | 800×600×1500; 1000×800×1800 |
| Net Weight (kg) | 255, 265, 270, 295, 327, 430, 507, 515, 605, 665, 1140, 1200, 1200 |
| Gross Weight (kg) | 300, 310, 315, 340, 372, 475, 552, 560, 650, 710, 1205, 1265, 1265 |
Application Areas
Our product systems are ideal for a wide range of industries and applications:
- Data Centers and Server Rooms
- Telecommunications Infrastructure
- Healthcare Facilities and Hospitals
- Industrial Manufacturing Plants
- Energy and Utility Sector
- Transportation and Aviation
- Financial Institutions and Banking
- Government and Military Installations
- Educational Institutions
- Retail and Commercial Complexes
Whether you're protecting sensitive equipment or ensuring continuous operations, ACSOON's UPS solutions provide the power protection you need.
Quality Control
At ACSOON, quality is our cornerstone. Our heavy duty UPS power supply systems undergo rigorous testing and quality assurance processes:
- ISO 9001 certified manufacturing facilities
- 100% burn-in testing before shipment
- EMC and safety compliance checks
- Regular calibration of testing equipment
- Continuous improvement through customer feedback
R&D Results
Our commitment to innovation drives continuous improvement in our UPS technology:
- Advanced power electronics for improved efficiency
- Intelligent battery management systems
- Modular designs for easier maintenance and scalability
- Smart monitoring and predictive maintenance capabilities
- Reduced environmental impact through eco-friendly materials
Packaging and Transportation
We ensure your product arrives safely:
- Custom-designed packaging for maximum protection
- Shock-absorbing materials to prevent transit damage
- Clear labeling and handling instructions
- Comprehensive shipping documentation
- Flexible logistics solutions to meet your delivery requirements
After-Sales Service
Our commitment doesn't end with delivery. ACSOON provides comprehensive after-sales support:
- 24/7 technical assistance
- On-site installation and commissioning
- Regular maintenance and health checks
- Spare parts availability
- Software updates and upgrades
- Training programs for your technical staff
Qualification Certification
ACSOON's product systems meet global standards:
- CE Certified
- ISO 9001:2015 Quality Management System
- RoHS Compliant
- UL Listed Components
- IEC 62040-1, IEC 62040-2, IEC 62040-3 Compliant
Exhibitions
Meet us at industry-leading events:
- CeBIT (Hannover, Germany)
- Data Center World (Global Series)
- GITEX Technology Week (Dubai, UAE)
- China International Industry Fair (Shanghai, China)
FAQ
Q: What is the typical lifespan of your product?
A: With proper maintenance, our UPS systems can operate reliably for 10-15 years.
Q: Can your UPS systems be integrated with existing power infrastructure?
A: Yes, our systems are designed for seamless integration and can be customized to fit your current setup.
Q: How quickly can you deliver a UPS system?
A: Standard models are typically available within 4-6 weeks, while custom solutions may take 8-12 weeks.
Q: Do you offer remote monitoring capabilities?
A: Yes, our UPS systems come with advanced remote monitoring options for real-time status updates and alerts.
Q: What warranty do you provide on your product?
A: We offer a standard 2-year warranty, with options to extend up to 5 years.
Contact Us
Ready to protect your critical operations with a reliable heavy duty UPS power supply? Contact our expert team today at acpower@acsoonpower.com for personalized solutions and quotes.
