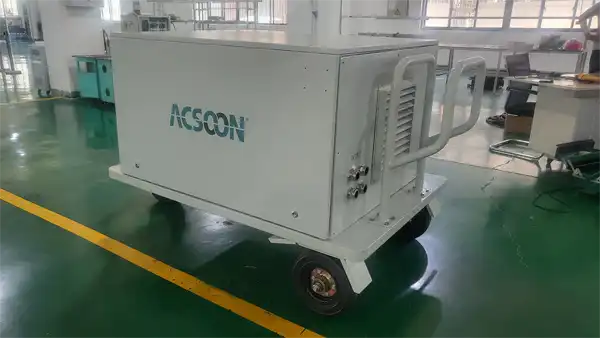

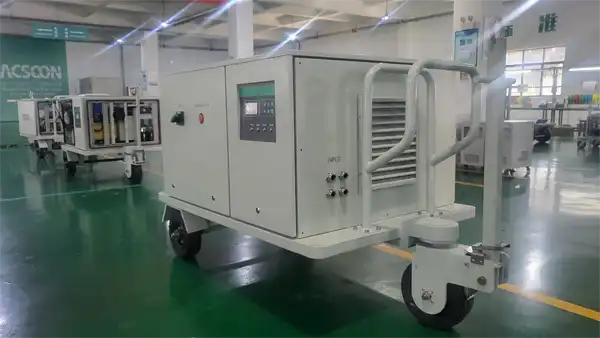

Military Ground Power Unit
2. Power Rating: 300kVA
3. Input Voltage & Frequency: 3 Phase 380V, 50HZ
4. Output Voltage & Frequency: 3 Phase 200V(L-L), 400HZ
5. Type: Solid state GPU, mobile with wheels
6. Ingress Protection Grade: IP20
7. Applications: Widely used as aviation power source, aerospace power supply, radar equipment power supply
8. Brand: ACSOON (support OEM)
9.Features: Input voltage, output voltage and frequency can be variable, control voltage error,short circuit protections
- Product Description
Military Ground Power Unit: Reliable Power for Defense Operations
XI'AN JERRYSTAR INSTRUMENT CO., LTD is a leading manufacturer and supplier of high-quality military ground power units (GPUs). With over 15 years of experience, we specialize in designing and producing advanced power solutions for defense applications. Our products are known for their exceptional reliability, durability, and compliance with stringent military standards.
Why Choose ACSOON Military Ground Power Units?
ACSOON, our flagship brand, offers state-of-the-art products that meet the demanding requirements of modern defense operations. Here's why our GPUs stand out:
- Military-Grade Quality: Built to withstand harsh environments and extreme conditions
- Versatile Compatibility: Suitable for various military platforms and equipment
- Advanced Technology: Incorporates the latest power conversion innovations
- Compliance: Meets or exceeds MIL-STD and NATO standards
- Customization: Tailored solutions to meet specific military requirements
- Global Support: Comprehensive after-sales service and maintenance
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity (Three Phase Output) | 30kVA, 45kVA, 60kVA, 90kVA, 100kVA, 120kVA, 150kVA, 180kVA |
| Input (Three Phase) | 200-440VAC (L-L) ±20%, customizable |
| Input Frequency | 40 - 70HZ |
| Output (Three Phase) | 200/208VAC rated, 0-260Vac, 0-520VAC (L-L) |
| Output Frequency | 400HZ rated, 300-500HZ adjustable |
| Circuit Breakers | MCCB installed |
| AC Output | One terminal strip (standard), two available (customized) |
| DC Output | Available on Combi GPU (28V) |
| Frequency Regulation | ≤0.1% |
| Voltage Regulation | ±1% |
| Output VTHD | <2% |
| Power Factor | ≥0.8 (Standard), ≥0.9 (12 Pulse Optional) |
| Overall Efficiency | ≥85% |
| Display | LCD with voltage, current, and frequency indicators |
| Noise Level | <65dB within one meter |
| Protection | Comprehensive electrical and thermal safeguards |
| Communication | Modbus RS485 |
| Overload Capacity | 125% for 10min, 150% for 60s, 200% for 30s, 400% for 1s |
| MTBF | 30,000 hours |
| MTTR | <30 minutes |
| Altitude | <1800m |
Application Areas
Our products are designed to support a wide range of defense applications:
- Aircraft ground support
- Mobile command centers
- Radar and communication systems
- Field hospitals and medical units
- Temporary military installations
- Disaster response and humanitarian operations
- Vehicle-mounted power systems
- Training and simulation facilities
- Weapons systems testing
- Portable power for special operations
Quality Control
At XI'AN JERRYSTAR INSTRUMENT CO., LTD, quality is our top priority. Our military ground power units undergo rigorous testing and quality control processes:
- ISO 9001 certified manufacturing facility
- In-house testing laboratories
- 100% functional testing before shipment
- Continuous improvement based on customer feedback
- Strict adherence to military standards and specifications
R&D Results
Our commitment to innovation has led to several advancements in military power supply technology:
- Enhanced power density for more compact units
- Improved efficiency to reduce fuel consumption
- Advanced digital control systems for precise output regulation
- Ruggedized designs for increased durability in the field
- Integrated power management and diagnostics
Packaging and Transportation
We ensure that our products are securely packaged and transported:
- Custom-built shipping crates for maximum protection
- Shock-absorbing materials to prevent damage during transit
- Weather-resistant packaging for long-distance shipping
- Optional air-ride suspension trailers for sensitive equipment
- Comprehensive shipping documentation and tracking
After-Sales Service
Our commitment to customer satisfaction extends beyond the sale:
- 24/7 technical support hotline
- On-site maintenance and repair services
- Comprehensive spare parts inventory
- Regular software updates and firmware upgrades
- Training programs for operational and maintenance personnel
Qualification Certification
Our products meet the highest industry standards:
- CE certified
- ISO 9001:2015 quality management system
- Compliance with MIL-STD-704F for aircraft electrical power characteristics
- EMC compliance per MIL-STD-461
- Environmental testing as per MIL-STD-810
Exhibitions
Meet us at these upcoming defense industry events:
- Eurosatory (Paris, France)
- DSEI (London, UK)
- AUSA Annual Meeting & Exposition (Washington D.C., USA)
- IDEX (Abu Dhabi, UAE)
Frequently Asked Questions
Q: What makes ACSOON products different from commercial GPUs?
A: Our units are specifically designed to meet military standards for reliability, durability, and performance in extreme conditions.
Q: Can your GPUs be customized for specific military applications?
A: Yes, we offer customization services to meet unique requirements for various defense platforms and systems.
Q: What is the typical lead time for a product order?
A: Lead times vary based on specifications and quantity, but typically range from 8-12 weeks for standard models.
Q: Do you offer training for operating and maintaining your military GPUs?
A: Yes, we provide comprehensive training programs for both operators and maintenance personnel.
Q: Are your products field-serviceable?
A: Yes, our units are designed for easy field maintenance with modular components and comprehensive documentation.
