270V Aircraft Power Supply
2. Input Voltage & Frequency: 3 Phase 380V, 50/60HZ
3. Output Voltage & Current: 270V DC & 300A

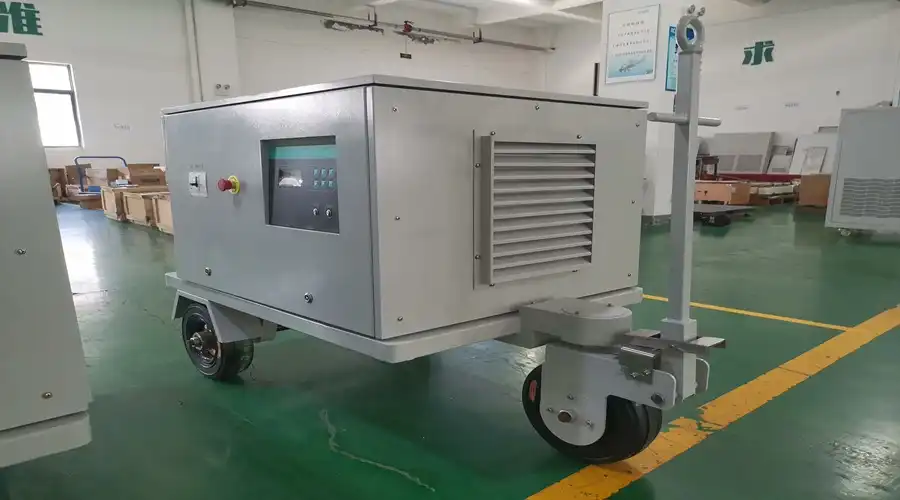

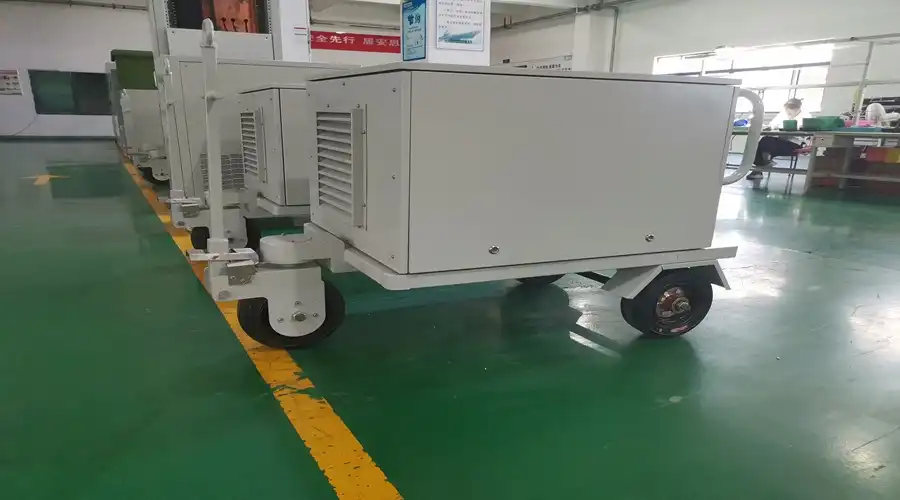

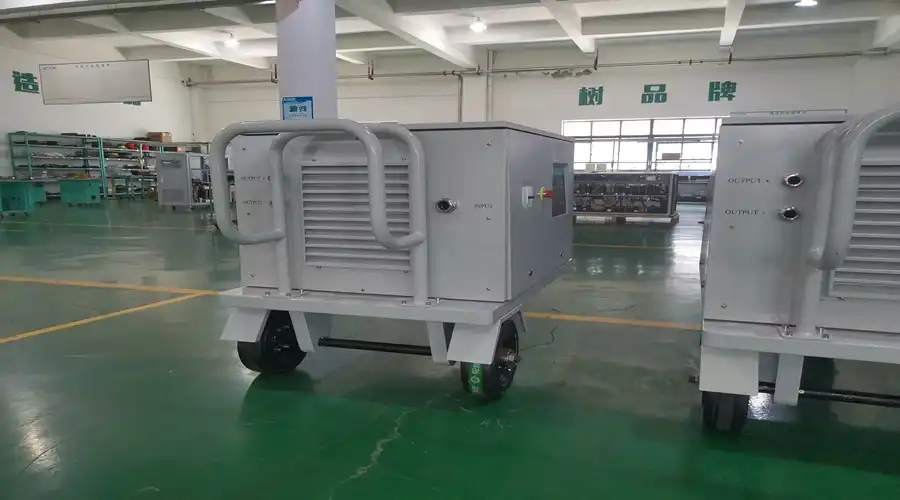

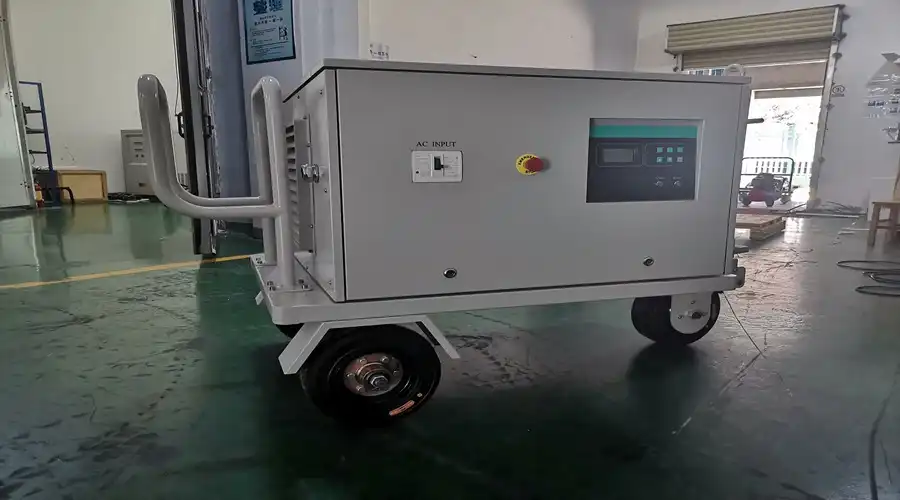

4. Type: DC rectifier, stationary or movable on trolley
5. Ingress Protection Grade: IP21
6. Applications: Aerospace equipment
7. Brand: ACSOON (support OEM)
8. Features: Compatible with various types of aircraft and aviation equipment
- Product Description
270V Aircraft Power Supply: Advanced Solutions for Aerospace Excellence
XI'AN JERRYSTAR INSTRUMENT CO., LTD is a leading 270v aircraft power supply manufacturer and supplier. With over 15 years of experience, we excel in delivering high-quality, reliable power solutions for the aerospace industry. Our advanced product systems are designed to meet the stringent requirements of military aircraft, UAVs, and specialized commercial platforms. We pride ourselves on our cutting-edge technology, rigorous quality control, and commitment to customer satisfaction.
Technical Specifications
| Feature | Specification |
|---|---|
| Input Three Phase | 200VAC (L-L), 208VAC (L-L), 380VAC (L-L), 400VAC (L-L), 415VAC (L-L) 440VAC (L-L)±20% or customized |
| Frequency | 40 - 70HZ |
| Output Voltage | 270VDC (adjustable) |
| Output Current | 50A, 100A, 200A, 300A, 400A, 500A, 600A, 800A, 1000A |
| Voltage Regulation | +/-1% |
| Power Factor | ≧0.9 |
| Efficiency | ≧85% |
| Ripple | Less than 150mV, max 250mV (rms) |
| Display | VFD / LCD display, Voltage, Amperes, and Power |
| Overload Capacity | 125% 10 min, 150% 60s, 200% 10s |
| Protection | O/V, Under Voltage, Current Limiting, Overheating, Short Circuit |
| Working Conditions | Ambient Temp: -10℃ - 50℃, Humidity: 10 - 95%, Altitude: ＜ 1800 meters |
| MTBF | 30,000H |
| MTTR | < 30 min |
| Standards | EN61000-6-2:2005, GJB152A-97, MIL-STD-704F |
Application Areas
Our product systems are designed for a wide range of aerospace applications:
Military Aircraft: Fighter jets, transport planes, and reconnaissance aircraft
Unmanned Aerial Vehicles (UAVs): Military and commercial drones
Specialized Commercial Aircraft: High-performance business jets and experimental planes
Aerospace Test Equipment: Ground support systems and simulation platforms
Satellite Systems: Power units for communication and observation satellites
Cell Phone Technology
Aircraft Carriers: Deck-based power supply units for naval aviation
Helicopter Systems: Advanced rotorcraft requiring high-voltage power
Space Exploration Vehicles: Power systems for orbital and suborbital craft
Avionics Testing: Laboratory equipment for aerospace component validation
Emergency Power Systems: Backup power units for critical aerospace applications
Quality Control
At ACSOON, quality is paramount. Our rigorous quality control process includes:
- Comprehensive incoming material inspection
- In-process quality checks at every production stage
- Final product testing under simulated aerospace conditions
- 100% burn-in testing for all units
- Regular calibration of test equipment to ensure accuracy
Why Choose ACSOON for Your 270V Aircraft Power Supply Needs
R&D Results
Our commitment to innovation has led to several breakthroughs:
Advanced power factor correction technology
Improved thermal management for extended operational life
Intelligent load sensing and adaptive output control
Enhanced EMI/EMC performance exceeding industry standards
Modular design approach for rapid customization and maintenance
01
Qualification Certification
ISO 9001:2015 Quality Management System
AS9100D Aerospace Quality Management System
CE Marking for European Market Compliance
UL Listing for North American Safety Standards
02
After-Sales Service
Our commitment to your success extends beyond the sale:
24/7 technical support
Comprehensive product documentation and training
On-site installation and commissioning assistance
Regular firmware updates and performance optimizations
Extended warranty options for peace of mind
03
Packaging and Transportation
We ensure the safe delivery of our 270v aircraft power supply systems through:
Custom-designed shock-absorbing packaging
Climate-controlled shipping containers
Real-time tracking and monitoring during transit
Comprehensive pre-shipping inspections
Flexible logistics solutions to meet urgent delivery needs
04
Exhibitions
Meet us at these upcoming aerospace exhibitions:
- Paris Air Show
- Farnborough International Airshow
- Singapore Airshow
- Dubai Airshow
- AUVSI XPONENTIAL (for UAV applications)
FAQ
Q1: What makes your product different from others?
A: Our units offer superior efficiency, reliability, and customization options, backed by our extensive aerospace experience.
Q2: Can your power supplies be integrated into existing aircraft systems?
A: Yes, we design our units for easy integration and offer customization to match specific aircraft requirements.
Q3: What is the warranty period for your 270V aircraft power supplies?
A: We offer a standard 2-year warranty, with options to extend up to 5 years.
Q4: Do you provide training for maintenance personnel?
A: Absolutely. We offer comprehensive training programs for operation and maintenance of our power supply systems.
Q5: Are your power supplies compliant with international aviation standards?
A: Yes, our products meet or exceed all relevant international aviation standards, including MIL-STD-704F.
Contact Us
For inquiries about our 270v aircraft power supply solutions, please email us at acpower@acsoonpower.com. Our team is ready to assist you with any questions or custom requirements you may have.
