AC Source 3 Phase
2.Input Power: 380V/400V/415V, three-phase, 50Hz/60Hz
3.Output Configuration: 115V/200V 400Hz or 0-520V adjustable
4.Frequency Range: 45Hz-500Hz programmable
5.Voltage Stability: ±1% under varying load conditions
6.Key Applications: Aircraft testing, industrial automation, R&D facilities
7.Cooling System: Intelligent forced air cooling with thermal monitoring
8.Brand: ACSOON (support OEM).
- Product Description

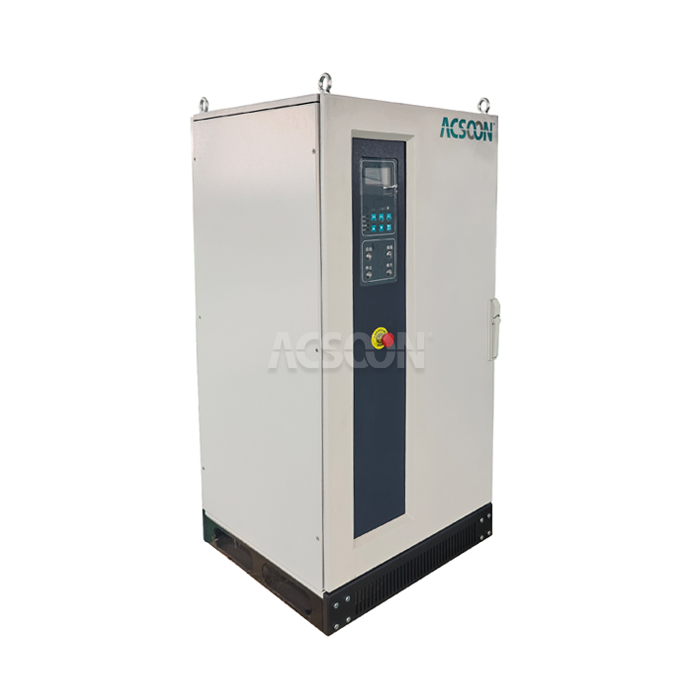

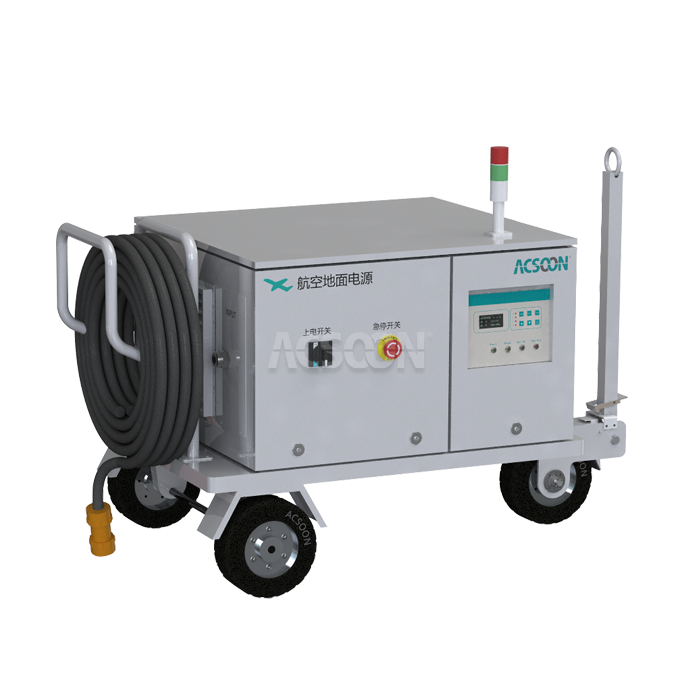

AC Source 3 Phase | Programmable Three Phase Power System
XI'AN JERRYSTAR INSTRUMENT CO., LTD presents the advanced AC Source 3 Phase, designed to deliver precise and stable three-phase power for aviation and industrial applications. Our AC Source 3 Phase provides flexible voltage and frequency programming capabilities, making it ideal for testing, development, and operational requirements in demanding environments.
Technical Specification
| PARAMETER | SPECIFICATION |
|---|---|
| INPUT | |
| Voltage | 380V/400V/415V ±15% |
| Frequency | 50Hz/60Hz ±5% |
| Phase | Three-phase + Neutral |
| OUTPUT | |
| Voltage | 0-520V adjustable ±1% |
| Frequency | 45Hz-500Hz programmable |
| Waveform | Pure Sine Wave THD<2% |
| PERFORMANCE | |
| Efficiency | ≥93% at full load |
| Response Time | <20ms for load changes |
| Load Regulation | ±1% (0-100% load) |
| PROTECTION | |
| Input | Over/under voltage, phase loss |
| Output | Overload, short circuit, over temperature |
| ENVIRONMENTAL | |
| Operating Temperature | -10°C to 45°C |
| Protection Grade | IP21 (IP54 optional) |
AC Source 3 Phase Main Features
- Auto voltage compensation system, ideal voltage at aircraft connector
- Self diagnose system which would show error code on digital display
- 10 events memory stores
- Pure sine wave, sinusoidal output
- Completely protection and alarm for over voltage, over current and overheating, etc
- Eco-friendly, lower power consumption with high efficiency
- With 28VDC military interlock
Why Choose ACSOON AC Source 3 Phase?
ACSOON AC Source 3 Phase offers superior advantages for precision power applications:
Programmable Output: Flexible voltage and frequency adjustment for various testing scenarios
High Precision Control: Excellent stability with ±1% voltage regulation
Pure Sine Wave: Clean power output with THD<2% for sensitive equipment
Robust Design: Industrial-grade construction for reliable operation
Smart Interface: Digital control with remote monitoring capabilities

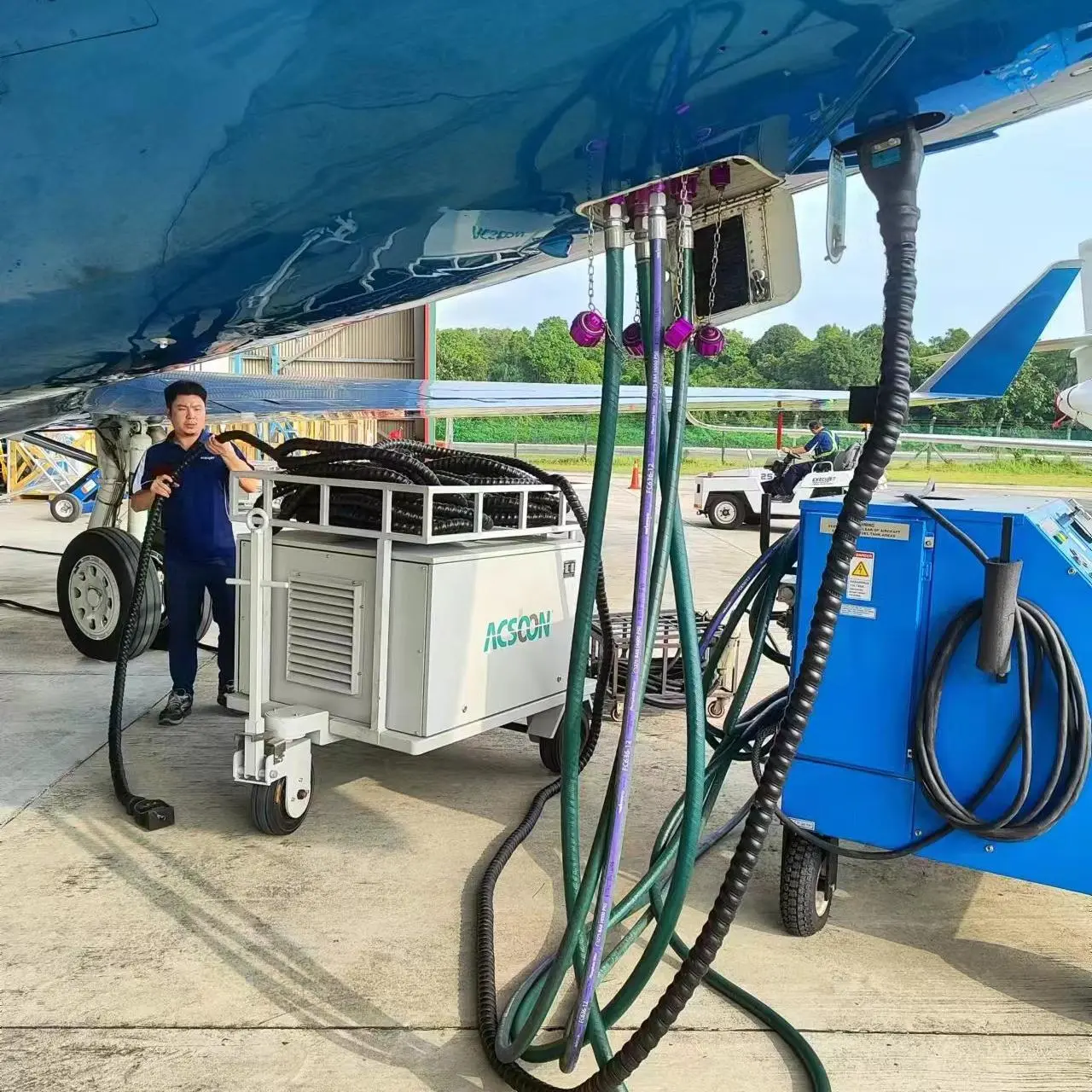

Application Areas
Our AC Source 3 Phase serves diverse industrial and aviation sectors:
Aircraft System Testing: Avionics and aircraft component testing
Industrial Automation: Motor drives and control system testing
Research Laboratories: R&D testing and product development
Power Electronics: Inverter and converter testing
Manufacturing: Production line testing and quality assurance
Educational Institutions: Engineering education and research
Our Services
Quality Control
Each AC Source 3 Phase undergoes comprehensive quality validation:
Performance testing under various load conditions
Environmental testing for specified temperature range
Safety certification to international standards
Calibration with precision measurement equipment
Final verification with actual application testing
R&D Results
Our technical innovations in AC Source 3 Phase technology include:
Advanced digital signal processing for precise control
Enhanced power conversion efficiency
Smart thermal management systems
Reduced electromagnetic interference
Modular design for easy maintenance
Packaging and Transportation
We ensure secure delivery of every AC Source 3 Phase:
Industrial-grade packaging with reinforced protection
Custom packaging for international shipping requirements
Complete documentation including operation manuals
Global logistics support with tracking services
After-Sales Service
We provide comprehensive support for all AC Source 3 Phase installations:
Technical assistance for application programming
Installation guidance and system commissioning
Maintenance services and performance optimization
Remote diagnostics and troubleshooting support
Operator training programs
Qualification Certification
FAQ |
|---|
| Q1: What types of equipment can be tested with your AC Source 3 Phase? |
| A: Our system is suitable for testing motors, transformers, avionics, power supplies, and various industrial equipment requiring three-phase power. |
| Q2: Can the output parameters be programmed for automated testing? |
| A: Yes, our system supports programmable voltage and frequency settings with remote control interfaces for automated testing sequences. |
| Q3: What safety features are included for equipment protection? |
| A: Safety features include over voltage protection, over current protection, short circuit protection, and thermal overload protection with automatic shutdown. |
| Q4: How does your AC Source 3 Phase maintain stability under varying loads? |
| A: Advanced feedback control systems and high-speed processors ensure stable output despite load variations. |
| Q5: What is the installation requirement for your system? |
| A: Installation requires adequate ventilation space, proper grounding, and compliance with local electrical regulations for three-phase equipment. |
Contact Us
For three phase AC source solutions or technical specifications: acpower@acsoonpower.com , or submit your requirements using the form at the bottom of our website.
