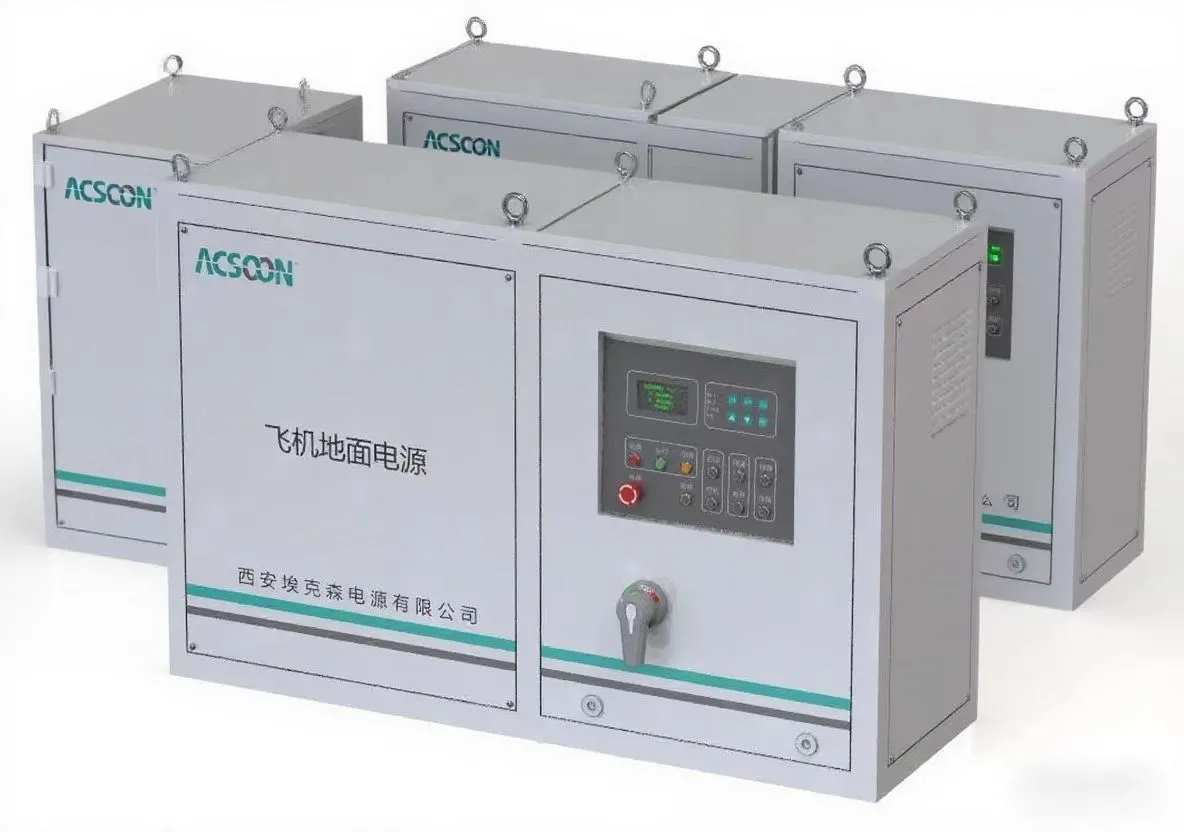

Bridge Mounted 400Hz GPU
1.Power Range: 30kVA to 180kVA 400Hz AC Output
2.Technology: Solid-State Static Frequency Converter with 12-Pulse Rectification
3.Input: 3-Phase, 208V-480V, 50/60Hz Mains Supply
4.Output: 3-Phase 115V/200V, 400Hz Aircraft Power
5.Key Applications: Passenger Boarding Bridges (PBB), Fixed Gate Operations, Airport Terminal Integration
6.Core Features: Space-Saving Bridge Installation, Auto Cable Reel System, High Efficiency (≥93%), MIL-STD-704F Compliant
7.Brand: ACSOON (OEM Supported).
2.Technology: Solid-State Static Frequency Converter with 12-Pulse Rectification
3.Input: 3-Phase, 208V-480V, 50/60Hz Mains Supply
4.Output: 3-Phase 115V/200V, 400Hz Aircraft Power
5.Key Applications: Passenger Boarding Bridges (PBB), Fixed Gate Operations, Airport Terminal Integration
6.Core Features: Space-Saving Bridge Installation, Auto Cable Reel System, High Efficiency (≥93%), MIL-STD-704F Compliant
7.Brand: ACSOON (OEM Supported).
- Product Description

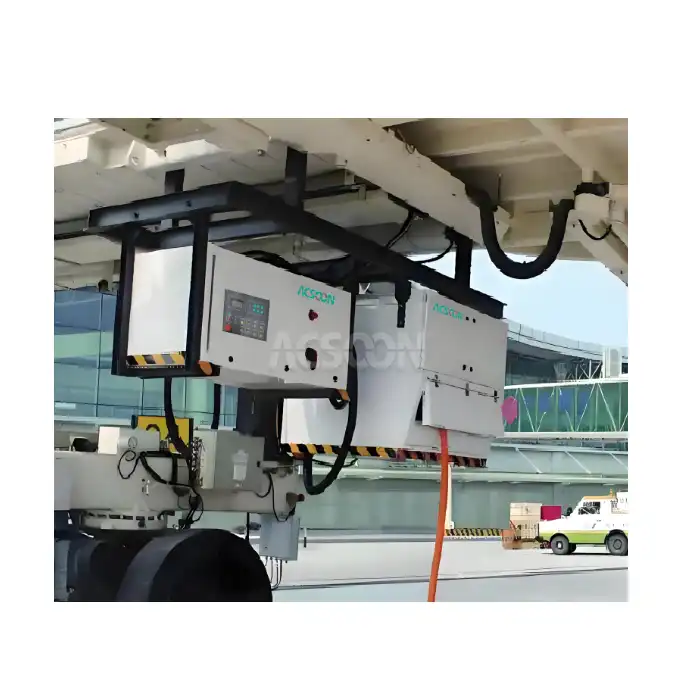

XI'AN JERRYSTAR INSTRUMENT CO., LTD specializes in Bridge Mounted 400Hz GPU systems, the optimal solution for fixed gate electrification. Engineered for installation directly under passenger boarding bridges, this GPU provides clean, reliable 400Hz power right at the aircraft stand, eliminating the need for mobile carts. This space-saving, permanent installation enhances airport operational efficiency, safety, and ground support reliability for daily aircraft turnaround.
Datasheet
| Parameter | Specification |
|---|---|
| Model Series | ACSOON GPU400L Series |
| Input | Voltage: 3-Phase 208V, 380V, 400V, 415V, 440V, 480V ±15% Frequency: 50Hz / 60Hz Power Factor: ≥0.9 |
| Output | Voltage: 115V (L-N), 200V (L-L), 100-130V adjustable Frequency: 400Hz ±0.01% Configuration: 3-Phase, 4-Wire + PE Power Rating: 30kVA, 45kVA, 60kVA, 90kVA, 120kVA, 180kVA |
| Output THD | <2% |
| Efficiency | ≥93% |
| Cable Reel | Motorized, with automatic control and integrated control wires |
| Protections | Complete Over Voltage, Current, Short Circuit, Thermal |
| IP Rating | IP54 |
| Operating Temp. | -20°C to 50°C |
| Standards | MIL-STD-704F, GJB572A, ISO6858, EN61000 |

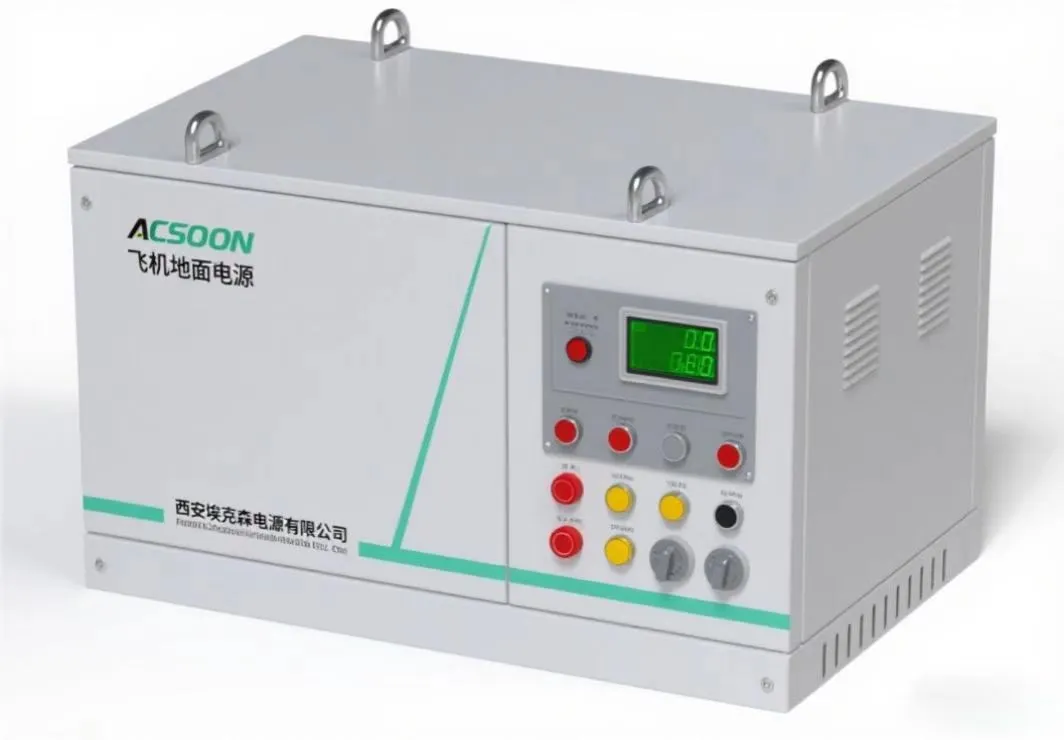

Bridge Mounted 400Hz GPU Main Features
- Compact, Enclosed Cabinet: Designed with a low-profile, rugged enclosure (IP54) suitable for the bridge environment.
- Smart Cable Management: Motorized cable reel with automatic extension/retraction and end-position control.
- Advanced Control System: VFD display for real-time monitoring, event logging, and fault diagnosis.
- High Overload Capacity: Robust design handles 125% load for 10 minutes, supporting high-demand engine starts.
Why Choose ACSOON Bridge Mounted 400Hz GPU?
- Space-Optimized Design: Specifically engineered for compact installation under boarding bridges, freeing up valuable apron space.
- Enhanced Operational Flow: Provides permanent, dedicated power at each gate, streamlining aircraft servicing and reducing GPU traffic.
- Superior Power Quality: Delivers pure, stable 400Hz power (MIL-STD-704F) with auto voltage compensation for optimal performance.
- Integrated Safety & Convenience: Features intelligent cable reel control, interlocks, and self-diagnostics for safe, user-friendly operation.

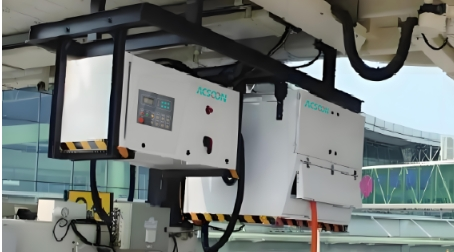

Bridge Mounted 400Hz GPU Application Areas
- Commercial Airport Gates: Primary ground power source for narrow and wide-body aircraft at fixed passenger gates.
- Terminal Expansion Projects: Integrated into the design of new terminals or boarding bridges for modern airport infrastructure.
- High-Traffic Regional Hubs: Ideal for airports with frequent turnarounds, ensuring quick and reliable power availability.
- Aircraft Maintenance Bays (Fixed): Can be installed in dedicated maintenance hangars with bridge or gantry crane systems.
Our Services
01

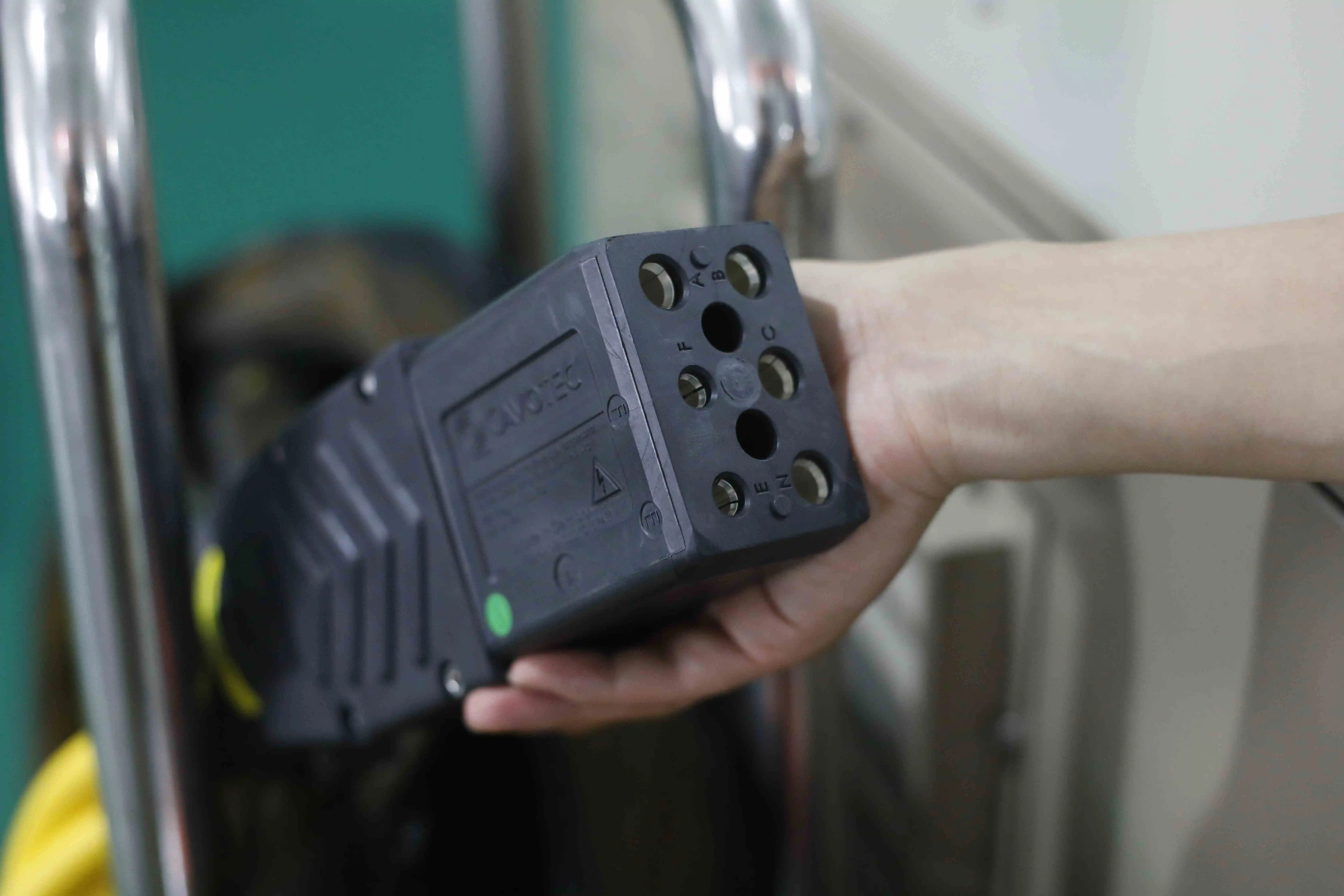

Quality Control
- Dimensional & Mounting Verification: Each unit is checked against precise bridge installation clearances and mounting point specifications.
- Cable Reel Endurance Testing: The motorized reel system undergoes hundreds of cycles to ensure reliable long-term operation.
- Environmental Sealing Test: The IP54-rated enclosure is tested for dust and water spray resistance.
- Full-Power Bridge Simulation: The GPU is tested under loads simulating a complete aircraft service cycle.
02

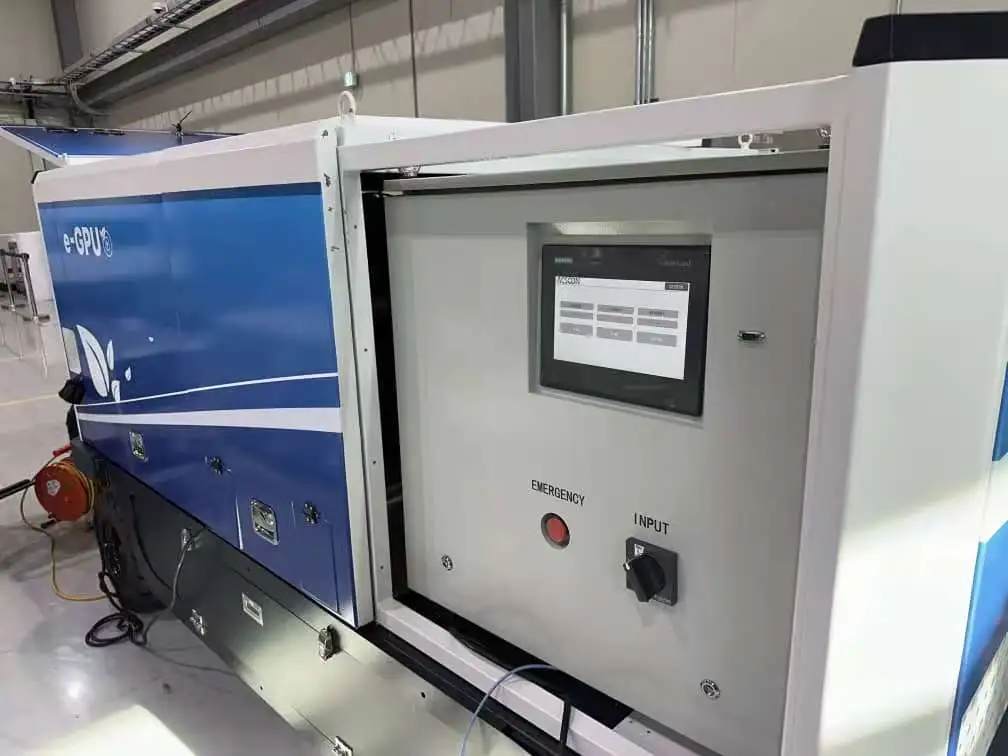

R&D Results
- Low-Noise Operation: Developed specialized acoustic damping and fan control for quiet operation in the passenger bridge environment.
- Vibration-Resistant Mounting: Engineered internal component securing methods to withstand vibrations transmitted from the bridge structure.
- Thermal Management for Enclosed Space: Optimized internal airflow to ensure adequate cooling within the compact, bridge-mounted cabinet.
- Integration-Friendly Design: Created standardized interfaces and communication protocols for easy integration with airport gate management systems.
03
Packaging and Transportation
- Installation-Ready Packaging: Critical components and the main cabinet are packed separately with clear labeling for streamlined on-site assembly under the bridge.
- Detailed Installation Manuals: Pack includes comprehensive bridge integration guides, wiring diagrams, and civil work requirements.
- Protected Cable Reel Assembly: The cable reel mechanism is specially packed to prevent damage during shipping.
- Project Logistics Coordination: We provide detailed shipping schedules and documentation tailored for large airport construction or retrofit projects.
04
After‑Sales Service
We offer extended support including on-site commissioning, integration assistance with bridge systems, operator training, and a dedicated spare parts program for critical components.
Qualification Certification

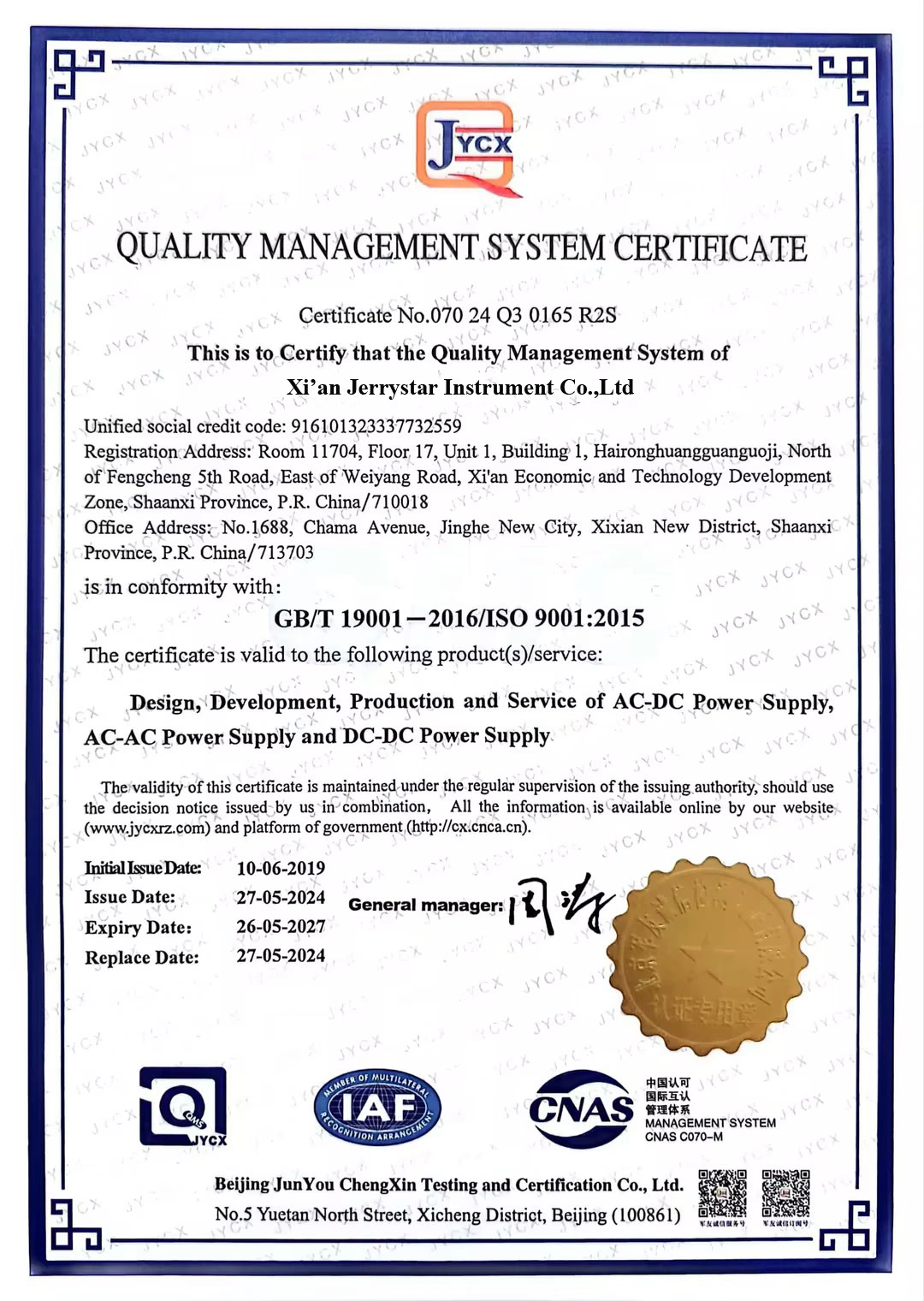

Airport Equipment Compliance: Designed to meet common airport operational and safety regulations for fixed installations;Aircraft Power Standards: Compliant with MIL-STD-704F and other relevant aircraft ground power specifications;ISO 9001:2015 Certified Manufacturing;CE Marked for the European market.
FAQ |
|---|
| Q1: What are the main benefits of a bridge-mounted GPU versus a mobile one? |
| A: It offers permanent, reliable power at the gate with no daily positioning required, reduces apron vehicle traffic, eliminates fuel/hydraulic leaks risk, and provides a cleaner, more organized workspace. |
| Q2: What infrastructure is needed for installation? |
| A: Installation requires a pre-designated space under the passenger boarding bridge, a suitable 3-phase AC power feed, and proper mounting supports. Detailed site requirements are provided in our pre-installation guide. |
| Q3: How is the cable delivered to the aircraft? |
| A: The unit includes a motorized cable reel. An operator uses a control pendant or buttons on the aircraft connector to automatically lower the cable to the aircraft and retract it after use. |
| Q4: Can this GPU power all types of commercial aircraft? |
| A: Yes, the power ratings (30-180kVA) cover the requirements of regional jets up to wide-body aircraft like the Boeing 777 or Airbus A350, when used in conjunction with the aircraft's own power management. |
| Q5: Who typically installs the Bridge Mounted 400Hz GPU? |
| A: Installation is a coordinated effort, often involving the GPU manufacturer, the boarding bridge manufacturer, the airport's technical team, and certified electrical contractors to ensure proper integration and safety. |
Contact Us
For technical specifications or global solutions for the Bridge Mounted 400Hz GPU: acpower@acsoonpower.com, or submit your requirements using the form at the bottom of our website.
