Multi-Function Aerospace Ground Power Unit
2.Topology: Advanced IGBT-based conversion technology with DSP control
3. Input Voltage & Frequency: 3-phase 380V±15% 50/60Hz or single-phase 220V (configurable)
4.Output Specifications:28VDC output: 100-1000A /115VAC 400Hz output: 0-100A (stable frequency output)/50-60Hz conversion: 0-150kVA (frequency programmable)
5. Applications: Aircraft ground support, military equipment testing, aerospace manufacturing, communication systems
6. Ingress Protection Grade: IP21
7. Features: Multi-output configuration; seamless frequency conversion; high stability and accuracy; compact rugged design
8. Brand: ACSOON (support OEM).
- Product Description

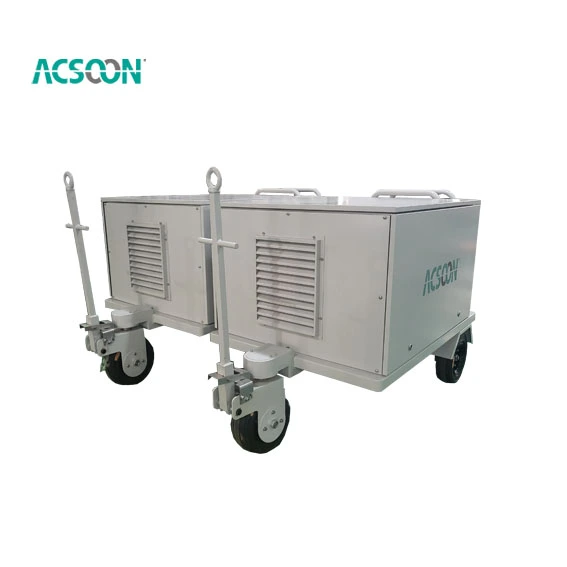

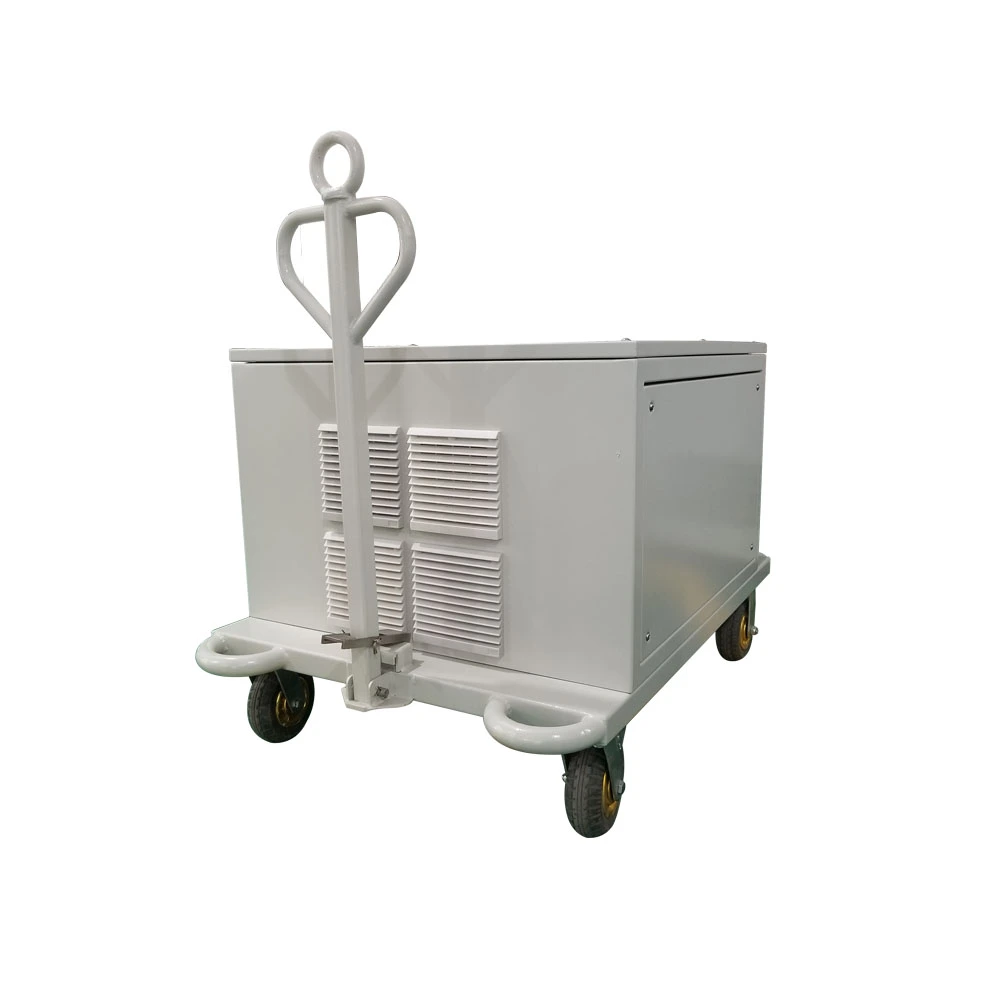

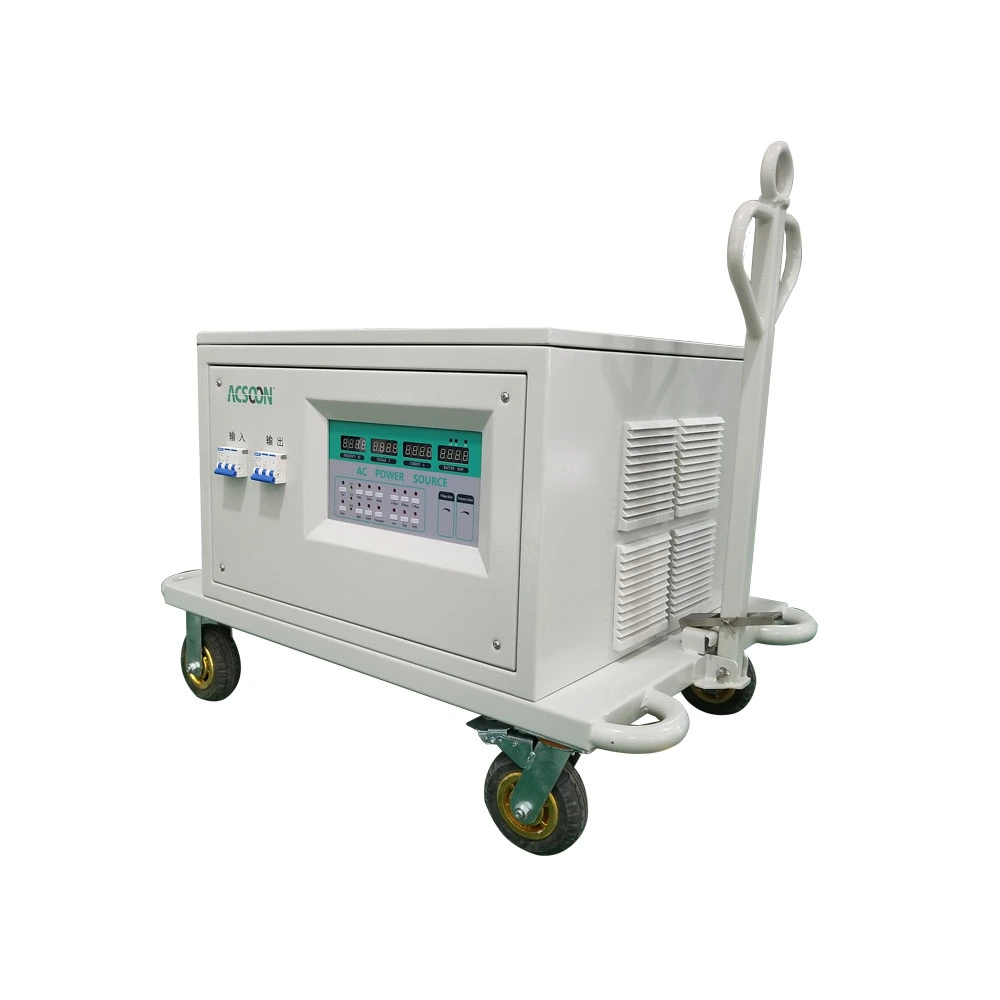

Multi-Function Aerospace Ground Power Unit | 28VDC & 400Hz AC Power Supply
XI'AN JERRYSTAR INSTRUMENT CO., LTD designs and manufactures advanced multi-function aerospace ground power units for critical applications requiring reliable power conversion. With extensive expertise in power electronics, we provide integrated solutions that deliver both 28VDC power and 400Hz AC power with frequency conversion capabilities. Our systems are engineered for maximum reliability and precision, serving aerospace, military, and industrial sectors worldwide.

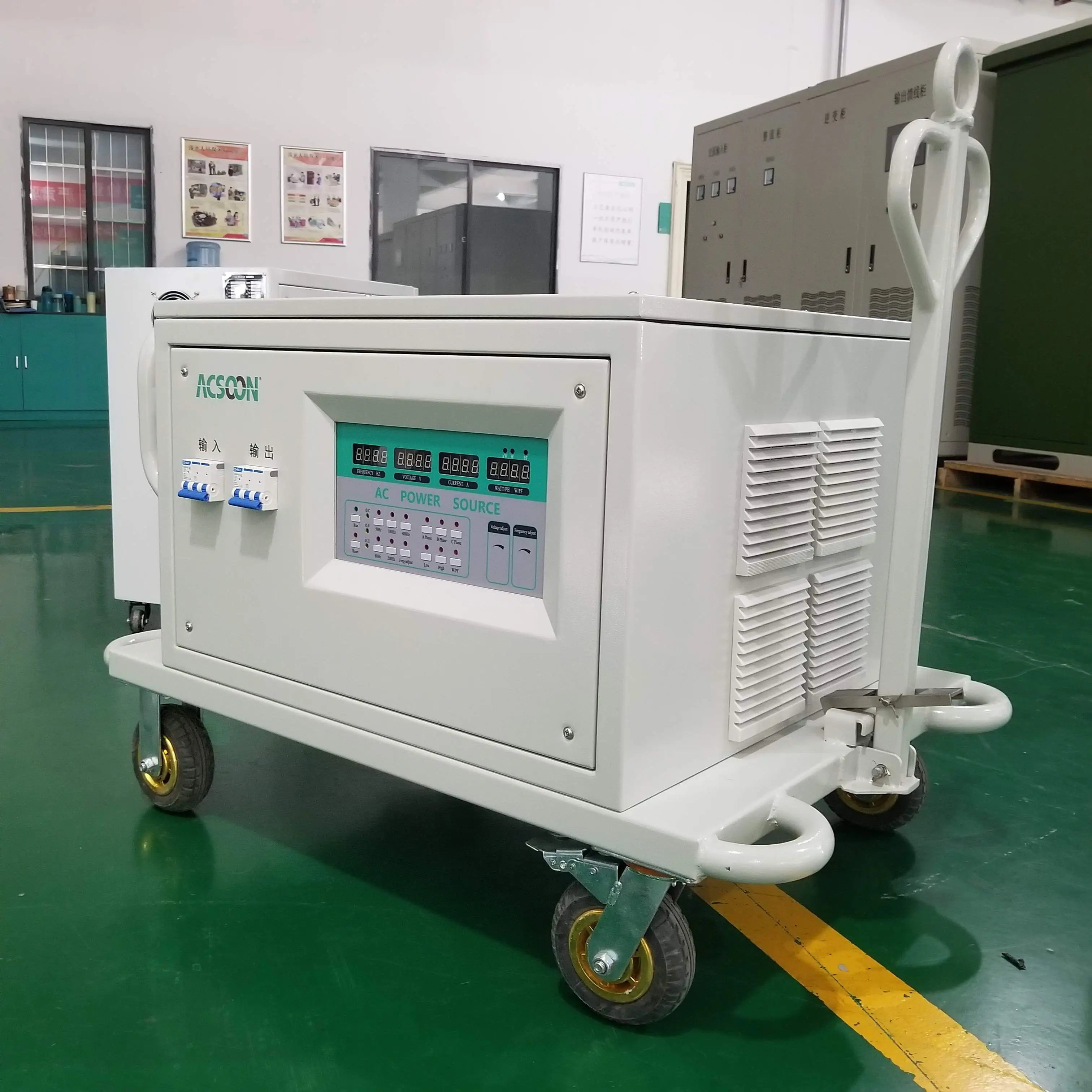

ACSOON Multi-Function Aerospace Ground Power Unit Main Features
- Auto voltage compensation system, ideal voltage at aircraft connector
- Self diagnose system which would show error code on digital display
- 10 events memory stores
- Pure sine wave, sinusoidal output
- Completely protection and alarm for over voltage, over current and overheating, etc
- Eco-friendly, lower power consumption with high efficiency
- With 28VDC military interlock
Technical Specifications
| Feature | Specification |
|---|---|
| AC Output | 115VAC 400Hz |
| DC Output | 28VDC, 100A-1000A (±0.5%) |
| Input Voltage | 3-phase 380V±15% or single-phase 220V (configurable) |
| Frequency | 50HZ/60HZ |
| Battery Capacity | Customizable |
| Voltage Regulation | ±1% |
| Output VTHD | <2% |
| Power Factor | ≥0.8 (Standard), ≥0.9 (12 Pulse Optional) |
| Overall Efficiency | ≥85% |
| Overload Capacity | 125% for 10 mins, 150% for 60s, 200% for 30s, 400% for 1s |
| Mean Time Between Failure | 30,000 hours |
Why Choose ACSOON Multi-Function Aerospace Ground Power Units?
Dual Output Capability: Simultaneous 28VDC and 115VAC 400Hz output options
Precision Frequency Conversion: Accurate 50Hz to 60Hz and 50Hz to 400Hz conversion with <0.1% stability
Military-Grade Reliability: Designed for harsh environments and critical applications
Energy Efficient Operation: High conversion efficiency (>90%) reduces operating costs
Global Compliance: Meets international aerospace and military standards
Application Areas
Aircraft Maintenance and Ground Support: Providing power for aircraft systems during maintenance
Military Equipment Testing: Powering avionics, radar systems, and communication equipment
Aerospace Manufacturing: Supporting production testing and system validation
Research and Development: Enabling testing of aerospace components and systems
Emergency Power Backup: Serving as backup power for critical aerospace facilities
Satellite Ground Support: Powering satellite testing and preparation systems
Communication Infrastructure: Supporting ground-based communication systems
Details display
Quality Assurance
- Military-standard environmental testing (-40°C to +70°C)
- Vibration and shock resistance validation
- EMI/EMC compliance testing
- Full-load endurance testing (72+ hours)
- Safety certification testing

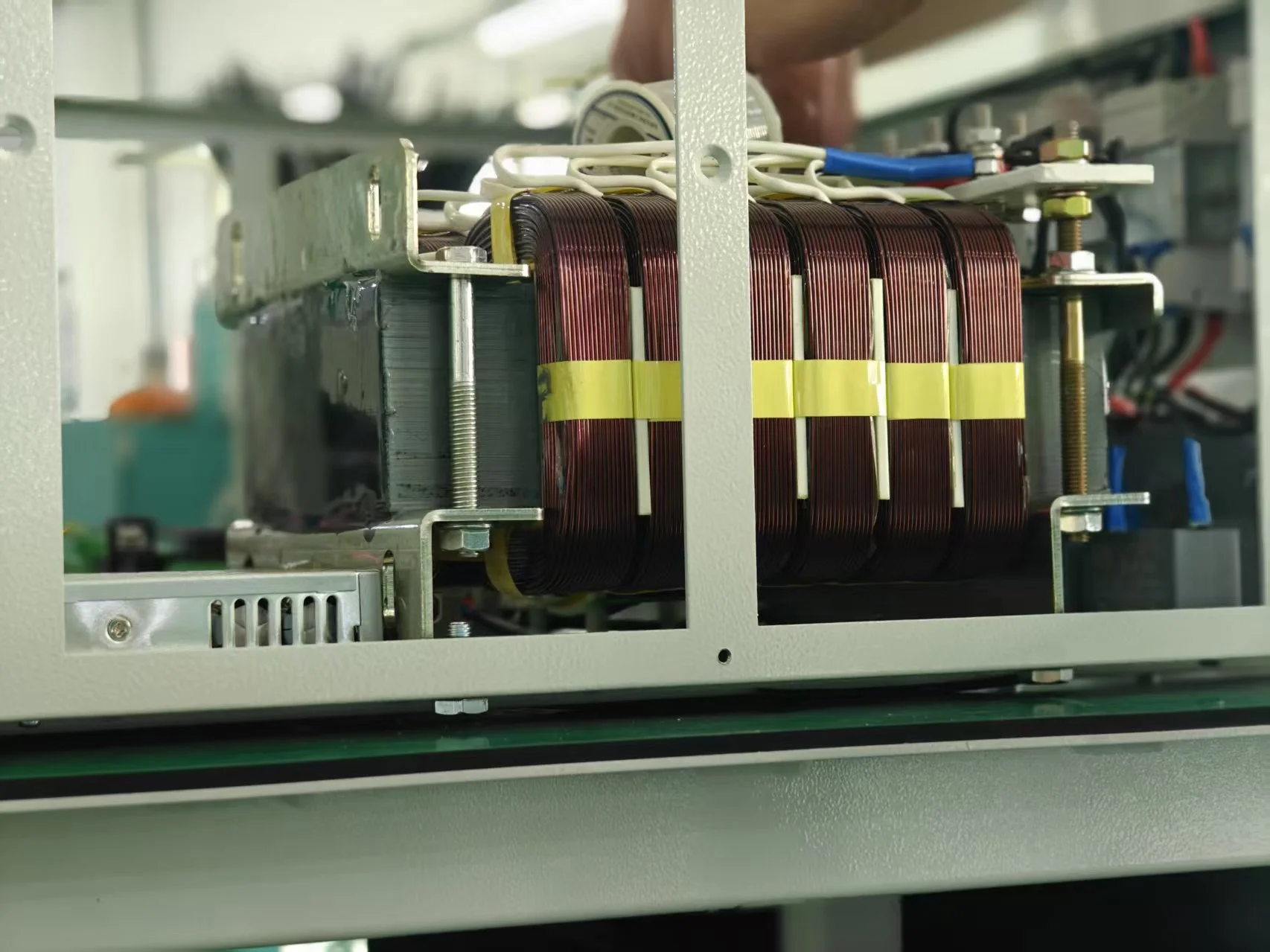

Technical Innovation
Our R&D breakthroughs in multi-function aerospace ground power units include:
- Advanced DSP control algorithms for precise frequency conversion
- SiC power devices for improved efficiency and power density
- Smart thermal management with adaptive cooling
- Redundant protection systems for maximum reliability
Packaging and Delivery
We ensure secure transportation:
- MIL-spec packaging for extreme conditions
- Environmental monitoring during transit
- Global logistics support
- Professional installation services

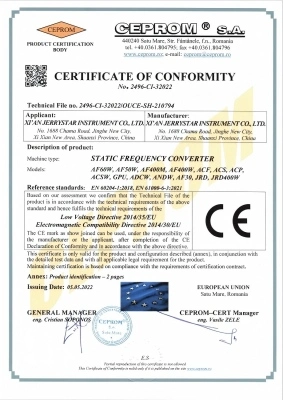

Certifications
Our systems meet:
- ISO 9001:2015 Quality Management
- MIL-STD-810 environmental testing standards
- CE, FAA, and EASA compliance requirements
FAQ |
|---|
| Q1: What makes your multi-function aerospace ground power unit suitable for aircraft applications? |
| A: Our units provide both 28VDC and 400Hz AC power simultaneously, meeting the specific requirements of aircraft systems during ground operations. |
| Q2: Can the unit convert between 50Hz and 400Hz power? |
| A: Yes, it provides precise frequency conversion from standard 50/60Hz input to 400Hz output required by aerospace systems. |
| Q3: What protection features are included? |
| A: Comprehensive protections include overvoltage, overcurrent, overtemperature, short-circuit, and reverse polarity protection. |
| Q4: How is the unit cooled? |
| A: Intelligent cooling system with temperature-controlled fans ensures quiet operation and optimal thermal management. |
| Q5: Can the unit operate in parallel for higher power requirements? |
| A: Yes, multiple units can be paralleled for increased power capacity with automatic load sharing. |
