Tactical Military Ground Power Unit
2.Technology: Ruggedized Static Frequency Converter & DC Rectifier in a Single Skid
3.Input: 3-Phase, 208V-480V, 47-63Hz (Compatible with Field Generators)
4.Output: MIL-STD-704 Compliant 28VDC & 115V/200V 400Hz AC
5.Key Applications: Forward Operating Bases, Expeditionary Airfields, Military Transport & Fighter Aircraft Support
6.Core Features: EMI/RFI Hardened, All-Terrain Mobile Skid, Rapid Deployment, Severe Environmental Rating
7.Brand: ACSOON (Configurable to Specific Platform Requirements).
- Product Description

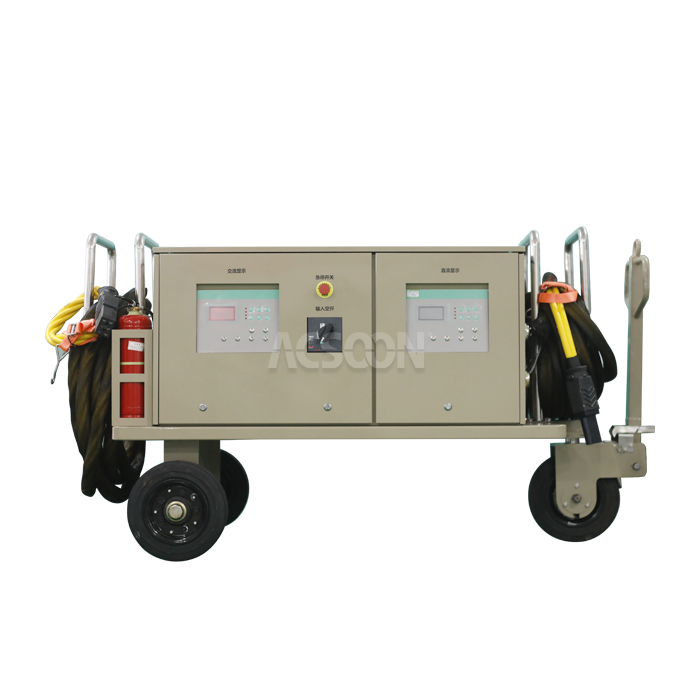

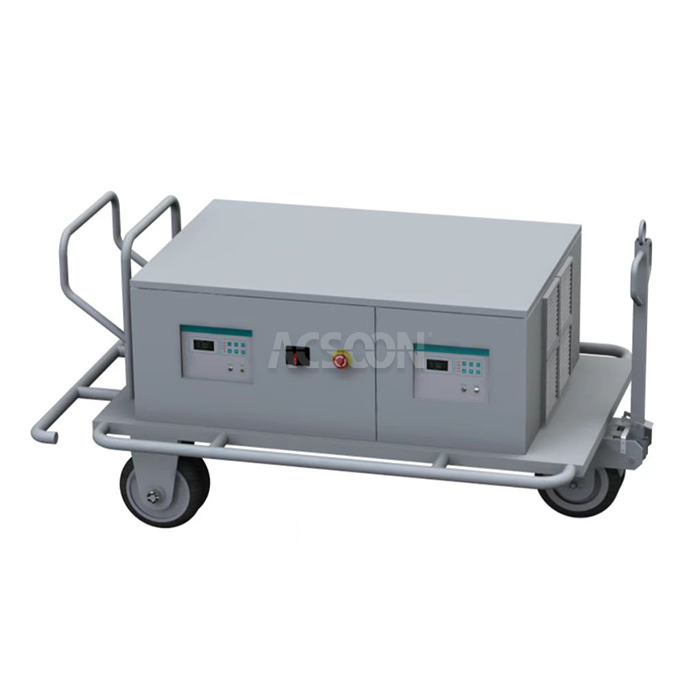

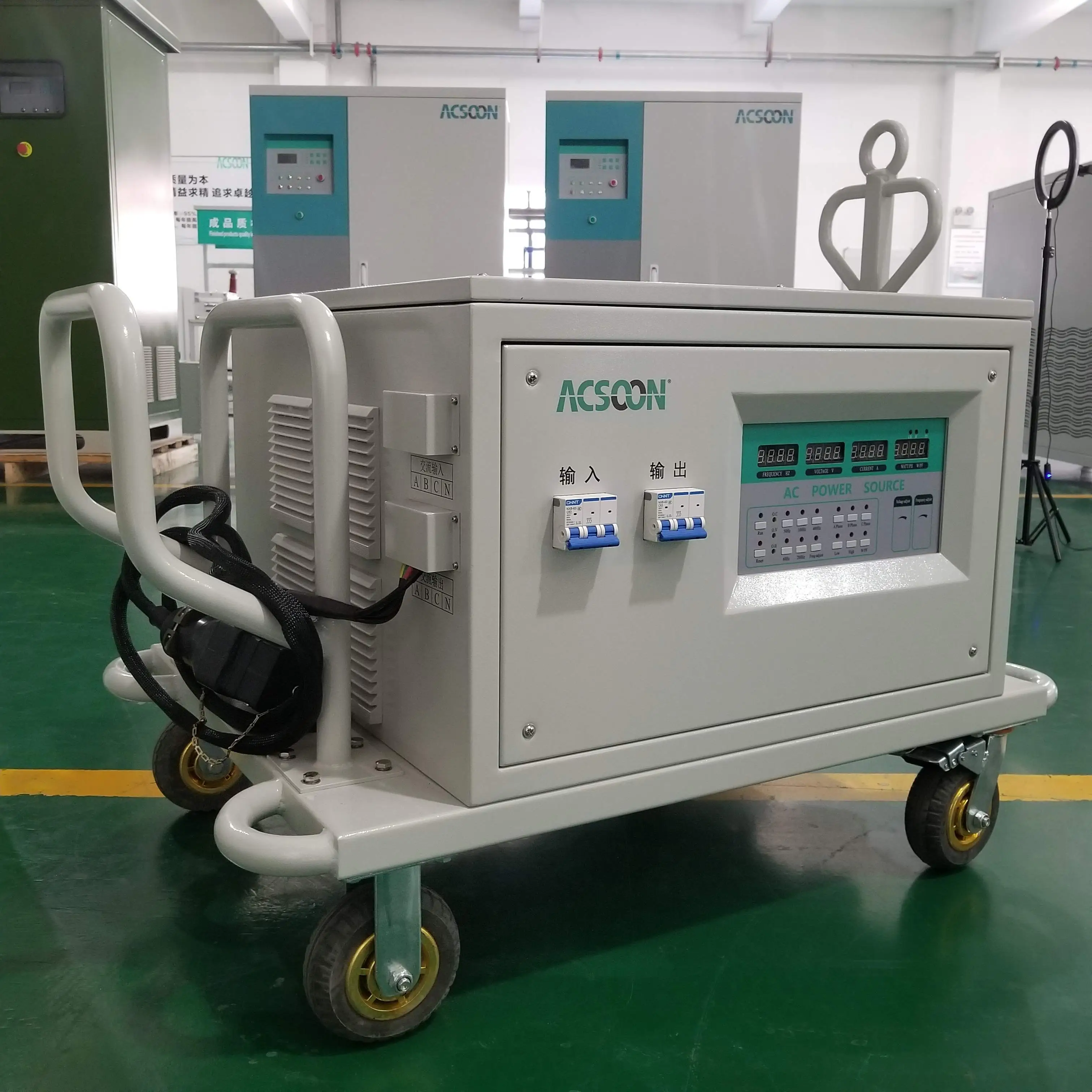

Tactical Military Ground Power Unit | Ruggedized GPU for Field Operations
XI'AN JERRYSTAR INSTRUMENT CO., LTD designs the mission-critical Tactical Military Ground Power Unit, engineered to deliver reliable power in the most demanding field conditions. This ruggedized, mobile unit provides both 28VDC and 400Hz AC power essential for starting, testing, and supporting military aircraft at expeditionary airfields and forward bases. Built to survive harsh environments, transit shock, and electromagnetic interference, it ensures aircraft readiness wherever the mission demands.
Datasheet
| Parameter | Specification |
|---|---|
| Model Series | ACSOON GPU400&ADCW Series |
| Input | 3-Phase 208V-480V ±20%, 47-63Hz |
| DC Output | 28.5VDC (20-32V Adj.), up to 800A Continuous |
| AC Output | 115V/200V, 400Hz, up to 60kVA |
| Compliance | MIL-STD-704 (A-F), MIL-STD-461 (EMI/EMC Designed) |
| Environmental | Operating Temp: -25°C to 55°C, Humidity: 0-100% Condensing |
| Enclosure | IP56 Rated, Reinforced Steel Skid Mount |
| Cooling | Sealed, Filtered Forced-Air System |
Tactical Military Ground Power Unit Main Features
EMI/RFI Hardened Design: Shielded enclosures and filtered lines prevent interference with sensitive military communication and navigation systems.
Wide Input Range for Field Generators: Tolerates voltage and frequency variations typical of tactical diesel generators, ensuring stable output.
Corrosion-Resistant Construction: Coatings, seals, and materials selected to resist salt spray, sand, and dust ingress.
Intuitive, Simple Controls: Designed for operation with gloves, featuring clear gauges, status indicators, and robust connectors for quick hookup.
Why Choose ACSOON Tactical Military Ground Power Unit?
Unmatched Ruggedness: Built on a reinforced skid with components rated for extreme temperatures, vibration, and humidity, ensuring operation in severe conditions.
Military Standards Compliance: Engineered from the ground up to meet MIL-STD-704 for power quality and MIL-STD-461 for EMI/EMC, ensuring compatibility with sensitive avionics.
Rapid Deployment & Mobility: Integrated lift points and optional tow bar enable fast positioning by forklift or vehicle, crucial for dynamic operations.
Dual-Power Versatility: Supplies both critical 28VDC for systems start and 115V 400Hz AC for avionics and instrumentation from a single, compact source.
Tactical Military Ground Power Unit Application Areas
Expeditionary & Forward Airfields: Primary ground power for fighter jets, transport aircraft (C-130, C-17), and reconnaissance platforms in deployed locations.
Military Airbase Flight Lines: Dependable support for daily operations, maintenance, and engine runs on combat and support aircraft.
Special Operations & Disaster Response: Providing autonomous power in remote or infrastructure-deficient areas for aviation support.
Shipboard Aviation (Deck): Skid-mounted design suitable for providing stable power to aircraft on flight decks (subject to specific naval qualifications).
Our Services
Quality Control
Environmental Stress Testing (EST): Each unit undergoes temperature cycling, vibration, and humidity tests per relevant MIL-STD-810 methods.
EMI/EMC Pre-Compliance Screening: Tested in a shielded chamber to verify emissions and immunity characteristics align with military standards.
Ruggedness & Drop Testing: Structural integrity and component security are validated through simulated transit and handling shock tests.
Full-Power Functional Verification: Complete operational test under combined DC and AC load, verifying performance across the entire input voltage range.

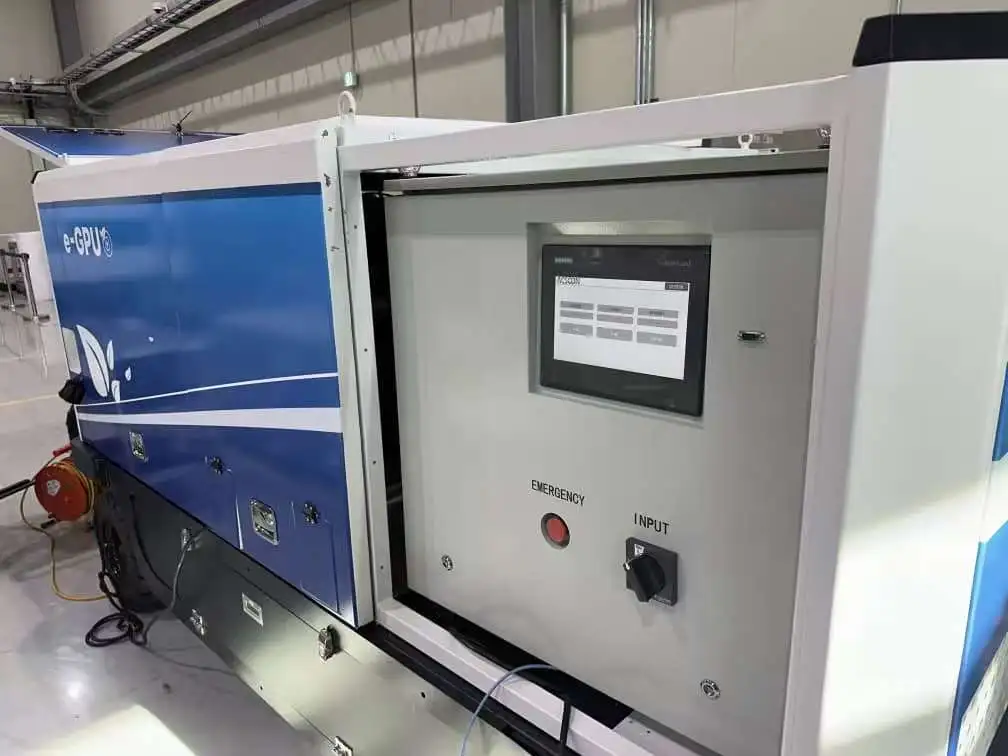

R&D Results
Enhanced Power Topology for Transients: Developed circuitry to maintain stable output despite highly variable and distorted input from field generators.
Integrated Environmental Protection System: Designed a pressurized and filtered cooling system that maintains IP rating while preventing internal contamination.

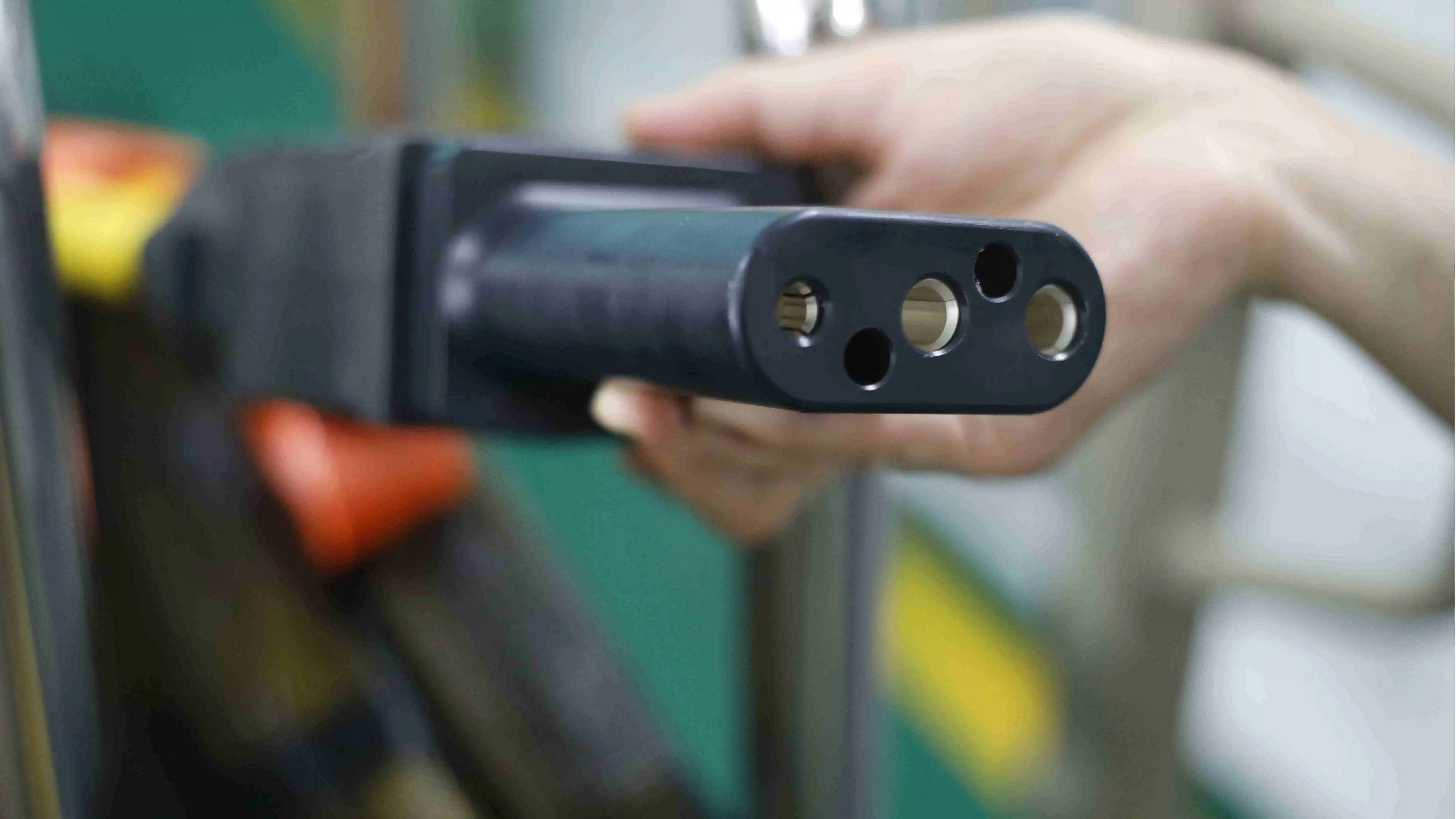

Rapid Connection System: Engineered quick-disconnect, color-coded, high-current connectors that are robust and simple for ground crews to operate in low-light conditions.
Modular Power Stack Design: Created a serviceable modular design for both AC and DC sections, allowing for easier field maintenance and repair.
Packaging and Transportation
Military-Spec Transit Case (Optional): Available as an option, a hardened, weatherproof transit case with custom foam ensures unit integrity during rough handling and long-term storage.
Sea-Triple Packaging: Standard shipment uses waterproof barrier film, desiccant, and a reinforced wooden crate on a shipping skid for maximum protection.
Deployment Documentation Pack: Includes NATO stock number (NSN) support documentation, detailed maintenance manuals, and test certificates.
Global Strategic Logistics: Experienced in handling ITAR-controlled and military logistics, ensuring compliant and secure delivery to designated locations.
After‑Sales Service
We offer a comprehensive 24-month warranty with optional extended support contracts, field-service training programs, and a dedicated supply chain for genuine spare parts to minimize mean time to repair (MTTR).
Qualification Certification
ISO 9001:2015 Certified manufacturing quality system;CE Marked (where applicable for commercial components);Design & Test Verification: Full documentation package supporting compliance with MIL-STD-704 and MIL-STD-461 requirements;Test Reports: Comprehensive performance and environmental test reports are provided with each unit.
FAQ |
|---|
| Q1: What makes this GPU "tactical" compared to a standard airport GPU? |
| A: A Tactical GPU is specifically engineered for harsh, undeveloped environments. It prioritizes ruggedness (shock/vibration resistance), wide input power tolerance (for field generators), severe environmental sealing (dust, water), and EMI hardening—features not typically needed for fixed, sheltered airport installations. |
| Q2: Is it certified to MIL-STD-704? |
| A: The unit is designed, engineered, and tested to meet the requirements of MIL-STD-704. Final certification is often part of the integration process by the airframe manufacturer or military end-user, but we provide all necessary test data and documentation to support that certification. |
| Q3: Can it power both fighter jets and transport aircraft? |
| A: Yes. Its dual-output configuration (28VDC and 115V 400Hz AC) and scalable power ratings are designed to support a wide range of military fixed-wing and rotary-wing aircraft that utilize these standard power systems. |
| Q4: How is it protected against sand, dust, and rain? |
| A: It features an IP56-rated enclosure, meaning it is dust-tight and protected against powerful water jets. Sealed connectors and a filtered, positive-pressure cooling system prevent contaminant ingress. |
| Q5: What is the typical setup time in the field? |
| A: Designed for rapid deployment. With a prepared, level site, the unit can be offloaded, connected to a generator or grid input, and ready to connect to an aircraft in under 30 minutes. |
