1 Single Phase to 3 Phase Converter
2.Input Power: Single Phase 220V/240V, 50Hz/60Hz
3.Output Power: Three Phase 220V/380V, 50Hz/60Hz
4.Conversion Technology: Digital static conversion with IGBT
5.Efficiency Rating: ≥90% with advanced power conversion
6.Phase Balance: 120° phase separation with balanced output
7.Key Applications: Workshops, small industries, remote locations
8.Brand: ACSOON (support OEM)
9.Protection Features: Overload, short circuit, over temperature protection.
- Product Description
1 Single Phase to 3 Phase Converter | Phase Conversion Power Solution
XI'AN JERRYSTAR INSTRUMENT CO., LTD introduces the efficient 1 Single Phase to 3 Phase Converter, designed to provide three-phase power from single-phase sources. Our 1 Single Phase to 3 Phase Converter enables the operation of three-phase equipment in locations where only single-phase power is available, offering a practical and cost-effective solution for various commercial and industrial applications.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity (Single Phase Output) | 1kVA - 200kVA |
| Capacity (Three Phase Output) | 1kVA - 2000kVA |
| Input Voltage (Single Phase) | 110-230VAC ±20% |
| Input Voltage (Three Phase) | 200-440VAC ±20% |
| Input Frequency | 50/60HZ or 40-70HZ |
| Output Voltage (Single Phase) | 0-300Vac |
| Output Voltage (Three Phase) | 0-520Vac |
| Output Frequency | 50/60/100/200/400HZ or 40-800HZ adjustable |
| Frequency Regulation | ≤0.1% |
| Voltage Regulation | ±1% |
| Output VTHD | <3% @ Linear load |
| Response Time | ≤2ms |
| Power Factor | ≥0.8 (Standard), ≥0.9 (12 Pulse Optional) |
| Overall Efficiency | ≥85% |
| Overload Capacity | 125% for 60s, 150% for 30s |
| Working Temperature | -10°C to 50°C |
| Altitude | <1800m |

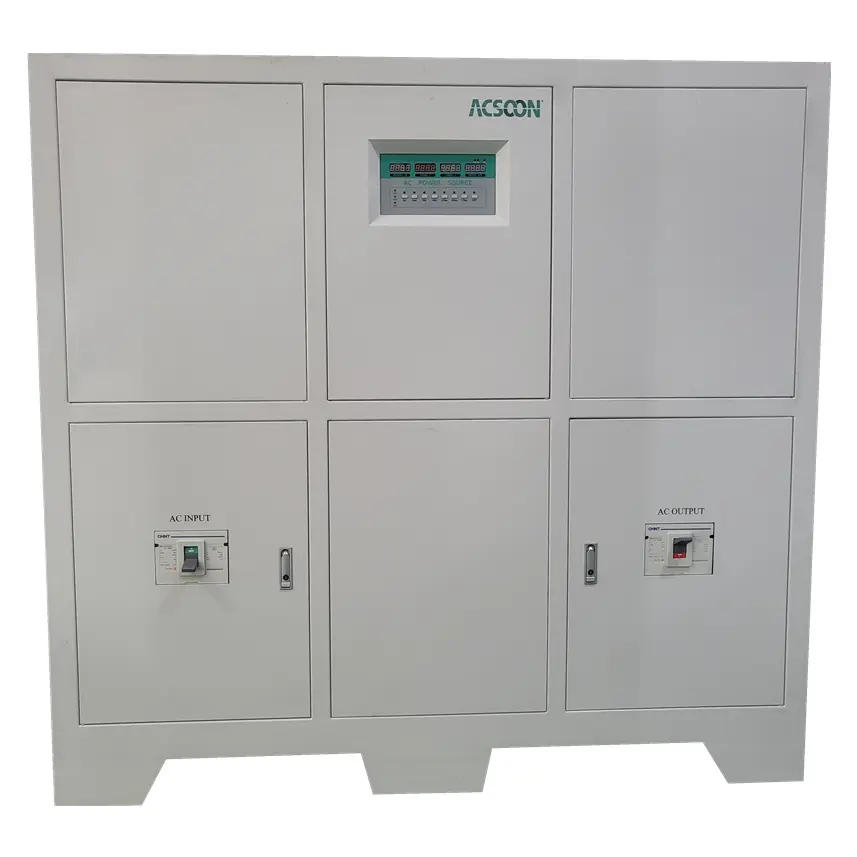

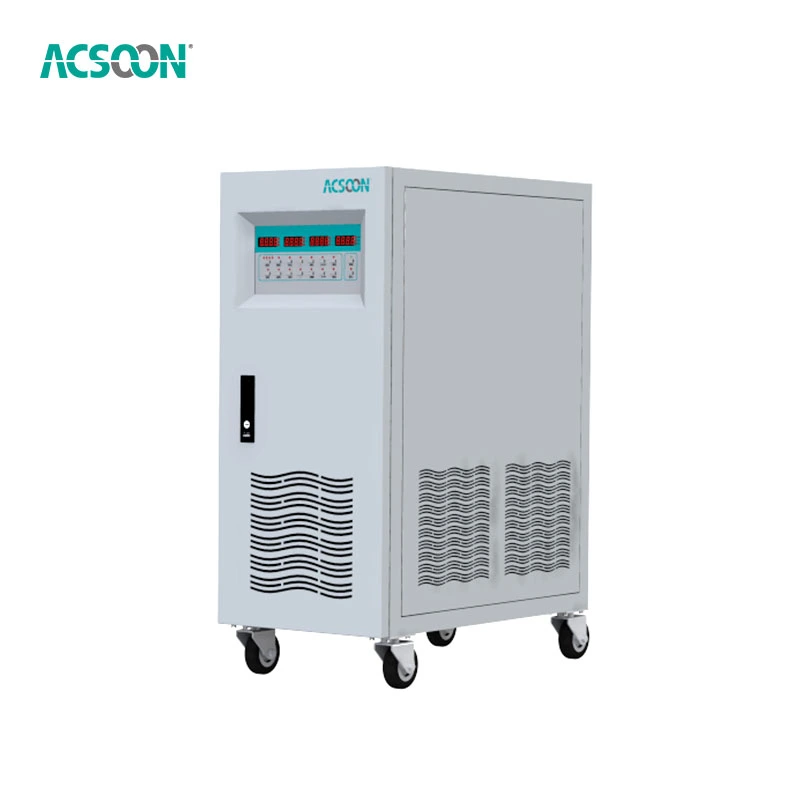

1 Single Phase to 3 Phase Converter
Main Features
- Isolated output transformer,suitable for any unbalance loads, each single phase can be used independently
- EMC compatible
- Compatible with both 50Hz and 60Hz power supply network
- Low harmonic distortion
- Pure sine wave,sinusoidal output
- Completely protection and alarm for over voltage, over current and overheating, etc
- Display real-time data: voltage,current,frequency, power / power factor
Why Choose ACSOON 1 Single Phase to 3 Phase Converter?
ACSOON 1 Single Phase to 3 Phase Converter offers distinct advantages for phase conversion needs:
Advanced Conversion Technology: Digital SPWM control ensures clean three-phase output
Compact and Portable: Space-saving design suitable for various installation environments
High Efficiency Operation: Minimum energy loss during phase conversion process
Comprehensive Protection: Overload, short circuit, and over temperature protection
User-Friendly Operation: Simple setup with clear status indicators and controls
Application Areas
Our 1 Single Phase to 3 Phase Converter serves diverse operational requirements:
Small Workshops: Operating three-phase machinery in single-phase power locations
Agricultural Operations: Powering three-phase farm equipment and irrigation systems
Commercial Establishments: Running three-phase HVAC and commercial appliances
Repair Shops: Supporting automotive and equipment repair operations
Remote Locations: Providing three-phase power in areas with limited electrical infrastructure
Educational Facilities: Technical training and engineering laboratory applications
Our Services
Quality Control
Each 1 Single Phase to 3 Phase Converter undergoes thorough quality validation:
Component-level testing and verification
Performance testing with various three-phase loads
Thermal management validation under continuous operation
Safety certification testing to international standards
Final calibration and operational verification
R&D Results
Our technical innovations in 1 Single Phase to 3 Phase Converter technology include:
Enhanced phase generation accuracy through advanced DSP control
Improved power density through optimized thermal design
Smart load adaptation for varying motor and equipment loads
Reduced harmonic distortion for cleaner power output
Modular design for reliability and easy maintenance
Packaging and Transportation
We ensure secure delivery of every 1 Single Phase to 3 Phase Converter:
Robust packaging with adequate protection for transportation
Custom packaging solutions for international shipping requirements
Comprehensive documentation including installation manuals
Global logistics support with tracking capabilities
After-Sales Service
We provide dedicated support for all 1 Single Phase to 3 Phase Converter installations:
Technical assistance for application-specific configurations
Installation guidance and operational support
Maintenance services and performance optimization
Remote troubleshooting assistance
Operator training for optimal system utilization
Qualification Certification
FAQ |
|---|
| Q1: What types of equipment can be powered by your 1 Single Phase to 3 Phase Converter? |
| A: Our converter can power various three-phase equipment including motors up to 20HP, machine tools, compressors, and other industrial machinery. |
| Q2: How does your converter maintain balanced three-phase output? |
| A: Our digital control system continuously monitors and adjusts the generated phases to maintain proper voltage balance and phase angles. |
| Q3: What is the installation requirement for your 1 Single Phase to 3 Phase Converter? |
| A: Installation requires a single-phase 220V/240V power source with adequate current capacity, proper grounding, and adequate ventilation space. |
| Q4: Can your converter handle motor starting currents? |
| A: Yes, our converter is designed with sufficient overload capacity to handle motor starting surges and temporary overload conditions. |
| Q5: What is the typical efficiency of your 1 Single Phase to 3 Phase Converter? |
| A: Our converter typically operates at ≥90% efficiency across the load range, ensuring minimal energy loss during phase conversion. |
