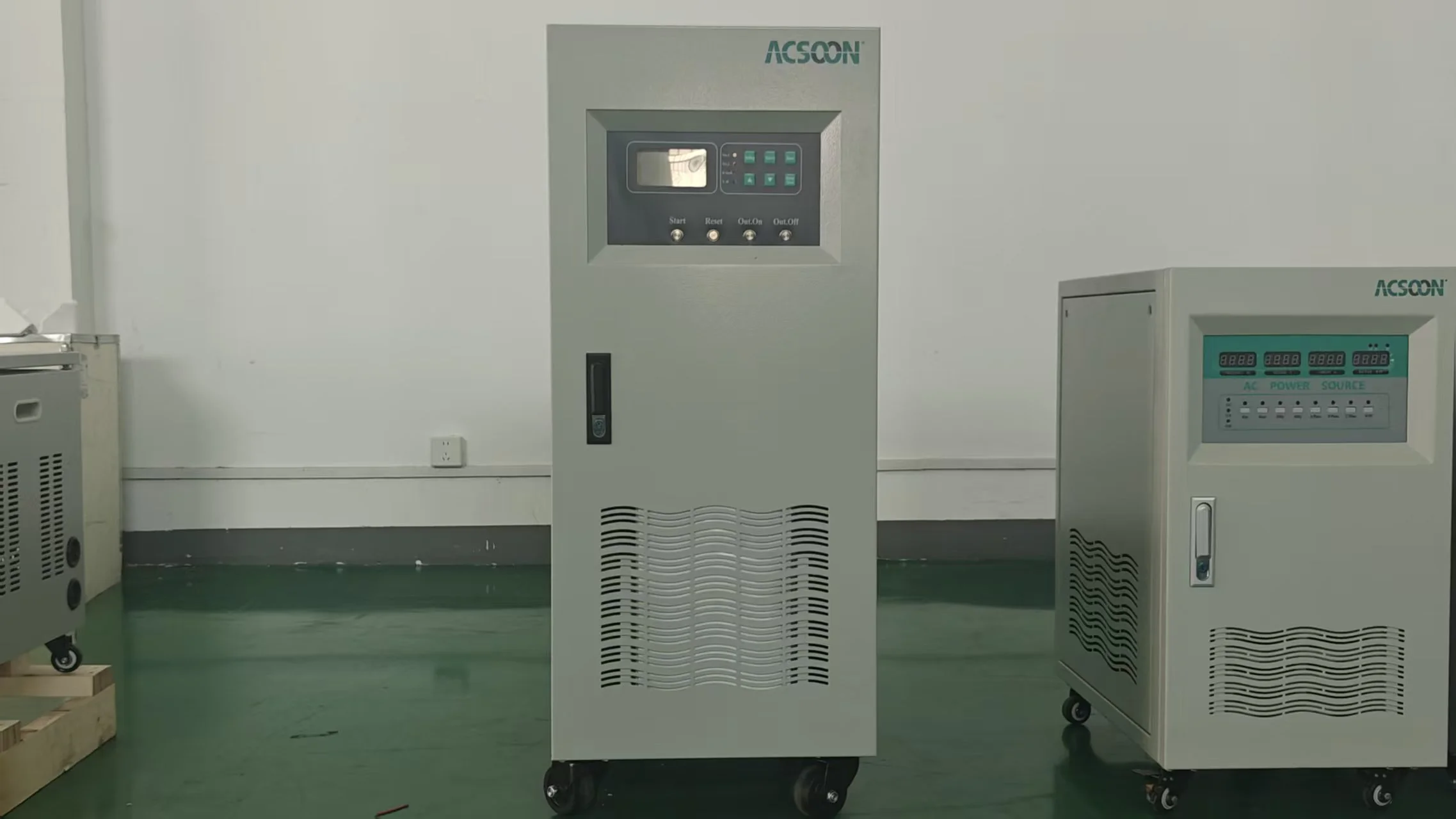

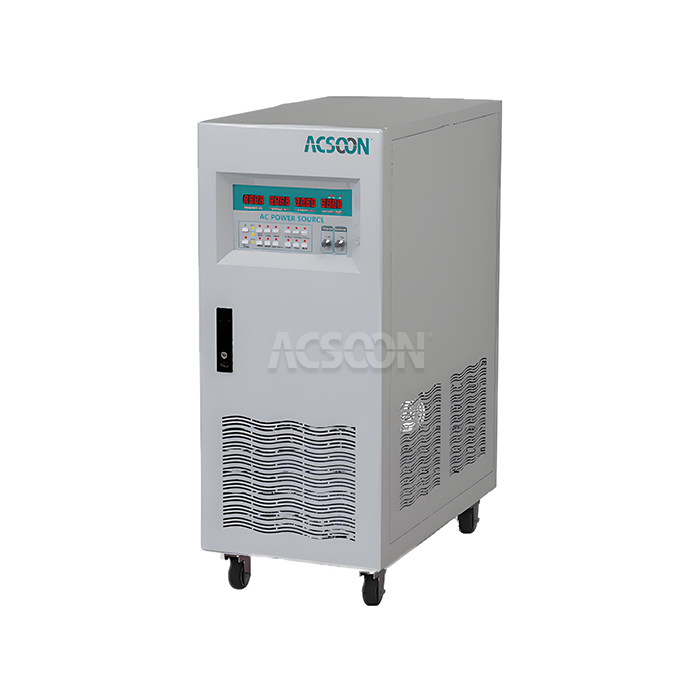

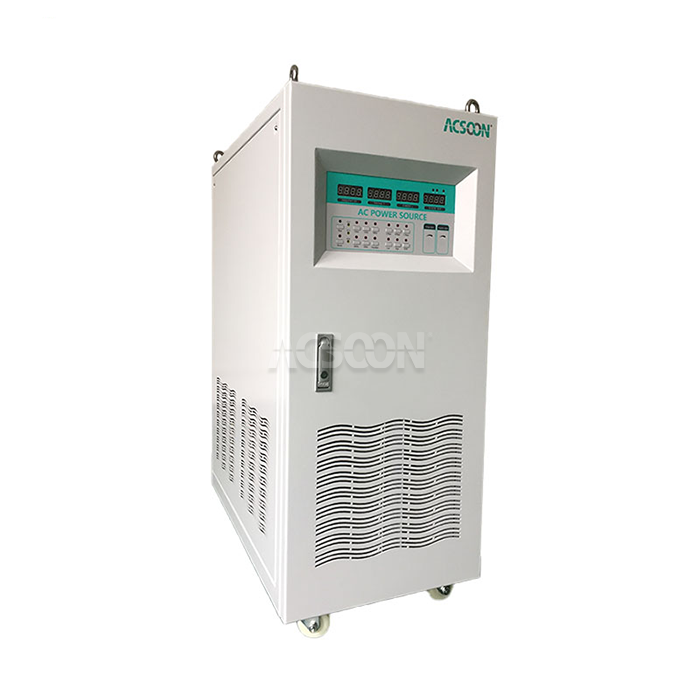

10KVA Converter
1.Rated Power: 10 kVA (Kilovolt-Ampere), with scalable and parallel-capable options.
2.Technology: Solid-state static frequency converter utilizing IGBT and SPWM technology.
3.Input: Compatible with global single-phase or three-phase mains (110V-480V, 50/60Hz).
4.Output: Configurable AC output with adjustable voltage and frequency (e.g., 0-300V, 45-500Hz).
5.Core Application: A versatile power source for testing laboratories, industrial automation, equipment burn-in, and simulation of various power grids.
6.Key Advantages: High power density, pure sine wave output, excellent regulation, and robust protection.
7.Brand: ACSOON – delivering reliable and precise power conversion solutions.
2.Technology: Solid-state static frequency converter utilizing IGBT and SPWM technology.
3.Input: Compatible with global single-phase or three-phase mains (110V-480V, 50/60Hz).
4.Output: Configurable AC output with adjustable voltage and frequency (e.g., 0-300V, 45-500Hz).
5.Core Application: A versatile power source for testing laboratories, industrial automation, equipment burn-in, and simulation of various power grids.
6.Key Advantages: High power density, pure sine wave output, excellent regulation, and robust protection.
7.Brand: ACSOON – delivering reliable and precise power conversion solutions.
- Product Description
10KVA Converter | High-Power Static Frequency & Voltage Converter for Testing & Industry
XI'AN JERRYSTAR INSTRUMENT CO., LTD presents its versatile 10KVA Converter, a high-capacity static power converter designed for demanding applications. This unit acts as a flexible AC power source, capable of transforming standard mains power into a clean, stable, and fully adjustable output. Whether for testing equipment designed for different countries, running industrial machinery, or simulating specific electrical conditions, the ACSOON 10KVA Converter provides the reliable and precise power essential for your operations.
Technical Summary
| Parameter | Specification |
|---|---|
| Input (AC) | |
| Phases | Single Phase or Three Phase (Configurable) |
| Voltage Range | 110V-240V (1-Ph), 208V-480V (3-Ph) (±15%) |
| Frequency | 50Hz / 60Hz (40-70Hz range) |
| Output (AC) | |
| Phases | Single Phase or Three Phase (Configurable) |
| Voltage | Adjustable, e.g., 0-150V (L-N), 0-300V (L-L) |
| Frequency | Adjustable, e.g., 45Hz - 500Hz |
| Performance | |
| Rated Power | 10 kVA |
| Regulation | Voltage: ±1%; Frequency: ±0.1% |
| Waveform | Pure Sine Wave |
| THD | <3% (Linear Load) |
| Efficiency | ≥85% |
| General | |
| Display | Digital LED/LCD |
| Protection | OVP, OCP, SCP, OTP |
| Overload | 125% for 1 second |
| Cooling | Forced Air |
| Operating Temp. | -10°C to 45°C |
| Standards | EN60204-1, IEC 62321, EN61000-6-3 |
10KVA Converter Main Features
- Static frequency conversion with galvanic isolation via output transformer.
- Pure sine wave output suitable for linear and non-linear loads.
- Wide-range adjustable output voltage and frequency.
- Digital LED/LCD display for monitoring voltage, current, frequency, and power.
- Complete protection suite: Over Voltage, Over Current, Short Circuit, Over Temperature.
- High efficiency (≥85%) and low acoustic noise operation.
- Optional communication interfaces (RS232/RS485) for remote control and monitoring.
- Rugged metal enclosure (IP20/IP21 standard).
Why Choose ACSOON 10KVA Converter?
The ACSOON 10KVA Converter stands out as a robust and adaptable power solution. Key advantages include:
- High Power in a Compact Format: Delivers 10kVA of clean power from a solid-state, space-efficient design, ideal for lab benches or integrated systems.
- Exceptional Flexibility: Adjustable output voltage and frequency allow simulation of various international power standards or custom test profiles.
- Superior Power Quality: Generates a pure, low-distortion sine wave (THD <3%), protecting sensitive loads from harmonic damage.
- Unmatched Reliability: Built with industrial-grade IGBTs and featuring comprehensive protection circuitry, it ensures continuous, worry-free operation.
- Global Input Compatibility: Works with a wide range of input voltages and frequencies, making it a truly global power solution.
Application Areas
The 10KVA Converter serves a broad spectrum of industries and functions:
- Testing & Certification Labs: Powering and testing household appliances, power tools, IT equipment, and industrial controls to international standards.
- Manufacturing & Burn-in: Providing stable power for production line testing and extended reliability testing (burn-in) of electronic products.
- Industrial Automation: Serving as a dedicated, clean power source for sensitive PLCs, servo drives, and robotic systems.
- Telecommunications: Testing power supplies and backup systems for base stations and network equipment.
- Research & Development: A flexible power source for prototyping, experimenting with motors, transformers, and power electronics.
- Aerospace Support (Ground): Powering 400Hz avionics test benches or acting as a ground power source (with appropriate frequency setting).
Our Services
01
Quality Control
Every 10KVA Converter is subject to a stringent quality assurance protocol:
- Incoming inspection for all major components (IGBTs, capacitors, transformers).
- Automated testing of control boards and power stages.
- Full-load performance and thermal stability burn-in testing.
- Verification of all adjustable ranges, protection functions, and display accuracy.
02
R&D Results
Our ongoing development enhances the 10KVA Converter platform:
- Implementation of advanced DSP control for more precise waveform generation and faster transient response.
- Design optimizations for improved thermal performance and higher power density.
- Development of software tools for easier waveform profiling and sequence testing.
03
Packaging and Transportation
- Unit is securely mounted in a robust, free-standing steel cabinet.
- Packaged in a custom wooden crate with protective foam inserts.
- Shipped with comprehensive documentation, including user manual and test certificates.
04
After-Sales Service
- Standard 18-month warranty.
- Access to detailed technical documentation and wiring diagrams.
- Remote support capability via communication interfaces.
- Available global service network for maintenance and repairs.
Qualification Certification
CE Marking (EMC & LVD Directives)；ISO 9001:2015 Quality Management System；Compliance with relevant IEC and EN standards
FAQ |
|---|
| Q1: What exactly does a "10KVA Converter" do? |
| A1: It is a power electronic device that converts incoming AC mains power (e.g., 240V 50Hz) into a different, user-defined AC output (e.g., 120V 60Hz or 115V 400Hz), providing up to 10,000 Volt-Amps of power. |
| Q2: Can this converter also change voltage without changing frequency? |
| A2: Yes. It can be set to output the same frequency as the input while only adjusting the voltage, functioning as a high-power, precision voltage source. |
| Q3: Is it suitable for powering three-phase motors? |
| A3: Yes, the three-phase output model is excellent for testing and running three-phase motors, pumps, and fans, especially where variable frequency for speed control is needed. |
| Q4: How does it differ from a simple transformer? |
| A4: A transformer only changes voltage. This converter changes both voltage and frequency, provides a regulated output unaffected by input fluctuations, and offers full digital control and protection. |
| Q5: Can I get a different power rating, like 15KVA or 20KVA? |
| A5: Absolutely. While this page highlights the 10KVA model, ACSOON offers a full range of converters from 1KVA to 300KVA and beyond. Please contact us for other ratings. |
Contact Us
For technical specifications or customized 10KVA Converter solutions: acpower@acsoonpower.com, or submit your requirements using the form at the bottom of our website.
