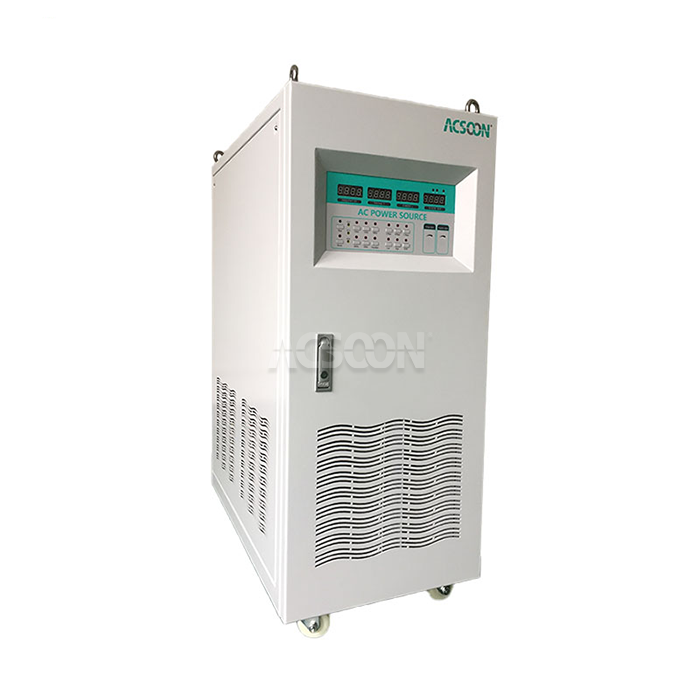

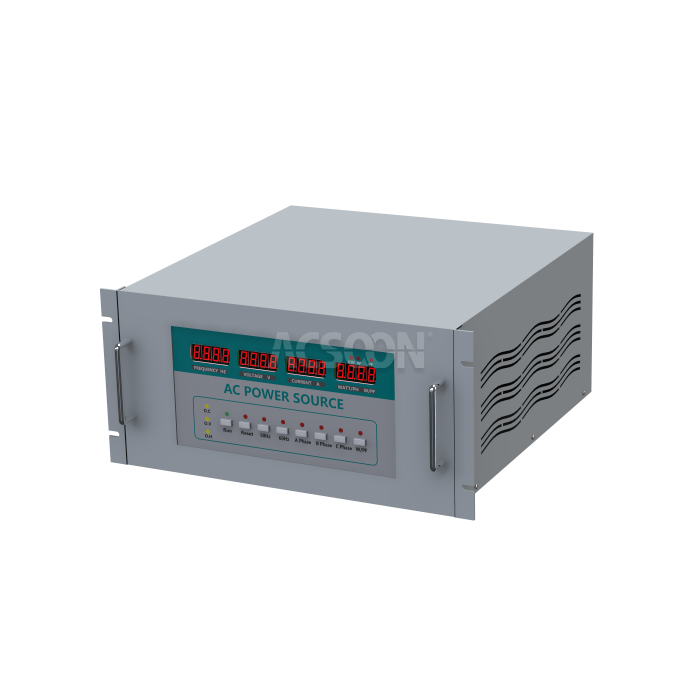

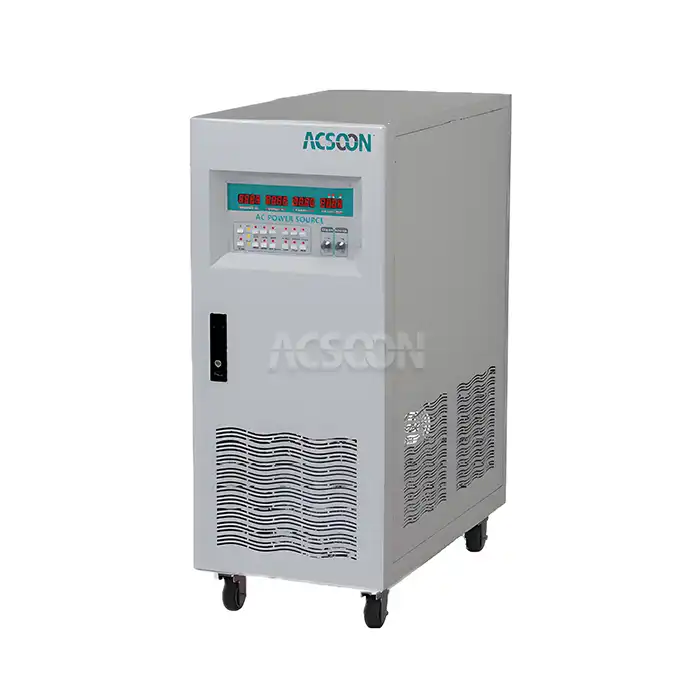

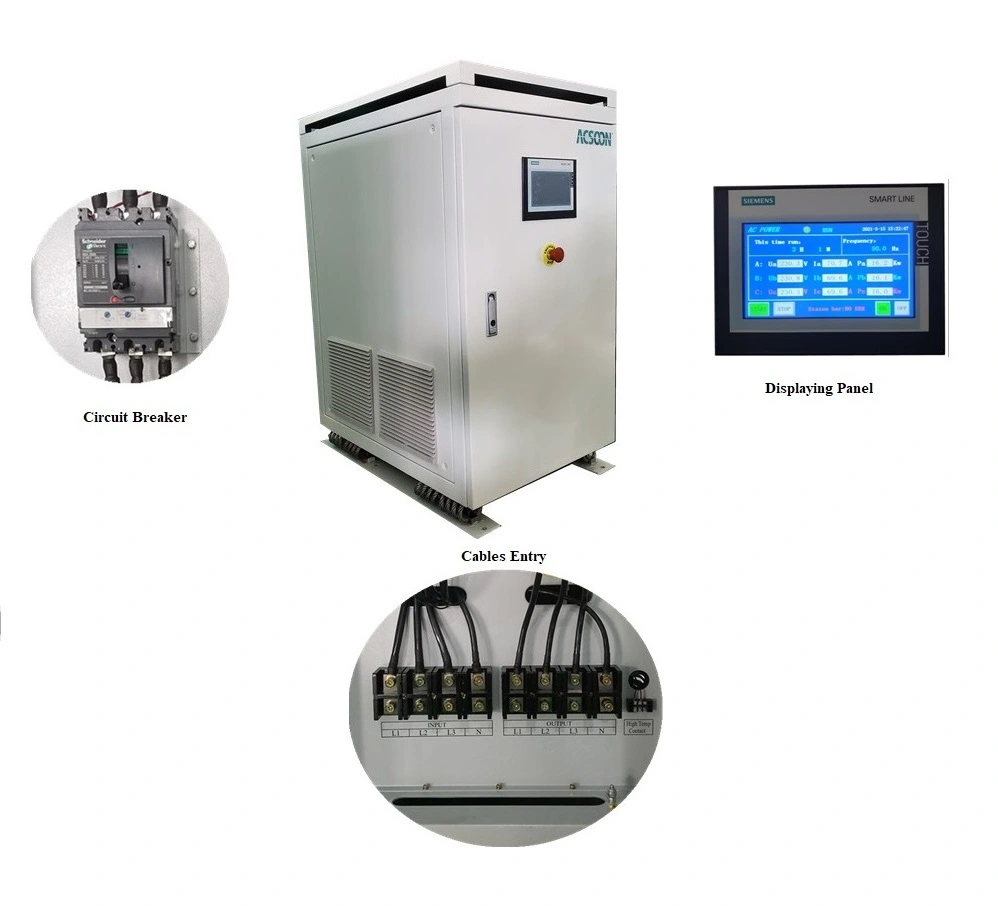

230V 50Hz 110V 60Hz Converter

1.Power Range: 1kVA to 60kVA (Single & Three Phase models available)
2.Technology: IGBT-based Static Frequency Converter with Isolated Transformer
3.Input: 230V, 50Hz Single Phase (or 400V, 50Hz Three Phase)
4.Output: 110V, 60Hz Single Phase (or 120/208V, 60Hz Three Phase)
5.Applications: Operating North American/Japanese equipment in 230V regions, product testing, laboratory use, manufacturing
6.Core Features: Pure sine wave output, precise voltage/frequency regulation, compact design, high reliability
7.Brand: ACSOON (Customized solutions supported).

Send Inquiry Download

Product Description

XI'AN JERRYSTAR INSTRUMENT CO., LTD provides the professional 230V 50Hz 110V 60Hz Converter, designed to solve international power compatibility challenges. This static frequency converter reliably transforms standard 230V 50Hz power (common in Europe, Asia, Australia) to 110V 60Hz (common in North America, Japan), enabling safe and efficient operation of imported equipment and facilitating global product testing and manufacturing.

Parameter	Specification
Model Series	ACSOON AF-Series Static Frequency Converter
Input	Voltage: 230V ±15% (1-Phase) / 400V ±15% (3-Phase) Frequency: 50Hz (40‑70Hz range)
Output	Voltage: 110V ±1% (adjustable range) Frequency: 60Hz ±0.1% Configuration: Single Phase or Three Phase Power: 1kVA, 2kVA, 3kVA, 5kVA, 10kVA, 15kVA, 20kVA, 30kVA, 45kVA, 60kVA
Output THD	<3% @ linear load
Efficiency	≥85%
Display	Digital LED (Output V, I, F)
Cooling	Fan Cooling
Protections	Over Voltage, Over Current, Short Circuit, Over Temperature
Operating Temp.	-10°C to 45°C

Clean Power Output: Delivers pure sine wave with low harmonic distortion (THD <3%), safe for sensitive electronics.
Adjustable Voltage: Output voltage can be finely adjusted within a range (e.g., 100-120V) to meet specific equipment requirements.
Isolated Transformer Design: Provides galvanic isolation, enhancing safety and allowing use with unbalanced loads.
Robust Protection Suite: Includes safeguards against over-voltage, over-current, short-circuit, and overheating.

Precise Power Conversion: Accurately converts 230V/50Hz input to stable 110V/60Hz output with excellent regulation (±1% voltage, ±0.1% frequency).
Broad Equipment Compatibility: Enables trouble-free operation of 110V/60Hz appliances, machinery, and test equipment in regions with 230V/50Hz mains.
High Reliability & Safety: Built with industrial-grade IGBTs and an isolation transformer, featuring comprehensive electrical protection for both source and load.
User-Friendly Operation: Simple setup with clear digital display for real-time monitoring of voltage, current, and frequency.

Testing Laboratories & R&D: For validating products destined for different international markets under their native power conditions.
Manufacturing Facilities: Powering imported assembly machines, tools, and specialized equipment that require 110V/60Hz.
Home & Office Use: Safely operating personal appliances, audio/video gear, and office equipment from North America/Japan abroad.
Service & Repair Centers: Servicing and troubleshooting exported goods without needing a native power source.

Quality Control

Incoming Component Verification: All semiconductors, magnetic components, and capacitors are tested against specifications before assembly.
Full-Load Performance Test: Each unit is tested at 100% rated load for a minimum period to verify stability and temperature rise.
Waveform & Regulation Analysis: Output waveform purity (THD), voltage accuracy, and frequency stability are meticulously measured and calibrated.
Final Safety & Function Audit: A comprehensive check of all protective features, insulation resistance, and grounding safety is performed.

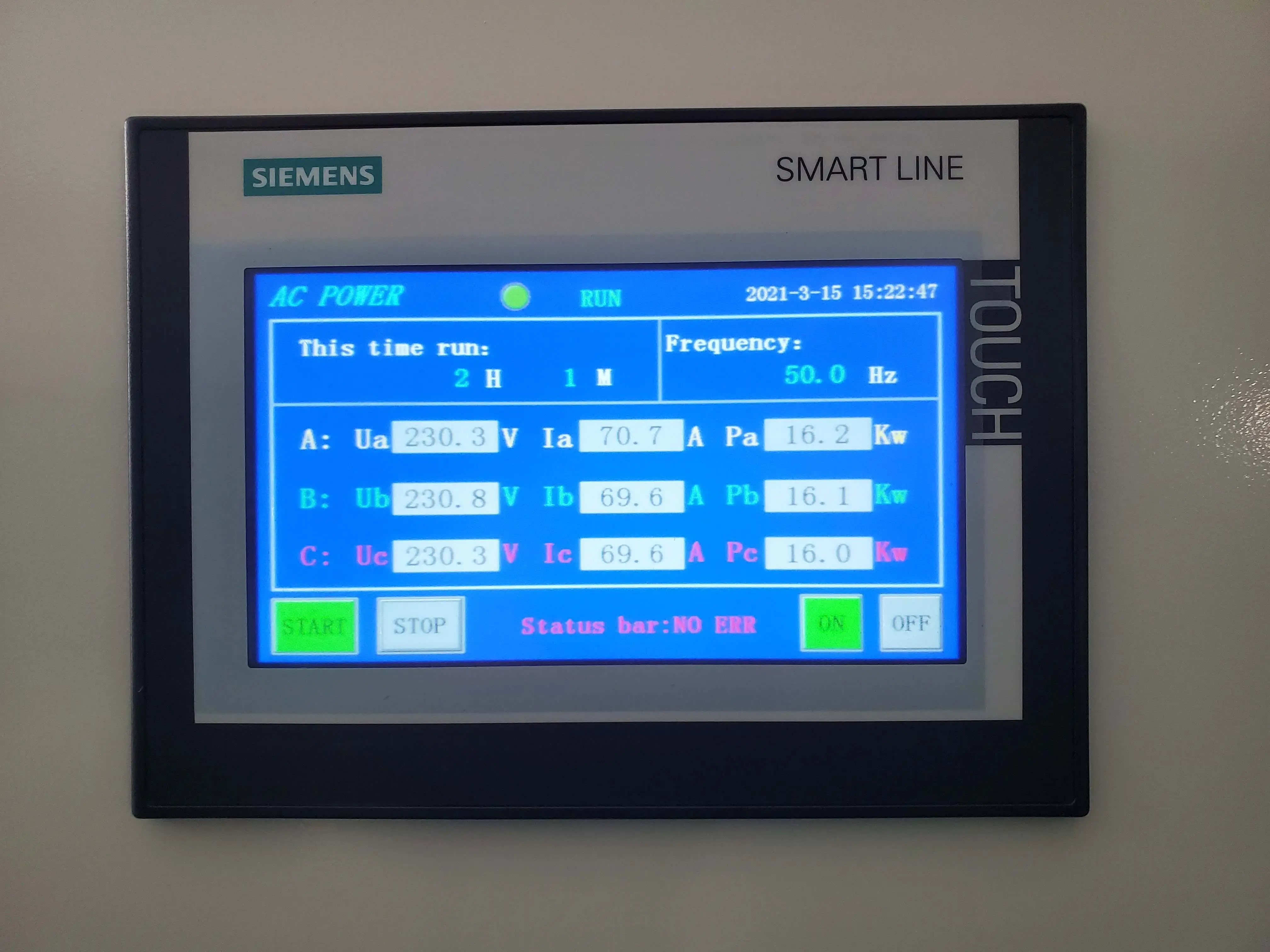

R&D Results

Optimized Conversion Topology: Developed an efficient circuit layout that minimizes energy loss and maximizes power density in a compact chassis.
Stable Frequency Generation: Implemented a precise digital frequency synthesis circuit to ensure accurate and stable 60Hz output from a 50Hz source.
Enhanced Thermal Management: Designed an effective cooling system that maintains optimal operating temperatures even during continuous high-load use.
Advanced Communication Option: Integrated RS485 communication ports in select models for remote monitoring and control capabilities.

Packaging and Transportation

Secure, Standard Packaging: The converter is packed in a high-strength cardboard box with custom foam inserts to prevent movement and shock damage.
Environmental Protection: Packaging includes moisture-resistant barriers for protection during maritime or humid climate shipping.
Complete Accessory Kit: Each unit ships with a user manual, test certificate, and necessary cables/connectors as standard.
Global Export Readiness: Products are prepared with compliant labeling and documentation for smooth international shipping and customs clearance.

After‑Sales Service

We provide an 18-month warranty, readily accessible technical support via email and phone, detailed online documentation, and a supply of common spare parts to ensure long-term customer satisfaction.

ISO 9001:2015 Certification: Our production process adheres to this international quality management standard;CE Marking: The product complies with relevant EU Low Voltage and EMC directives, ensuring safety and electromagnetic compatibility;Rigorous Factory Testing: Each unit is accompanied by a factory test report verifying its performance against published specifications.

FAQ
Q1: What is the main purpose of this converter?
A: Its primary purpose is to allow electrical equipment designed for 110-volt, 60-hertz power (like that used in the USA and Japan) to operate safely and correctly from a standard 230-volt, 50-hertz power outlet (common in Europe, Asia, and other regions).
Q2: Can I adjust the output to 115V or 120V?
A: Yes, most models feature an adjustable output voltage. You can typically set it to 110V, 115V, or 120V as required by your specific equipment.
Q3: Is it suitable for continuous, 24/7 operation?
A: Yes, these converters are designed for industrial and commercial use and can handle continuous operation at their rated power, provided they are installed in a well-ventilated environment.
Q4: Will it work with motorized appliances like refrigerators or power tools?
A: Yes. The pure sine wave output and robust power delivery make it suitable for inductive loads like motors. Ensure the converter's power rating (in kVA or watts) exceeds the appliance's starting and running power requirements.
Q5: Do I need an electrician to install it?
A: For plug-and-play low-power models (e.g., 1-3kVA), installation may be simple. For higher-power, hardwired units, installation must be performed by a qualified electrician in accordance with local electrical codes.
