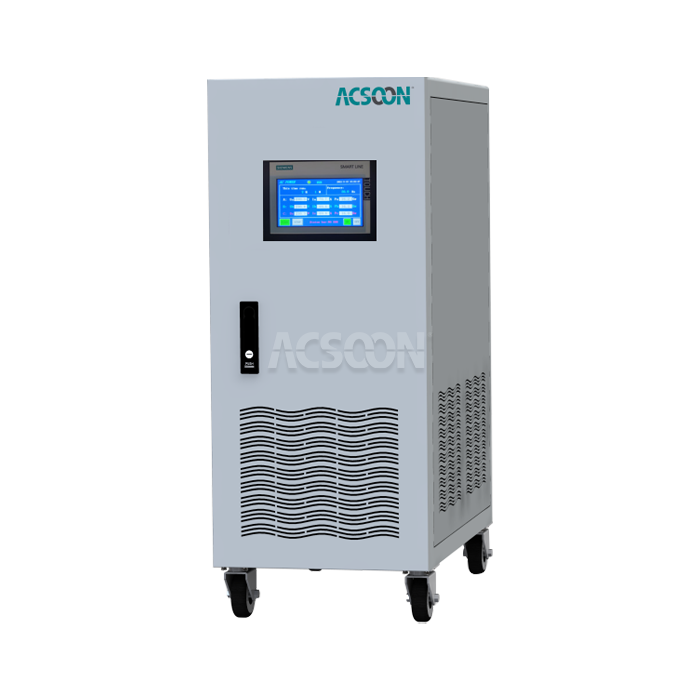

230V 50Hz to 110V 60Hz Converter

1.Rated Power: 1kVA to 60kVA (single & three phase models available)
2.Technology: IGBT-based Static Frequency Conversion with isolated transformer
3.Input: 230V, 50Hz Single Phase or 400V, 50Hz Three Phase
4.Output: 110V, 60Hz Single Phase or 120/208V, 60Hz Three Phase
5.Applications: Testing international appliances, powering imported equipment, lab & R&D, manufacturing
6.Features: Pure sine wave output, precise voltage/frequency regulation, compact & robust design
7.Brand: ACSOON (OEM/ODM supported)

Send Inquiry Download

Product Description

230V 50Hz to 110V 60Hz Converter | Precision Voltage & Frequency Power Supply

XI'AN JERRYSTAR INSTRUMENT CO., LTD specializes in manufacturing high-performance 230V 50Hz to 110V 60Hz Converters, designed to solve compatibility challenges between regional power standards. Our converters ensure safe, stable, and clean power conversion for sensitive equipment, testing setups, and international operations. Built with advanced IGBT technology and industrial-grade components, they deliver reliability in diverse environments.

Datasheet

Parameter	Specification
Model Range	ACSOON Static Frequency Converter Series
Input	Voltage: 230V ±15% (1-Phase) / 400V ±15% (3-Phase) Frequency: 50Hz (40‑70Hz range)
Output	Voltage: 110V ±1% adjustable (1-Phase) / 120/208V (3-Phase) Frequency: 60Hz ±0.1% (45‑200Hz adjustable)
Power Capacity	1kVA, 2kVA, 3kVA, 5kVA, 10kVA, 15kVA, 20kVA, 30kVA, 45kVA, 60kVA
Voltage Regulation	≤ ±1% FS
Frequency Stability	≤ ±0.1% FS
Output THD	<3% @ linear load
Efficiency	≥85%
Power Factor	≥0.8
Overload Capacity	125% for 1 minute
Display	4-digit LED: V, I, F, P, PF
Cooling	Fan cooling
Protection	Over voltage, over current, short circuit, over temperature
IP Rating	IP20/IP21 (IP32/IP54 optional)
Standards	EN60204‑1, IEC 62321, EN61000‑6‑3
Operating Temp.	-10°C to 45°C
Humidity	10‑95% non‑condensing

230V 50Hz to 110V 60Hz Converter Main Features

Dual Conversion Technology: AC-DC-AC conversion ensures clean, stable output independent of input fluctuations.
Pure Sine Wave Output: Low THD (<3% at linear load) protects sensitive electronics and ensures proper motor operation.
Isolated Output Transformer: Provides galvanic isolation, improves safety, and supports unbalanced loads.
Adjustable Voltage & Frequency: Output voltage adjustable within range; frequency adjustable from 45Hz to 200Hz if needed.
Digital Monitoring: LED/LCD displays real-time voltage, current, frequency, power, and power factor.
High Efficiency & Power Factor: Efficiency ≥85%, input power factor ≥0.8.
Comprehensive Protection: Includes over-voltage, over-current, short-circuit, over-temperature, and alarm functions.
Rugged Metal Enclosure: IP20/IP21 standard (IP32/IP54 optional), free-standing or rack-mount design.

Why Choose ACSOON 230V 50Hz to 110V 60Hz Converter?

ACSOON’s 230V 50Hz to 110V 60Hz Converter is engineered for accuracy, durability, and ease of use. Key advantages include:

Accurate Conversion: Delivers precisely regulated 110V/60Hz output from 230V/50Hz input with minimal distortion.
Wide Load Compatibility: Handles linear and non-linear loads thanks to isolated transformer design and strong overload capacity.
Global Compliance: Meets international safety and EMC standards (CE, IEC, EN).
User-Friendly Operation: Real-time digital display and intuitive controls for voltage/frequency adjustment.
Compact & Efficient: High power density and efficiency (≥85%) reduce footprint and energy waste.
Robust Protection: Comprehensive safeguards against over-voltage, over-current, short circuit, and overheating.
Flexible Configurations: Available in single-phase and three-phase models, with power ratings from 1kVA to 60kVA.

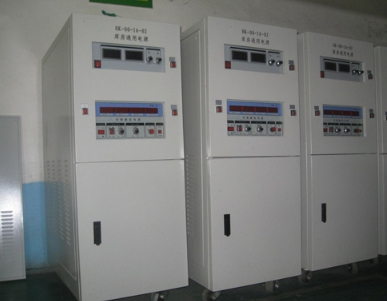

230V 50Hz to 110V 60Hz Converter Application Areas

This converter is essential in various settings where power standard compatibility is required:

Product Testing Labs: For validating appliances and electronics designed for 110V/60Hz markets.
Manufacturing Lines: Powering imported machinery and assembly equipment in regions with 230V/50Hz supply.
Research & Development: Supporting international R&D projects requiring precise voltage and frequency simulation.
Service & Repair Centers: Servicing North American/Japanese equipment in Europe, Asia, Africa, and other 230V/50Hz regions.
Audio/Video & Broadcasting: Powering professional AV gear and broadcast equipment with specific power requirements.
Industrial Automation: Integrating control systems and sensors that operate on 110V/60Hz into 230V/50Hz plants.
Educational Institutions: Used in engineering and vocational training for power technology demonstrations.
Field Operations & Exhibitions: Providing compatible power for temporary setups, trade shows, and mobile testing units.

Our Services

Quality Control

Each 230V 50Hz to 110V 60Hz Converter undergoes:

Incoming component verification and circuit testing.
Full-load burn-in testing with resistive and inductive loads.
Waveform analysis to ensure THD and purity standards.
Safety and insulation resistance tests.
Final functional verification and calibration.

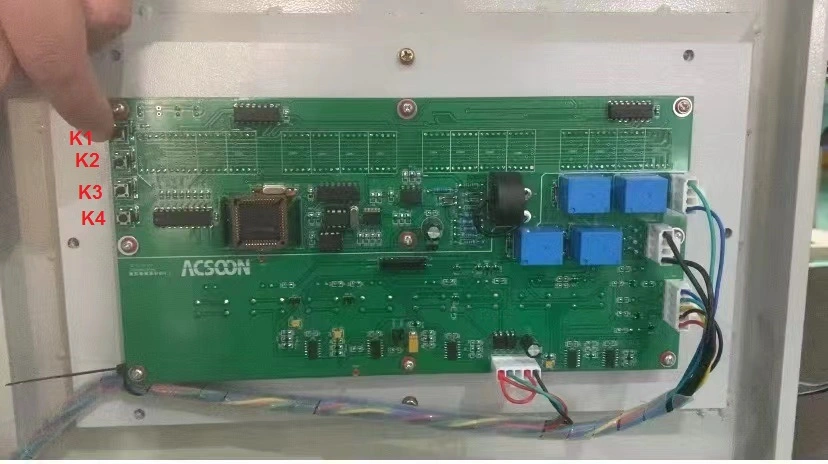

R&D Results

Our development efforts for the 230V 50Hz to 110V 60Hz Converter have achieved:

Optimized SPWM control for lower harmonics and better waveform fidelity.
Enhanced thermal management for reliable operation in extended duty cycles.
Compact layout design reducing size and weight without compromising performance.
Optional communication interfaces (RS232/RS485) for remote control and monitoring.

Packaging and Transportation

Secure packaging in double-wall carton or wooden crate with foam cushioning.
Worldwide shipping via air or sea with tracking.
Custom labeling and documentation as per client requirements.
Professional handling guidance provided.

After‑Sales Service

24-month warranty with extended support options.
Online and onsite troubleshooting.
Firmware updates and maintenance guidance.
Ready stock of common spare parts.

Qualification Certification

ISO 9001:2015 Certified manufacturing；CE Compliant；Test reports available upon request.

FAQ
Q1: What is the main purpose of a 230V 50Hz to 110V 60Hz Converter?
A: It allows equipment designed for 110V, 60Hz power (common in North America, Japan, parts of South America) to operate safely and efficiently in regions with 230V, 50Hz supply (common in Europe, Asia, Africa, Australia).
Q2: Can the output voltage be adjusted if I need 120V instead of 110V?
A: Yes, the output voltage is adjustable within a range (e.g., 0‑150V L-N), allowing you to set it to 110V, 115V, 120V, etc., as required.
Q3: Is this converter suitable for continuous operation?
A: Yes, it is designed for 24/7 continuous duty in industrial and lab environments, with proper cooling and load within rated capacity.
Q4: Does it work with motorized loads and transformers?
A: Yes, the pure sine wave output and robust current capability support inductive loads like motors, transformers, and pumps.
Q5: What is the lead time for a 10kVA model?
A: Typically 3‑4 weeks for standard models; express production is available.
