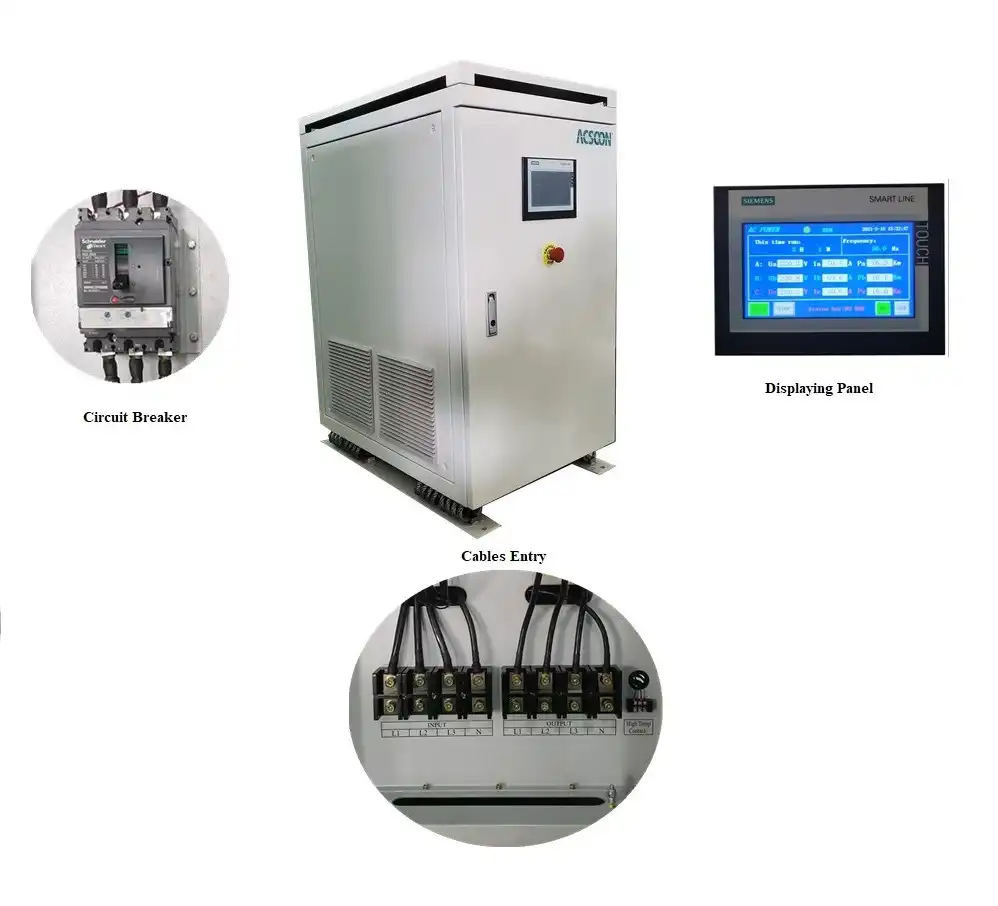

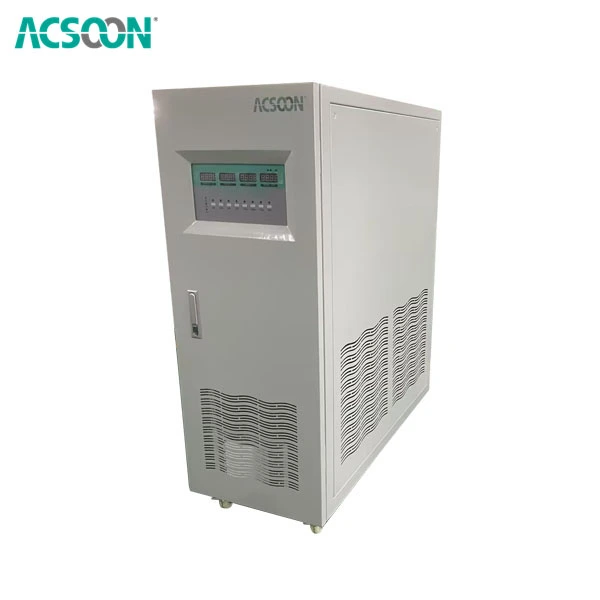

240V DC To AC Inverter
2. Power Rating: 30kVA
3. Input Voltage : 240VDC
4. Output Voltage & Frequency: 0-300V,0-520V, 50HZ - 60HZ
5. Type: Pure Sine Wave Inverter
6. Ingress Protection Grade: IP21
7. Applications: Electronics tests,home appliances
8. Brand: ACSOON (support OEM)
9. Features: Thoroughly proven advanced SPWM and IGBT technology，EMC compatible,low noise.
- Product Description
XI'AN JERRYSTAR INSTRUMENT CO., LTD: Your Trusted 240v DC to AC Inverter Manufacturer
XI'AN JERRYSTAR INSTRUMENT CO., LTD is a leading manufacturer and supplier of high-quality 240v DC to AC inverters. With over 15 years of experience, we offer cutting-edge solutions for various industries. Our products stand out for their exceptional efficiency, durability, and compliance with international standards. We pride ourselves on delivering reliable power conversion products that meet the diverse needs of our global clientele.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity (Single Phase Output) | 1kVA - 200kVA |
| Capacity (Three Phase Output) | 1kVA - 500kVA |
| AC Input (Single Phase) | 110VAC - 230VAC (L-N) |
| AC Input (Three Phase) | 200VAC - 440VAC (L-L) |
| Frequency | 50HZ / 60HZ, 40HZ - 70HZ |
| DC Input | 48V - 600VDC (customizable) |
| AC Output (Single Phase) | 0-300VAC (L-N) (customizable) |
| AC Output (Three Phase) | 0-520VAC (L-L) |
| Frequency Regulation | ≦0.1% |
| Voltage Regulation | +/-1% |
| Output VTHD | <3% @ Linear load |
| Response Time | ≦2ms |
| Power Factor | ≧0.8 (Standard), ≧0.9 (12 Pulse Optional) |
| Overall Efficiency | ≧85% |
| Overload Capacity | 125% for 30 seconds |
| Communication Protocol | Modbus RS232 / RS485 (Optional) |
| Cooling | Forced air |
| MTBF | 30,000H |
| Working Temperature | -10℃ to 50℃ |
| Altitude | ＜1800m |
Application Areas
Renewable Energy Systems
Solar Power
Wind Farms
Hybrid Solutions
Industrial Automation
Manufacturing Facilities
Process Control Systems
Robotics / CNC Machines
Telecommunications
Cell Towers
Data Centers
Remote Stations
Transportation
EV Charging Stations
Railway Signaling
Marine Power Systems
Backup Power Solutions
Healthcare Facilities
Emergency Services
Critical Infrastructure
Off-Grid Applications
Remote Communities
Mining Operations
Military Installations
Why choose Acsoon 240v DC to AC Inverter
Quality Control
At XI'AN JERRYSTAR INSTRUMENT CO., LTD, quality is paramount. Our rigorous quality control process includes:
Strict component selection and testing
Multiple inspection points during production
Comprehensive final product testing
Regular calibration of testing equipment
Continuous improvement based on customer feedback
Packaging and Transportation
We ensure safe delivery of our 240v DC to AC inverters through:
Shock-resistant packaging materials
Custom-designed crates for larger units
Clear labeling and handling instructions
Partnering with reliable logistics providers
Real-time shipment tracking
After-Sales Service
Our comprehensive after-sales support includes:
24/7 technical assistance
Remote diagnostics and troubleshooting
On-site maintenance and repair services
Regular software updates
Training programs for end-users
Qualification Certification
Our products are certified by:
ISO 9001:2015 Quality Management System
CE (European Conformity)
UL (Underwriters Laboratories)
RoHS Compliance
IEC Standards
| FAQ |
|---|
| 1Q: What is the warranty period for your products? |
| A: We offer a standard 2-year warranty, with options to extend up to 5 years. |
| 2Q: Can your inverters be integrated with existing power systems? |
| A: Yes, our inverters are designed for easy integration with various power systems and can be customized to meet specific requirements. |
| 3Q: How do I determine the right inverter capacity for my needs? |
| A: Our technical team can assist you in calculating the appropriate inverter size based on your power requirements and application specifics. |
| 4Q: Are your inverters suitable for outdoor installation? |
| A: Yes, we offer models with IP65 protection rating suitable for outdoor use in various environmental conditions. |
| 5Q: Do you provide installation services for your inverters? |
| A: While we don't directly provide installation services, we can recommend certified partners in your region for professional installation. |
Contact Us
For more information about our 240v DC to AC inverters or to discuss your power conversion needs, please contact us at acpower@acsoonpower.com.
