3 Phase AC Power Source
2.Input Voltage: 380V/400V/415V/480V, three-phase, 50Hz/60Hz
3.Output Configuration: 0-520V AC adjustable, three-phase + neutral
4.Frequency Range: 45Hz-500Hz programmable output
5.Voltage Stability: ±1% under line and load variations
6.Frequency Accuracy: ±0.1% with digital precision control
7.Key Applications: Industrial testing, motor evaluation, production automation
8.Brand: ACSOON (support OEM)
9.Efficiency Rating: ≥92% with advanced power conversion technology.
- Product Description

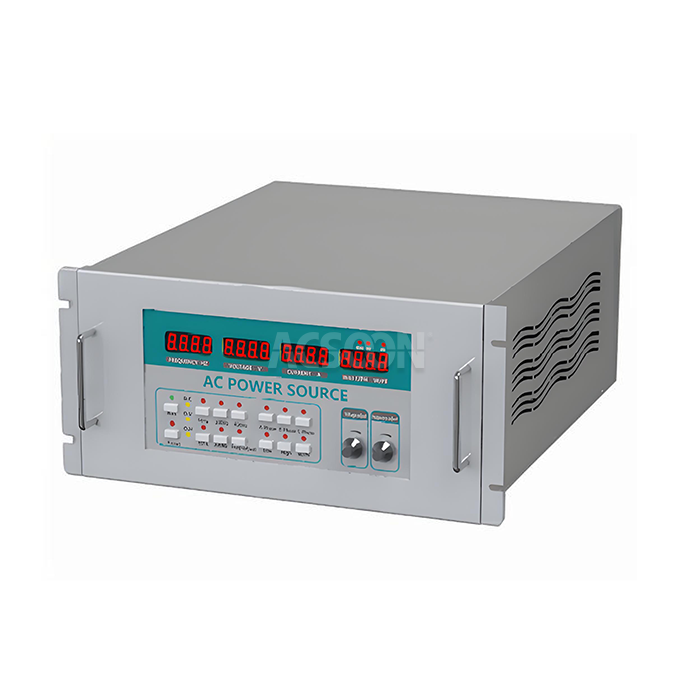

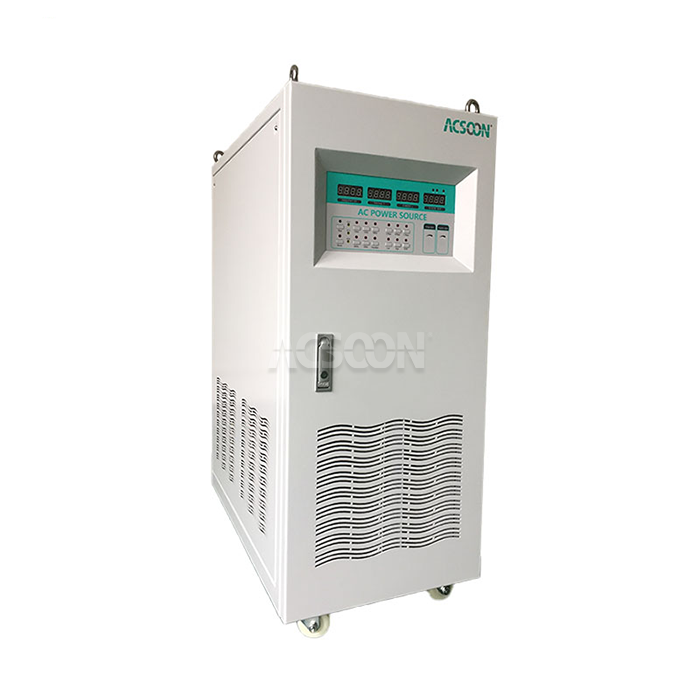

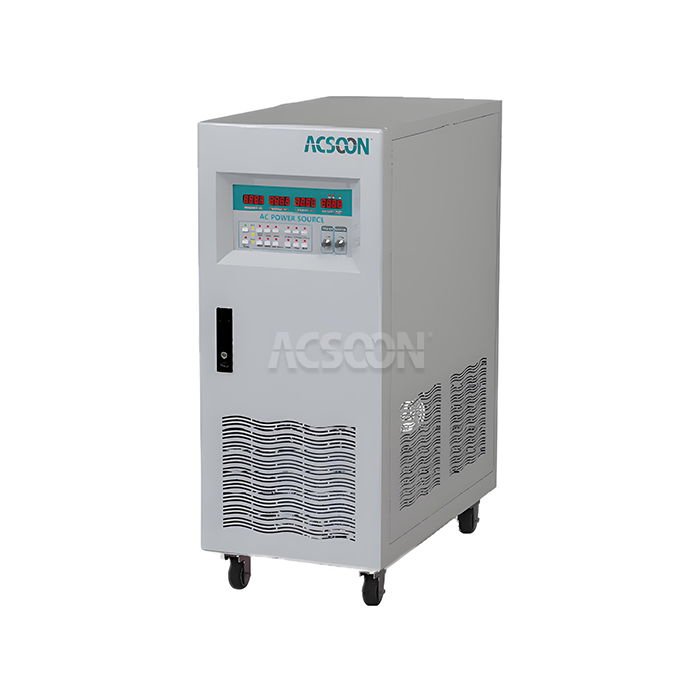

3 Phase AC Power Source | Industrial Grade AC Power System
XI'AN JERRYSTAR INSTRUMENT CO., LTD presents the advanced 3 Phase AC Power Source, designed to deliver precise and stable three-phase AC power for industrial testing and manufacturing applications. Our 3 Phase AC Power Source offers exceptional flexibility with programmable voltage and frequency outputs, making it ideal for testing motors, transformers, and industrial equipment under various power conditions.
| Feature | Specification |
|---|---|
| Capacity (Single Phase Output) | 1kVA - 200kVA |
| Capacity (Three Phase Output) | 1kVA - 2000kVA |
| Input Voltage (Single Phase) | 110-230VAC ±20% |
| Input Voltage (Three Phase) | 200-440VAC ±20% |
| Input Frequency | 50/60HZ or 40-70HZ |
| Output Voltage (Single Phase) | 0-300Vac |
| Output Voltage (Three Phase) | 0-520Vac |
| Output Frequency | 50/60/100/200/400HZ or 40-800HZ adjustable |
| Frequency Regulation | ≤0.1% |
| Voltage Regulation | ±1% |
| Output VTHD | <3% @ Linear load |
| Response Time | ≤2ms |
| Power Factor | ≥0.8 (Standard), ≥0.9 (12 Pulse Optional) |
| Overall Efficiency | ≥85% |
| Overload Capacity | 125% for 60s, 150% for 30s |
| Working Temperature | -10°C to 50°C |
| Altitude | <1800m |
3 Phase AC Power Source Main Features
- Isolated output transformer,suitable for any unbalance loads, each single phase can be used independently
- EMC compatible
- Compatible with both 50Hz and 60Hz power supply network
- Low harmonic distortion
- Pure sine wave,sinusoidal output
- Completely protection and alarm for over voltage, over current and overheating, etc
- Display real-time data: voltage,current,frequency, power / power factor
Why Choose ACSOON 3 Phase AC Power Source?
ACSOON 3 Phase AC Power Source provides superior performance for demanding industrial applications:
Precision Control: Digital programmable voltage and frequency with high accuracy
Wide Operating Range: Broad voltage and frequency adjustment capabilities
Clean Power Output: Pure sine wave with THD<3% for sensitive equipment
Robust Protection: Comprehensive safeguards including overload and short-circuit protection
Smart Operation: Digital display with remote control and monitoring interfaces
Application Areas
Our 3 Phase AC Power Source serves diverse industrial sectors:
Motor Testing: Performance testing of three-phase motors and drives
Power Electronics: Testing of inverters, converters, and power supplies
Manufacturing: Production line testing and quality assurance
Research Laboratories: R&D testing of electrical components and systems
Aerospace: Testing aircraft systems and components
Educational Institutions: Engineering labs and technical training
Our Services
Quality Control
Each 3 Phase AC Power Source undergoes stringent quality validation:
Component-level testing and verification
Full-load endurance testing for extended operation
Environmental testing for industrial operating conditions
Safety certification to international standards
Performance calibration with precision instruments
R&D Results
Our engineering innovations in 3 Phase AC Power Source technology include:
Enhanced digital signal processing for precise power control
Advanced cooling systems for improved thermal management
Smart load adaptation algorithms for dynamic performance
Reduced electromagnetic interference for cleaner output
Modular design for easy maintenance and serviceability

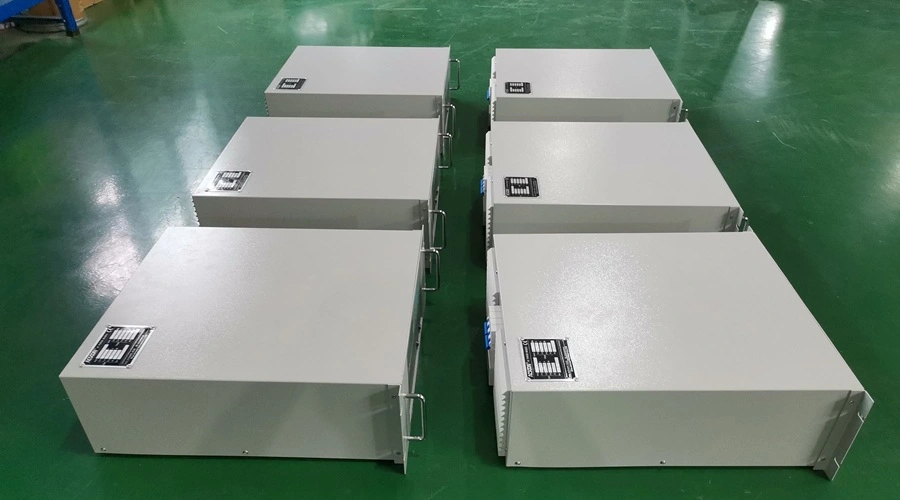

Packaging and Transportation
We ensure secure delivery of every 3 Phase AC Power Source:
Heavy-duty industrial packaging with reinforced protection
Customized crating for international shipping requirements
Comprehensive documentation including operation manuals
Global logistics support with professional handling
After-Sales Service
We provide comprehensive support for all 3 Phase AC Power Source installations:
Technical assistance for application-specific configurations
On-site commissioning and system optimization
Preventive maintenance programs and performance updates
Remote diagnostics and troubleshooting support
Operator training for optimal system utilization
Qualification Certification
FAQ |
| Q1: What input power requirements does your 3 Phase AC Power Source support? |
| A: Our systems support 380V-480V, three-phase, 50Hz/60Hz input power with wide voltage tolerance. |
| Q2: Can the output frequency be programmed for different testing scenarios? |
| A: Yes, the output frequency can be programmed from 45Hz to 500Hz to simulate various power conditions. |
| Q3: What protection features are included in your 3 Phase AC Power Source? |
| A: Standard protections include over voltage, over current, short circuit, overload, and thermal protection. |
| Q4: Is remote control and monitoring supported? |
| A: Yes, our systems support RS232/RS485 and optional Ethernet interfaces for remote operation. |
| Q5: What is the typical delivery time for the 3 Phase AC Power Source? |
| A: Standard units ship within 3-4 weeks, with expedited options available for urgent requirements. |
