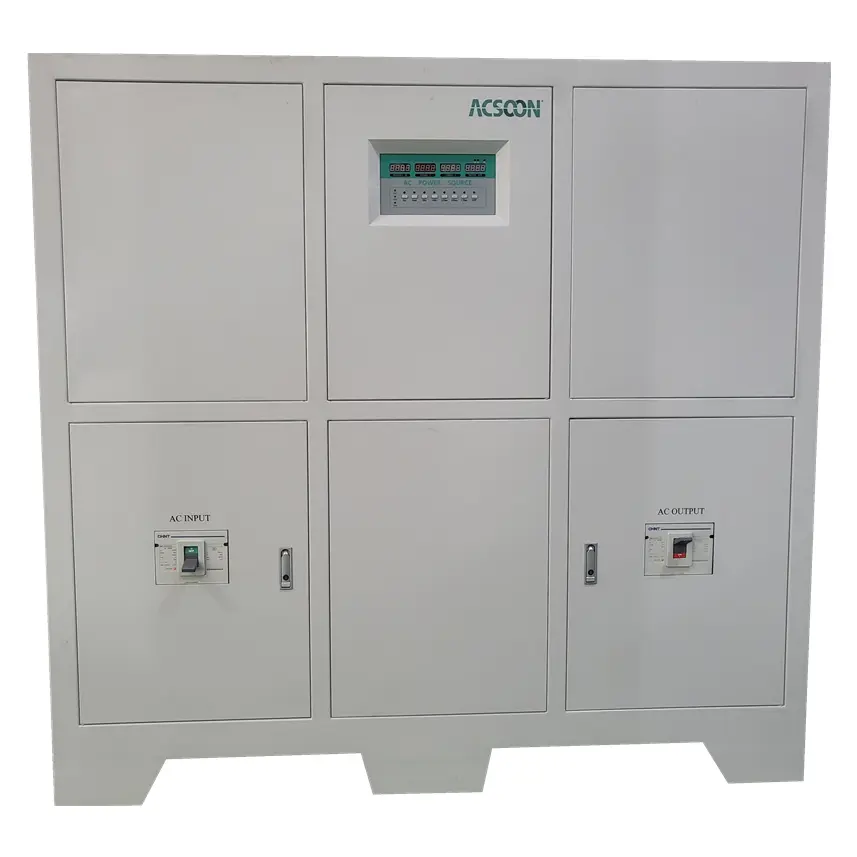

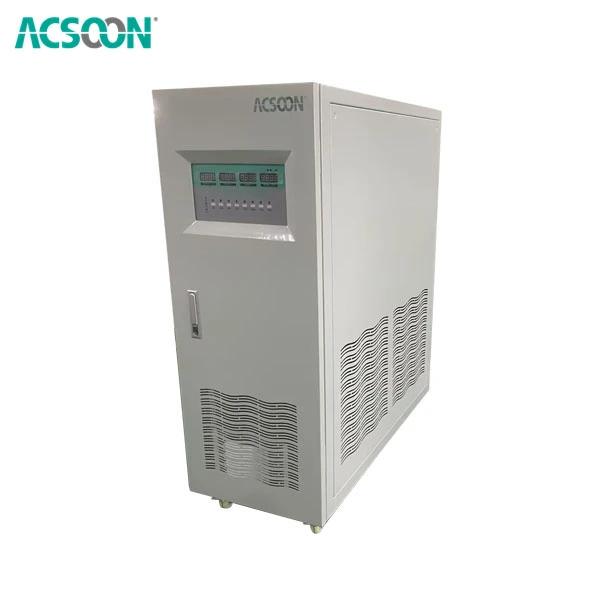

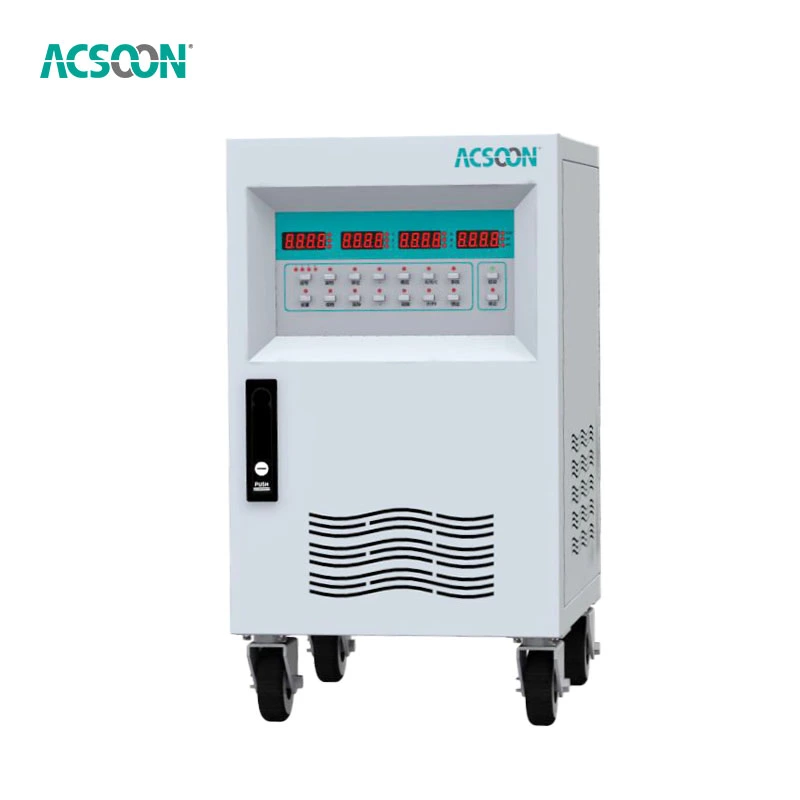

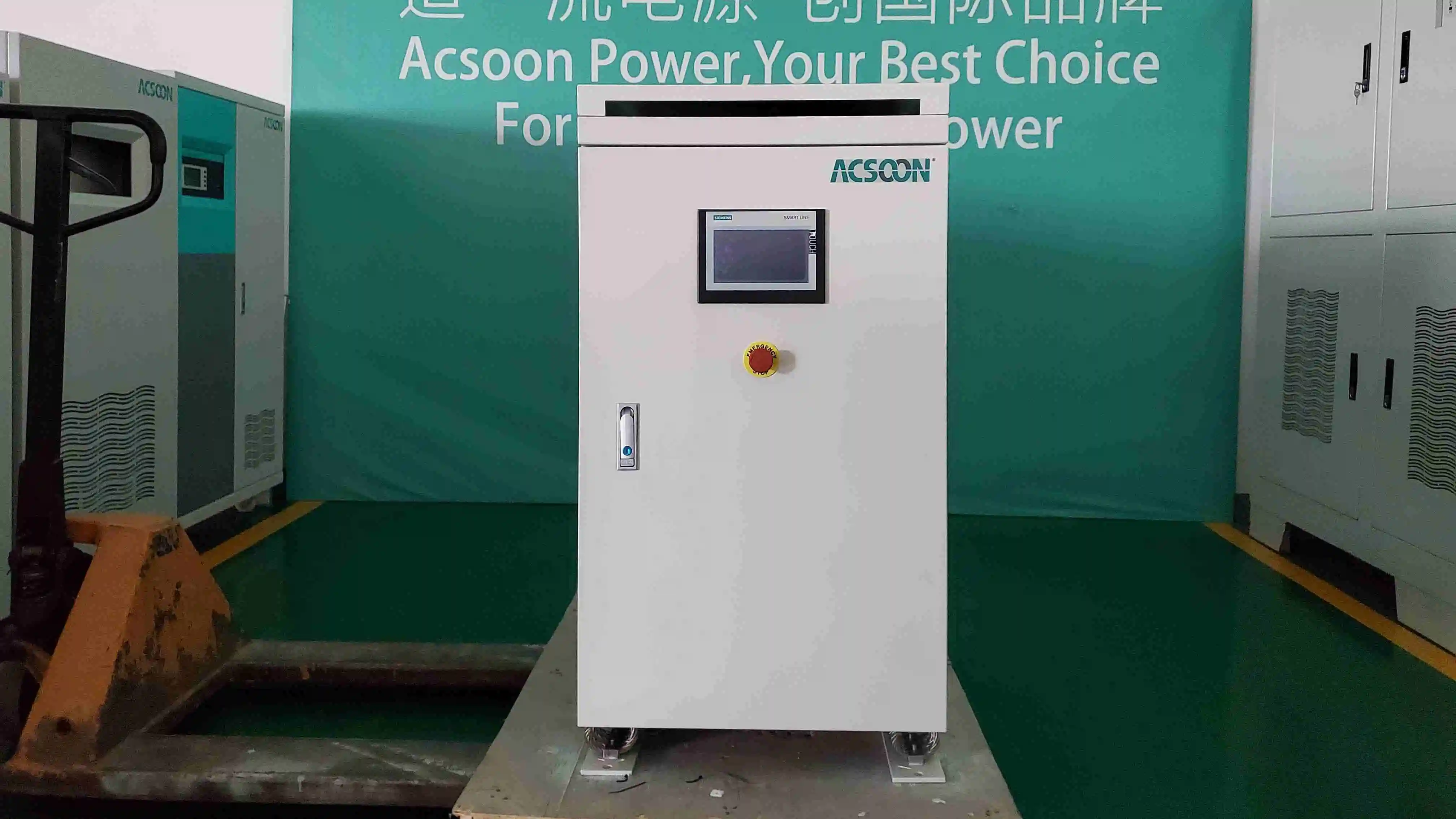

400Hz Converter 6KVA
2.Input Voltage: 110V/220V/380V, single or three phase, 50Hz/60Hz
3.Output Specifications: 115V/200V 400Hz, three-phase four-wire
4.Frequency Stability: ±0.1% with crystal-controlled precision
5.Voltage Regulation: ±1% under varying load conditions
6.Key Applications: Avionics testing, laboratory research, small aircraft ground power
7.Special Features: Compact design, lightweight construction, portable deployment
8.Brand: ACSOON (support OEM)
9.Key Features: Pure sine wave output (<2% THD); auto voltage regulation; military standard compliance; compact design
- Product Description
XI'AN JERRYSTAR INSTRUMENT CO., LTD introduces the compact 400Hz Converter 6KVA, designed specifically for applications requiring reliable 400Hz power in a portable format. Our 400Hz Converter 6KVA delivers clean, stable 400Hz power for testing and operating aircraft systems, avionics equipment, and other high-frequency applications where space and mobility are critical considerations.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity (Single Phase Output) | 1kVA - 200kVA |
| Capacity (Three Phase Output) | 1kVA - 2000kVA |
| Input Voltage (Single Phase) | 110-230VAC ±20% |
| Input Voltage (Three Phase) | 200-440VAC ±20% |
| Input Frequency | 50/60HZ or 40HZ - 70HZ |
| Output Voltage (Single Phase) | 0-300Vac |
| Output Voltage (Three Phase) | 0-520Vac |
| Output Frequency | 50/60/100/200/400HZ or 40-800HZ adjustable |
| Frequency Stability | ≤0.1% |
| Voltage Stability | ±1% |
| Output VTHD | <3% @ Linear load |
| Response Time | ≤2ms |
| Power Factor | ≥0.8 (Standard), ≥0.9 (12 Pulse Optional) |
| Overall Efficiency | ≥85% |
| Overload Capacity | 125% for 60s, 150% for 30s |
| Communication Protocol | Modbus RS232 / RS485 (Optional) |
| Working Temperature | -10℃ to 50℃ |
| Altitude | <1800m |
400Hz Converter 6KVA Main Features
- Isolated output transformer,suitable for any unbalance loads, each single phase can be used independently
- EMC compatible
- Compatible with both 50Hz and 60Hz power supply network
- Low harmonic distortion
- Pure sine wave,sinusoidal output
- Completely protection and alarm for over voltage, over current and overheating, etc
- Display real-time data: voltage,current,frequency, power / power factor
Why Choose ACSOON 400Hz Converter 6KVA?
ACSOON 400Hz Converter 6KVA offers unique advantages for specialized power applications:
Compact Footprint: Space-saving design ideal for limited workspace environments
High Power Quality: Pure sine wave output with THD<3% for sensitive electronic equipment
Flexible Input Options: Compatible with both single-phase and three-phase input power
Easy Mobility: Lightweight construction with optional trolley for portable applications
User-Friendly Operation: Simple controls with comprehensive digital monitoring display
Application Areas
Our 400Hz Converter 6KVA serves specialized requirements across multiple sectors:
Avionics Laboratories: Testing and development of aircraft electronic systems
Aerospace Education: University laboratories and aviation training facilities
Military Equipment: Powering and testing portable military electronic systems
Field Service Operations: Mobile repair and maintenance of aircraft components
Research Facilities: Scientific research requiring precise 400Hz power sources
Component Testing: Quality assurance testing of individual aircraft components
Our Services
Quality Control
Each 400Hz Converter 6KVA undergoes comprehensive quality assurance:
Precision calibration to ensure output accuracy
Thermal performance testing across operating temperature range
Vibration testing for transportation and mobile use durability
Safety certification testing to international standards
Final validation with actual aircraft component loads
R&D Results
Our engineering innovations in the 400Hz Converter 6KVA include:
Advanced cooling system for compact enclosure efficiency
Enhanced electromagnetic compatibility for sensitive environments
Improved power density through component optimization
Smart fan control for reduced acoustic noise
Modular design facilitating maintenance and serviceability
Packaging and Transportation
We ensure secure delivery of every 400Hz Converter 6KVA:
Custom foam-insulated packaging for transit protection
Comprehensive documentation including calibration certificates
Worldwide shipping options with tracking capabilities
Special handling for international aviation customers
After-Sales Service
We provide dedicated support for all 400Hz Converter 6KVA installations:
Technical assistance for application-specific setups
Calibration services to maintain precision performance
Remote troubleshooting and diagnostic support
Operator training for optimal system utilization
Rapid response for critical application requirements
Qualification Certification
FAQ |
|---|
| Q1: What makes your 400Hz Converter 6KVA suitable for avionics testing? |
| A: Our converter provides stable, clean 400Hz power that meets aircraft system requirements, with low distortion essential for sensitive avionics equipment. |
| Q2: Can the 400Hz Converter 6KVA operate from single-phase power sources? |
| A: Yes, our converter is designed to work with both single-phase and three-phase input power, providing flexibility in various installation environments. |
| Q3: What protection features are included in your 400Hz Converter 6KVA? |
| A: Standard protections include over voltage, over current, short circuit, and thermal overload protection with audible and visual alarms. |
| Q4: How portable is your 400Hz Converter 6KVA system? |
| A: With compact dimensions and optional trolley, our system can be easily moved between different work areas or locations. |
| Q5: What is the typical delivery time for the 400Hz Converter 6KVA? |
| A: Standard units are typically available within 2-3 weeks, with expedited shipping options for urgent requirements. |
