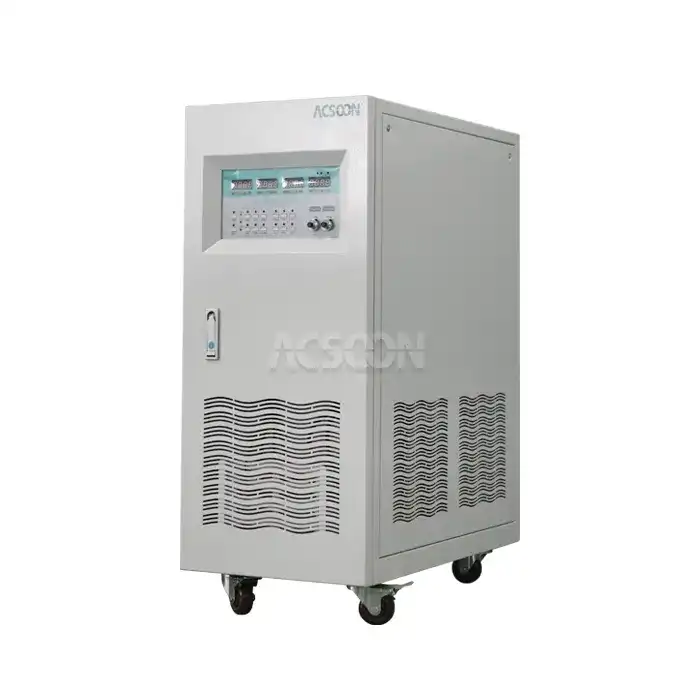

60Hz to 50Hz Converter | AF60W Static Frequency Converter for Industrial Power Conversion

Convert 60Hz Power to Stable 50Hz AC Output for Imported Equipment and Global Applications

01

What Problems Can a 60Hz to 50Hz Converter Solve?

1. Operating Imported Equipment in Different Countries

Electrical standards are different worldwide.

For example:

North America commonly uses 60Hz power systems

Many countries in Europe, Asia, Middle East and Africa use 50Hz power systems

When equipment is moved between regions, frequency compatibility becomes a key issue.

Without frequency conversion, equipment may experience:

Incorrect motor speed

Abnormal operation

Reduced equipment performance

Increased electrical stress

Possible equipment damage

The AF60W frequency converter allows 50Hz-rated equipment to operate safely in a 60Hz power environment.

---

2. Providing Stable Power for Precision Equipment

Many industrial and testing applications require more than normal grid electricity.

Voltage fluctuation, frequency instability and waveform distortion may affect:

Laboratory testing accuracy

Motor performance

Electronic equipment reliability

Product quality consistency

The AF60W provides:

Stable voltage output

Adjustable frequency output

Pure sine wave AC power

Low harmonic distortion

to create a cleaner and more controlled power environment.

When electrical equipment is designed for a specific power frequency, using it in another country can create compatibility problems.

A machine manufactured for a 50Hz electrical system may not operate correctly when connected to a 60Hz power grid, especially for frequency-sensitive equipment such as motors, pumps, testing systems, laboratory equipment and industrial machines.

The ACSOON AF60W 60Hz to 50Hz Converter provides a reliable solution by converting 60Hz AC power into a stable 50Hz output with controlled voltage, clean sine wave waveform and low harmonic distortion.

It enables companies to operate imported equipment, perform international product testing and maintain stable power quality across different grid standards.

How Does AF60W 60Hz to 50Hz Converter Work?

The AF60W uses advanced static frequency conversion technology based on power electronics.

The conversion process includes:

AC Input → DC Conversion → AC Output

The incoming AC power is converted into DC power through a rectifier stage.

The internal DC link stabilizes the power energy.

The inverter system uses IGBT technology and PWM control to generate a new AC waveform at the required frequency.

Through this double-conversion design, the output frequency is independent from the input grid frequency.

This allows the AF60W to convert:

60Hz input → 50Hz output

or:

50Hz input → 60Hz output

according to application requirements.

Request for Quotation

Technical Specifications of AF60W-330006

Item	Specification
Product Type	Static Frequency Converter
Model	AF60W-330006
Input Frequency	50Hz / 60Hz
Output Frequency	50Hz / 60Hz adjustable
Frequency Range	45Hz-200Hz
Voltage Stability	±1% FS
Frequency Stability	±0.1% FS
Output Waveform	Pure Sine Wave
THD	<3% @ Linear Loads
Efficiency	≥85%
Display	Voltage Current Frequency Power Factor
Protection	Over Current Over Load Over Heat Short Circuit
MTBF	50,000 Hours

If you need it,Contact us at Email: acpower@acsoonpower.com

Key Features of ACSOON AF60W 60Hz to 50Hz Converter

Pure Sine Wave Output

The AF60W provides clean sine wave AC output with:

THD <3% at linear loads

This helps protect sensitive electrical equipment and improves power quality.

---

Adjustable Voltage and Frequency

The converter supports flexible output adjustment:

Output Frequency:

45Hz - 200Hz adjustable

Output Voltage:

0-150V (L-N)

0-300V (L-N)

0-260V (L-L)

0-520V (L-L)

This makes the AF60W suitable for different international power requirements.

---

High Voltage and Frequency Stability

The AF60W provides:

Voltage regulation and stability: ±1% FS

Frequency stability: ±0.1% FS

Stable output helps maintain consistent operation for industrial equipment and testing applications.

---

Galvanic Isolation for Better Protection

The isolated output transformer design provides:

Electrical separation between input and output

Better protection against power disturbances

Compatibility with unbalanced loads

Each phase can operate independently according to system requirements.

---

Single Phase and Three Phase Configurations

AF60W series supports different application requirements:

Single Phase Output:

1kVA to 200kVA

Three Phase Output:

1kVA to 2000kVA

The system can be customized according to:

Input voltage

Output voltage

Frequency requirement

Load characteristics

Typical Applications of 60Hz to 50Hz Converter

Industrial Equipment Testing

Manufacturers exporting equipment worldwide need different power standards for testing.

AF60W helps simulate different grid conditions for:

Electrical product testing

Factory acceptance testing

Export product validation

---

Laboratory Power Supply

Research laboratories require stable and adjustable AC power.

Applications include:

Electronic testing

Motor testing

Product development

Equipment verification

---

Motors, Pumps and Industrial Machines

Frequency mismatch can affect motor operation.

AF60W provides the correct frequency environment for:

Motors

Pumps

Industrial drives

Mechanical equipment

---

Marine and Shipboard Power Systems

Ships often operate with different electrical standards depending on vessel design and operating location.

AF60W provides stable AC power conversion for:

Marine equipment testing

Shore power adaptation

Ship electrical systems

---

Home Appliance and Consumer Product Testing

Manufacturers need to test products for different global markets.

AF60W helps simulate:

50Hz markets

60Hz markets

Different voltage conditions

for export certification and product development.

AF60W vs Traditional Frequency Converter Comparison

Feature	ACSOON AF60W	Traditional Frequency Converter
Output waveform	Pure sine wave	Modified waveform possible
THD	<3%	Higher distortion possible
Frequency adjustment	45-200Hz	Limited range
Voltage adjustment	Wide adjustable range	Usually fixed
Isolation transformer	Available	Usually unavailable
Testing application	Excellent	Limited
Sensitive equipment support	Yes	Not recommended
Custom power solution	Available	Limited

Why Choose ACSOON AF60W Frequency Converter?

19+ Years Power Conversion Experience

ACSOON focuses on AC power supply and frequency conversion technology, providing solutions for industrial, aviation, marine and testing applications.

Flexible OEM Customization

Different countries and industries have different electrical requirements.

ACSOON supports customization including:

Input voltage

Output voltage

Frequency range

Power capacity

Cabinet design

Designed for Industrial Reliability

AF60W features:

Solid-state power electronics design

IGBT technology

Digital monitoring display

Multiple protection functions

Protection includes:

Over current protection

Over load protection

Over temperature protection

Short circuit protection

Get AF60W technical datasheet and quotation today.





ABOUT US

·28,698+ long-term repeat clients globally with stable repeat orders

·19+ years domestic & export manufacturing experience for aviation ground power equipment

·7,000+ sq.m modern production factory

·24/7 customer service:＜30 mins quick response + lifetime after-sales support

·60+ independent patented technologies

·Certified as China National High-Tech Enterprise

·Multiple provincial awards, including Shaanxi AAAAA-Level Credibility Enterprise certification



28,696



Long Standing



Customer



19+



Over 19 years



experience



7,000㎡





Factory Area



30min



7/24H



High-Quality



Efficiency Service

Custom Solution & Quotation

Need a reliable 2kVA Frequency Converter Manufacturer?

Contact ACSOON for:

✔ Technical datasheet
✔ Customized voltage/frequency solution
✔ OEM cooperation
✔ Project quotation
📩 Get Price / Technical Consultation

Response within 24 hours by engineering team.

Our Services

01

Quality Control

• Every unit tested – 2 hours at 80% load. Check for overheating.
• Output verified – Voltage accuracy at five set points. Record kept.
• Isolation test – 2kV between input and output for 1 minute. No breakdown.
• Knob cycle – 500 full rotations on each potentiometer. No scratchy spots.

02

R&D Results

• Cost reduction – Replaced digital display with analog meters. Cut cost by 20%.
• Transformer – Used a standard toroid instead of custom wound. Still meets specs.
• Enclosure – Painted steel instead of powder coat. Same protection, lower cost.
• User feedback – Hobbyists wanted bigger knobs. Added large rubberized knobs.

03

Packaging and Transportation

• Shipped from Xi'an – Cardboard box with foam inserts. Fits a courier.
• Included – Power cord (1.5m), output cable with universal socket, printed quick start.
• Manual – One sheet of paper. Double‑sided. No USB.
• Pallet – 8 units per pallet for dealers.

04

After‑Sales Service

• 1‑year warranty – Return to Xi'an for repair. Parts and labor.
• Spare parts (transformer, fan, meters) kept in Xi'an. Express shipping.
• Email support – We answer within one business day. Simple questions only.

05

Qualification Certification

• CE – LVD and EMC tested.
• ISO 9001:2015 – Our Xi'an facility.
• RoHS – Compliant.

FAQ

Q1: Is this suitable for aircraft maintenance use?
Yes. It is commonly used in MRO environments where 400Hz aircraft power is required.

Q2: Can it simulate aircraft power conditions accurately?
Yes, it provides stable 115V/120V 400Hz output with low harmonic distortion.

Q3: Does it support both single-phase and three-phase output?
Yes, both configurations are available depending on system size.

Q4: What kind of load can it handle?
It is designed for linear and mixed industrial loads with isolated transformer support.

Q5: Is it suitable for continuous operation?
Yes, it is designed for industrial duty cycles with long-term operation in mind.

Q6:How can I get more details?

A:Click here.Send inquiry get price and specification.

Q7:Can a 60Hz to 50Hz converter change both frequency and voltage?

Yes. A static frequency converter can adjust frequency and voltage output according to application requirements. The AF60W supports adjustable voltage and frequency configurations for different electrical systems.

Q8：What equipment needs a 60Hz to 50Hz converter?

Common applications include imported industrial machines, motors, pumps, laboratory equipment, testing systems and marine electrical equipment that require a different frequency from the local power grid.

Q9:What is the difference between a transformer and a frequency converter?

A transformer can change voltage but cannot change frequency.

A frequency converter changes the electrical frequency by converting AC power into a controlled AC output.

Q10:Can AF60W convert 50Hz to 60Hz?

Yes. The AF60W series supports bidirectional frequency conversion according to system configuration requirements.
