AC Test Power Supply

1.Power Capacity: 45kVA (testing-optimized design)
2.Technology: Precision DSP control with pure sine wave output
3.Input: 3-phase 380VAC ±10%, 50/60Hz auto-ranging
4.Output: 0-300VAC, 45-500Hz programmable
5.Key Applications: Product testing, quality verification, compliance testing
6.Key Features: Precision measurement; programmable sequences; low distortion; test automation
7.Brand: ACSOON (testing configurations available).

Send Inquiry Download

Product Description

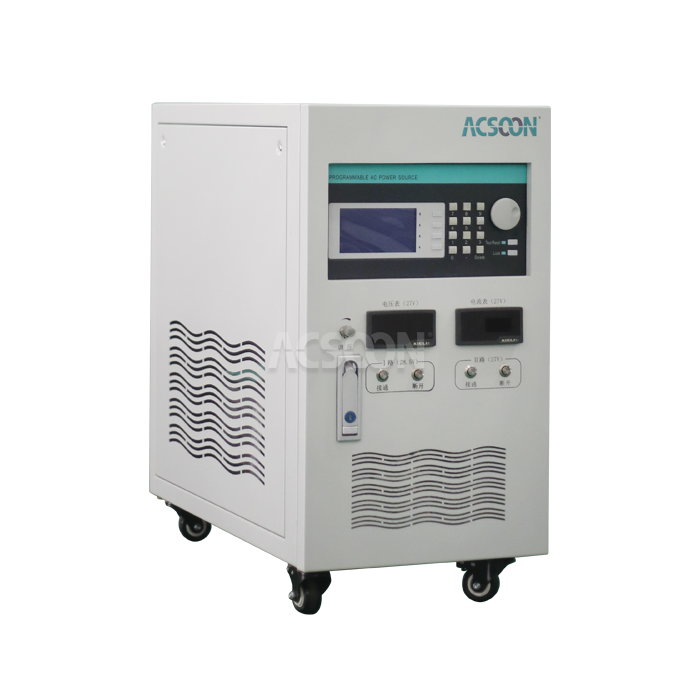

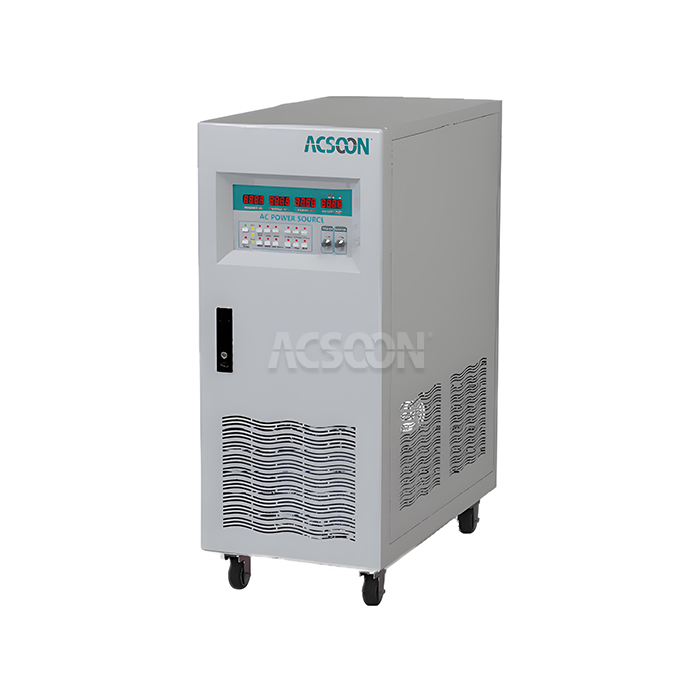

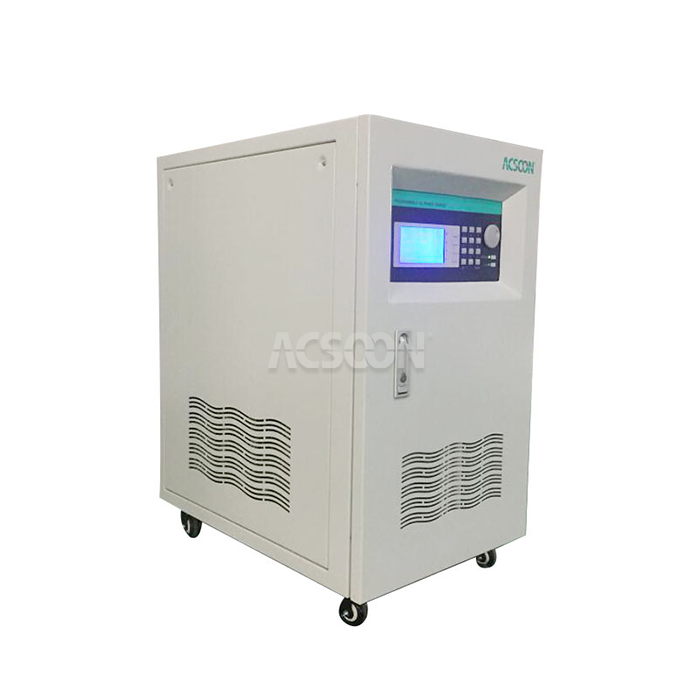

AC Test Power Supply | Precision AC Power for Testing Applications

XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures precision AC test power supplies for product validation and quality assurance applications. Our AC test power supply systems provide accurate and stable AC power with advanced testing capabilities, enabling reliable product testing, quality verification, and compliance testing for various industrial and commercial products.

Technical Specifications

Feature	Specification
Capacity (Single Phase)	1kVA - 200kVA
Capacity (Three Phase)	1kVA - 2000kVA
Input Voltage	Customizable (110V-440V)
Output Voltage	Adjustable (0-520V)
Frequency	40-800HZ adjustable
Voltage Regulation	±1%
VTHD	<3% @ Linear load
Efficiency	≥85%
Overload Capacity	125% for 60s, 150% for 30s
Communication	Modbus RS232/RS485 (Optional)
Working Temperature	-10°C to 50°C

AC Test Power Supply Main Features

Isolated output transformer,suitable for any unbalance loads, each single phase can be used independently
EMC compatible
Compatible with both 50Hz and 60Hz power supply network
Low harmonic distortion
Pure sine wave,sinusoidal output
Completely protection and alarm for over voltage, over current and overheating, etc
Display real-time data: voltage,current,frequency, power / power factor

Why Choose ACSOON AC Test Power Supplies?

ACSOON delivers testing precision and reliability:

Testing Accuracy: High-precision voltage and frequency control for test applications
Programmable Sequences: Automated test sequence capability
Measurement Precision: Accurate power parameter measurement
Test Automation: Support for automated testing systems
Reliable Performance: Consistent results in testing applications

Application Areas

Our AC test power supply systems are essential for:

Product Testing: Finished product performance validation
Quality Verification: Manufacturing quality assurance
Compliance Testing: Standards compliance verification
Development Testing: Product development validation
Production Testing: Production line testing systems
Certification Testing: Product certification procedures
Laboratory Testing: Research and development testing
Quality Control: Manufacturing quality control processes

Our Services

Quality Assurance

Each AC test power supply undergoes rigorous testing validation:

Measurement accuracy certification
Output stability verification
Test sequence validation
Performance consistency testing
Testing standards compliance

Technical Features

Our AC test power supply incorporates:

Precision measurement technology
Programmable test sequences
Low distortion output
Test automation interfaces
Comprehensive monitoring systems

Packaging and Delivery

We ensure testing-grade packaging:

Calibration-protected packaging
Testing documentation included
Worldwide shipping services
Installation and setup support

After-Sales Service

Testing support package includes:

Calibration services
Technical support
Software updates
Training programs
Maintenance services

Certifications

FAQ
Q1: What are the primary applications for AC test power supply systems?
A: Product testing, quality verification, compliance testing, and development validation applications.
Q2: How accurate is the AC test power supply for testing applications?
A: High-precision measurement and control for reliable test results.
Q3: What testing automation features does the AC test power supply offer?
A: Programmable test sequences and automated control interfaces.
Q4: Can the AC test power supply simulate various test conditions?
A: Yes, with programmable voltage and frequency settings.
Q5: What industries use AC test power supply systems?
A: Manufacturing, quality assurance, product development, and certification industries.
