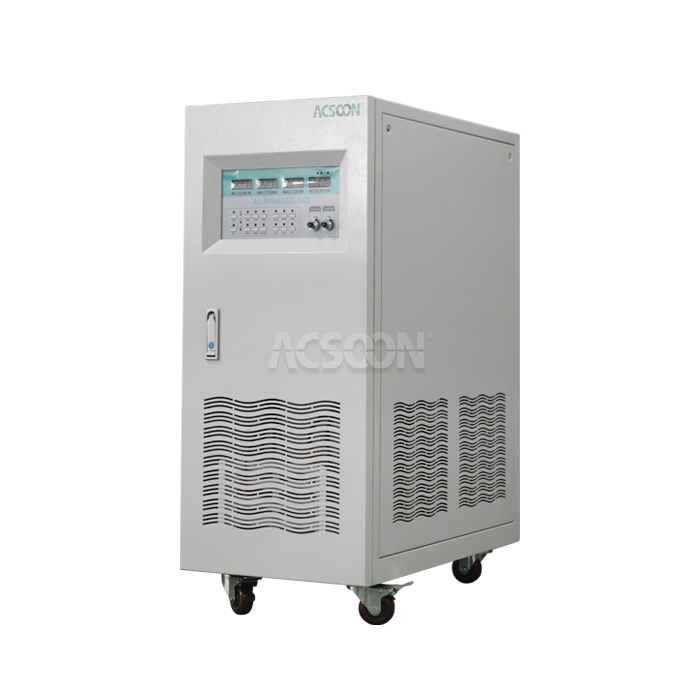

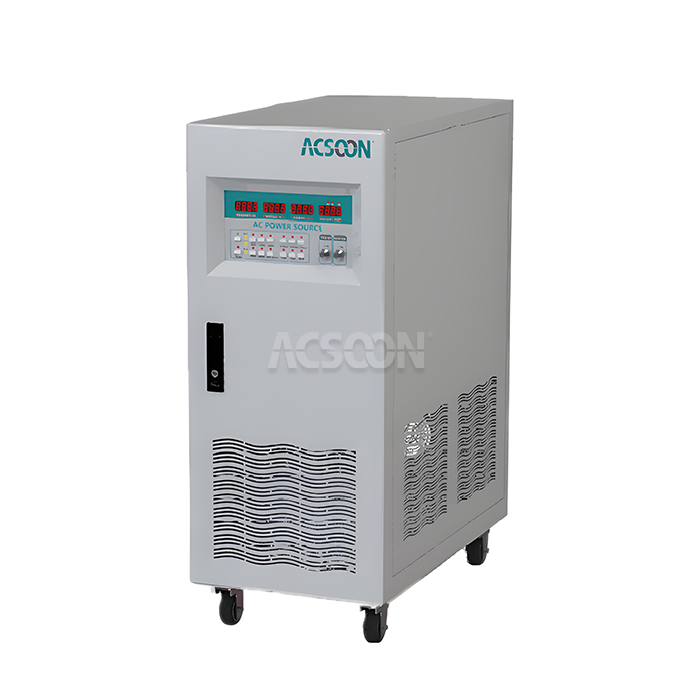

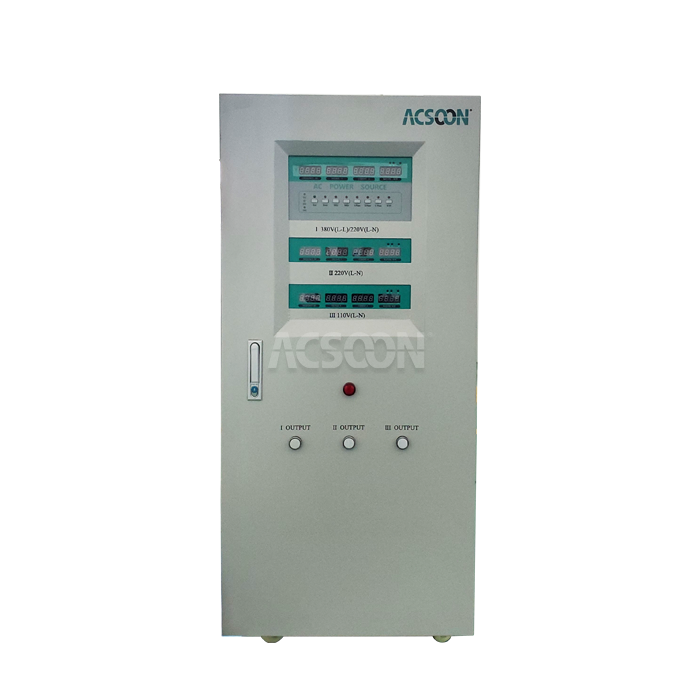

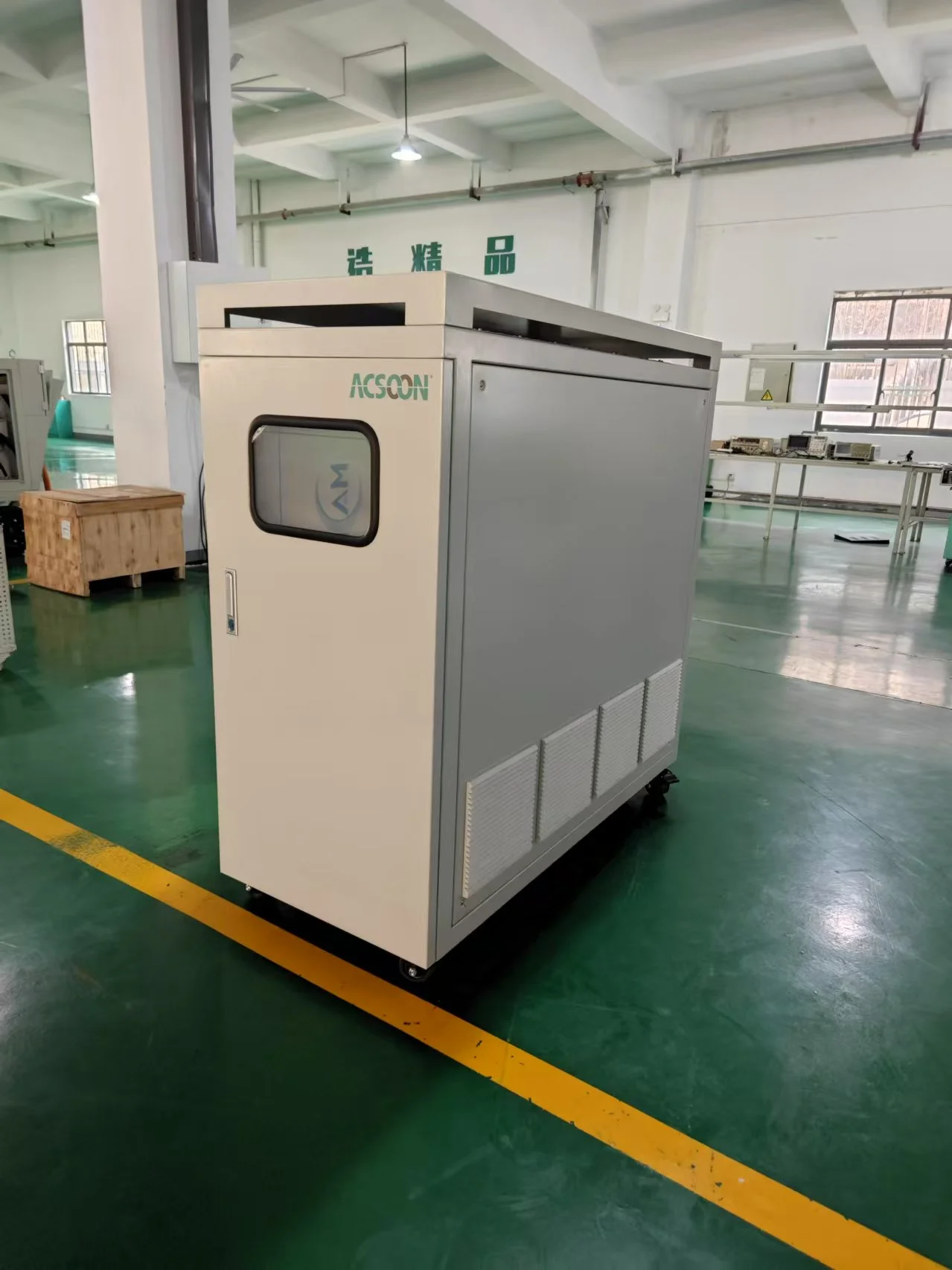

ACSOON Frequency Converter 60Hz to 50Hz

1.Power Range: 1kVA to 2000kVA, customizable per requirement
2.Technology: IGBT-based SPWM modulation, galvanically isolated
3.Input: 60Hz single or three phase, wide voltage tolerance
4.Output: 50Hz clean sine wave, voltage adjustable

5.Applications: industrial machinery, lab testing, marine, factory automation
6.Key Features: high stability, low THD, overload protection, real-time monitoring
7.Brand: ACSOON (support OEM).

Send Inquiry Download

Product Description

ACSOON Frequency Converter 60Hz to 50Hz | Industrial & Laboratory AC Power Solution

XI'AN JERRYSTAR INSTRUMENT CO., LTD specializes in designing and manufacturing advanced ACSOON Frequency Converter 60Hz to 50Hz systems. With over 15 years of expertise in power electronics, we deliver robust and precise frequency conversion solutions for global industries. Our converters ensure stable and clean power output, enabling seamless operation of equipment across different electrical standards.

Technical Specification

Parameter	Specification
Input Voltage	110V–480V AC (single/three phase)
Input Frequency	60Hz (40–70Hz range)
Output Voltage	Adjustable, 0–300V (L-N), 0–520V (L-L)
Output Frequency	50Hz (45–200Hz adjustable)
Power Capacity	1–2000kVA (customizable)
Efficiency	≥85%
THD	<3% @ linear load
Display	LED/LCD for V, A, Hz, PF, Power
Protection	Overload, short circuit, overheat, over/under voltage
Cooling	Forced air cooling
Operating Temperature	-10°C to 45°C
Standards	EN60204-1, IEC 62321, EN61000-6-3

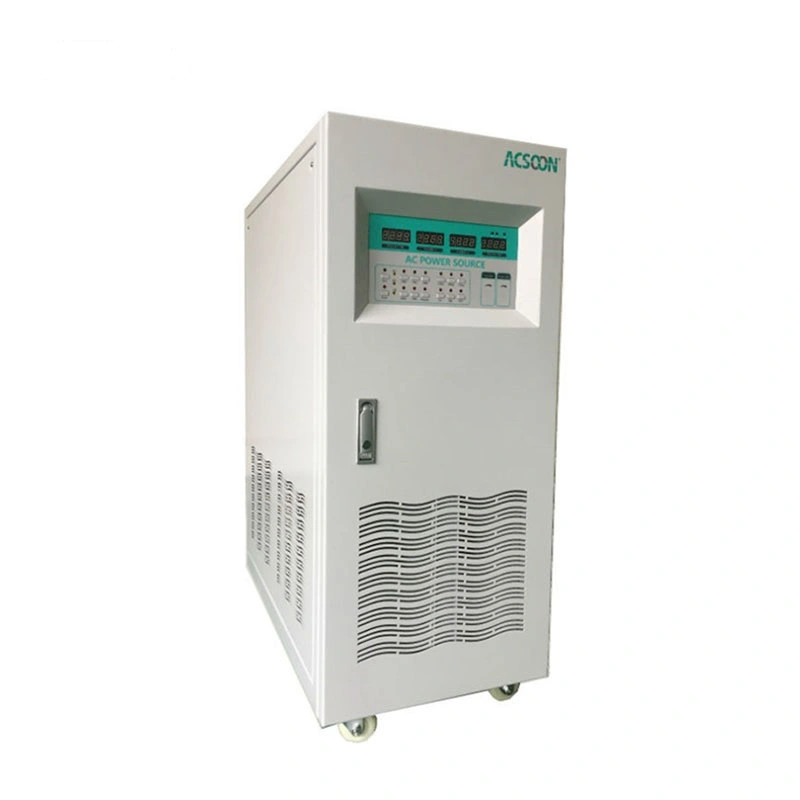

Application Areas

The ACSOON Frequency Converter 60Hz to 50Hz is versatile and widely used in:

Manufacturing Plants: Power machinery and production lines imported from 50Hz regions.
Testing Laboratories: Provide precise 50Hz power for equipment calibration and compliance testing.
Marine & Offshore: Support shipboard systems and docked vessel power supply.
Data Centers: Ensure compatible AC power for servers and network equipment.
Aerospace: Ground support power for aircraft systems testing.
Renewable Energy Integration: Interface between grid and hybrid power systems.
Hospital & Medical Equipment: Reliable power for sensitive diagnostic devices.

Why Choose ACSOON Frequency Converter 60Hz to 50Hz?

ACSOON converters are engineered for reliability and performance in diverse environments. Here's what sets our systems apart:

Precision Output: Stable voltage and frequency with ±1% regulation accuracy.
Wide Compatibility: Supports single-phase and three-phase configurations, adaptable to various grid standards.
High Efficiency: ≥85% energy conversion efficiency reduces operational costs.
Comprehensive Protection: Built-in safeguards against overload, short circuit, overheat, and voltage fluctuations.
User-Friendly Operation: Real-time LCD/LED display and intuitive controls for easy monitoring and adjustment.

Our Services

Quality Control

Every ACSOON Frequency Converter 60Hz to 50Hz undergoes:

Incoming component verification
Automated PCB and wiring inspection
Full-load endurance and thermal testing
EMI/EMC compliance validation
Final performance certification before shipping

R&D Results

Our ongoing R&D efforts have enhanced the ACSOON Frequency Converter 60Hz to 50Hz with:

Advanced DSP-based control for faster response
Modular design for easy maintenance and scalability
Energy-saving algorithms to reduce no-load consumption
Enhanced cooling systems for higher duty cycles

Packaging and Transportation

We deliver safely worldwide:

Heavy-duty wooden crate with foam and waterproof lining
Clear labeling and handling instructions
Door-to-door logistics coordination
Installation guidance and startup support available

After-Sales Service

24-month warranty with extendable options
Remote diagnostics and troubleshooting
On-site repair and maintenance services
Regular firmware and software updates
Training videos and user manuals in multiple languages

Qualification Certification

FAQ
Q: What is the difference between this converter and a voltage transformer?
A: This unit converts both frequency and voltage, enabling true compatibility between 60Hz supply and 50Hz equipment, not just voltage adjustment.
Q: Can it operate continuously at full load?
A: Yes, it is designed for 100% continuous duty with adequate cooling.
Q: Is remote monitoring possible?
A: Yes, via RS485/Modbus interface, compatible with SCADA and PLC systems.
Q: What is the lead time for a 100kVA unit?
A: Typically 3–4 weeks for standard models, depending on configuration.
Q: Do you provide custom voltage and frequency sets?
A: Yes, we offer customized output profiles, including 400Hz for aviation testing.

Contact Us

For technical specifications or global solutions: acpower@acsoonpower.com, or submit your requirements using the form at the bottom of our website.
