Is a 400kVA Static Voltage Stabilizer Right for Your Power System?

Choosing an automatic voltage regulator for an industrial facility is not simply a matter of selecting the required kVA.

The real question is:

Can the voltage stabilizer handle the actual grid fluctuation, connected load, operating environment and protection requirements of the project?

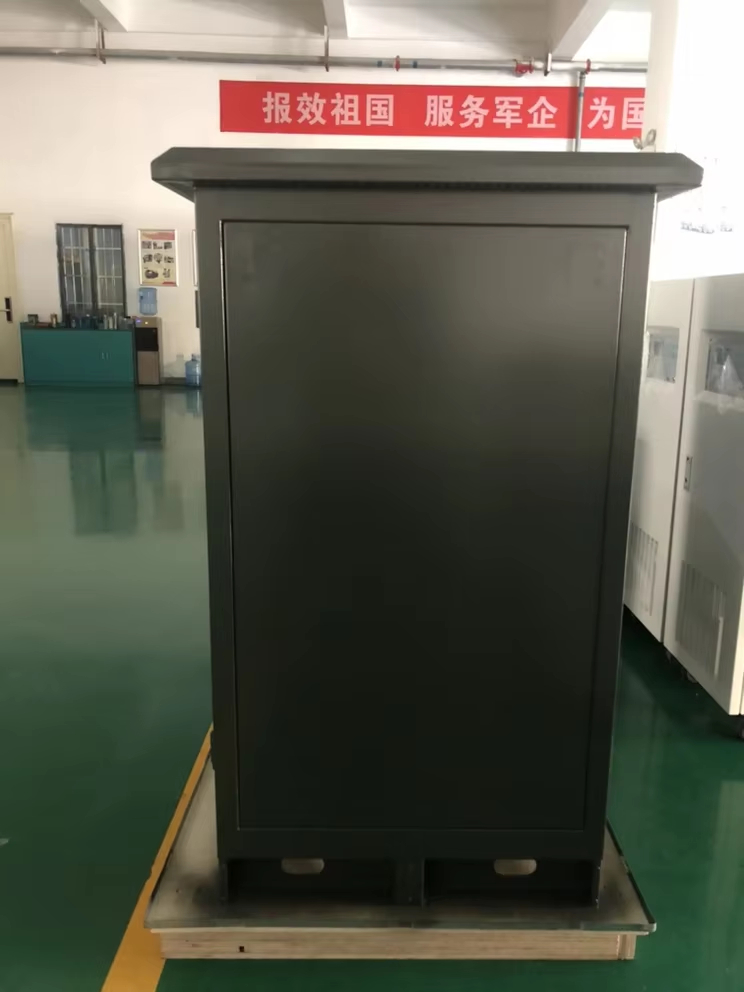

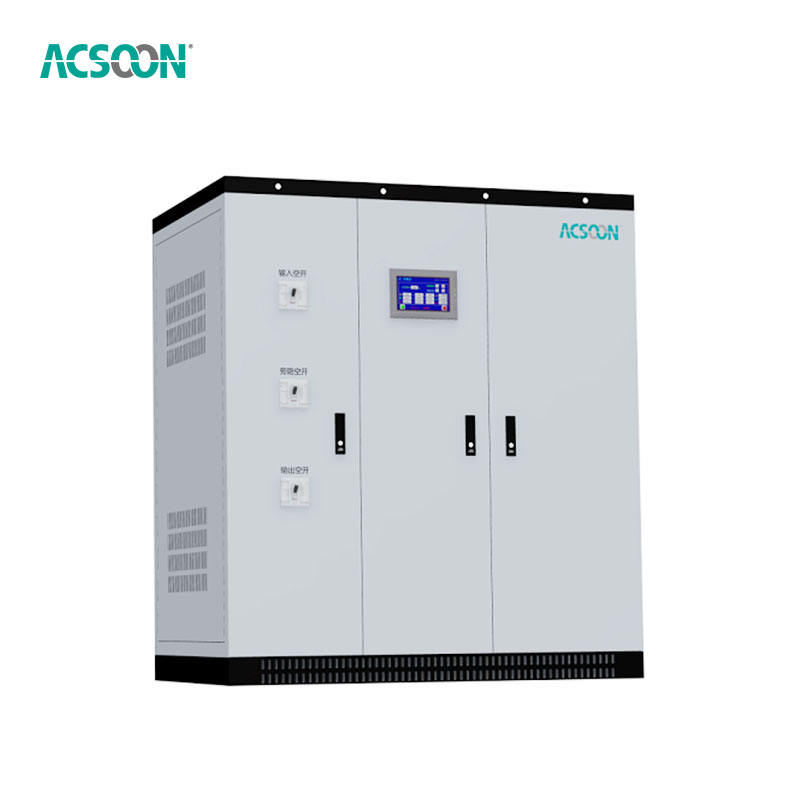

The ACSOON AF30W-330400 400kVA Static AVR is designed for three-phase industrial applications where voltage stability, fast response and reliable operation are important.

Request for Quotation​​​​​​​

Start With the Power Problem

Before selecting a voltage stabilizer, identify what is happening to your power supply.

Is the incoming voltage frequently too high or too low?

A voltage stabilizer can regulate the incoming voltage and provide a more stable output within its specified operating range.

Does the voltage change quickly?

The AF30 static AVR uses SCR technology with a response time of less than 0.1 second.

Are your machines sensitive to voltage fluctuations?

Industrial automation equipment, medical equipment, communication systems, testing equipment and other electronic loads may require more stable voltage conditions.

Are you experiencing unexpected equipment shutdowns?

Voltage instability can be one of the factors behind equipment trips and production interruptions.

The correct approach is to first measure the actual input voltage and load conditions, then select the stabilizer configuration.

AF30W-330400 at a Glance

What Problems Can It Help Solve?

Problem 1 — Unstable Grid Voltage

Typical situation:

The factory receives 380V/400V utility power, but the actual voltage changes throughout the day.

Potential impact:

• Equipment alarms
• Motor performance changes
• Control system errors
• Production interruptions
• Increased electrical stress

AF30 solution:

The static AVR continuously regulates the incoming voltage and maintains the configured output voltage.

Problem 2 — Voltage Fluctuation on Industrial Production Lines

Large motors, compressors, welding equipment and other industrial loads can influence the local electrical network.

When sensitive equipment shares the same power distribution system, voltage fluctuations may become a recurring problem.

The AF30W-330400 provides a dedicated voltage stabilization stage between the utility supply and connected equipment.

Problem 3 — Slow Mechanical Regulation

Traditional servo stabilizers use moving mechanical components.

The AF30 series uses SCR solid-state voltage regulation, without servo motors or carbon brushes.

Why this matters for buyers

Less mechanical movement means:

• Faster voltage correction
• No carbon-brush replacement
• Less mechanical wear
• Lower routine maintenance requirements
• Better suitability for continuous industrial operation

Problem 4 — High-Capacity Power Requirements

For large industrial loads, the stabilizer itself must be sized correctly.

The AF30 family covers a wide capacity range, including 400kVA and higher three-phase configurations.

For a 400kVA application, AF30W-330400 provides a high-capacity three-phase stabilization solution.

Problem 5 — Equipment Protection During Fault Conditions

Power-quality problems are not limited to voltage fluctuation.

The AF30 specification includes protection for:

• Over-voltage
• Under-voltage
• Phase loss
• Overload
• Short circuit

The system can also enter automatic bypass operation under configured fault conditions.

This allows the stabilizer to work as part of a broader electrical protection strategy.

Why SCR Technology?

Traditional Servo AVR

A conventional servo voltage stabilizer generally depends on mechanical adjustment.

Its limitations can include:

• Mechanical movement
• Carbon-brush wear
• Slower response
• Regular maintenance

AF30 Static AVR

The AF30 uses semiconductor-based SCR voltage regulation.

Key benefits:

Fast response

Less than 0.1 second according to the technical specification.

No mechanical voltage-regulation mechanism

No servo motor or carbon brush is required for voltage adjustment.

Stable regulation

Standard regulation accuracy is ±2%.

Low maintenance

Solid-state regulation reduces mechanical wear points.

Why 98%+ Efficiency Matters

A 400kVA stabilizer can operate for many hours every day.

At this scale, efficiency is not just a specification — it affects operating cost.

The AF30 series specifies an overall efficiency of ≥98%.

For factories running continuously, a high-efficiency voltage stabilizer can help minimize the energy consumed by the stabilization process itself.

When Should You Consider a 400kVA AVR?

AF30W-330400 may be worth evaluating when:

• Your connected load is close to the 400kVA class.
• Utility voltage regularly fluctuates.
• Sensitive machinery requires stable voltage.
• Your facility has three-phase 380V/400V/415V power.
• Production downtime caused by power instability is costly.
• You need fast voltage correction.
• You prefer a static AVR rather than a mechanical servo stabilizer.
• Remote monitoring through RS485 may be required.

Important: Final sizing should be based on the actual load profile, starting current, power factor, input voltage range and application requirements rather than rated kVA alone.

Who Is AF30W-330400 For?

Factory Electrical Engineers

For engineers responsible for plant power quality and electrical distribution.

Electrical Contractors

For projects requiring a three-phase automatic voltage regulator as part of the electrical system.

System Integrators

For integrating voltage stabilization into industrial automation and power-quality systems.

Equipment Manufacturers

For protecting voltage-sensitive machinery and production equipment.

Industrial Distributors

For distributors looking for a high-capacity static AVR for industrial customers.

Project Procurement Teams

For buyers comparing 400kVA voltage stabilizer suppliers and technical configurations.

What Should You Send Us Before Requesting a Quote?

To avoid choosing the wrong AVR configuration, please provide:

1. Input Voltage

Example:380V ±20% or Actual measured voltage: 320–445V

2. Required Output 380V / 400V / 415V

3. Capacity 400kVA

4. Frequency 50Hz / 60Hz

5. Load Type

For example:

• CNC machines
• Motors
• Compressors
• Medical equipment
• Data center equipment
• Industrial automation
• Laboratory equipment
• Communication equipment

6. Starting Loads

If motors or compressors are connected, provide starting current or motor power where available.

7. Installation Environment

Indoor electrical room, factory floor or other location.

8. Required Communication

RS485 required / not required.

AF30W-330400 vs. a Conventional Servo Stabilizer

The comparison should always be made using equivalent capacity, input range, regulation accuracy and load conditions.

Purchase Checklist

Before placing an order, confirm these points with your supplier:

• 400kVA rated capacity confirmed

• Three-phase system confirmed

• Input voltage range confirmed

• Output voltage confirmed

• 50Hz or 60Hz confirmed

• Required regulation accuracy confirmed

• Load type reviewed

• Motor starting current reviewed

• Installation environment confirmed

• Cooling method confirmed

• Protection functions confirmed

• Automatic bypass requirement confirmed

• LCD monitoring confirmed

• RS485 requirement confirmed

• Cabinet/IP protection requirement confirmed

• Delivery configuration confirmed

• Warranty confirmed

Why Buy From ACSOON?

ACSOON is the power equipment brand of Xi'an Jerrystar Instrument Co., Ltd., a power equipment manufacturer founded in Xi'an in 2007. The company develops and manufactures AC/DC power converters, inverters, ground power units and related power equipment.

The AF30 series has been developed for applications including:

Industrial automation
Medical equipment
Communication systems
Testing equipment
Lighting systems
Railway & tunnel systems
Data centers & laboratories

The product documentation specifies CE certification and a one-year warranty for the AF30 series.

Get the Correct 400kVA AVR Configuration

A voltage stabilizer should be selected according to the actual electrical conditions of the project.

Send us:

Input voltage + output voltage + frequency + load capacity + application

Our team can review the requirements and provide the appropriate AF30W-330400 configuration, technical specification and quotation.

Need a 400kVA Static Voltage Stabilizer?

Request Technical Specification

Get a Project Quotation

Talk to an Engineer

Request Custom Configuration

ACSOON can provide a project-specific configuration and quotation for AF30W-330400.

Request Technical Data | Get a Quote | Discuss Your Project
