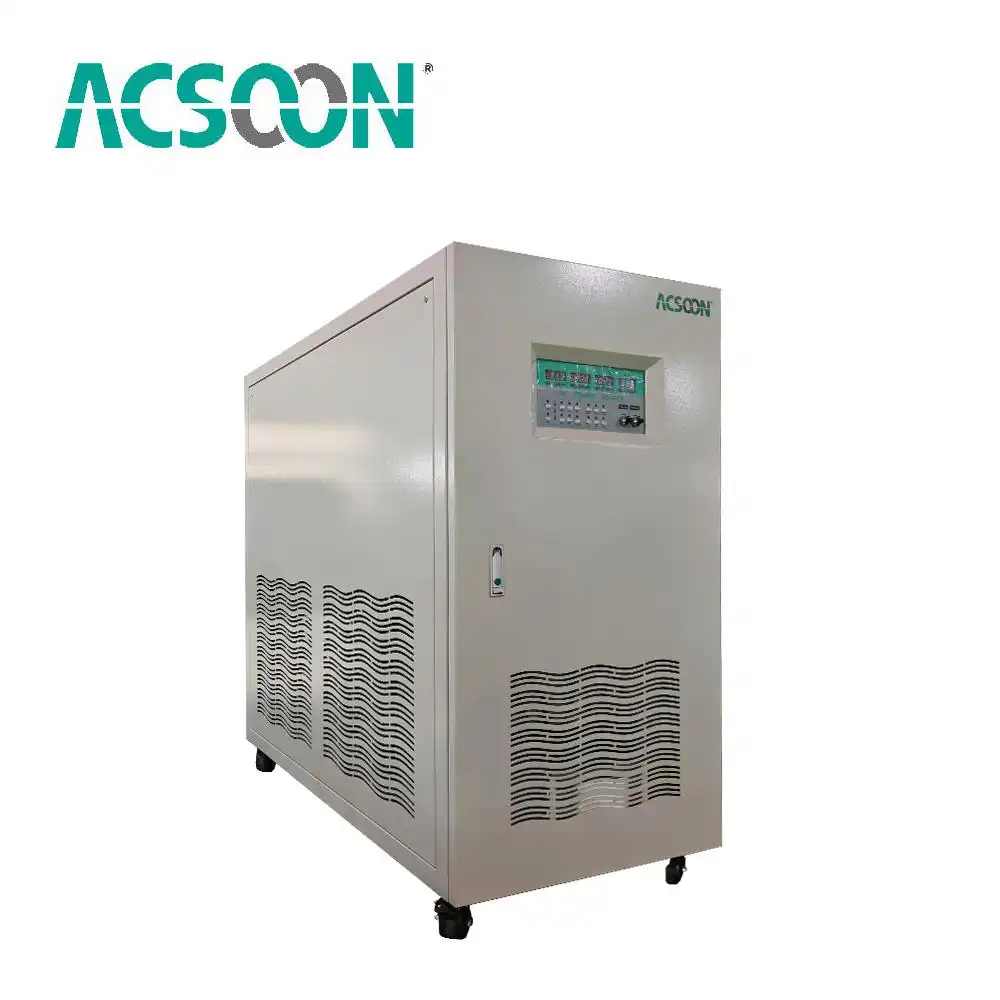

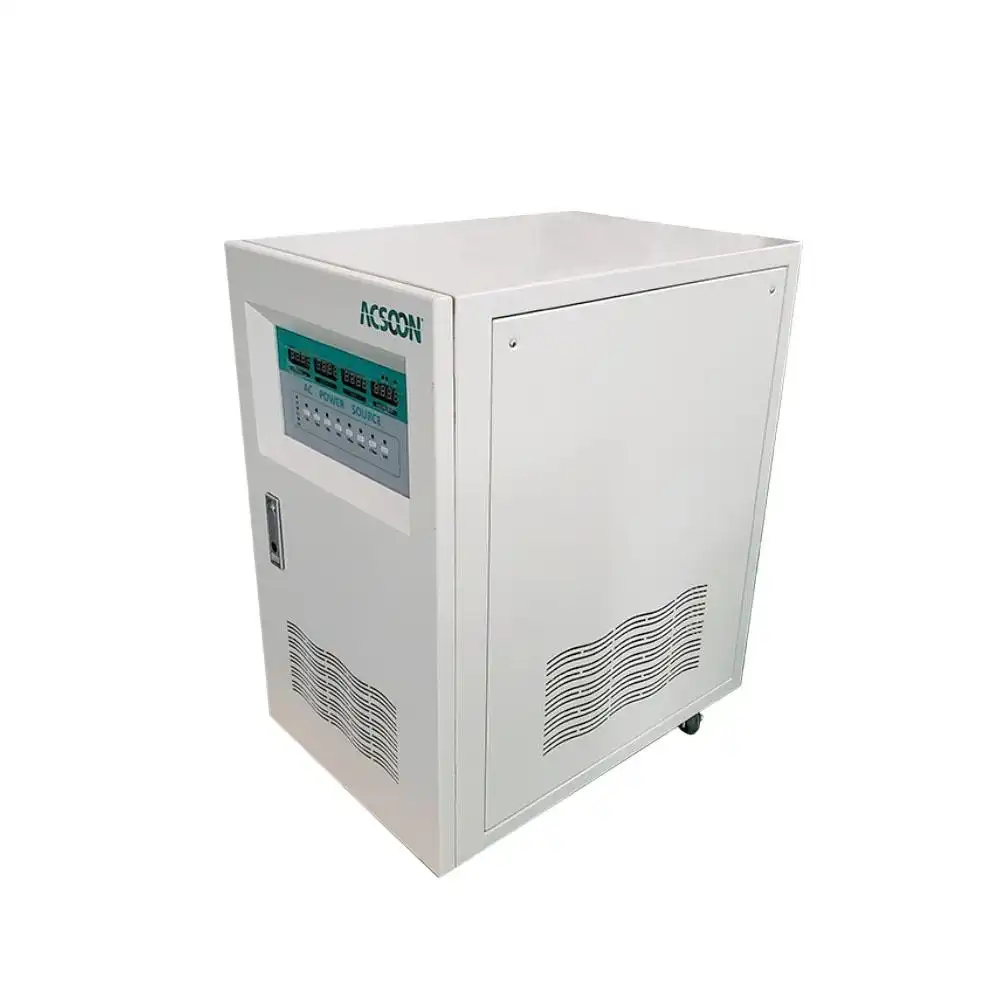

AF50W-310005 5kVA AC Power Supply for Unstable Grid & Generator Power

Your Equipment Is Stable. Is Your Power Supply?

Electrical equipment is often designed for a specific voltage and frequency. The actual power available at the installation site, however, may not remain within those conditions.

Voltage can rise or fall. Generator frequency can fluctuate. Different countries may also use different power standards.

The ACSOON AF50W-310005 5kVA AC Power Supply is designed to create a more stable electrical environment between the incoming power source and the connected equipment.

Unstable Input → Voltage & Frequency Conversion → Stable AC Output

Protection & Reliability

The AF50W series provides protection against:

Over/Under Voltage | Overcurrent | Overload | Overtemperature | Short Circuit

Operating conditions specified for the series include -10°C to +50°C, 10–95% humidity and noise below 65dB at one metre. MTBF is specified at 50,000 hours.

[Get a Technical Recommendation]

[Request a Quote]

When Should You Consider AF50W?

AF50W may be suitable when:

Your grid voltage frequently fluctuates

Your equipment is powered by a generator

Your equipment requires stable 50Hz or 60Hz

Imported equipment uses different power requirements

Your laboratory needs a regulated AC source

Production equipment is sensitive to power quality

You need voltage and frequency regulation in one system

Key Advantages

Wide Input Tolerance

The AF50W series is designed to handle input voltage fluctuations of approximately ±30%, depending on the selected configuration.

Voltage + Frequency Regulation

Provides ±1% voltage regulation and ±0.1% frequency regulation, with 50Hz or 60Hz output available.

Galvanically Isolated Output

The isolated output transformer separates the load side from the incoming power source and supports professional electrical applications.

Pure Sine-Wave Output

Clean sine-wave output with THD <3% for linear loads.

SPWM + IGBT Technology

Rectifier/inverter conversion with SPWM and IGBT technology provides electronic regulation rather than relying only on traditional mechanical voltage correction.

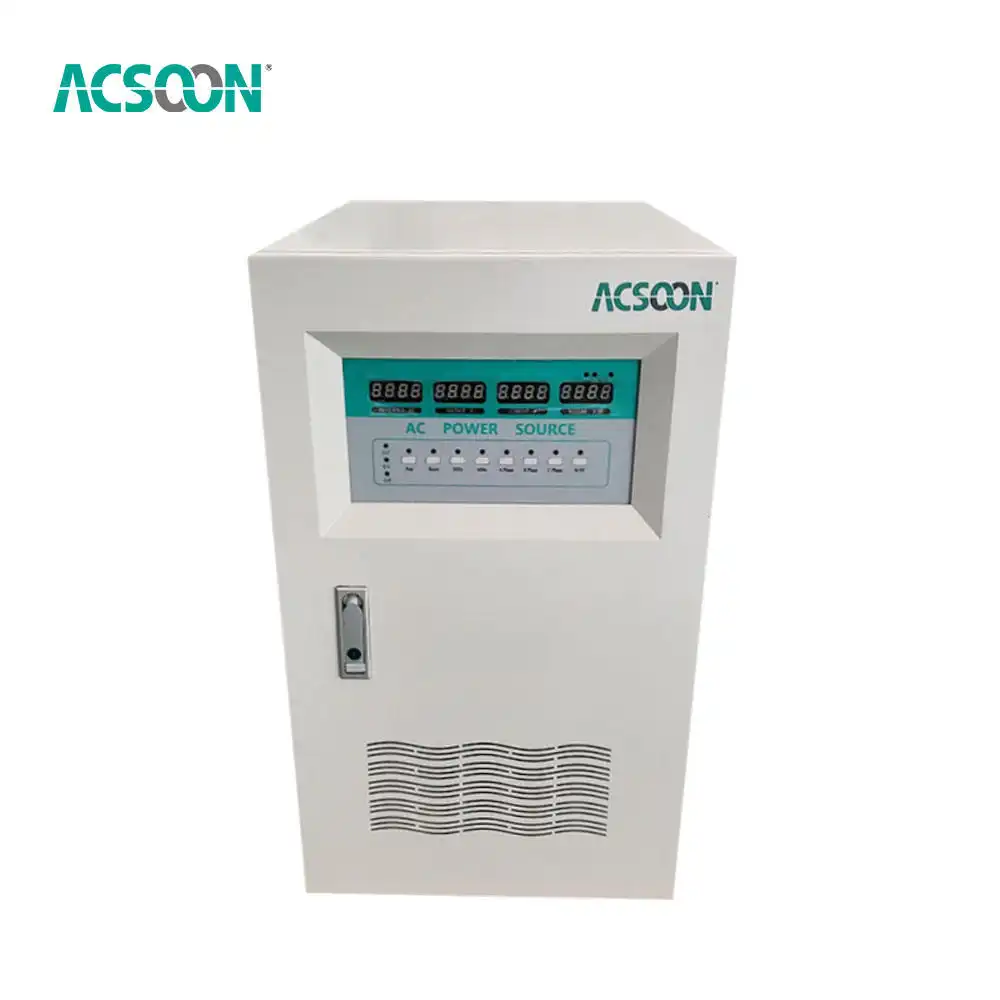

Real-Time Display

The front panel displays:

Voltage | Current | Frequency | Power / Power Factor

​​​​​​​

Select the Configuration Around Your Load

Flexible OEM & Project Configuration

Capacity
Multiple ratings available across the AF50W series.

Voltage
Input and output configurations according to project requirements.

Frequency
50Hz / 60Hz output.

Phase
Single-phase and three-phase series available.

Appearance
OEM logo, nameplate and cabinet color options.

Project Requirements
Special configurations can be reviewed before production.

The AF50W specification covers single- and three-phase models with capacities extending from small kVA ratings up to large industrial systems.
If you need it,Contact us at Email: acpower@acsoonpower.com

Standards & Technical Documents

AF50W series documentation references:

EN60204-1 | IEC 62321 | EN61000-6-3

Available project documents can include technical specifications, test materials and relevant certification documentation according to order requirements.

Multiple Electrical Protections

Protection functions include:

Overcurrent | Overload | Overtemperature | Short Circuit

Easy Maintenance

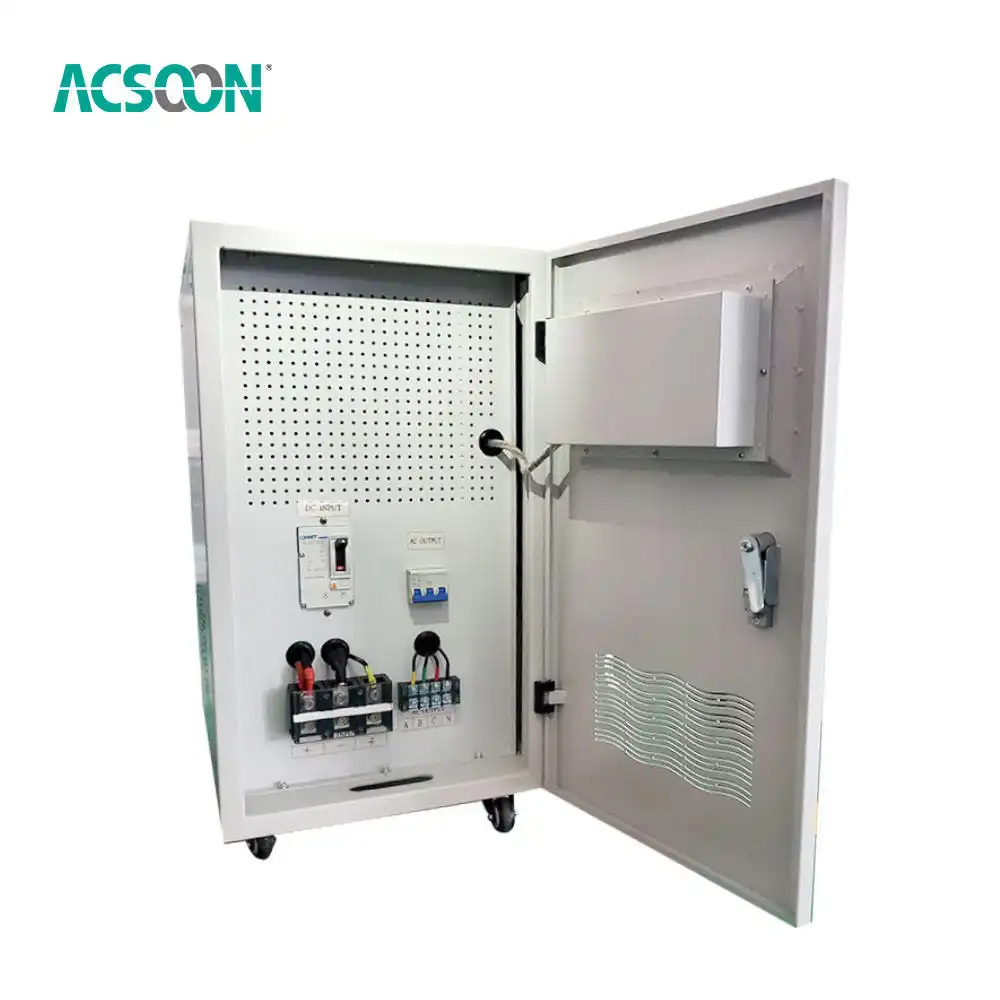

The cabinet layout is designed to provide access to internal components for inspection and maintenance.
About ACSOON

ACSOON is a professional manufacturer of industrial power conversion systems, including static frequency converters, aircraft ground power units, AC power supplies, and customized electrical testing systems.

With over 19 years of engineering experience, ACSOON equipment is widely used in aviation, industrial manufacturing, military support systems, and laboratory testing environments.

One-Year Warranty & After-Sales Support

ACSOON provides a one-year warranty, subject to the agreed sales terms.

Technical support can include:

Installation guidance | Operation support | Remote troubleshooting | Technical documentation | Spare-parts coordination

For overseas customers, operating data, photos and videos can be used to assist remote troubleshooting.

[Contact After-Sales Support]

04

Quality Control

Cold chamber test – Every unit runs at -30°C for 2 hours. Heater must hold internal temp above 0°C.

Hot chamber test – 55°C for 4 hours at full load. No over‑temp alarms.

IP56 water test – High‑pressure spray from all directions for 10 minutes. No water inside.

Sand test – Blown sand against the intake for 30 minutes. Filter catches it.

05

R&D Results

Heater placement – First unit had heater near the top. Heat rose, bottom stayed cold. Moved to the bottom. Much better.

Filter design – Original filter clogged fast in heavy dust. Switched to a cyclonic pre‑filter. Lasts 10x longer.

Door seals – Used automotive‑grade bulb seals. Stays flexible down to -40°C. No cracking.

Customer feedback – An Arctic operator wanted a way to check internal temp without opening the door. Added a display on the outside.

06

From Technical Confirmation to Delivery

01 Send Requirement

Input + Output + Capacity + Load

02 Confirm Configuration

Voltage, frequency, phase and customization

03 Production

Manufactured according to confirmed order

04 Factory Test

Performance checked before shipment

05 Packing & Delivery

Prepared for international transportation

06 After-Sales Support

One-year warranty plus technical assistance

07

After‑Sales Service

1‑year warranty – Covers electronics, heater, fans. Filters are consumable.

Spare parts (heater element, fans, control board) kept in Xi'an.

Email support – We answer within one business day. Include temperature readings.

Request Your AF50W-310005 Configuration

Tell us what equipment you need to power.

Input Voltage: ______
Input Frequency: ______
Output Voltage: ______
Output Frequency: ______
Capacity / Load: ______
Destination Country: ______

[ Request a Quote ]　[ Send Your Specification ]

Frequently Asked Questions

Q1: Can it work with 50Hz and 60Hz mains power?

Yes. The GPU400 specification supports three-phase 50Hz/60Hz input, with several nominal input-voltage configurations available.

Q3: Can the input voltage be customized for my country?

Different input configurations are available. Send the actual voltage, frequency and phase available at your installation site before ordering.

Q4: Can ACSOON customize the cable and aircraft connector?

Project-specific cable length and connector requirements can be discussed during technical confirmation.

Q5: Can I order an OEM version with my own logo?

Yes. OEM branding, labeling and selected appearance options can be discussed before production.

Q6: What information should I send for a quotation?

Send your aircraft/application, required capacity, input voltage/frequency, cable length, connector requirement, installation environment and destination country.

Q7: What is the warranty?

The standard warranty for this product is one year, subject to the agreed sales terms.

Contact Us
For technical specifications or global solutions: acpower@acsoonpower.com, or submit your requirements using the form at the bottom of our website.
