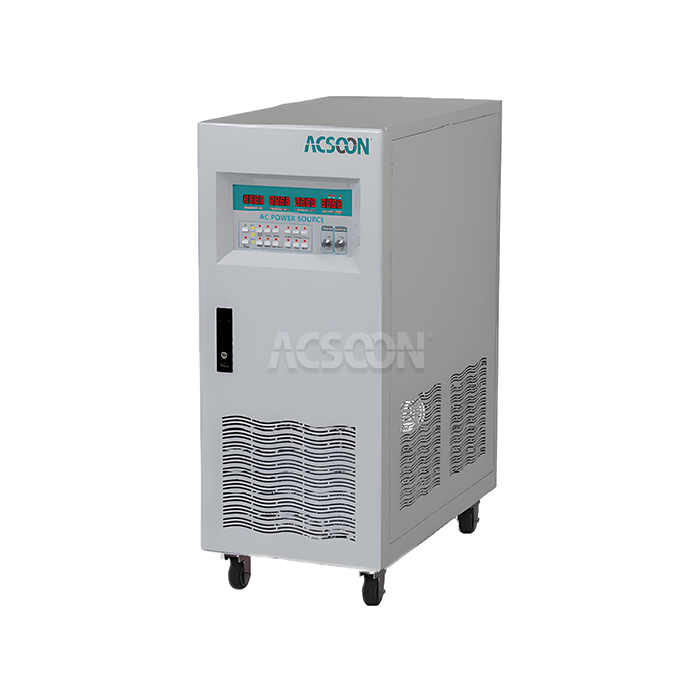

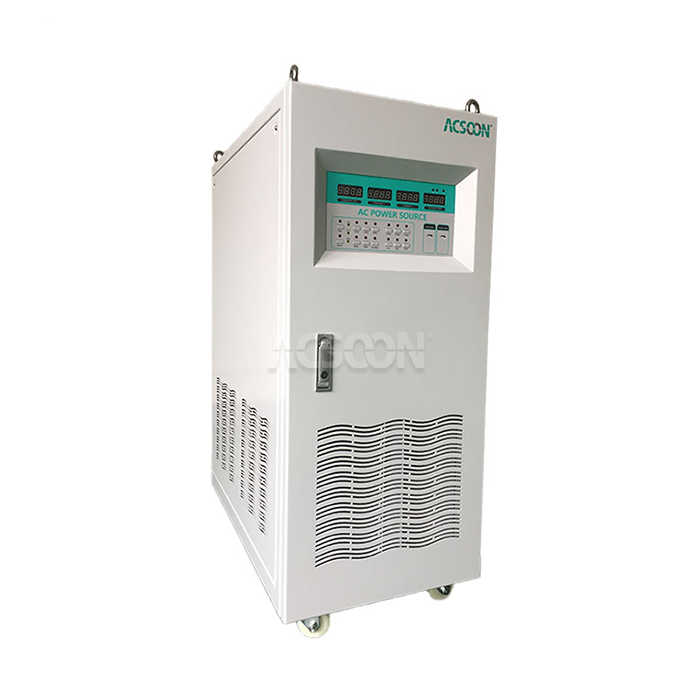

Burn-In AC Power Supply
1.Power Range: 10kVA to 200kVA (Three Phase, Scalable)
2.Technology: IGBT-based Static Frequency Converter with Heavy-Duty Design
3.Input: 3-Phase, 380V/400V/415V, 50/60Hz
4.Output: 0-520V Adjustable, 45-200Hz Variable Frequency, Pure Sine Wave
5.Applications: Product Burn-In Testing, Reliability Testing, Aging Chambers, Component Stress Testing
6.Core Features: High Overload Capacity, Extended Continuous Operation, Programmable Profiles, Remote Monitoring
7.Brand: ACSOON (Custom Configurations Available).
2.Technology: IGBT-based Static Frequency Converter with Heavy-Duty Design
3.Input: 3-Phase, 380V/400V/415V, 50/60Hz
4.Output: 0-520V Adjustable, 45-200Hz Variable Frequency, Pure Sine Wave
5.Applications: Product Burn-In Testing, Reliability Testing, Aging Chambers, Component Stress Testing
6.Core Features: High Overload Capacity, Extended Continuous Operation, Programmable Profiles, Remote Monitoring
7.Brand: ACSOON (Custom Configurations Available).
- Product Description
Burn-In AC Power Supply | High-Reliability AC Source for Aging Tests
XI'AN JERRYSTAR INSTRUMENT CO., LTD introduces the robust Burn-In AC Power Supply, engineered specifically for long-duration, high-stress testing applications. This power unit delivers clean, stable, and programmable AC power essential for burn-in and reliability testing of electronic products, components, and assemblies. Built with industrial-grade components and enhanced cooling, it ensures uninterrupted operation 24/7, helping manufacturers identify early-life failures and guarantee product quality before shipment.
Datasheet
| Parameter | Specification |
|---|---|
| Model Series | ACSOON AF60W Series |
| Model Number | AF60W-33100 (100kVA Three Phase) |
| Input | 3-Phase 380V/400V/415V ±15%, 50/60Hz |
| Output | Voltage: 0-520V (L-L) adjustable Frequency: 45-200Hz adjustable Power: 10kVA, 20kVA, 30kVA, 45kVA, 60kVA, 75kVA, 100kVA, 150kVA, 200kVA |
| Output THD | <3% @ linear load |
| Regulation | Voltage: ≤ ±1% FS, Frequency: ≤ ±0.1% FS |
| Overload Capacity | 125% for 60 seconds, 150% for 10 seconds |
| Efficiency | ≥85% |
| Display | Digital LED (V, I, F, P, PF) |
| Communication | RS485 (Modbus) |
| Protections | Over Voltage, Over Current, Short Circuit, Over Temperature |
| Cooling | Forced Air (Heavy-Duty Fans) |
| Operating Temp. | -10°C to 45°C |
Burn-In AC Power Supply Main Features
- Extended Continuous Duty: Designed for months of uninterrupted operation with minimal maintenance.
- Wide Adjustable Range: Output voltage 0-520V, frequency 45-200Hz, covering diverse product test requirements.
- High Efficiency & Low Distortion: ≥85% efficiency, THD <3% ensuring accurate test conditions.
- Comprehensive Protection: Overload, short-circuit, over-temperature protection with automatic recovery options.
Why Choose ACSOON Burn-In AC Power Supply?
- Designed for 24/7 Continuous Operation: Heavy-duty components and advanced thermal management ensure reliable performance during extended burn-in cycles.
- High Overload Capacity: Handles 125% overload for sustained periods, accommodating peak loads during product testing.
- Programmable Test Profiles: Allows setting of voltage, frequency, and duration sequences for automated multi-step burn-in procedures.
- Remote Monitoring & Control: Standard RS485/Modbus interface enables integration with factory monitoring systems for real-time status and data logging.

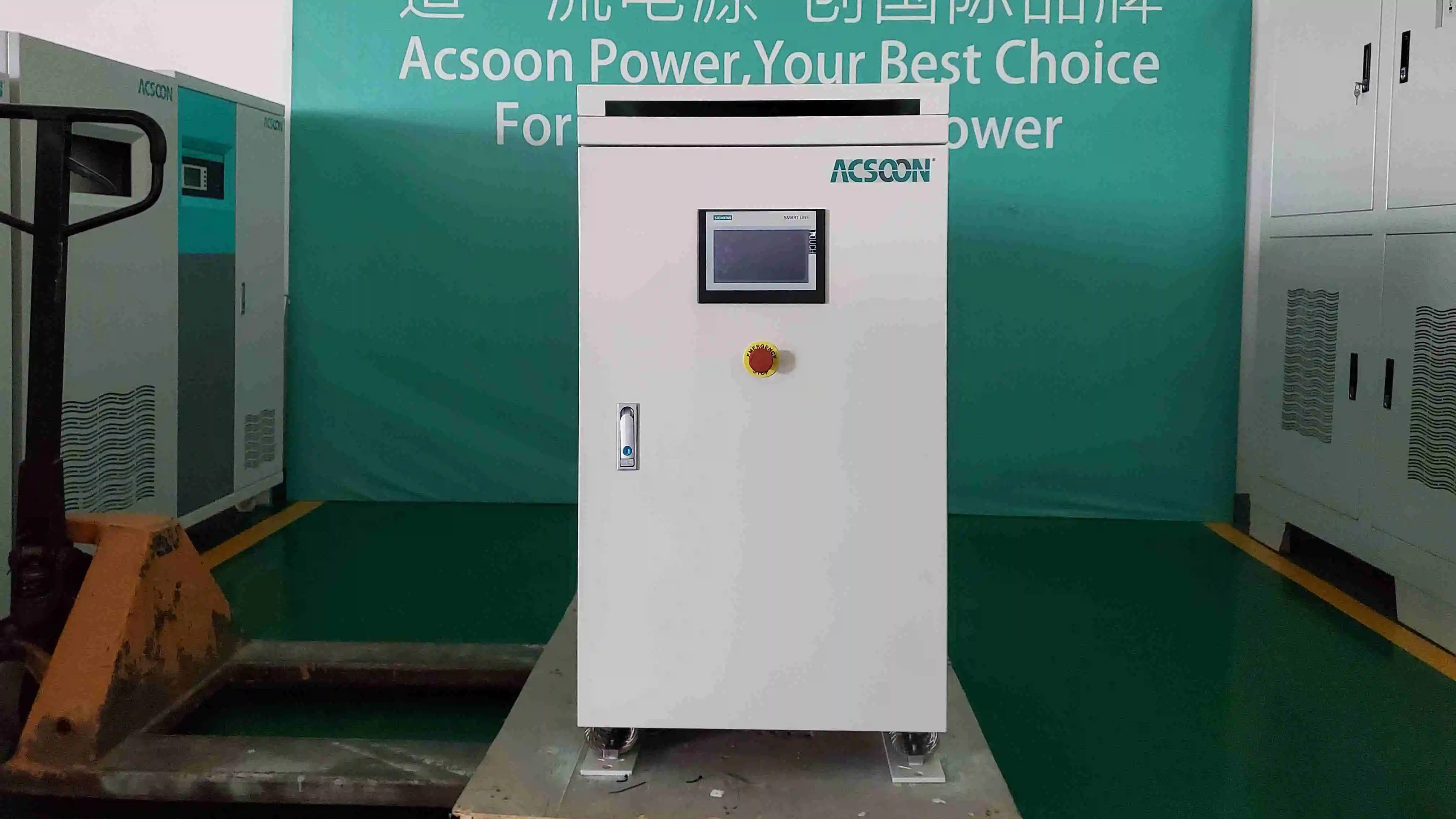

Burn-In AC Power Supply Application Areas
- Electronics Manufacturing: Burn-in testing of power supplies, inverters, motor drives, and consumer electronics.
- Automotive Component Testing: Aging tests for ECUs, sensors, and infotainment systems under controlled AC power.
- Aerospace & Defense: Reliability testing of avionics, radar systems, and communication equipment.
- Industrial Equipment: Long-term stress testing of transformers, motors, and industrial control panels.
Our Services
01
Quality Control
- Component Stress Testing: IGBT modules, capacitors, and transformers are tested at elevated temperatures before assembly.
- Extended Burn-In Verification: Each unit undergoes a 72-hour continuous full-load test to ensure long-term reliability.
- Thermal Imaging Inspection: Critical components are scanned under load to verify proper heat dissipation.
- Final Functional Audit: All programmable features, protections, and communication interfaces are rigorously tested.
02

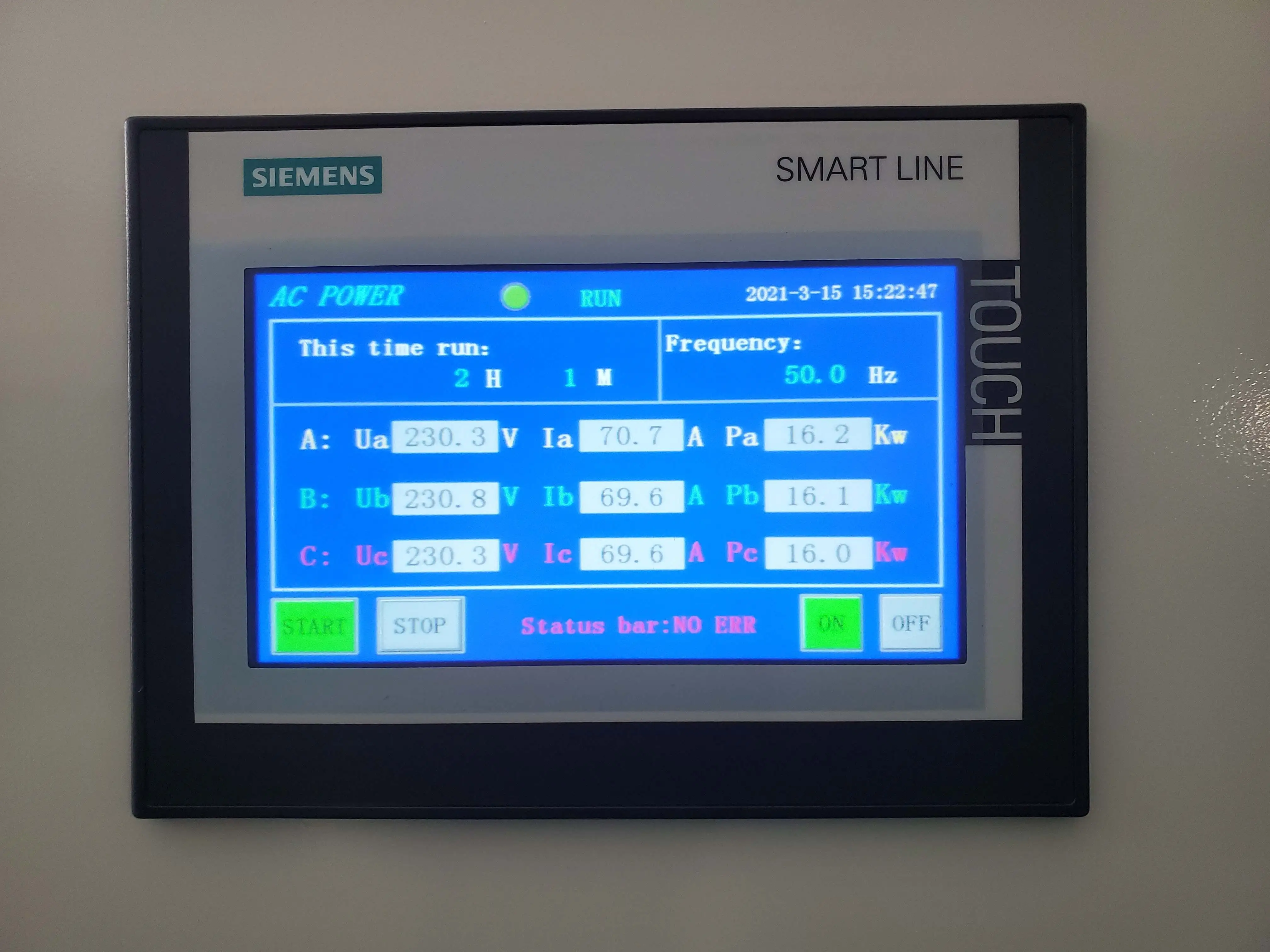

R&D Results
- Optimized Thermal Management: Developed high-efficiency cooling with redundant fans for fail-safe operation during extended tests.
- Advanced Control Algorithm: Engineered precise voltage/frequency regulation even under dynamically changing loads.
- Modular Power Design: Created scalable architecture allowing easy capacity upgrades and field serviceability.
- Remote Monitoring Integration: Implemented standard Modbus protocol for seamless factory automation integration.
03
Packaging and Transportation
- Industrial-Grade Crating: Unit is secured in a reinforced wooden crate with shock-absorbent padding.
- Climate Protection: Packaging includes moisture barrier and desiccant for safe sea freight.
- Complete Documentation: Includes user manual, test reports, wiring diagrams, and communication protocol guide.
- Global Logistics: We coordinate shipping with full tracking and customs documentation support.
04
After‑Sales Service
We offer a 24-month warranty, 24/7 technical support, remote diagnostics, and guaranteed availability of spare parts for long-term maintenance.
Qualification Certification
ISO 9001:2015 Certified manufacturing quality system；CE Marked for safety and EMC compliance；Factory Test Report: Provided with each unit documenting performance parameters.
FAQ |
|---|
| Q1: What is a burn-in test and why is a specialized power supply needed? |
| A: Burn-in testing operates products at elevated stress levels (voltage, temperature) for extended periods to detect early failures. A specialized power supply must deliver stable, programmable power 24/7 with high overload capacity and minimal downtime—capabilities exceeding those of standard power sources. |
| Q2: Can this supply run unattended for weeks? |
| A: Yes, it is designed for fully automated, unattended operation. With remote monitoring and automatic recovery options, it can safely execute long-duration test sequences without operator intervention. |
| Q3: How does it handle load changes during burn-in? |
| A: Its fast transient response maintains stable output even when multiple units under test are switched on/off, preventing test interruptions or inaccurate results. |
| Q4: Can I program specific test profiles? |
| A: Absolutely. The unit supports programmable voltage, frequency, and time settings, allowing you to create custom profiles that simulate real-world operating conditions or stress sequences. |
| Q5: What communication options are available for data logging? |
| A: Standard RS485 Modbus interface allows real-time data acquisition and control. Optional Ethernet and analog interfaces are available for integration with various test systems. |
