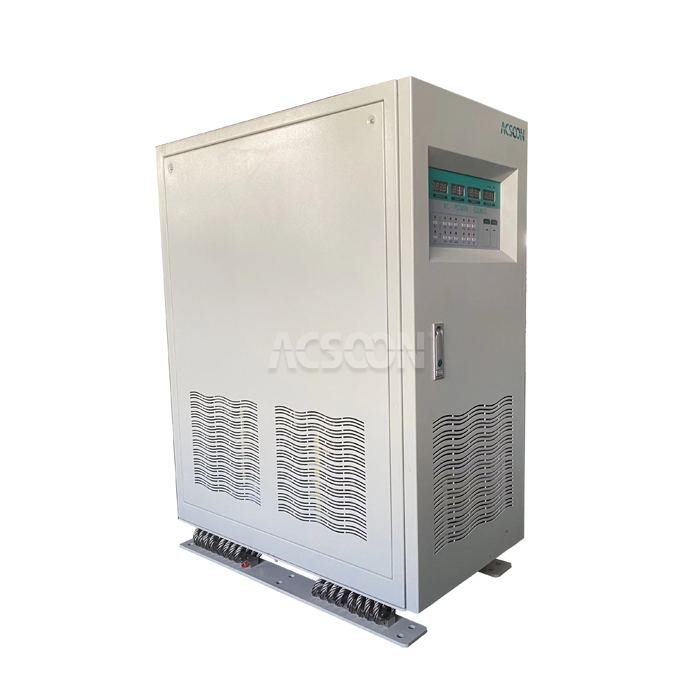

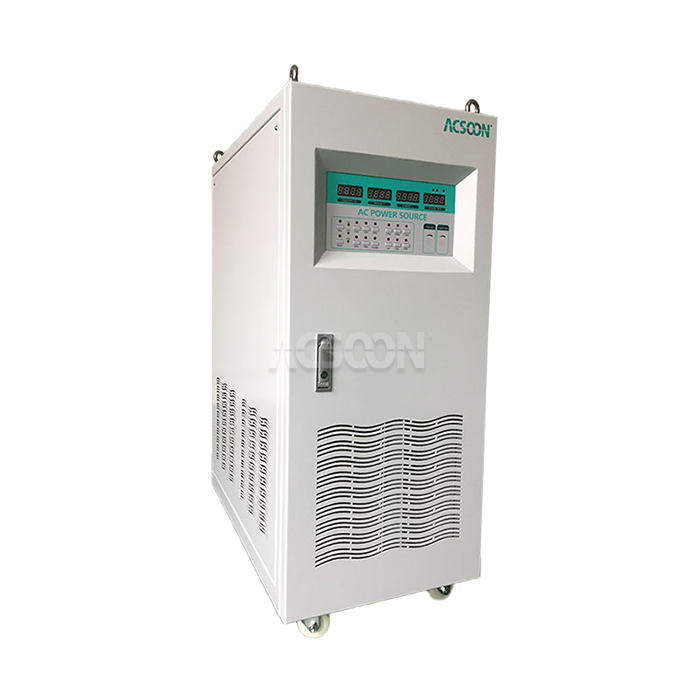

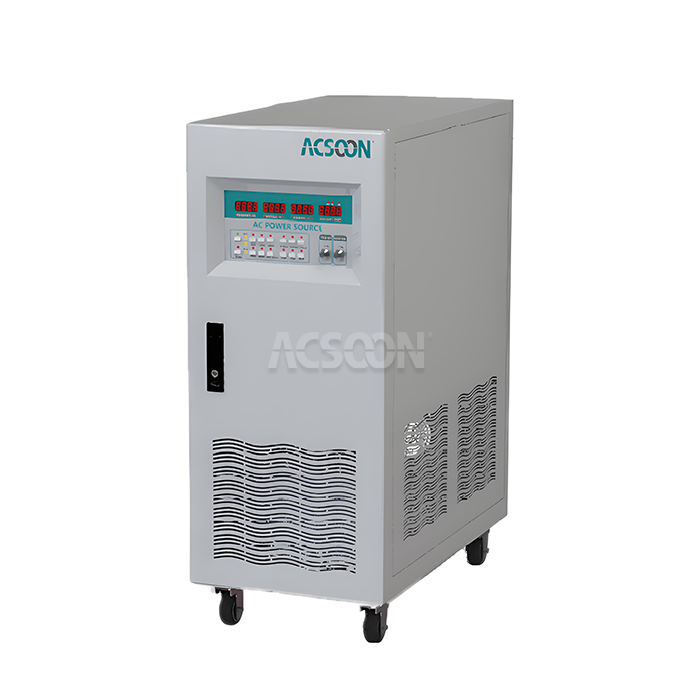

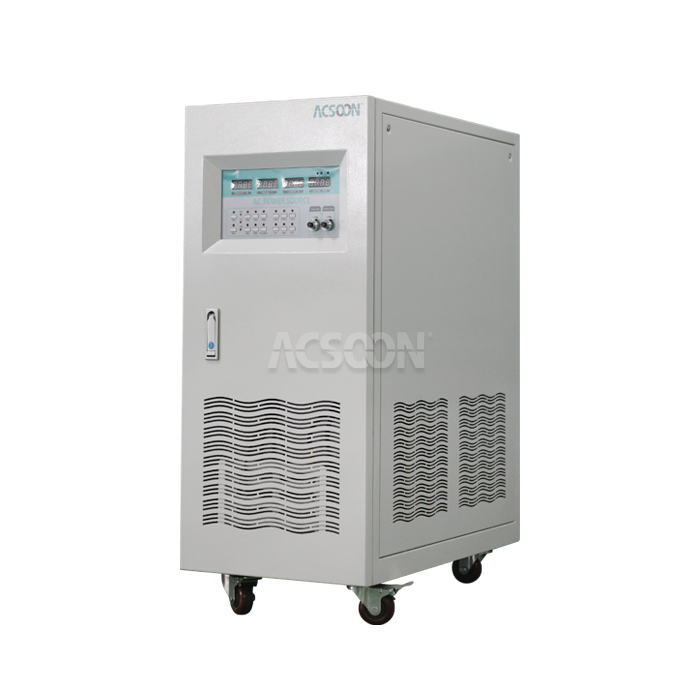

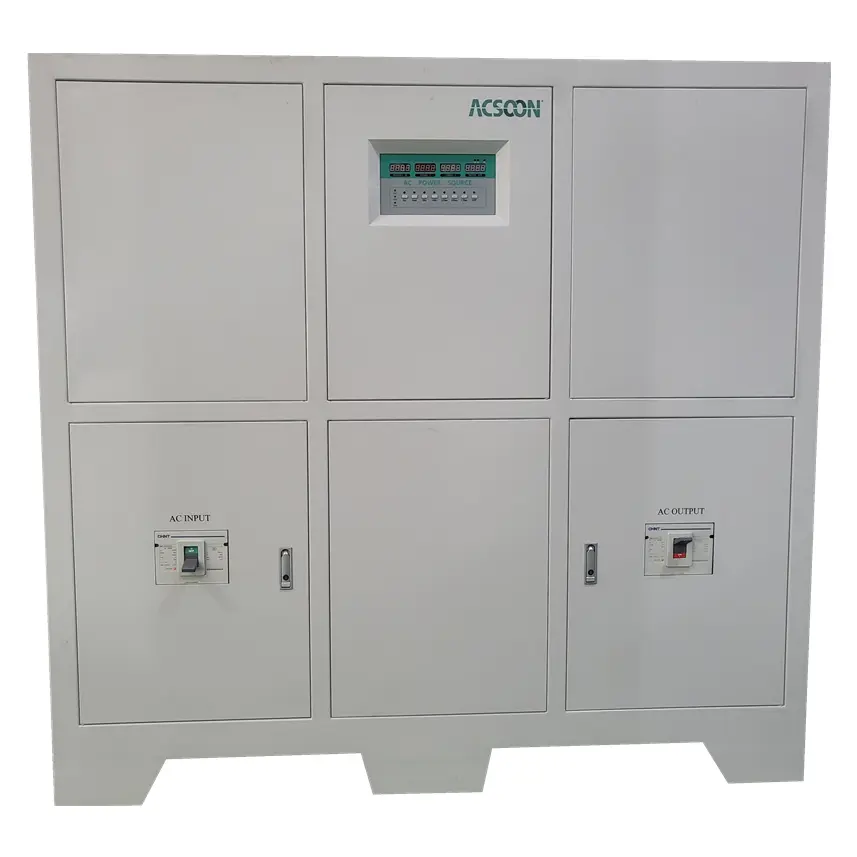

CVCF AC Power Supply
2.Power: 3kVA to 100kVA single or three phase
3.Input: Wide range 110‑480V, 40‑70Hz (accepts dirty grid or generator)
4.Key specs: ±1% voltage regulation, ±0.1% frequency stability, THD <3%
5.Applications: Stabilizing unstable utility power, generator output cleaning, protecting sensitive equipment
6.Features: Double conversion, isolation transformer, bypass mode, overload 125% for 1 minute
7.Brand: ACSOON (1‑year warranty, built in Xi’an).
- Product Description
Some places have bad power. Voltage swings. Frequency drifts. Brownouts. Spikes. Your expensive equipment doesn't like that.The CVCF AC Power Supply takes whatever your wall gives you – within reason – and outputs rock‑steady AC at a fixed voltage and frequency. It's a double‑conversion system: AC to DC to clean AC. The output doesn't care if the input drops to 300V or jumps to 500V. It stays at your set voltage.We sell these to factories in areas with weak grids, mining operations running on generators, and labs that need repeatable power. You set it once. It runs for years.
Datasheet
| Parameter | Specification |
|---|---|
| Model Series | ACSOON AF50W Series |
| Model Number | AF50W‑330030 |
| Input | 3‑phase 380V ±25% (285‑475V), 40‑70Hz |
| Output | 380V/400V/415V selectable, 50Hz or 60Hz fixed, 30kVA |
| Output THD | <3% at linear load |
| Voltage Regulation | ±1% (0‑100% load) |
| Frequency Stability | ±0.1% |
| Efficiency | ≥88% |
| Overload | 125% for 1 minute, 150% for 10 seconds |
| Transfer time | <1ms (bypass to inverter) |
| Display | LCD (input V/Hz, output V/A/Hz) |
| Protections | Over‑load, short circuit, over‑temp, input under/over voltage |
| Cooling | Temperature‑controlled fans |
If you need it,Contact us at Email: acpower@acsoonpower.com
CVCF AC Power Supply Main Features
- Double conversion topology – AC‑DC‑AC. Total isolation between input and output.
- Bypass mode – If the unit fails, an internal relay passes input directly to output. Your load stays powered.
- Digital display – Shows input and output voltage, current, frequency. Helpful for diagnosing grid issues.
- Fan cooling – Temperature‑controlled. Quiet at low load.
Why Choose ACSOON CVCF AC Power Supply?
Input doesn't matter – 110‑480V, 40‑70Hz. Dirty generator? Weak grid? It handles it.
Output holds steady – Voltage and frequency locked to your setpoint. No drift, no sag.
Isolation built in – Output transformer breaks ground loops and kills spikes.
Simple installation – Wire it inline between your main panel and critical loads.
CVCF AC Power Supply Application Areas
Remote mines and oil fields – Generator power is often unstable. This cleans it up for electronics.
Industrial plants – When a large motor starts, lights dim. This keeps your control system running.
TV and broadcast – Transmitters need stable frequency. This delivers.
Test labs – Run long‑term tests without worrying about the utility drifting.
Our Services
Quality Control
Every unit burned in – 4 hours at 80% load, then 1 hour at 100%. Log temps.
Input variation test – We swing input from 300V to 480V while measuring output. Must stay within 1%.
Bypass relay test – Cycle bypass 50 times. No sticking or arcing.
Final walk‑around – Human checks all connections, fans, and display.
R&D Results
Field feedback – A mining customer wanted a wider input range. Original was ±20%. We pushed to ±25%. Works fine.
Fan placement – Early units had fans on the back, hard to clean. Moved to front‑accessible filters.
Display upgrade – Added input frequency readout after a customer couldn't tell if their generator was stable.
Bypass improvement – First version had a manual bypass switch. Changed to automatic relay with indicator light.
Packaging and Transportation
Shipped from Xi'an – Wooden crate, bolted to skid. Fits in a 20ft container.
Included – Input terminals, output terminals, printed quick start.
Manual – Full manual on USB. Wiring diagram inside the door.
Optional – Input and output circuit breakers (adds $200).
After‑Sales Service
1‑year warranty – Parts and labor. Return to Xi'an.
Spare parts (IGBTs, fans, control board) kept in Xi'an.
Email support – We usually answer within one business day.
Qualification Certification
CE – LVD and EMC；ISO 9001:2015 – Our Xi'an facility.
FAQ |
|---|
| Q1: Is this a UPS? |
| A: No. A UPS has batteries. This doesn't. If the input power dies completely, the output dies too. This is a power conditioner, not a backup. |
| Q2: Can I use it to convert 50Hz to 60Hz? |
| A: Yes. Set output frequency to 60Hz. Input can be 50Hz. It will output clean 60Hz regardless of input frequency. |
| Q3: What's the difference between this and a voltage stabilizer? |
| A: A stabilizer only fixes voltage. This fixes voltage AND frequency. If your generator speed wanders, a stabilizer won't help. This will. |
| Q4: How much input voltage variation can it take? |
| A: ±25% from nominal. For a 380V unit, that's 285V to 475V. Outside that range, it will shut down to protect itself. |
| Q5: Lead time from Xi'an? |
| A: 3‑4 weeks. We build to order. If you need one faster, check with sales for stock. |
