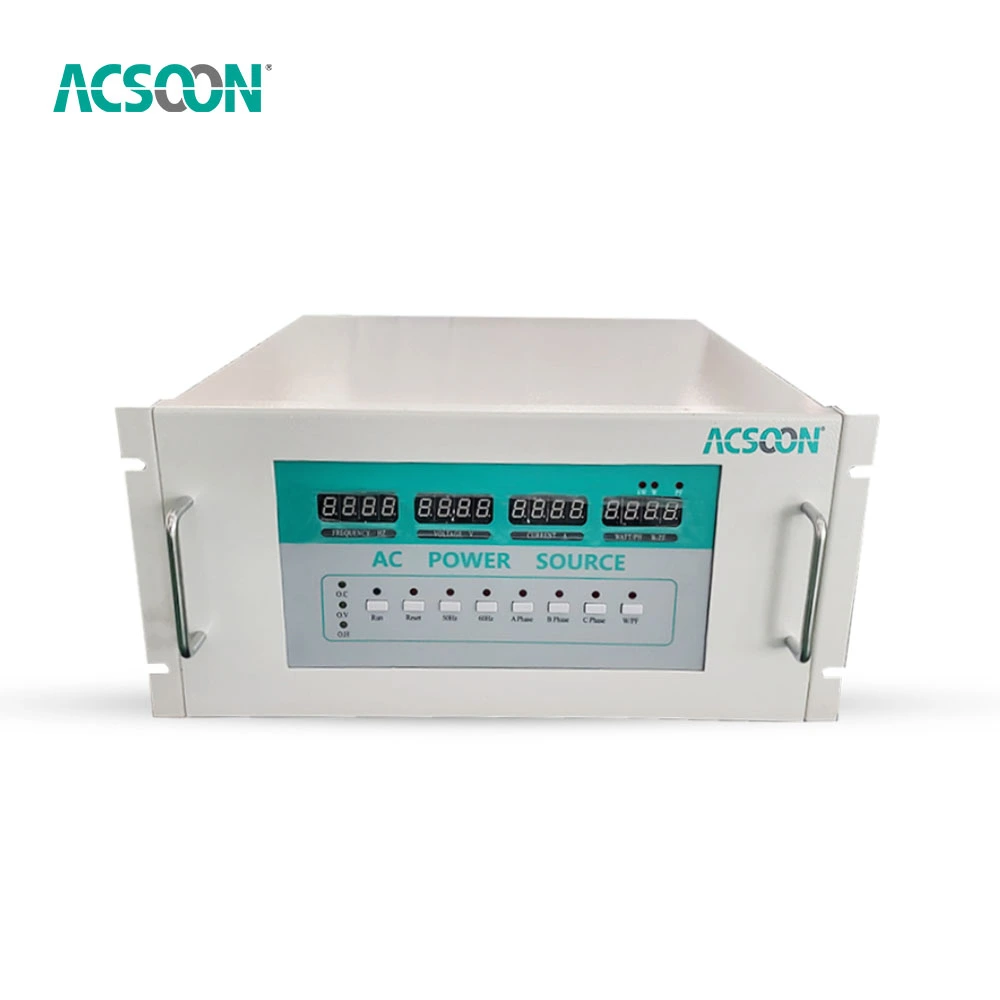

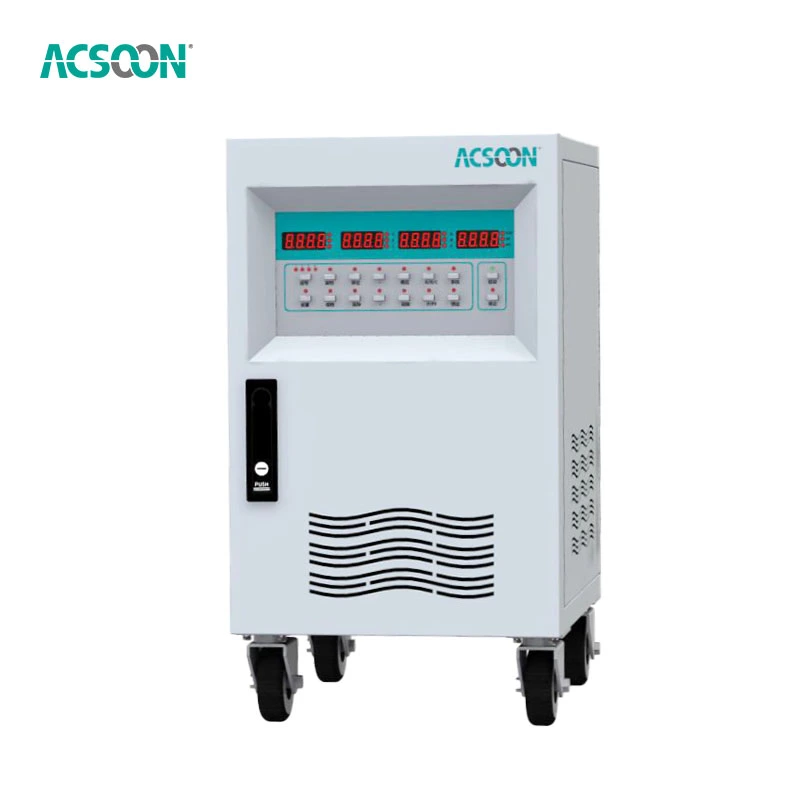

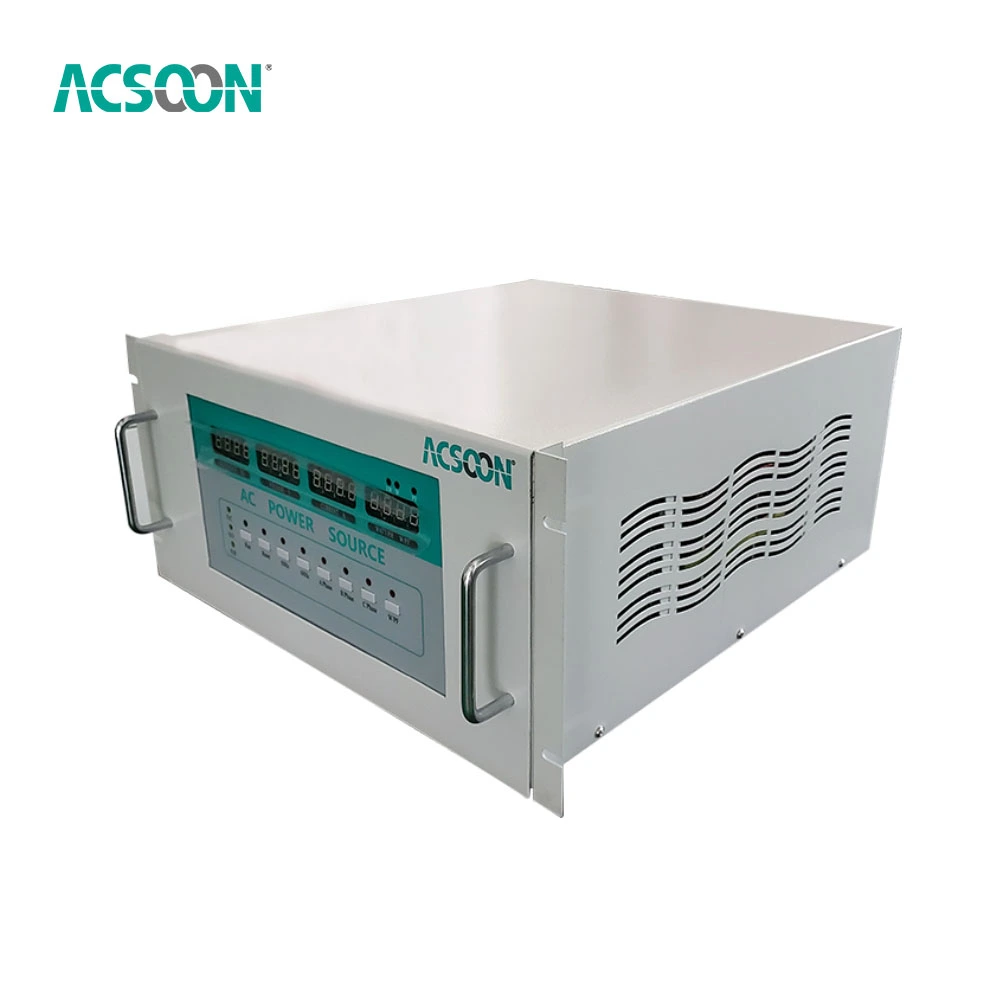

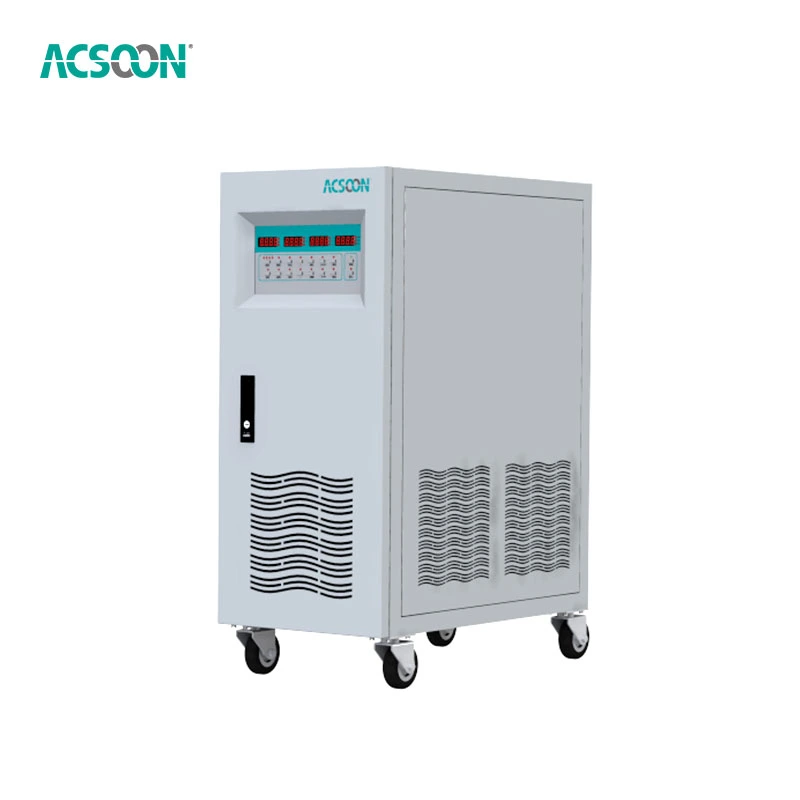

Electronic Test AC Source
2.Technology:DSP-controlled with pure sine wave output
3.Input: 1-phase 220VAC ±10%, 50/60Hz
4.Output: 0-300VAC, 45-500Hz programmable
5.Key Applications: Electronics testing, product development, quality validation
6.Key Features: Precision output; programmable sequences; low distortion; multiple protection
7.Ingress Protection Grade: IP21/54
8.Brand: ACSOON (test configurations available)
- Product Description
XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures precision electronic test AC sources for electronics testing and development applications. Our systems provide clean, stable AC power with programmable control for testing electronic components, validating product designs, and ensuring quality standards in manufacturing and development environments.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity (Single Phase Output) | 1kVA to 200kVA |
| Capacity (Three Phase Output) | 1kVA to 2000kVA |
| Input Voltage (Single Phase) | 110-230VAC ±20% |
| Input Voltage (Three Phase) | 200-440VAC ±20% |
| Input Frequency | 50/60HZ or 40-70HZ |
| Output Voltage (Single Phase) | 0-300Vac |
| Output Voltage (Three Phase) | 0-520Vac |
| Output Frequency | 50/60/100/200/400HZ or 40-800HZ adjustable |
| Frequency Stability | ≤0.1% |
| Voltage Stability | ±1% |
| Output VTHD | <3% @ Linear load |
| Power Factor | ≥0.8 (Standard), ≥0.9 (12 Pulse Optional) |
| Overall Efficiency | ≥85% |
| Overload Capacity | 125% for 60s, 150% for 30s |
| Cooling | Forced air |
| MTBF | 30,000H |
| Operating Temperature | -10°C to 50°C |
ACSOON Electronic Test AC Source Main Features
- Isolated output transformer,suitable for any unbalance loads, each single phase can be used independently
- EMC compatible
- Compatible with both 50Hz and 60Hz power supply network
- Low harmonic distortion
- Pure sine wave,sinusoidal output
- Completely protection and alarm for over voltage, over current and overheating, etc
- Display real-time data: voltage,current,frequency, power / power factor
Why Choose ACSOON Electronic Test AC Sources?
ACSOON delivers precision and reliability for electronic testing:
Test Accuracy: High-precision voltage and frequency control
Clean Power: Low distortion pure sine wave output
Programmable: Automated test sequences
Multiple Protection: Comprehensive safety features
User-Friendly: Intuitive operation interface
Application Areas
Our electronic test AC sources are essential for:
Electronics Manufacturing: Component testing and validation
Product Development: Prototype testing and verification
Quality Assurance: Production line testing
Research Laboratories: Electronic research applications
Service Centers: Equipment repair and testing
Educational Institutions: Engineering education
Certification Labs: Standards compliance testing
Automotive Electronics: Component validation
Details display
Quality Assurance
Each electronic test AC source undergoes rigorous testing:
Output accuracy verification
Stability performance testing
Protection function validation
Environmental testing
Reliability certification
Technical Features
Our electronic test AC source incorporates:
Precision control technology
Low distortion circuitry
Programmable sequences
Protection systems
Monitoring capabilities
Packaging and Delivery
We ensure precision packaging:
Protective packaging materials
Careful handling procedures
Worldwide shipping services
Installation guidance
After-Sales Service
Test support package includes:
Technical support services
Calibration services
Maintenance programs
Training services
Parts availability
Certifications
FAQ |
|---|
| Q1: What are the primary applications for electronic test AC sources? |
| A: Electronics testing, product development, and quality validation applications. |
| Q2: How accurate is the output control? |
| A: High-precision control for reliable test results. |
| Q3: What programmable features are available? |
| A: Automated test sequences and parameter settings. |
| Q4: How is output quality ensured? |
| A: Low distortion pure sine wave output. |
| Q5: Can systems be customized for specific tests? |
| A: Yes, we offer customized test solutions. |
Contact Information
For technical specifications or test solutions: acpower@acsoonpower.com ,or submit your requirements using the form at the bottom of our website.
