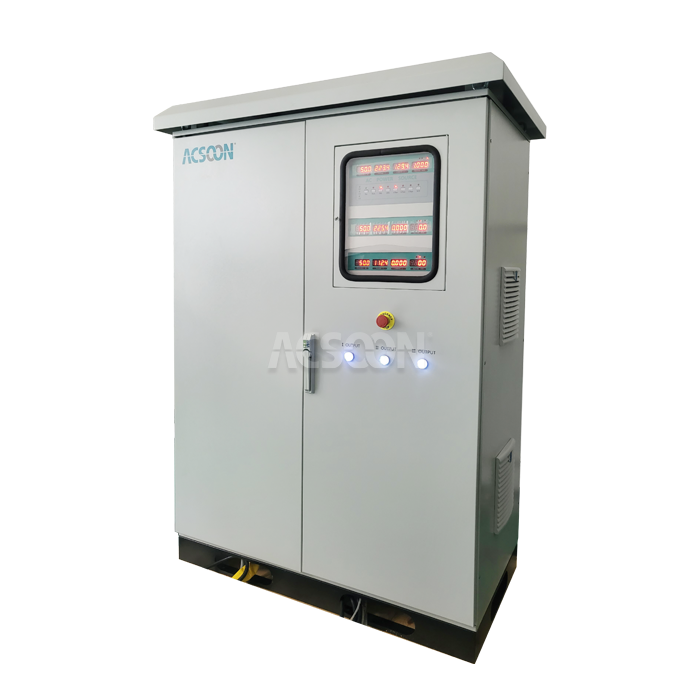

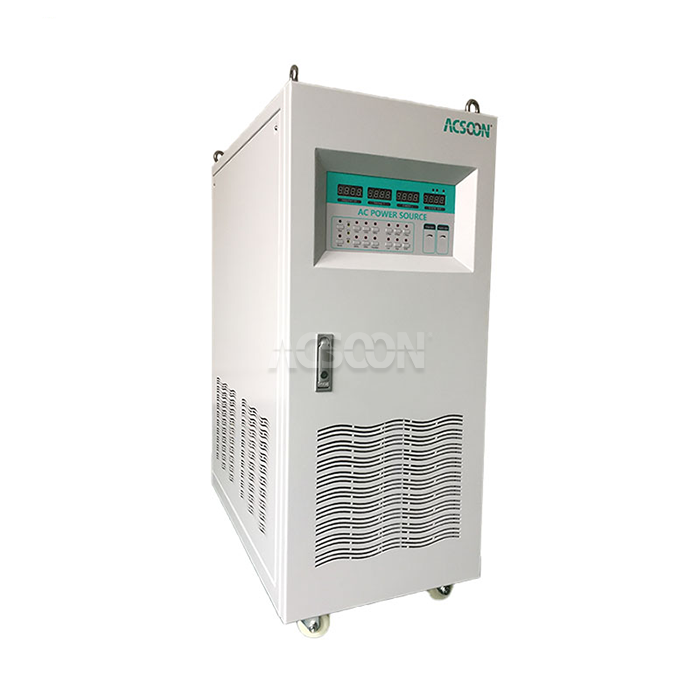

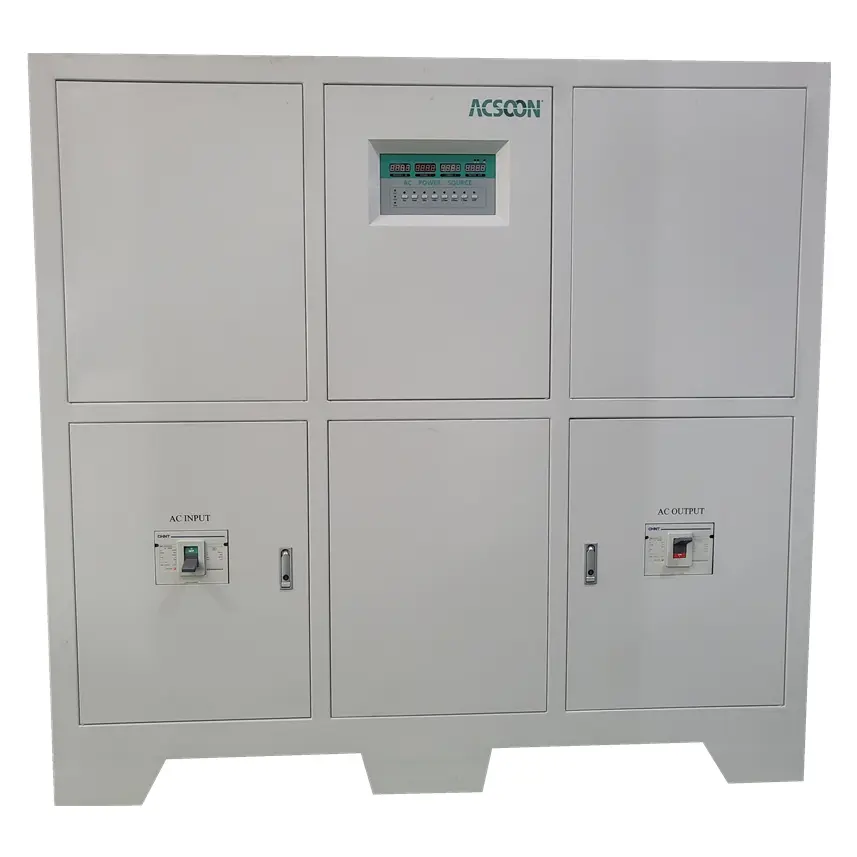

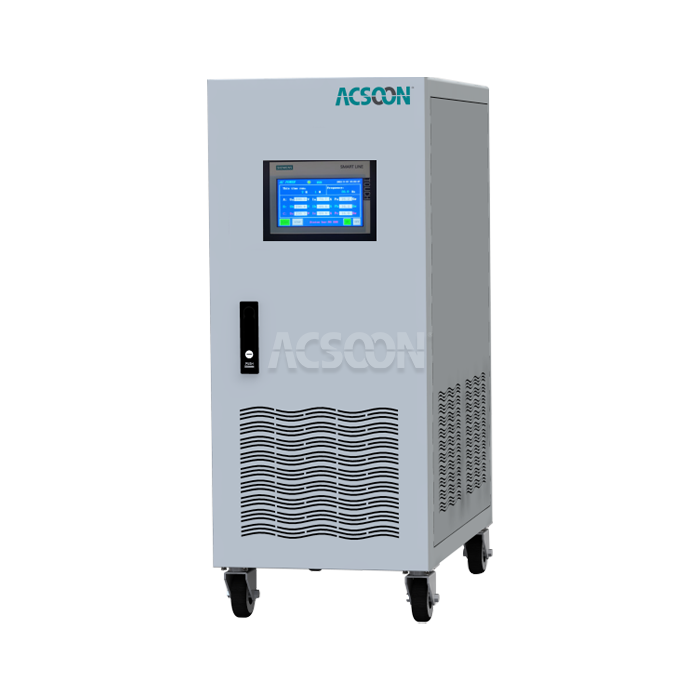

Frequency Converter 50Hz to 60Hz 20KVA

1.Rated Power: 20KVA continuous output capacity
2.Input Frequency: 50Hz (45-55Hz adjustable range)
3.Output Frequency: 60Hz stable output (57-63Hz adjustable)
4.Input Voltage: 380V/400V/415V, three-phase
5.Output Voltage: Same as input or customizable voltage conversion
6.Conversion Efficiency: ≥85% with minimal power loss

7.Key Applications: International equipment operation, manufacturing, testing facilities
8.Brand: ACSOON (support OEM)
9.Cooling System: Intelligent temperature-controlled fans.

Send Inquiry Download

Product Description

Frequency Converter 50Hz to 60Hz 20KVA | Precision Frequency Conversion System

XI'AN JERRYSTAR INSTRUMENT CO., LTD presents the specialized Frequency Converter 50Hz to 60Hz 20KVA, engineered to solve international power compatibility challenges. Our Frequency Converter 50Hz to 60Hz 20KVA provides precise frequency conversion with excellent stability, enabling seamless operation of 60Hz equipment in 50Hz regions for industrial and commercial applications.

Technical Specification

PARAMETER	SPECIFICATION
INPUT
Voltage	380V/400V/415V ±15%
Frequency	50Hz (45-55Hz range)
Phase	Three-phase + Neutral
OUTPUT
Voltage	380V/400V/415V ±1%
Frequency	60Hz ±0.1%
Waveform	Pure Sine Wave THD<3%
PERFORMANCE
Efficiency	≥85% at full load
Response Time	<20ms for frequency stabilization
Load Regulation	±1% (0-100% load)
PROTECTION
Input	Over voltage, under voltage, phase loss
Output	Overload, short circuit, over temperature
ENVIRONMENTAL
Operating Temperature	-10°C to 45°C
Cooling	Intelligent forced air cooling
Protection Grade	IP21 standard

Frequency Converter 50Hz to 60Hz 20KVA Main Features

Isolated output transformer,suitable for any unbalance loads, each single phase can be used independently
EMC compatible
Compatible with both 50Hz and 60Hz power supply network
Low harmonic distortion
Pure sine wave,sinusoidal output
Completely protection and alarm for over voltage, over current and overheating, etc
Display real-time data: voltage,current,frequency, power / power factor

Why Choose ACSOON Frequency Converter 50Hz to 60Hz 20KVA?

ACSOON Frequency Converter 50Hz to 60Hz 20KVA offers superior advantages for frequency conversion applications:

Precise Frequency Control: Crystal-controlled accuracy with ±0.1% stability

High Conversion Efficiency: Advanced power conversion technology minimizes energy loss

Pure Sine Wave Output: Clean power with THD<3% for sensitive equipment

Robust Protection: Comprehensive safeguards for both input and output systems

User-Friendly Operation: Digital display with intuitive monitoring interface

Application Areas

Our Frequency Converter 50Hz to 60Hz 20KVA serves diverse international power requirements:

Manufacturing Facilities: Operating imported 60Hz machinery in 50Hz regions

Testing Laboratories: Equipment validation and compatibility testing

Industrial Automation: Powering international control systems and equipment

Commercial Operations: Supporting international retail and service equipment

Research Institutions: Scientific research requiring specific frequency conditions

Production Lines: Manufacturing processes with international equipment mix

Our Services

Quality Control

Each Frequency Converter 50Hz to 60Hz 20KVA undergoes rigorous quality validation:

Frequency accuracy and stability testing under various load conditions

Thermal performance validation during continuous operation

Safety certification testing to international standards

Performance calibration with precision measurement instruments

Final operational verification with actual equipment loads

R&D Results

Our technical innovations in Frequency Converter 50Hz to 60Hz 20KVA technology include:

Advanced digital signal processing for precise frequency generation

Enhanced power conversion topology for improved efficiency

Smart load adaptation algorithms for varying equipment requirements

Reduced electromagnetic interference for cleaner power output

Compact thermal management design for reliable operation

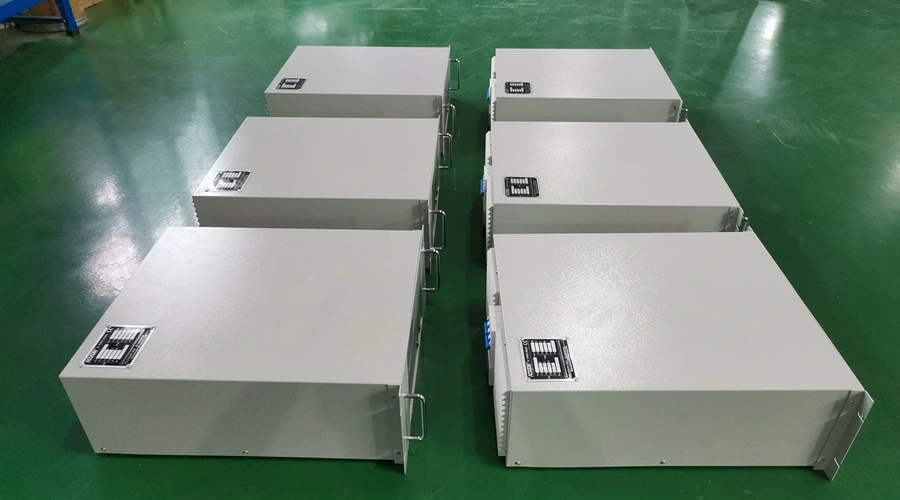

Packaging and Transportation

We ensure secure delivery of every Frequency Converter 50Hz to 60Hz 20KVA:

Industrial-grade packaging with reinforced protection

Custom packaging solutions for international shipping

Comprehensive documentation including operation manuals

Global logistics support with professional handling

After-Sales Service

We provide comprehensive support for all Frequency Converter 50Hz to 60Hz 20KVA installations:

Technical assistance for application-specific configurations

Installation guidance and system commissioning

Maintenance services and performance optimization

Remote troubleshooting and diagnostic support

Operator training for optimal system utilization

Qualification Certification

FAQ
Q1: What types of equipment are compatible with your Frequency Converter 50Hz to 60Hz 20KVA?
A: Our converter is compatible with various industrial equipment including motors, CNC machines, production equipment, and testing instruments requiring 60Hz operation.
Q2: Can your converter handle motor starting currents?
A: Yes, our converter is designed with sufficient surge capacity to handle motor starting currents and other inductive loads.
Q3: What is the installation process for your Frequency Converter 50Hz to 60Hz 20KVA?
A: Installation requires connecting three-phase input power, output to equipment, and proper grounding. Basic electrical knowledge is sufficient for installation.
Q4: How efficient is the frequency conversion process?
A: Our converters typically achieve ≥92% efficiency across the operating range, ensuring minimal energy loss during conversion.
Q5: What protection features are included for equipment safety?
A: Standard protections include over voltage, over current, short circuit, overload, and thermal protection with automatic monitoring systems.

Contact Us

For frequency conversion solutions or technical specifications: acpower@acsoonpower.com , or submit your requirements using the form at the bottom of our website.
