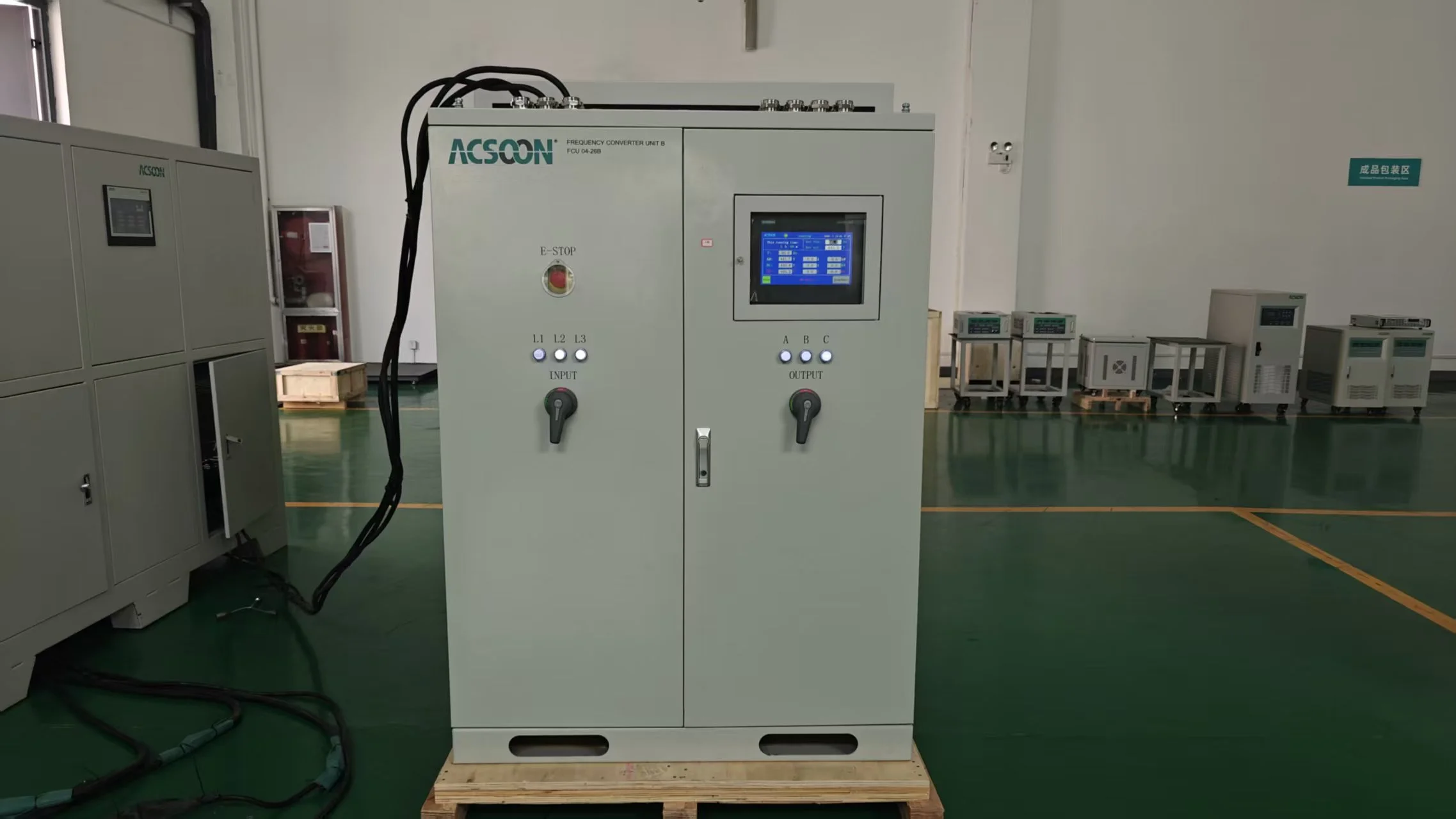

General Purpose AC Test Source
2.Technology: IGBT-based PWM Static Converter with Digital Signal Processor (DSP)
3.Input: 110V/220V Single Phase or 380V/400V Three Phase, 50/60Hz
4.Output: 0-300V Adjustable, 45-500Hz Variable Frequency, Pure Sine Wave
5.Applications: R&D Laboratories, Production Testing, Component Evaluation, QA/QC Departments
6.Core Features: Precise Voltage/Frequency Control, High Stability, User-Friendly Operation, Compact Design
7.Brand: ACSOON (Bench-top & Rackmount Models Available).
- Product Description

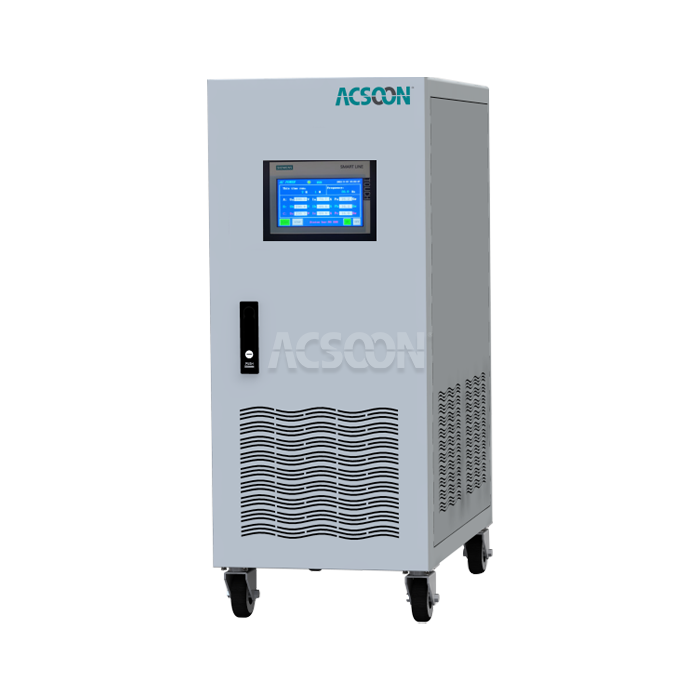

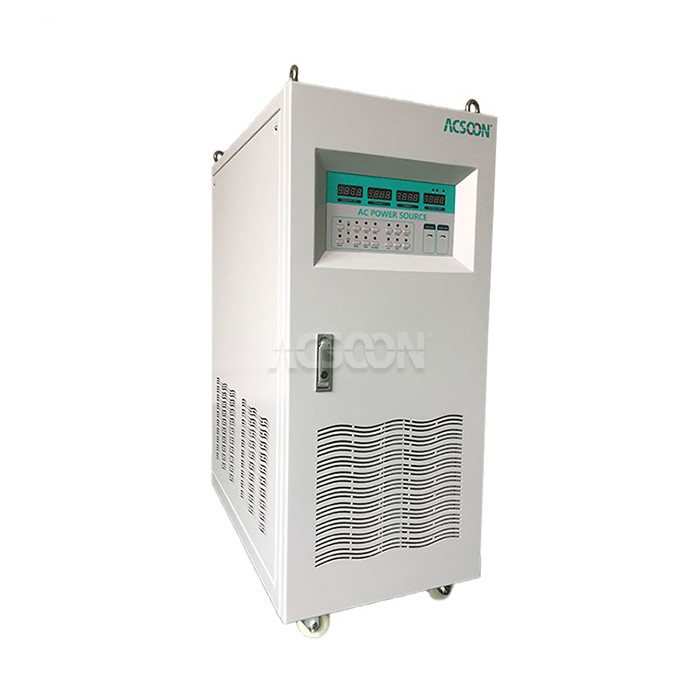

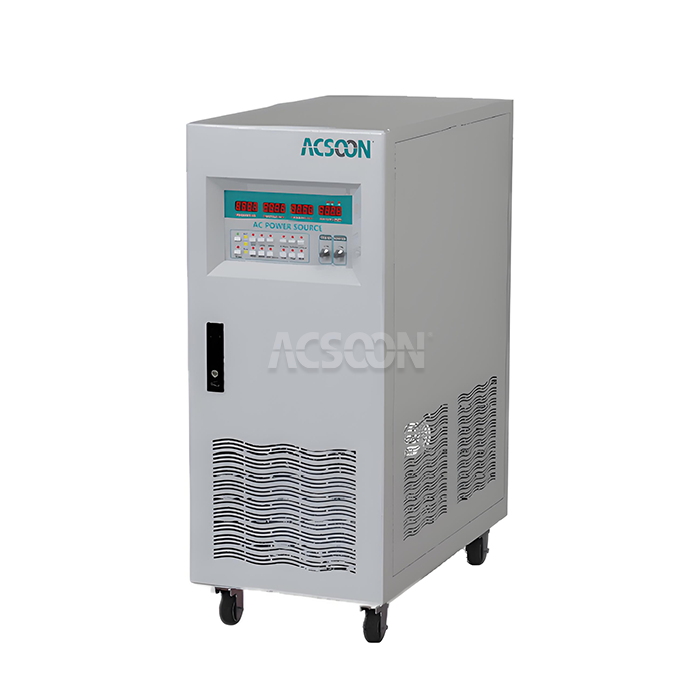

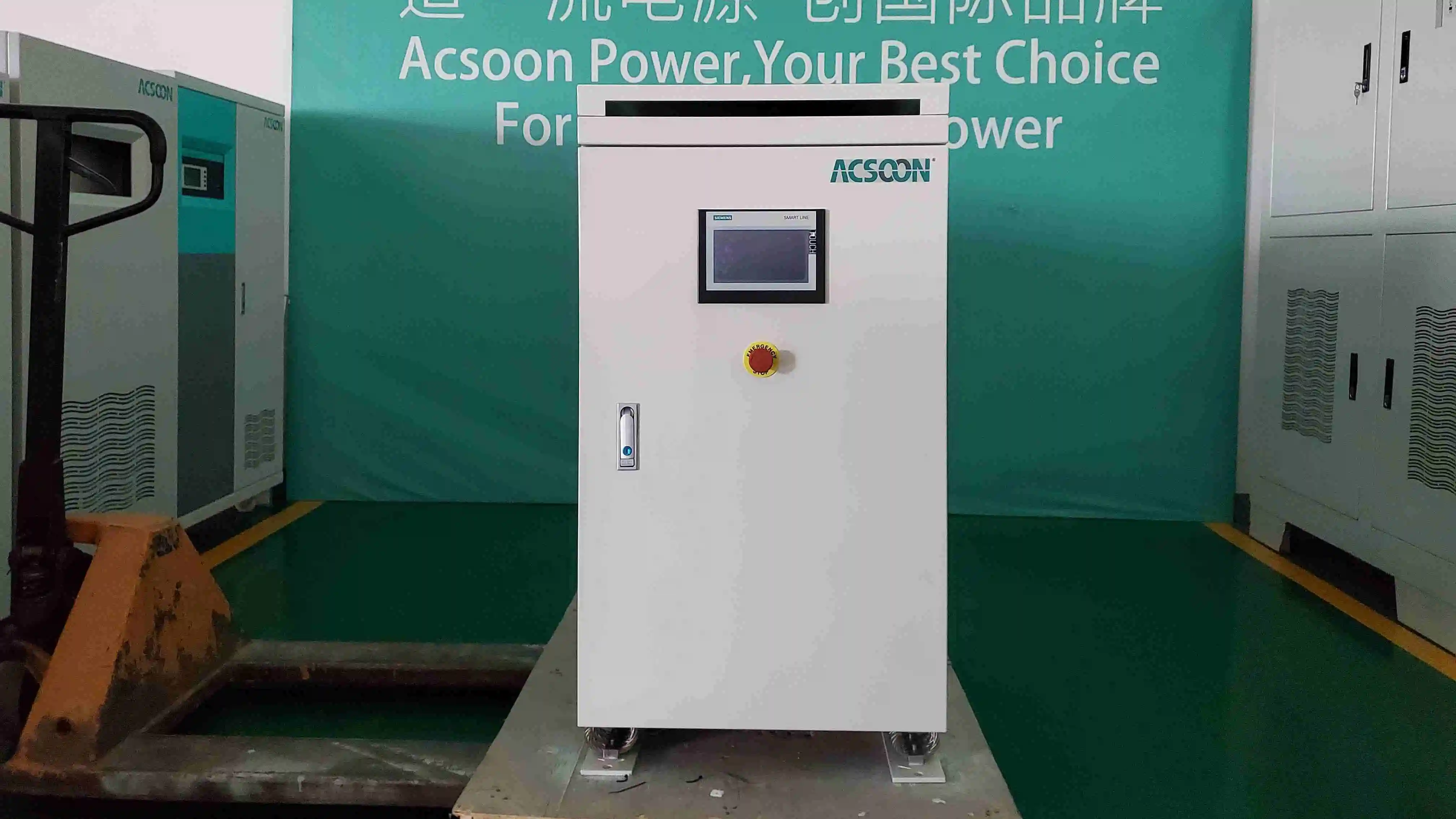

General Purpose AC Test Source | Versatile Programmable AC Power Supply
XI'AN JERRYSTAR INSTRUMENT CO., LTD presents the versatile General Purpose AC Test Source, a reliable and flexible AC power solution designed for a wide range of testing and development applications. This programmable power supply delivers clean, stable, and adjustable AC output, enabling engineers and technicians to power prototypes, simulate various line conditions, and conduct functional tests with confidence and precision.
Datasheet
| Parameter | Specification |
|---|---|
| Model Series | ACSOON AF400M Series |
| Input | 1-Phase: 110V/220V ±10%; 3-Phase: 380V/400V ±10%, 50/60Hz |
| Output | Voltage: 0-150V / 0-300V (L-N) adjustable Frequency: 45-500Hz adjustable Power: 1kVA, 2kVA, 3kVA, 5kVA, 10kVA, 15kVA, 20kVA, 30kVA, 45kVA |
| Output THD | < 2% @ linear load |
| Regulation | Voltage: ≤ ±1% FS, Frequency: ≤ ±0.1% FS |
| Display | LED/LCD (Voltage, Current, Frequency, Power) |
| Cooling | Forced Air |
| Protections | Overload, Short Circuit, Over Temperature |
| Operating Temp. | -10°C to 40°C |
General Purpose AC Test Source Main Features
- Wide Adjustment Range: Output voltage adjustable from 0 to rated maximum; frequency adjustable from 45Hz to 500Hz.
- High Accuracy & Stability: Precise regulation ensures consistent output regardless of line or load variations.
- Comprehensive Protections: Built-in safeguards against overload, short circuit, and over-temperature protect both the source and equipment under test.
- Multiple Display Options: Digital meters show output voltage, current, frequency, and power for complete test monitoring.

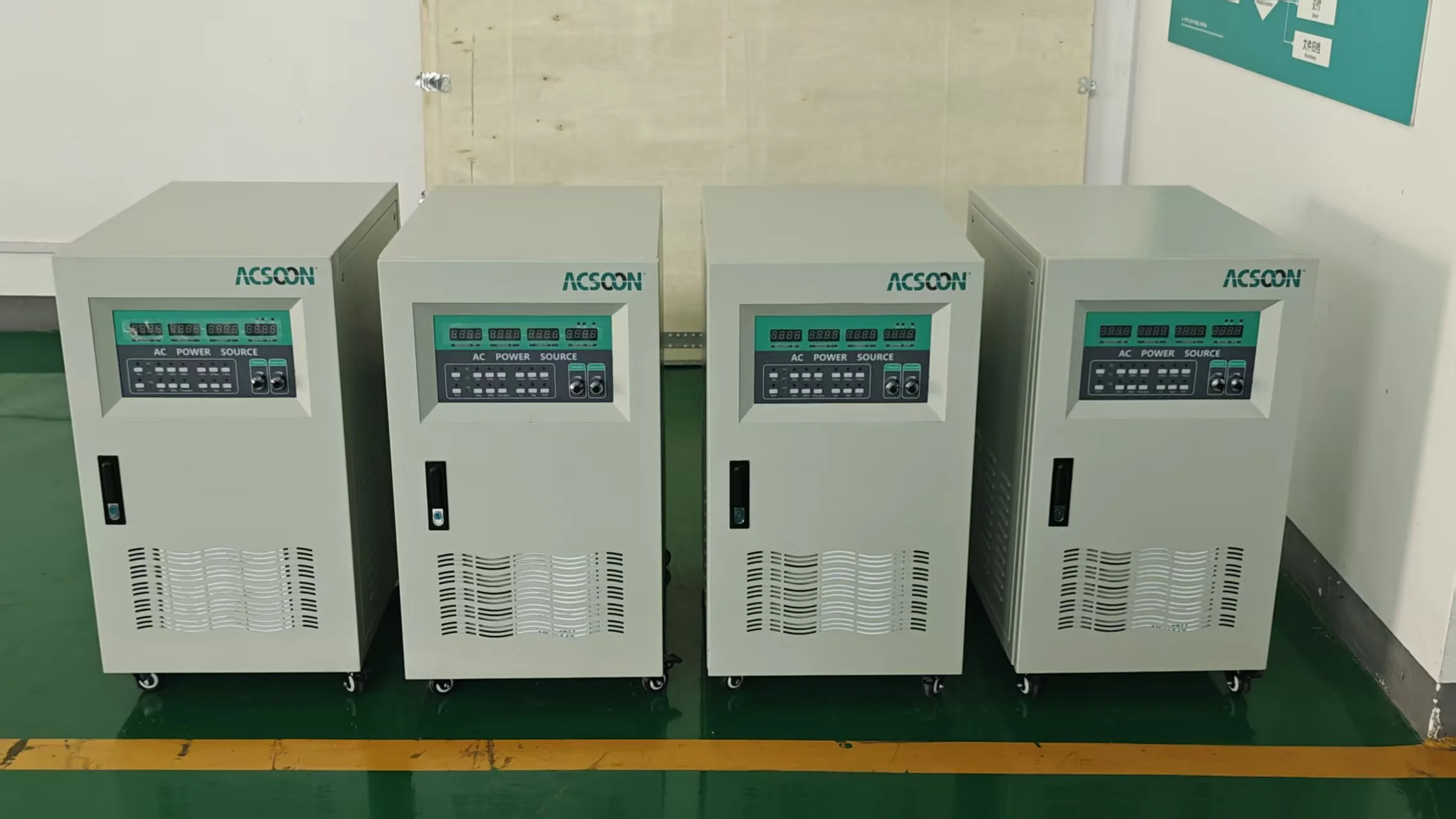

General Purpose AC Test Source Application Areas
- Research & Development: Powering prototypes, testing circuits, and validating new designs under various AC conditions.
- Production Line Testing: Functional testing of assembled products, PCBs, and sub-assemblies before shipment.
- Educational Laboratories: Providing a safe, adjustable AC source for student experiments and demonstrations.
- Service & Repair Shops: Testing repaired equipment and power supplies to verify proper operation.
Why Choose ACSOON General Purpose AC Test Source?
- Versatile & Adaptable: Suitable for countless applications across R&D, production, and education with adjustable voltage and frequency.
- Clean & Stable Output: Provides pure sine wave power with low distortion, ensuring accurate and repeatable test results.
- User-Friendly Design: Intuitive controls and clear digital display make setup and operation simple for all users.
- Compact & Space-Saving: Bench-top form factor fits easily on crowded lab benches or integrates into test racks.
Our Services
Quality Control

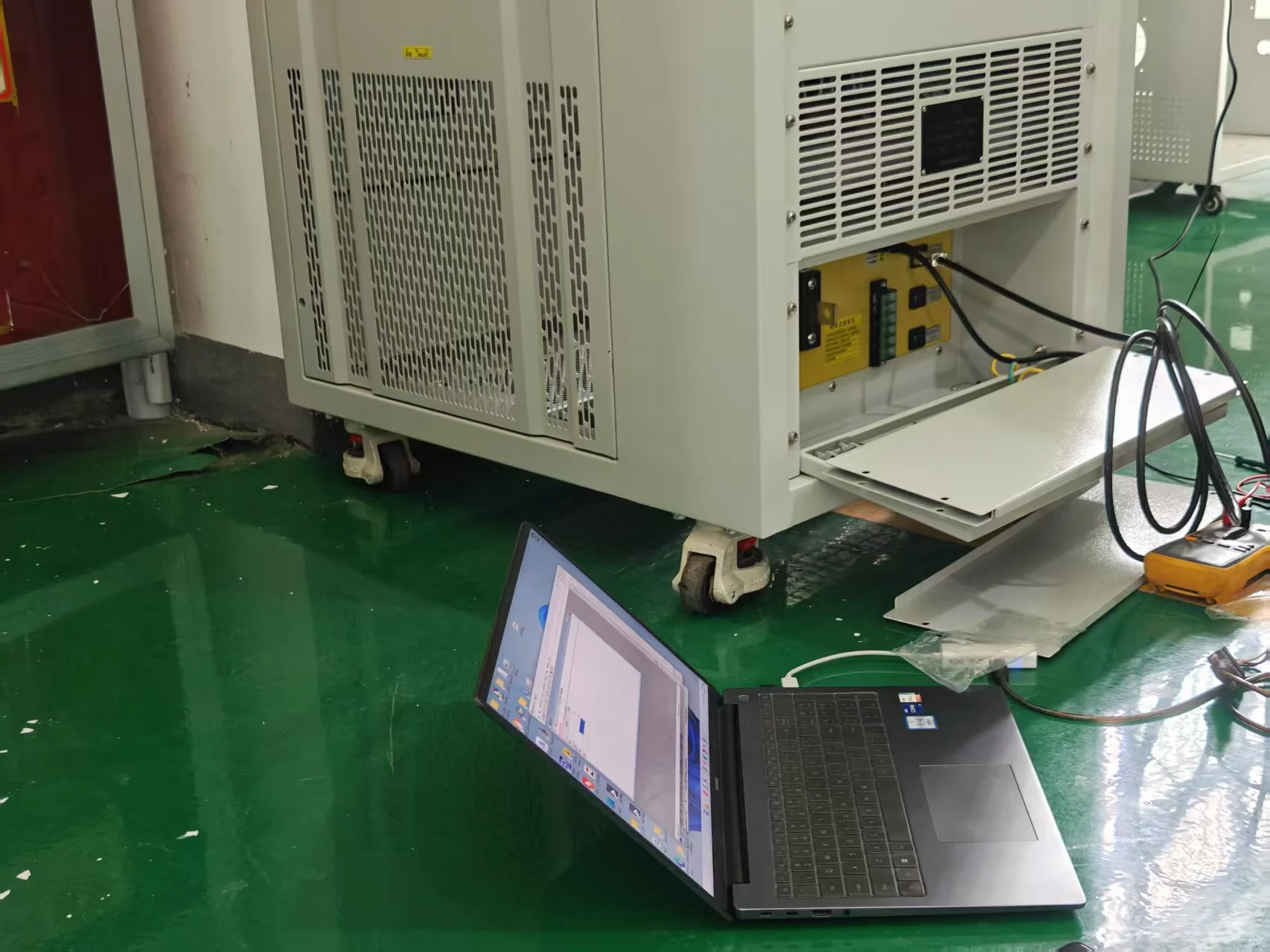

- Component Pre-Testing: Key components like IGBTs and control boards are tested before assembly.
- Full-Load Burn-In Test: Each unit operates at 100% rated load to verify thermal and electrical stability.
- Output Waveform Analysis: Output purity (THD) and voltage accuracy are measured and calibrated.
- Final Safety Inspection: Comprehensive check of all protective functions and electrical safety.
R&D Results

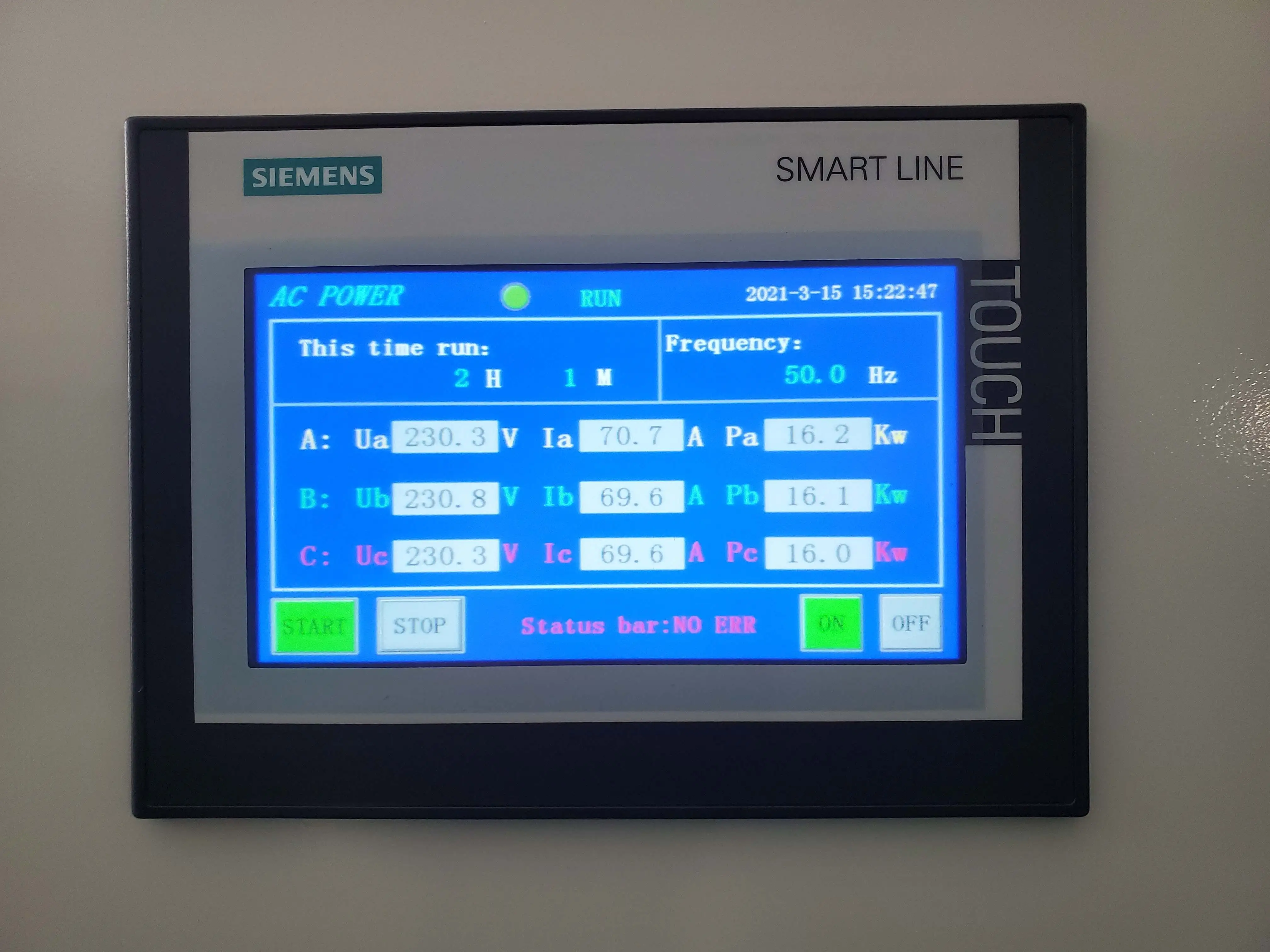

Optimized Control Algorithm: Developed DSP-based control for faster response and higher output stability.
Compact Power Density: Achieved smaller footprint through efficient component layout and thermal management.
User-Centric Interface: Designed intuitive front panel with tactile controls and clear display for ease of use.
Reliable Thermal Design: Engineered cooling system for stable operation across extended duty cycles.
Packaging and Transportation
- Secure Protective Packaging: Unit is packed in foam-cushioned, double-wall cardboard box.
- Complete Accessory Kit: Includes power cord, user manual, and calibration certificate.
- Clear Identification: External labels indicate model, serial number, and specifications.
- Global Shipping: Shipped via reliable carriers with full tracking and insurance.
After‑Sales Service
We offer an 18-month warranty, responsive technical support via email and phone, and availability of common spare parts for long-term reliability.
Qualification Certification
ISO 9001:2015 Certified manufacturing quality system;CE Marked for safety and EMC compliance;Test Report Provided: Each unit ships with a performance verification test report.
FAQ |
|---|
| Q1: What is the main use of a General Purpose AC Test Source? |
| A: It is used to provide a controlled, adjustable AC voltage and frequency to power and test a wide variety of electrical and electronic devices in labs, production lines, and service centers. |
| Q2: Can it simulate different international power line conditions? |
| A: Yes. With adjustable voltage (0-300V) and frequency (45-500Hz), it can simulate power grids from most countries, such as 115V/60Hz (USA) or 230V/50Hz (Europe). |
| Q3: Is it suitable for testing three-phase equipment? |
| A: Three-phase models are available for testing motors, drives, and other three-phase devices. |
| Q4: What is the difference between this and a variable transformer (Variac)? |
| A: A Variac only adjusts voltage, and its output waveform can be distorted. This AC Test Source provides a clean, pure sine wave, adjustable frequency, precise regulation, and built-in measurements, offering far superior control and accuracy for testing. |
| Q5: How do I select the right power rating (kVA)? |
| A: The required kVA should exceed the power consumption of the device under test. For motors or inductive loads, a higher rating may be needed to handle starting current. Our team can assist with sizing. |
Contact Us
For technical specifications or global solutions for the General Purpose AC Test Source: acpower@acsoonpower.com, or submit your requirements using the form at the bottom of our website.
